Among the large family of welding equipment, various models each perform their own duties, jointly building a solid connection for industrial production. From the
Friction Welding Machine that generates heat through friction to achieve welding, to the
Spot Welding Machine that focuses on local point welding; From the
Butt Welding Machine that can join and weld the ends of two similar materials, to the
Seam Welding Machine that excels at sealing weld seams, and then to the high-precision
Laser Welding Machine for Steel Ring welding, Each device plays an irreplaceable role in a specific scenario. Today, the outstanding
Stud Welding Machine that we are going to focus on- Non-Stick Coating
Capacitor Discharge Stud Welder, has become an ideal choice in many industrial production due to its unique advantages.
This Non-Stick Coating Capacitor Discharge Stud Welder, while continuing the feature of efficient studs connection of the traditional Stud Welding Machine, innovatively adopts the non-stick coating technology. Compared with other welding machines, it can effectively avoid the problem of material adhesion during the welding process, greatly reduce the subsequent cleaning work, and improve the overall welding efficiency. Whether compared with the heavy connection of large workpieces handled by the Friction Welding Machine or the precise Spot Welding of the Spot Welding Machine, it shows more convenient and cleaner advantages in the field of studs welding.
When it comes to weld seams that need to be sealed, the Seam Welding Machine undoubtedly performs well. However, for the connection between studs and workpieces, Non-Stick Coating Capacitor Discharge Stud Welder stands out with a faster welding process and stable welding quality. In different application scenarios where Butt Welding machines handle end docking, it focuses on the firm fixation of studs, providing reliable connection guarantees for the assembly of equipment. Even in the face of the high precision of the
Laser Welding Machine for Steel Ring, this equipment is not inferior in the accuracy and consistency of studs welding. Moreover, the low maintenance feature brought by the non-stick coating gives it a significant advantage in mass production.
Choosing Non-Stick Coating Capacitor Discharge Stud Welder is not only choosing an efficient Stud Welding Machine, but also finding a reliable partner with strong adaptability and stable performance among diverse welding requirements. Provide solid support for the smooth progress of industrial production.
Ⅰ. Description
1. It’s used for 100-500mm Aluminum pan
2. use Soyer brand model BMK-12W arc stud welding machine imported from Germany
3. it’s suitable for single ear and double ears welding, easy to change it and also can change the manual welding and automatic welding.
4. work process: loading by manual, cross positioning LOGO by laser, Can be used with laser to clean paint or stains, vibrating disk loading, automatic arc welding, Manual torque test, manual unloading
5. should use special slotted arc welding studs and use 99.999% pure argon during welding

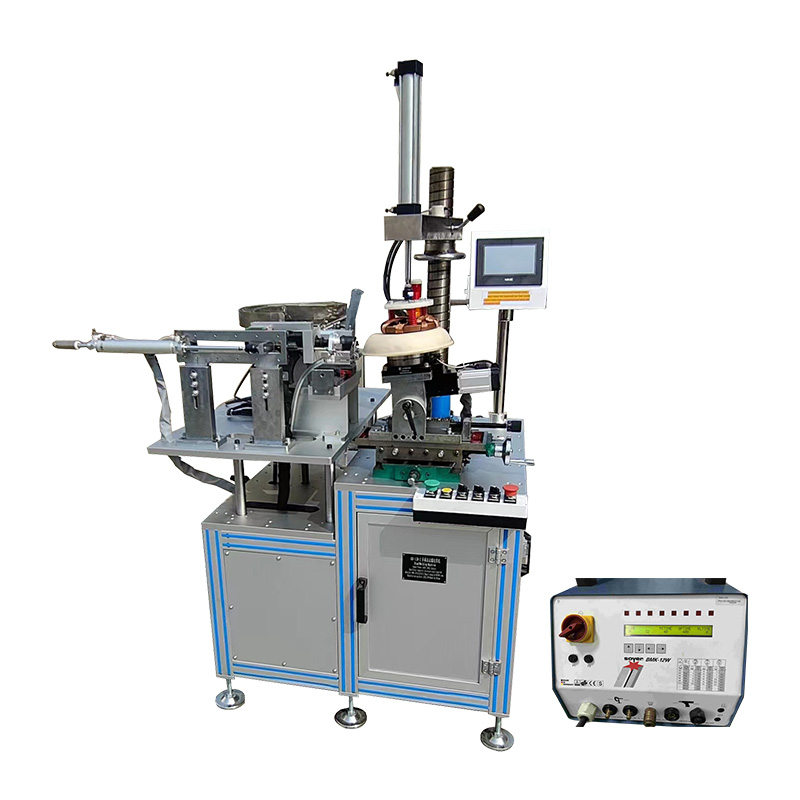

6. The structure of the equipment is mainly divided into two parts, the left is the vibration disk that automatically feeds the material to the torch head (it can be lifted up and down according to the welding height of the pan), and the right is the fixture and control part which can swung left and right to adjust the welding angle, so that make up the angle insufficient
Ⅱ. welding process
Welding pattern：(Both the ear buckle and the pan body are made of aluminum alloy. The pan body contains a variety of specifications from 100-500mm.)
Welding requirement: torsion after welding≥15N/M
Ⅲ.Power supply parameters
| Input Voltage and Phase Number | Three phase, 380V ± 10%, 3 phase |
| Rated frequency | 50/60HZ |
| Input Power | 200VA |
| Input Current | 0.3 A / phase |
| Instantaneous current | 3 × 400V AC 60A / phase |
| Rated power | 8kVA |
| Open circuit voltage | 76V |
| Insulation grade | IP21 |
| Protect air flow | 4-5 L/min |
| size | 360mm×325mm×500mm ( W×H×D ) |
| weight | 48KG |
| colour | RAL 5009 Sky Blue |
| Cable length | High flexible cable(standard) of 5 M each for welding gun, ground line and control line |
