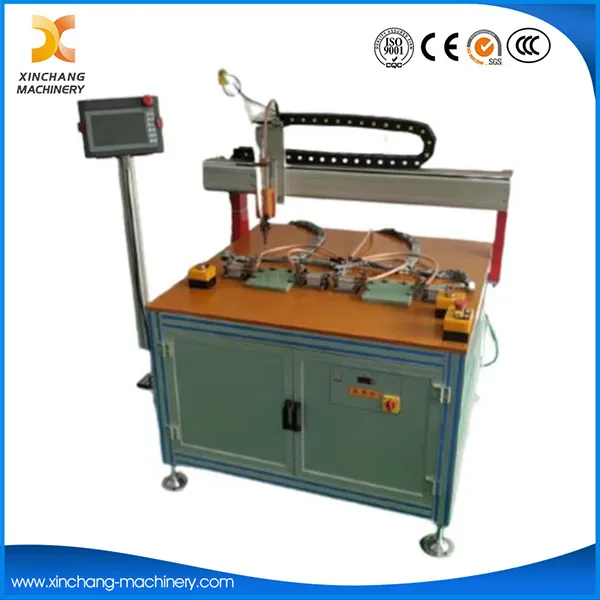

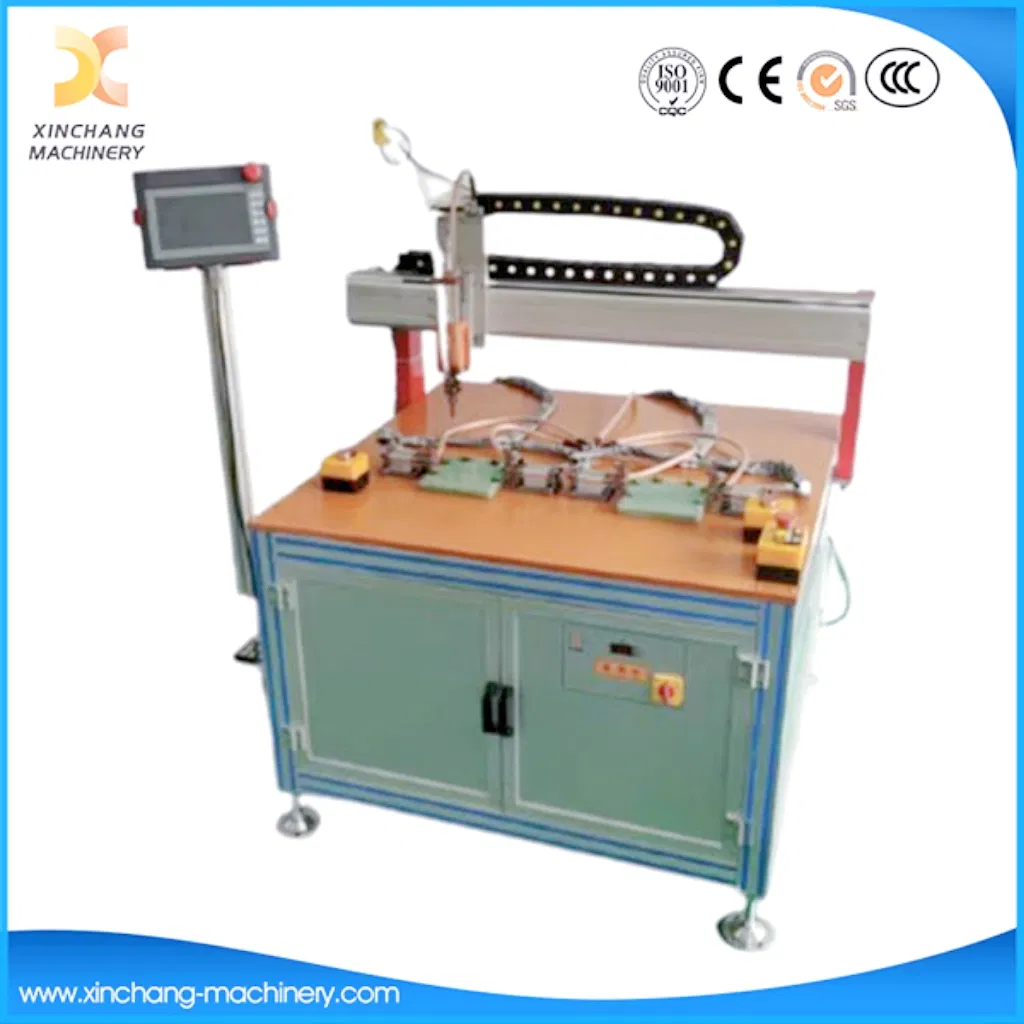

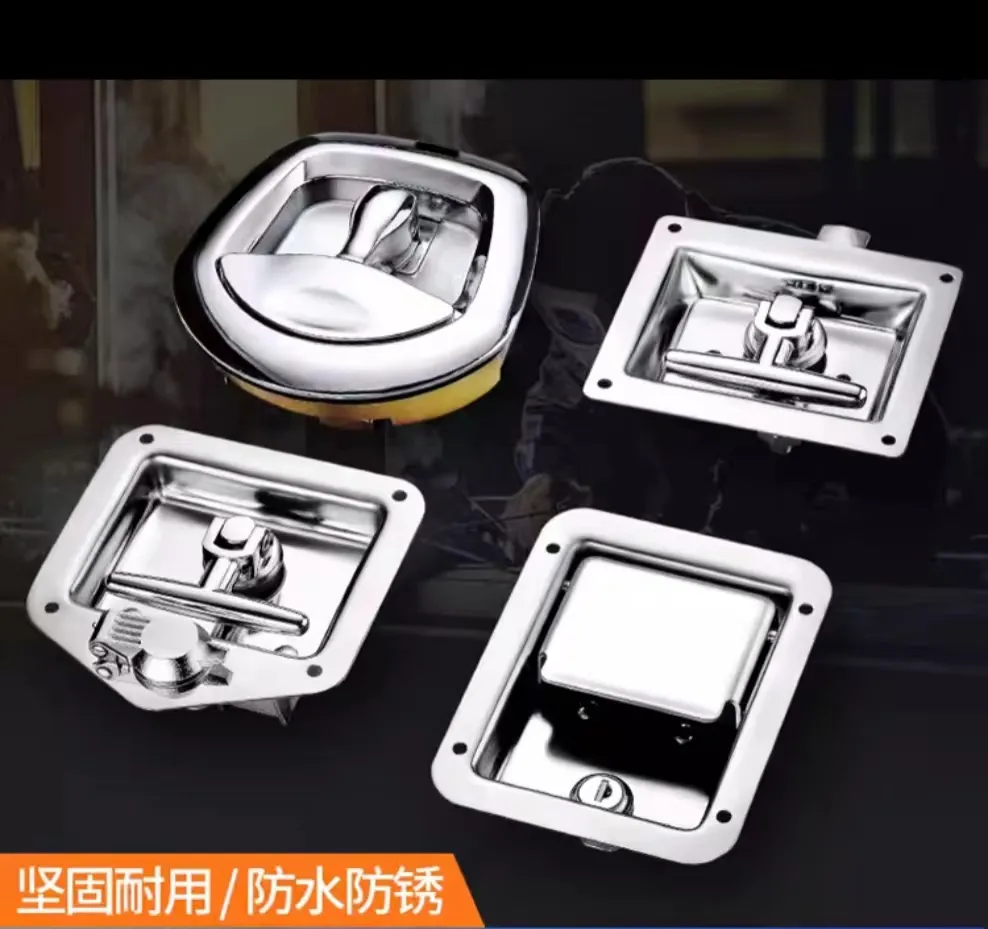

This two-axis double-station Automatic Stud Welding Machine is independently developed by our company. As a professional Stud Welding Machine, it is widely used for various metal products in lock industry, sheet metal cabinets, kitchen utensils, household hardware, construction tools and other fields, and can also be customized as a Trowel Stud Welding Machine For Trowel.
It mainly consists of four parts: machine body, fixture, pneumatic control and welding power source. It adopts British TRIO robot control system, Taiwan Hiwin linear guide rail, Taiwan Airtec pneumatic components, etc. The equipment is powerful, easy to operate, with stable and smooth operation and high precision.
This equipment adopts left and right double-station automatic circulation system. Loading and unloading are carried out on the left and right stations without interference, greatly improving production efficiency. The equipment is controlled by handheld touch screen and buttons, and the operation interface supports Chinese, English, Japanese and other languages, which is simple and easy to learn.
| Stroke | X 800MM, Y 500MM, |
| Max.speed | 900mm/s, accelerated speed 3000mm/s |
| The machine frame | assembled with domestic high-quality industrial aluminum profiles, and the countertop is made of insulating bakelite. |
| Overall size | L1300mmxW1100mmxH1300mm |
| Input volts | 220V/50Hz single phase |
| Power | 2KW |
| Max program storage quantity | 159 nos&500 point coordinate |
| Language of HMI | Chinese, English, Japanese and other languages |
Machine Advantages:

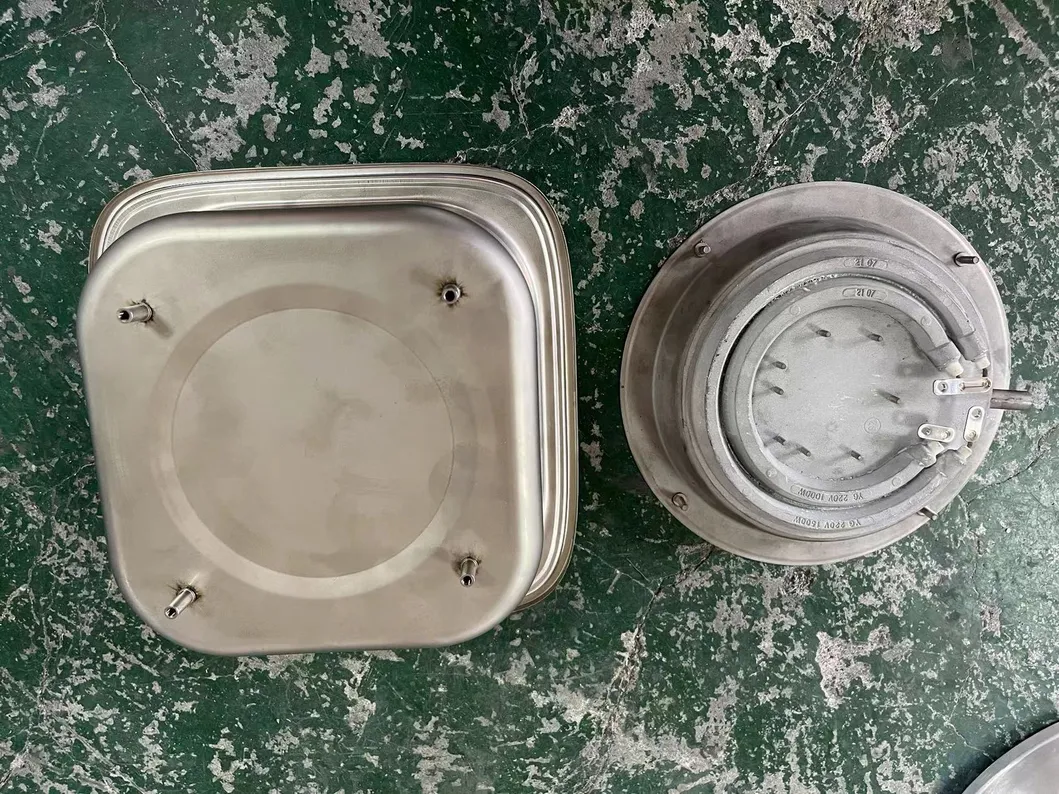

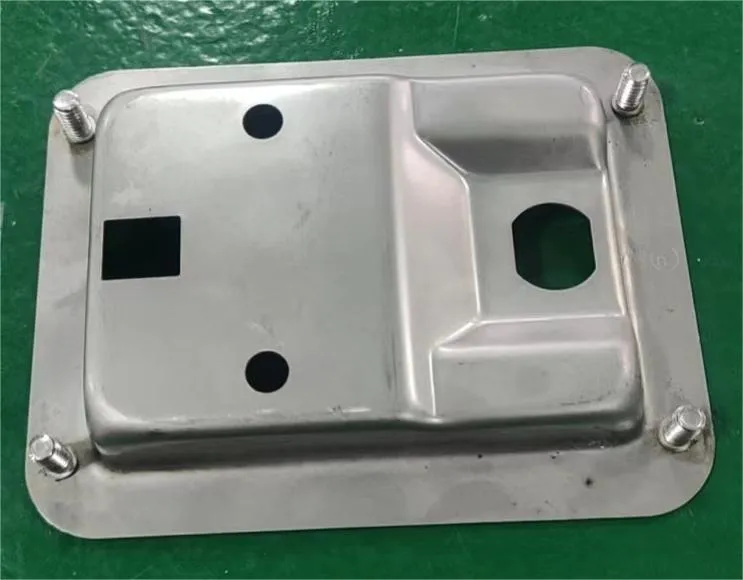

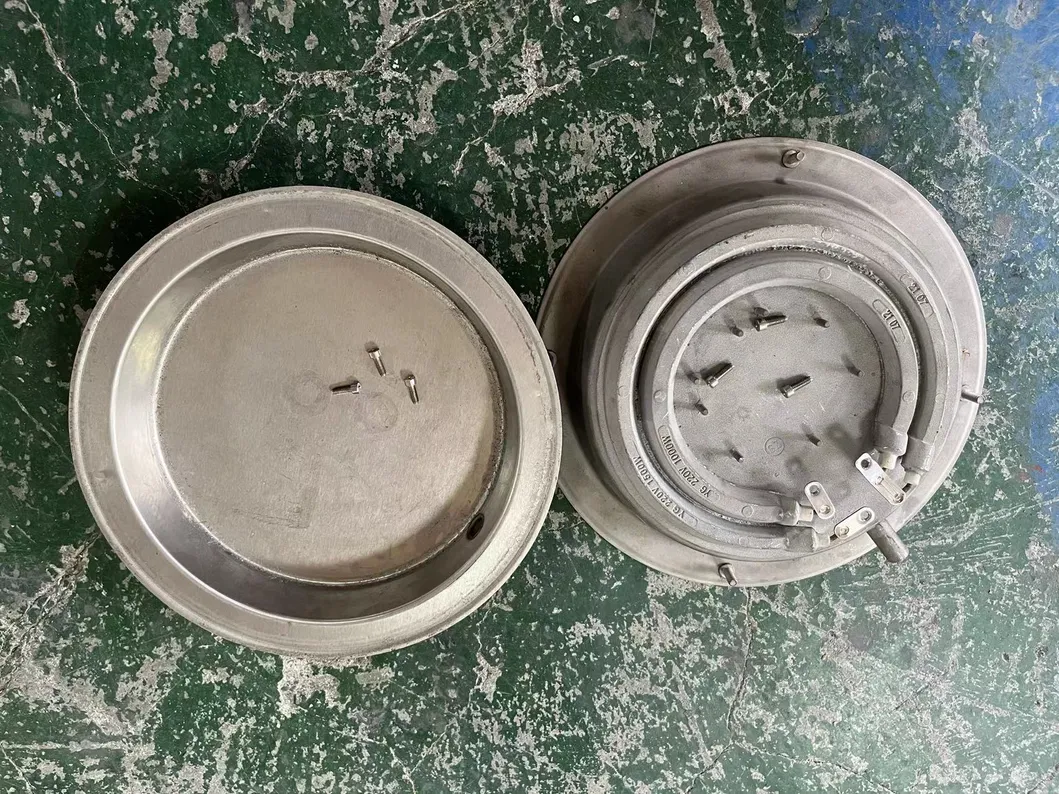

The stud(screws) welded by this equipment are automatically conveyed by pneumatics, using traditional classic structure, multi-sensor detection system, with high scalability, high compatibility, easy maintenance, more favorable guarantee of equipment stability, output accuracy as high as 99% above. The welding slag on the welding surface is full and the welding strength is high, which can deform or even break the product surface. After welding, the back of the product achieves a traceless effect.
