This Automatic Stud Welding Machine is specially used for welding studs on trowel panels, and as a dedicated Trowel Stud Welding Machine, its product features are as follows:
Product specifications: X: 1000, Z: 50 mm. This Stud Welding Machine adopts energy storage capacitor charging and discharging, with fast welding speed, enabling quick compensation and pressurization at discharge. It is equipped with a DC welding power source, featuring small spatter, reliable quality and smooth welding joints.
Fast-response welding cylinder with a maximum stroke of 50 mm, delivering high efficiency, stability, reliability and instant pressure compensation.
All key components are branded high-grade parts, ensuring stable performance and welding quality; they are exclusive accessories for Studs Welding Machine For Trowel.

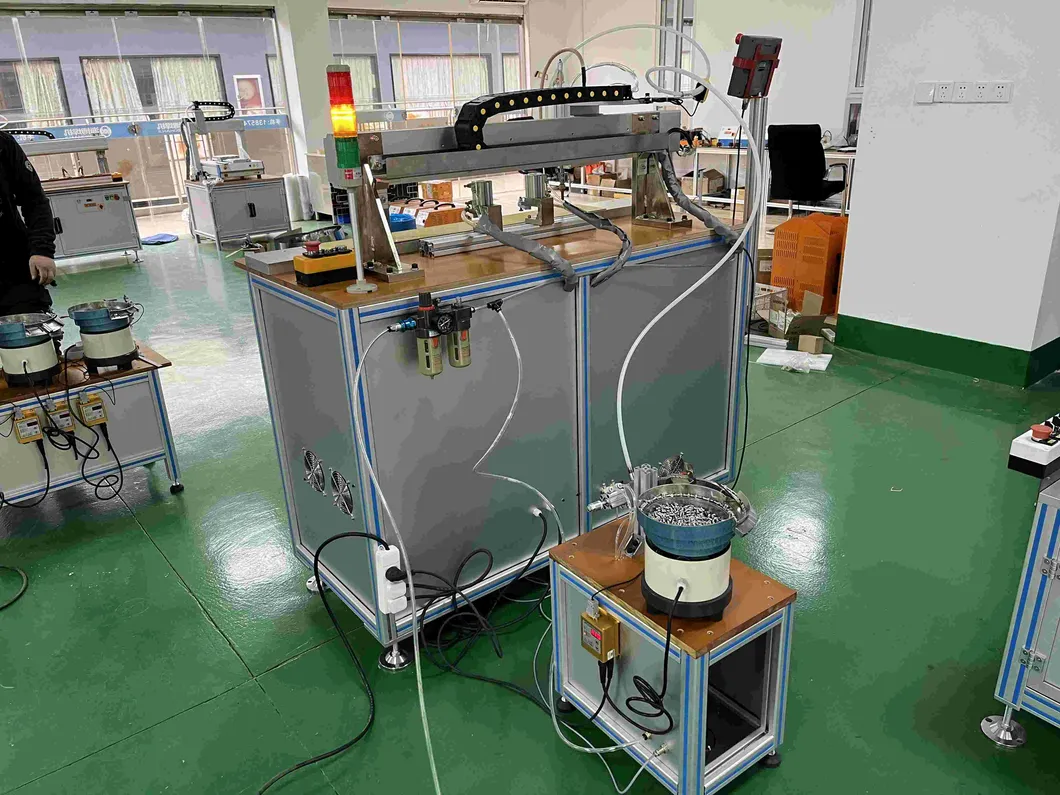

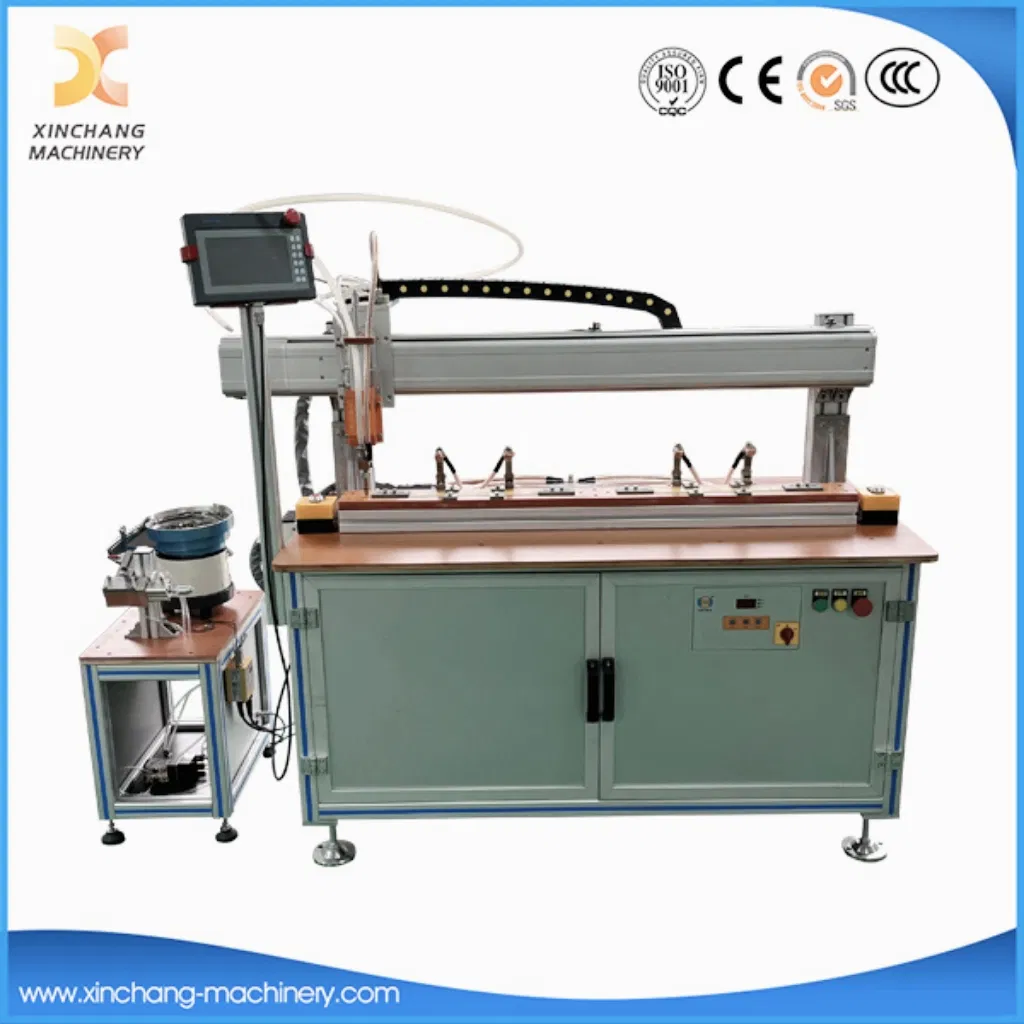

The outline drawing of the machine is as follows.
Main composition

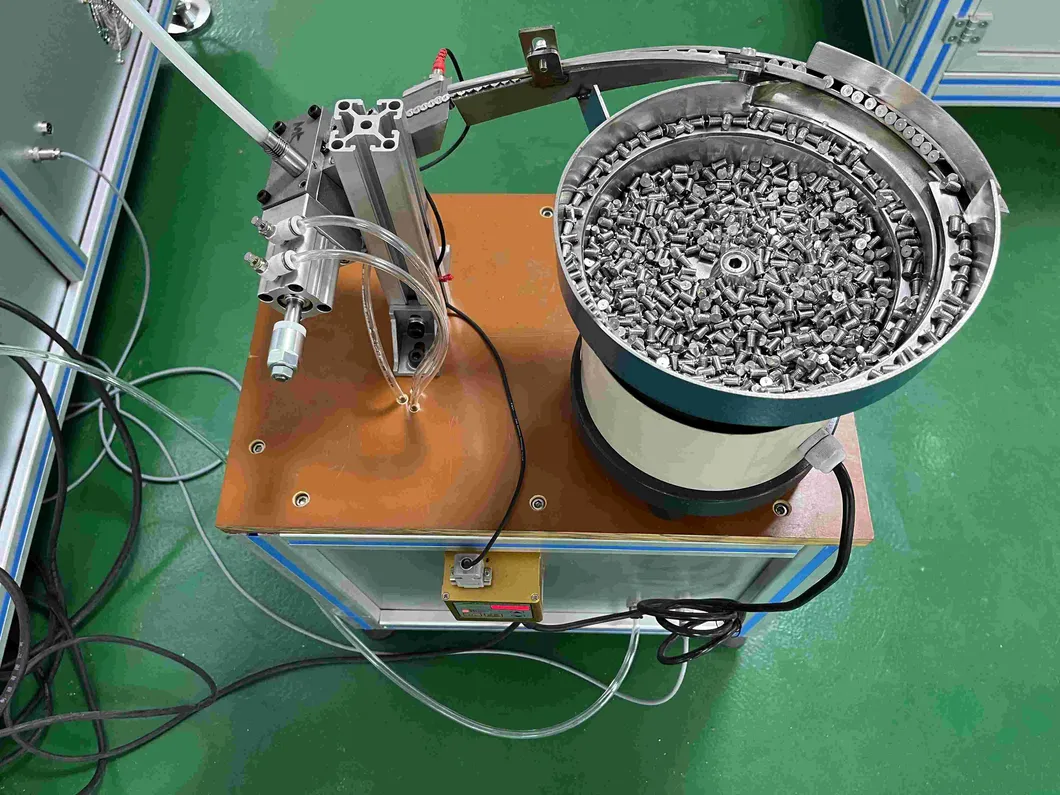

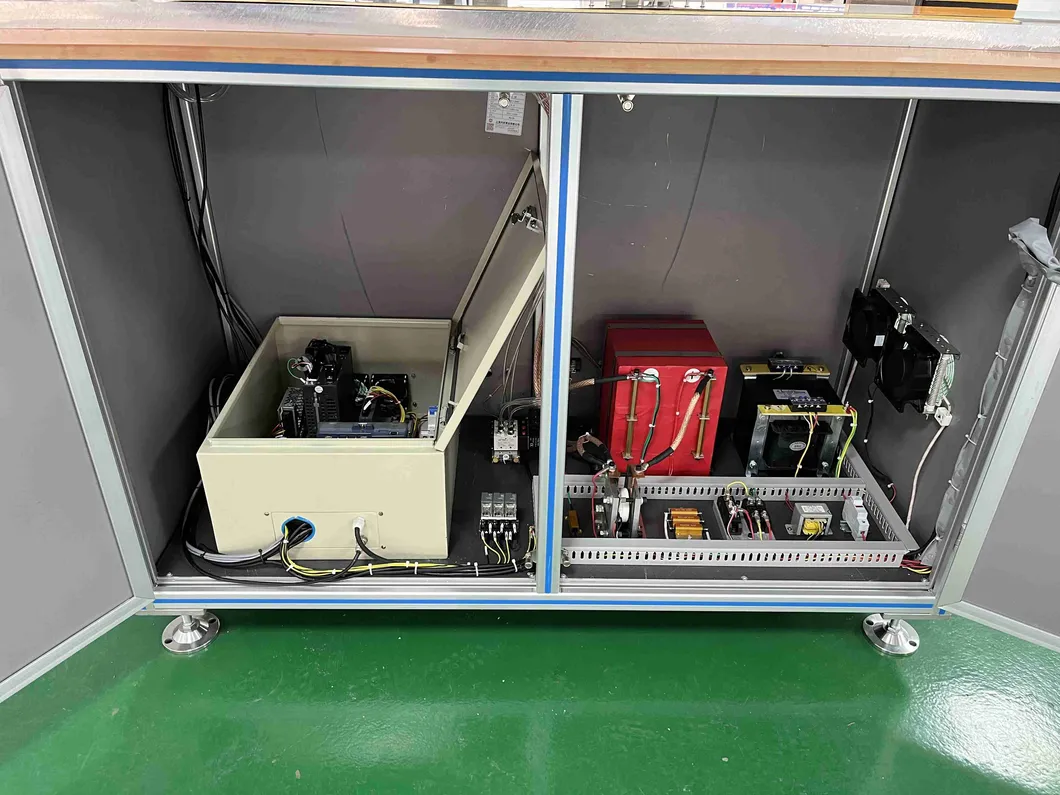

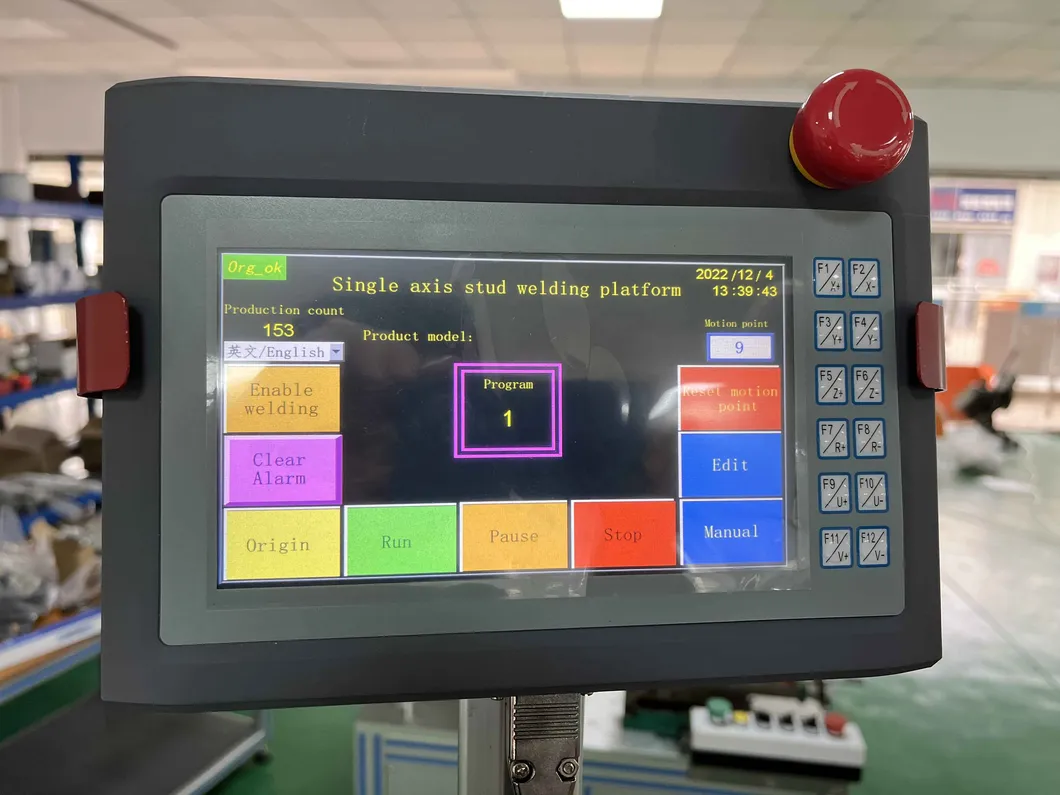

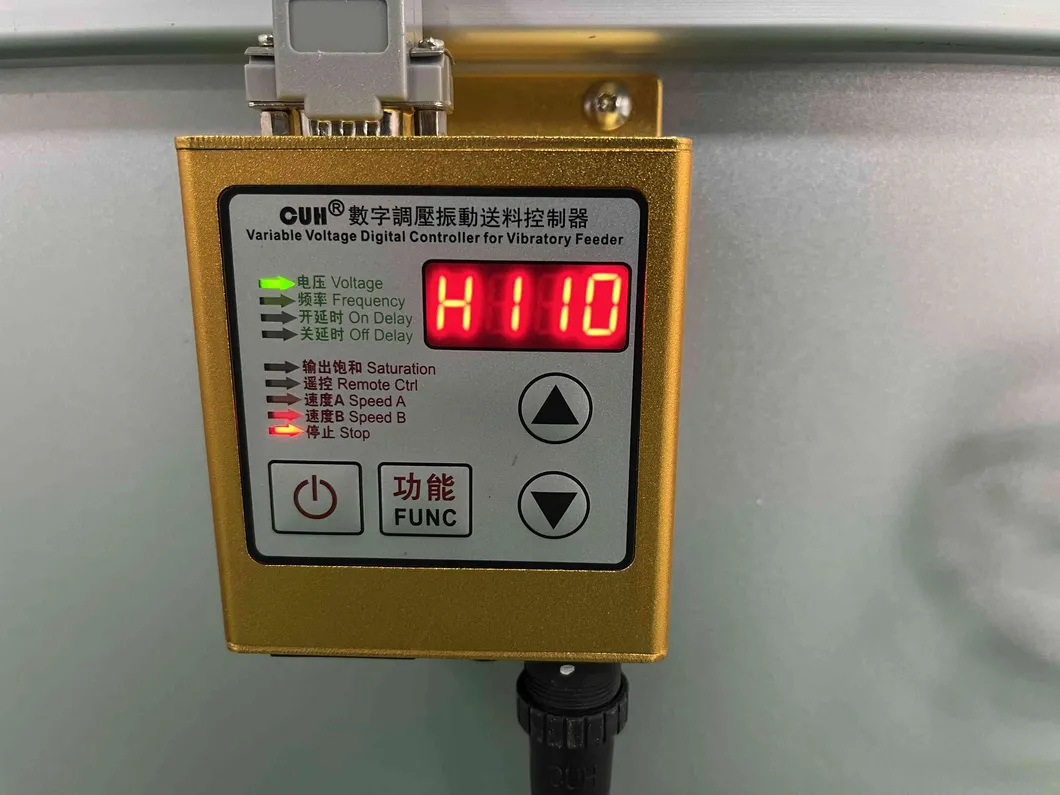

The equipment is mainly composed of: 1, frame; 2, welding power source; 3, isolation transformer; 4, X, Z two-axis module; 5, CNC stud welding gun; 6, six-axis motion card, 7, automatic stud(bolt) feeding Mechanism, 8, several main components such as cylinders and sensors. | 1 | Model | HB-1000 |
| 2 | Rated volts | 220V± 15% 50HZ |
| 3 | Rated power | 3KVA |
| 4 | Air pressure(Mpa) | 0.6-0.8 |
| 5 | Insulation grade | F |
| 6 | Welding cylinder stroke(mm) | 50 |
| 7 | Ajustment range of Volts(V) | 40-180 |
Main component list | No. | Name | Model | QTY | Origin |
| 1 | Machine frame | 1425X700X1250 | 1 | Self-made |
| 2 | Motion control device | HT-AA1-1A | 1 | TRIO,UK |
| 3 | Air cylinder of slider | SMC16-50 | 1 | JAPAN |
| 4 | Motion module | 1000 | 1 | HIWIN |
| 5 | Welding gun | HB-002 | 1 | Self-made |
| 7 | Welder | HB-5000 | 1 | |
| 8 | Servo motor | 750W | 1 | Tama Kawa, Japan |
| 9 | HMI | AHT00058 | 1 | WEINVIEW |
| 10 | Driver | 400 | 1 | INVT |
| 11 | Postioning die | | 2 | Self-made |
| 12 | Stud feeding device | M4X6 | 1 | Self-made |
| 13 | Frame of stud feeding | 500X300X650 | 1 | Self-made |
