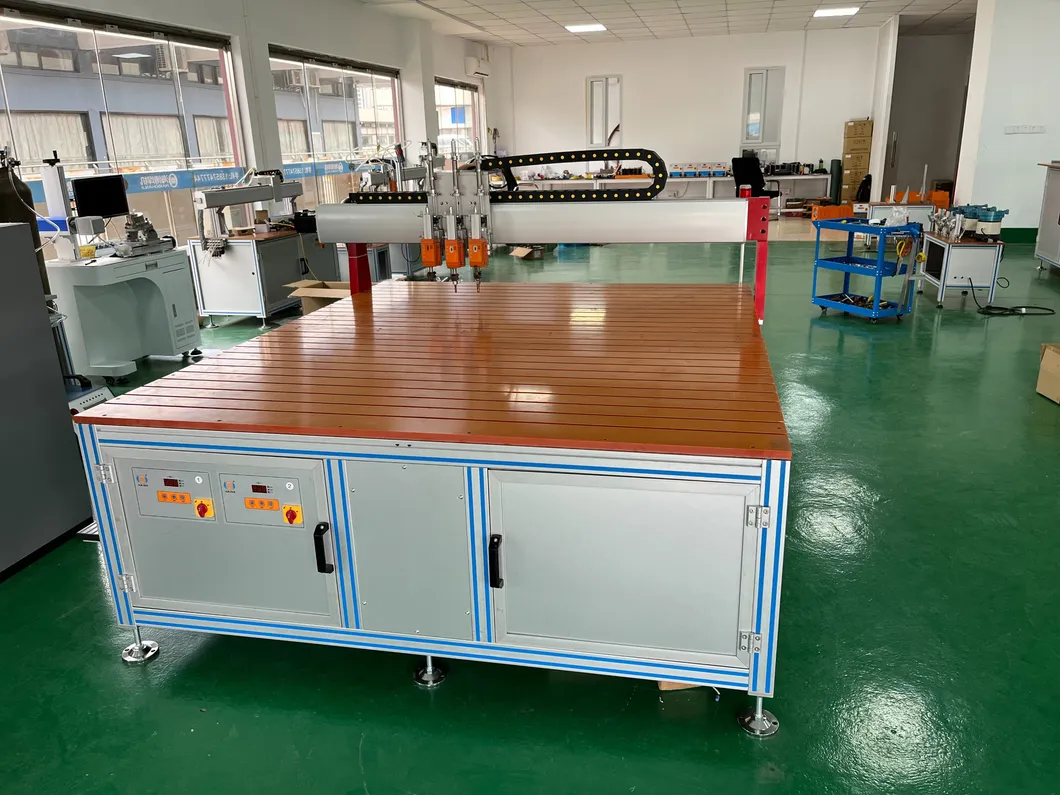

Automatic Plastering Trowel Stud Welding Machine

Min. Order:1 Piece/Pieces

Product Attributes
Packaging & Delivery
Other information

Product Attributes

Work Form: One-Body

Type: Stud Welding Machine

Certificate: CE

Welder Brand: Soyer (Made in Germany)

Max. Pan Diameter: 500mm

Insulation Grade: IP21

Transport Package: Wooden Case

Specification: 147x80*160cm

Trademark: Xin chang

Origin: Ningbo China

HS Code: 8515319900

Customization: Available

Style: Vertical

Electric Current: Dc

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Packaging & Delivery

Selling Units:

Piece/Pieces

The welding machine is for welding studs on the trowel panel, and its product application scope:

1. Product specifications: X: 1000, Z: 50 mm, the welding machine uses energy storage capacitors to charge and discharge, the welding speed is fast, and it can quickly compensate and pressurize at the moment of discharge. The power source is a DC welding power source, with small spatter during welding, reliable quality and beautiful welding joints.
2. Fast welding cylinder, the maximum stroke is 50mm, which has excellent characteristics such as high efficiency, stability, reliability, instant compensation and pressure.
3. In order to ensure the overall performance of the equipment and the quality of product welding, all key original components are of well-known brands, and their product quality is high-quality and reliable, and they are all special accessories for Stud Welding Machines.

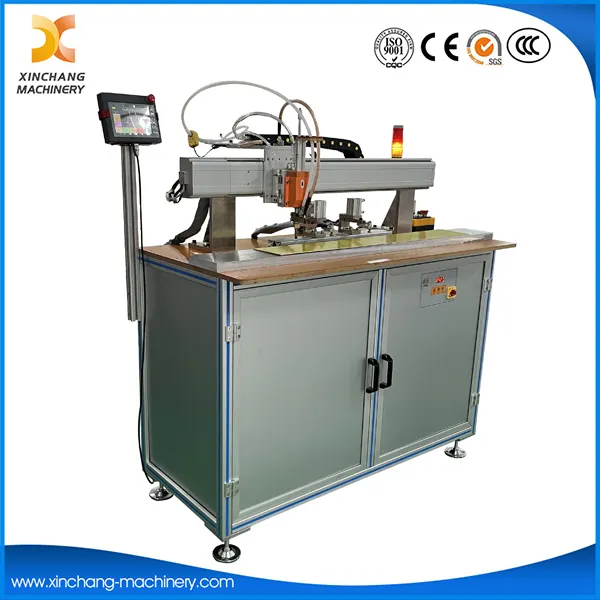

4. The outline drawing of the machine is as follows

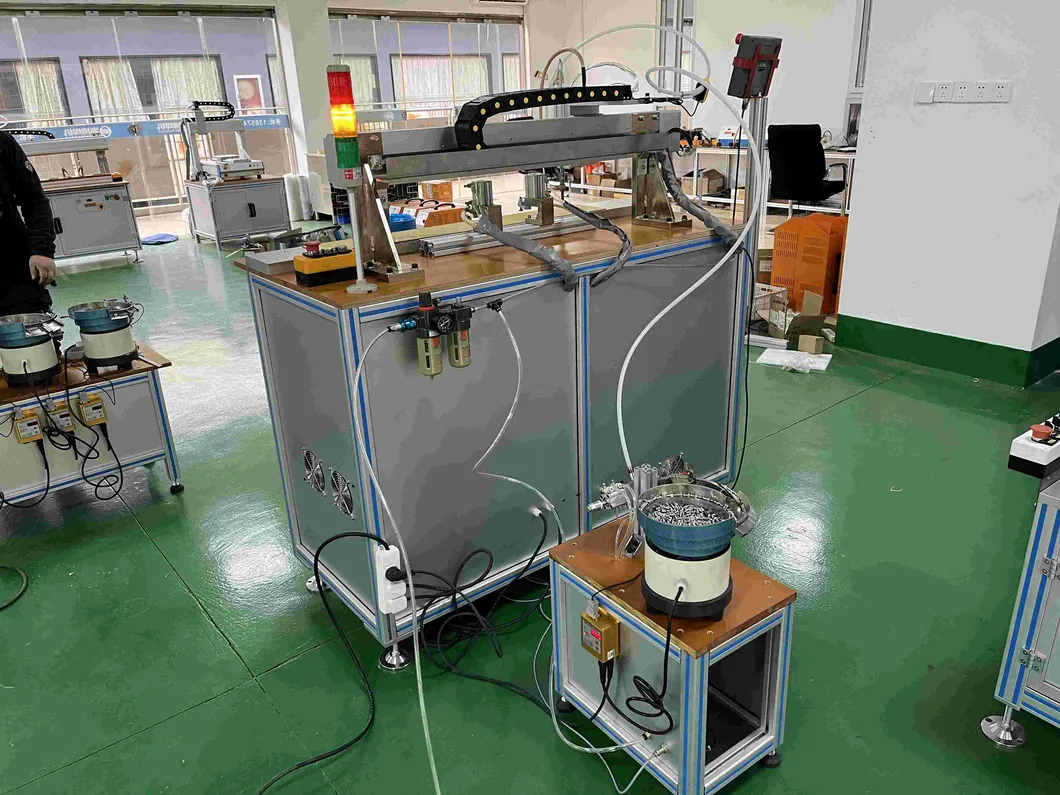

Main composition

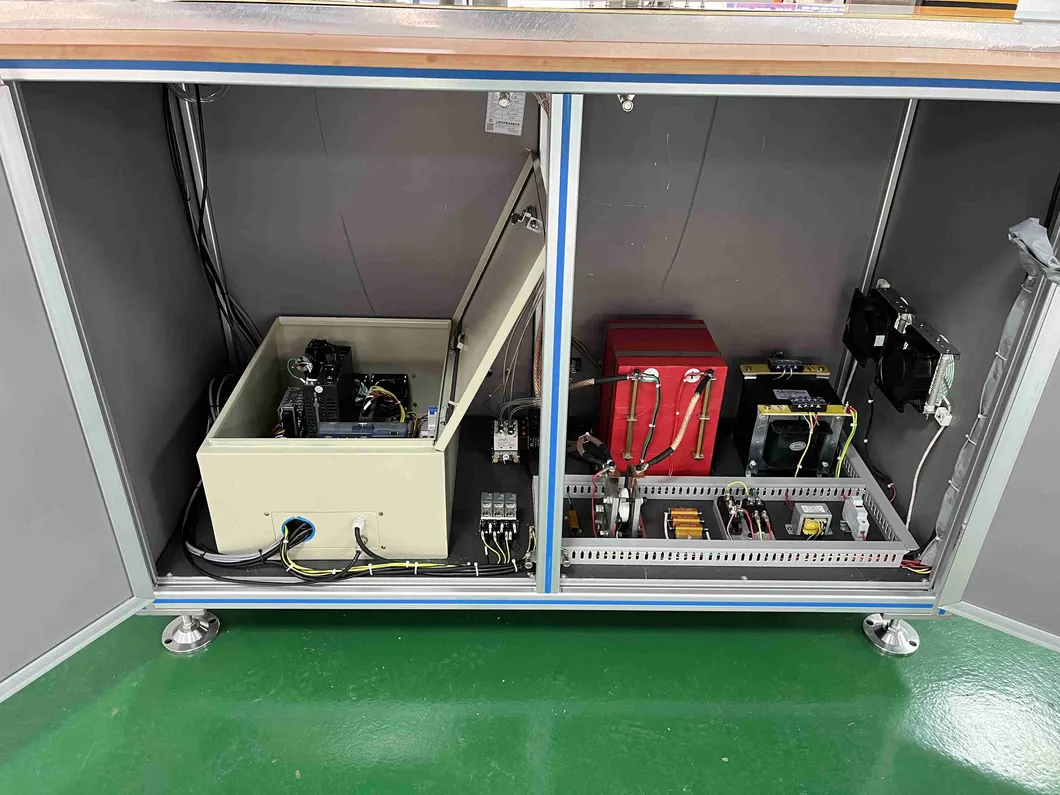

The equipment is mainly composed of: 1, frame; 2, welding power source; 3, isolation transformer; 4, X, Z two-axis module; 5, CNC stud welding gun; 6, six-axis motion card, 7, automatic stud(bolt) feeding Mechanism, 8, several main components such as cylinders and sensors.

Key parameters

1	Model	HB-1000
2	Rated volts	220V± 15% 50HZ
3	Rated power	3KVA
4	Air pressure(Mpa)	0.6-0.8
5	Insulation grade	F
6	Welding cylinder stroke(mm)	50
7	Ajustment range of Volts(V)	40-180

Main component list

No.	Name	Model	QTY	Origin
1	Machine frame	1425X700X1250	1	Self-made
2	Motion control device	HT-AA1-1A	1	TRIO,UK
3	Air cylinder of slider	SMC16-50	1	JAPAN
4	Motion module	1000	1	HIWIN
5	Welding gun	HB-002	1	Self-made
7	Welder	HB-5000	1
8	Servo motor	750W	1	Tama Kawa, Japan

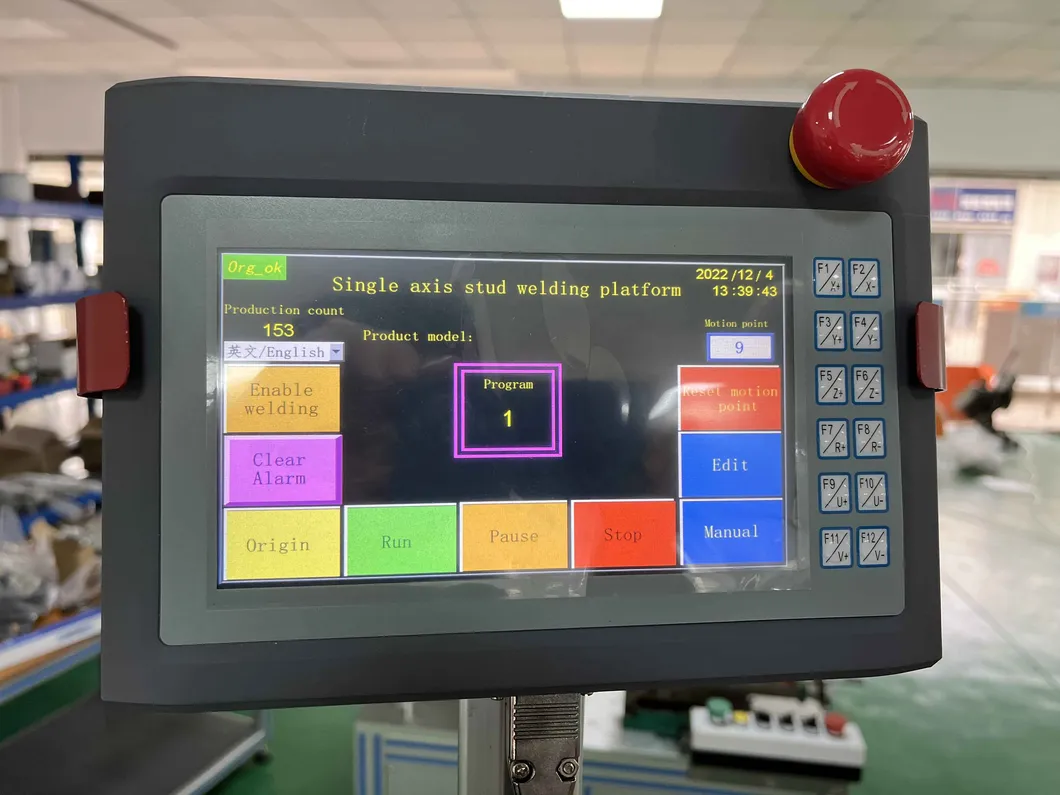

9	HMI	AHT00058	1	WEINVIEW
10	Driver	400	1	INVT
11	Postioning die		2	Self-made

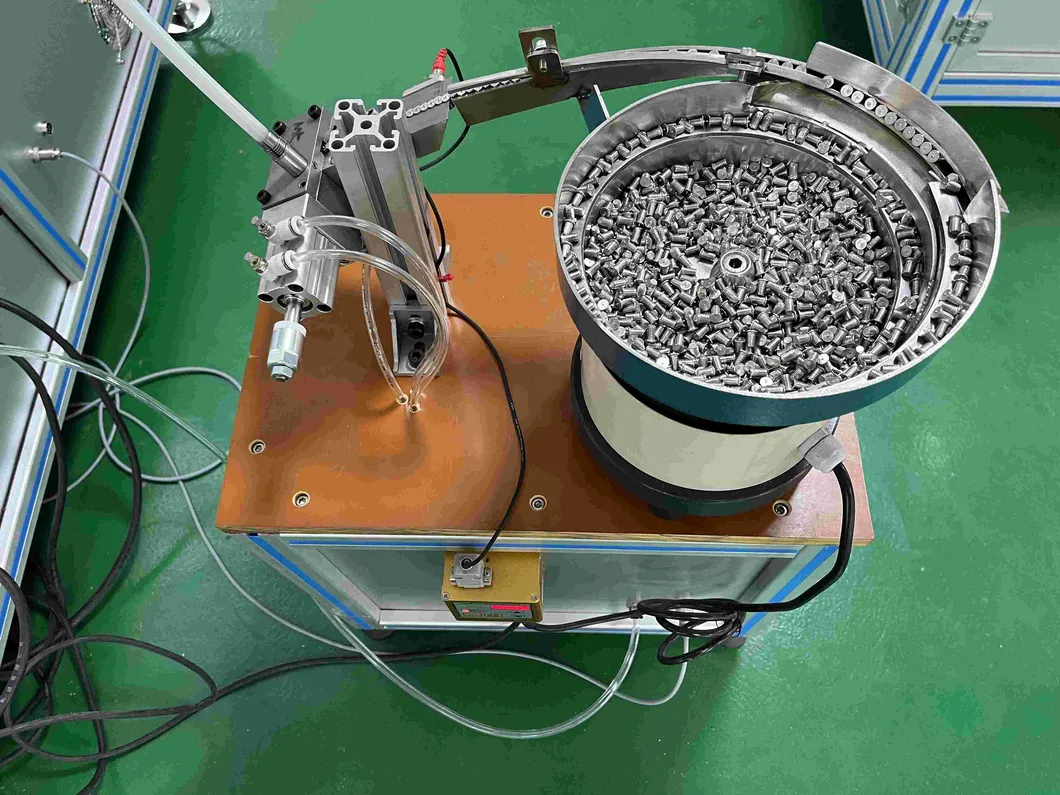

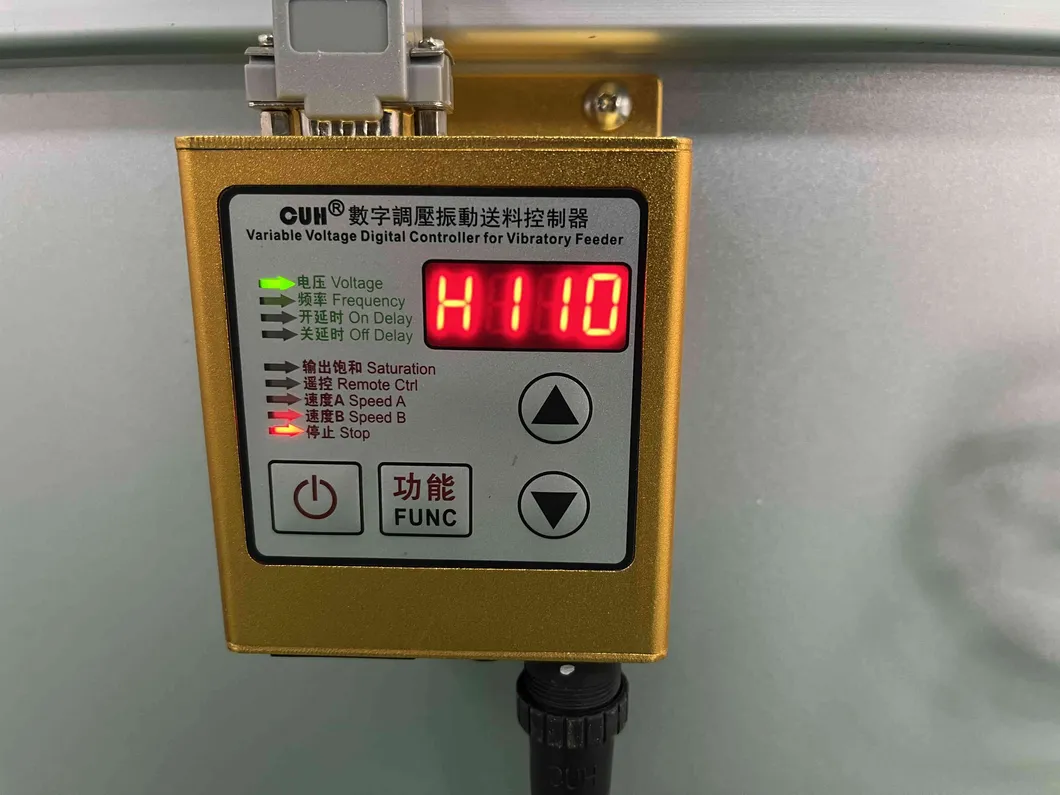

12	Stud feeding device	M4X6	1	Self-made
13	Frame of stud feeding	500X300X650	1	Self-made
