Brand: xinchang
Work Form: One-Body
Type: Stud Welding Machine
Certificate: CE
Welder Brand: Soyer (Made in Germany)
Max. Pan Diameter: 500mm
Insulation Grade: IP21
Transport Package: Wooden Case
Specification: 110*98*150cm
Trademark: Xin chang
Origin: Ningbo China
HS Code: 8515319900
Customization: Available
Style: Vertical
Electric Current: Dc
Shipping Cost: Contact the supplier about freight and estimated delivery time.
Description

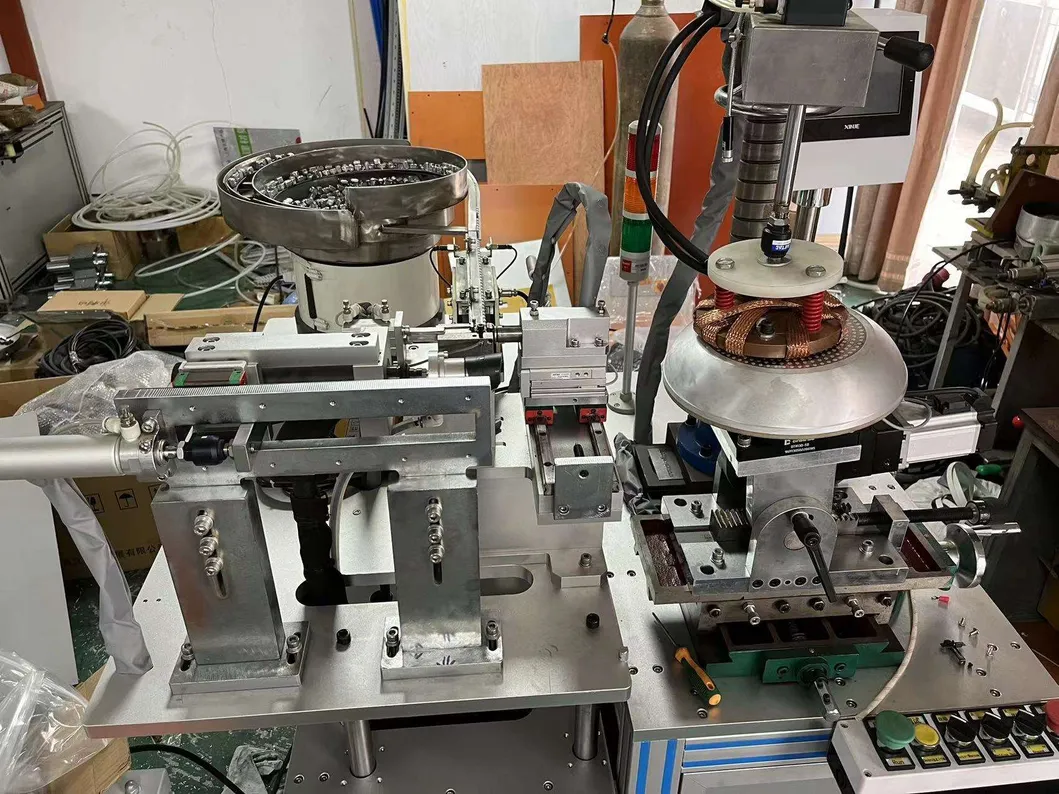

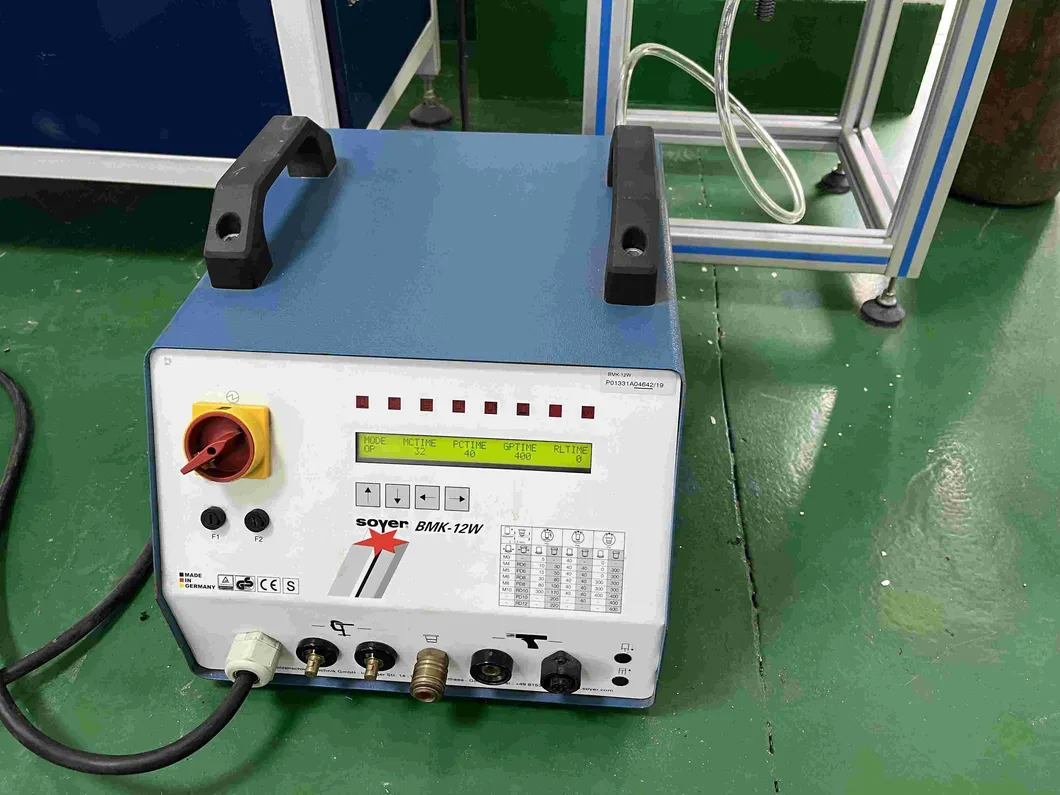

This Automatic Stud Welder for Cookware applies to aluminum pans ranging from 100mm to 500mm. Equipped with Germany-imported Soyer BMK-12W arc stud welding unit, this Stud Welding Machine supports welding of single and double lugs with convenient part replacement, and switches freely between manual and automatic welding modes. The working flow covers manual feeding, laser cross positioning and logo marking. It can cooperate with laser devices to remove surface paint and stains, followed by vibrating disk feeding, automatic arc welding, manual torque inspection and manual discharging. Special slotted arc welding studs are adopted, and 99.999% pure argon serves as protective gas throughout welding.
The Automatic Stud Welding Machine consists of two major structural sections. The left vibrating disk conveys materials to the welding torch, with adjustable lifting height adapting to pans of different sizes. The right fixture and control assembly realizes left-right swing to modify welding angles and compensate angle deviation.
Welding Process
Welding object: Lug fasteners and pan bodies are all aluminum alloy materials, with applicable pan diameters covering 100mm to 500mm in diverse specifications.Welding standard: Post-welding torsion resistance shall not be less than 15N/M
| Input Voltage and Phase Number | Three phase, 380V ± 10%, 3 phase |
| Rated frequency | 50/60HZ |
| Input Power | 200VA |
| Input Current | 0.3 A / phase |
| Instantaneous current | 3 × 400V AC 60A / phase |
| Rated power | 8kVA |
| Open circuit voltage | 76V |
| Insulation grade | IP21 |
| Protect air flow | 4-5 L/min |
| Size | 360mm×325mm×500mm ( W×H×D ) |
| Weight | 48KG |
| color | RAL 5009 Sky Blue |
| Cable length | High flexible cable(standard) of 5 M each for welding gun, ground line and control line |
Welding torch parameter | Item | parameter |
| Welding torch | PH-3N |
| Welding current | 800A |
| Welding time | 1-1000 milliseconds |
| Arc initiation time | 0.2-2 seconds |
| Protection time | 0.2-2 seconds |
| Short period arc initiation time | 1-200 milliseconds |
| Welding speed | 15-30 studs/min |
Workbench | Material | Industrial aluminium profiles 60x60 |
| Size | 800x800x680mm |
| Worktable | aluminium sheet |
