Fully Automatic Stud Welder for 100-500mm Aluminum Frying Pan Grip

Min. Order:1 Piece/Pieces

Product Attributes
Packaging & Delivery
Other information

Product Attributes

Work Form: One-Body

Certificate: CE

Welder Brand: Soyer (Made in Germany)

Max. Pan Diameter: 500mm

Rated Frequency: 50/60Hz

Insulation Grade: IP21

Transport Package: Wooden Case

Specification: 110*98*150cm

Trademark: Xin chang

Origin: Ningbo China

HS Code: 8515319900

Customization: Available

Style: Vertical

Electric Current: Dc

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Packaging & Delivery

Selling Units:

Piece/Pieces



CNC Automatic Stud Welding Machine for Non-Stick Frying Pan Handles1



Basic Info.

Work Form: One-Body

Certificate: CE

Welder Brand: Soyer (Made in Germany)

Max. Pan Diameter: 500mm

Rated Frequency: 50/60Hz

Insulation Grade: IP21

Transport Package: Wooden Case

Specification: 110*98*150cm

Trademark: Xin chang

Origin: Ningbo China

HS Code: 8515319900

Product Description

Description

It's used for 100-500mm Aluminum pan
use Soyer brand model BMK-12W arc Stud Welding Machine imported from Germany
it's suitable for single ear and double ears welding, easy to change it and also can change the manual welding and automatic welding.
work process: loading by manual, cross positioning LOGO by laser, Can be used with laser to clean paint or stains, vibrating disk loading, automatic arc welding, Manual torque test, manual unloading.
should use special slotted arc welding studs and use 99.999% pure argon during welding

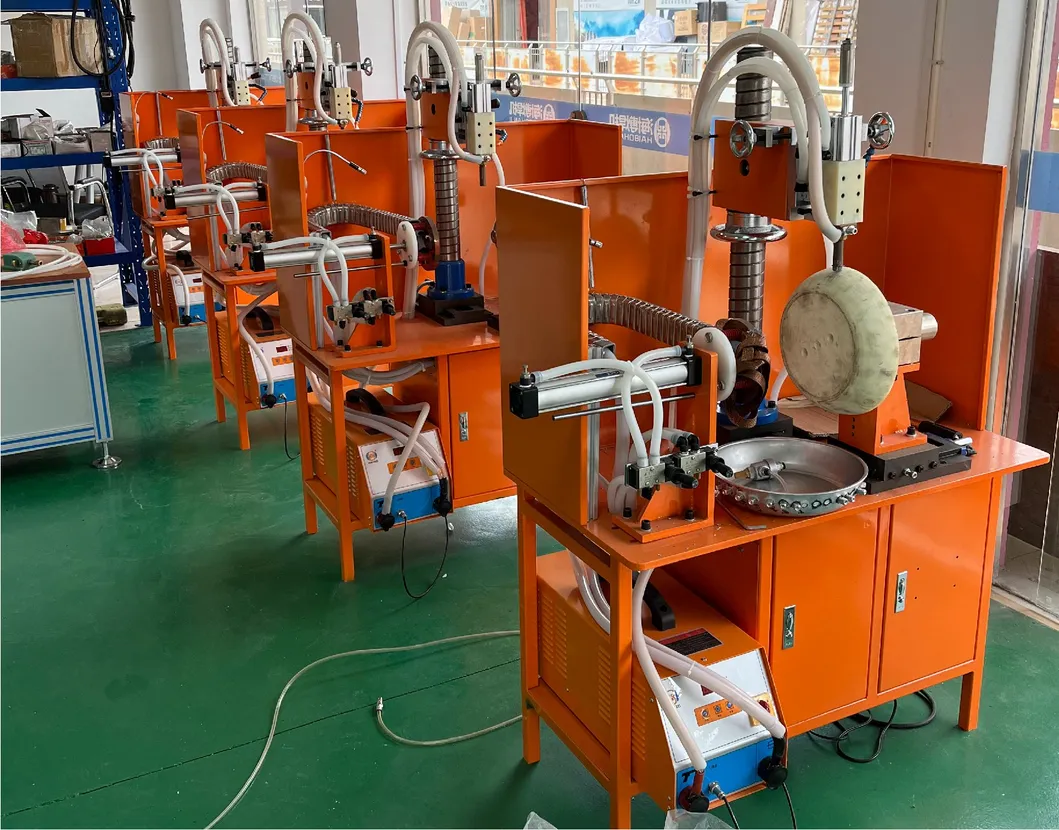

The structure of the equipment is mainly divided into two parts, the left is the vibration disk that automatically feeds the material to the torch head (it can be lifted up and down according to the welding height of the pan), and the right is the fixture and control part which can swung left and right to adjust the welding angle, so that make up the angle insufficient.

Welding process

Welding pattern: (Both the ear buckle and the pan body are made of aluminum alloy. The pan body contains a variety of specifications from 100-500mm.)
Welding requirement: torsion after welding≥15N/M

Power supply parameters

Input Voltage and Phase Number	Three phase, 380V ± 10%, 3 phase
Rated frequency	50/60HZ
Input Power	200VA
Input Current	0.3 A / phase
Instantaneous current	3 × 400V AC 60A / phase
Rated power	8kVA
Open circuit voltage	76V
Insulation grade	IP21
Protect air flow	4-5 L/min
Size	360mm×325mm×500mm ( W×H×D )
Weight	48KG
Colour	RAL 5009 Sky Blue
Cable length	High flexible cable(standard) of 5 M each for welding gun, ground line and control line

Welding torch parameter

Item	parameter
Welding torch	PH-3N
Welding current	800A
Welding time	1-1000 milliseconds
Arc initiation time	0.2-2 seconds
Protection time	0.2-2 seconds
Short period arc initiation time	1-200 milliseconds
Welding speed	15-30 studs/min

Workbench

Material	Industrial aluminium profiles 60x60
Size	800x800x680mm
Worktable	aluminium sheet

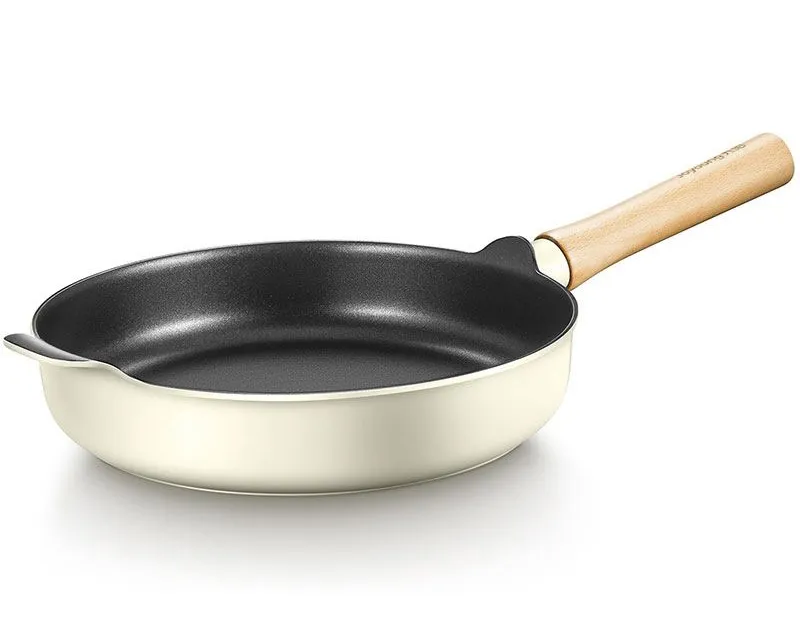

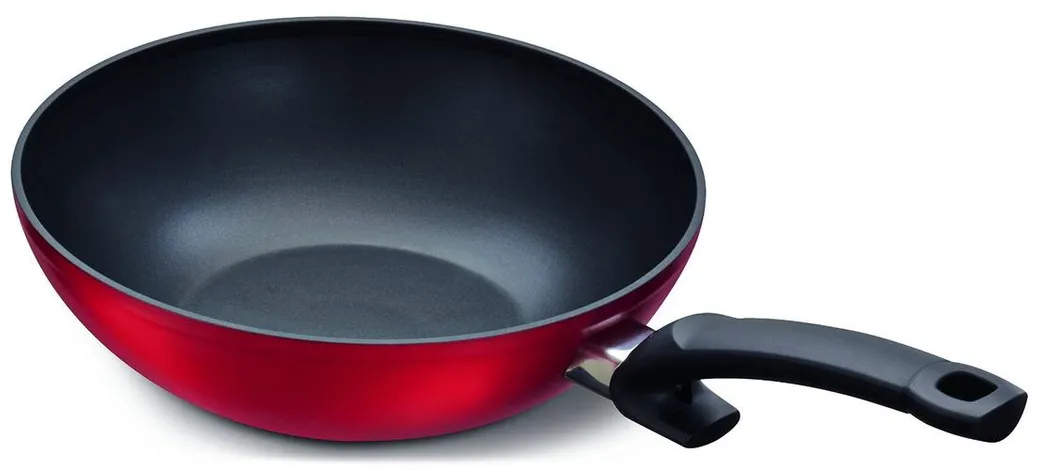

Finished samples

Fully Automatic Stud Welder for Welding 100-500mm Aluminum Frying Pan Grip

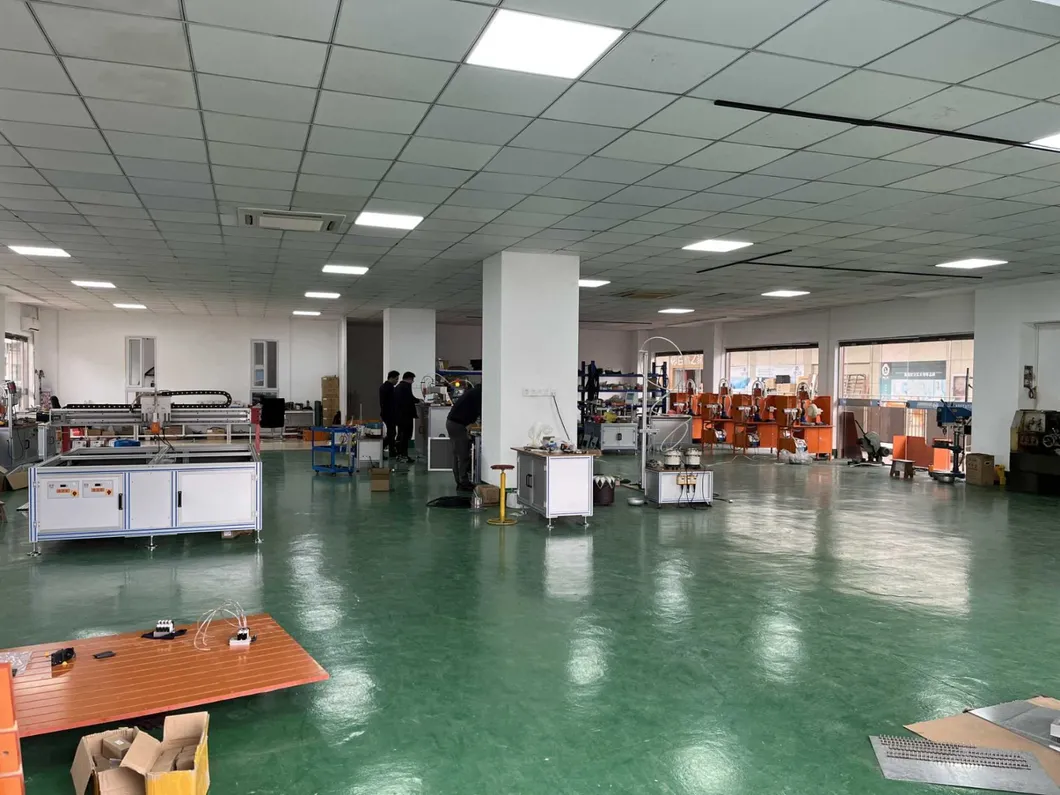

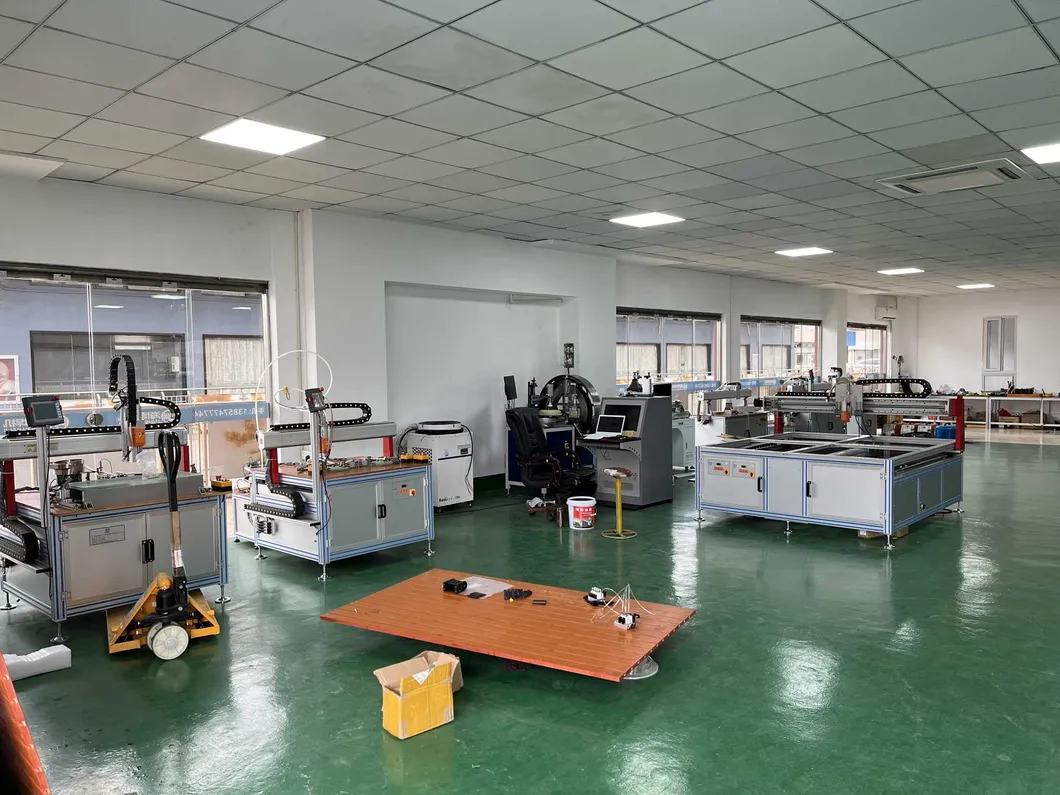

Workshop
