The welding machine is for welding studs on the trowel panel, and its product application scope:
Product specifications: X: 1000, Z: 50 mm. This
Stud Welding Machine adopts energy-storage capacitors for charging and discharging, featuring fast welding speed and capable of rapid compensation and pressurization at the discharge moment. Powered by a DC welding source, it generates little spatter, delivers reliable quality, and produces aesthetically pleasing welds.
Equipped with a fast-response welding cylinder (max. stroke: 50 mm), this automatic stud welding machine excels in high efficiency, stability, reliability, and instant compensation & pressurization.
To guarantee the overall equipment performance and welding quality, all key components of this
Trowel Stud Welding Machine are sourced from renowned brands, featuring premium reliability and being exclusive accessories for stud welding systems.

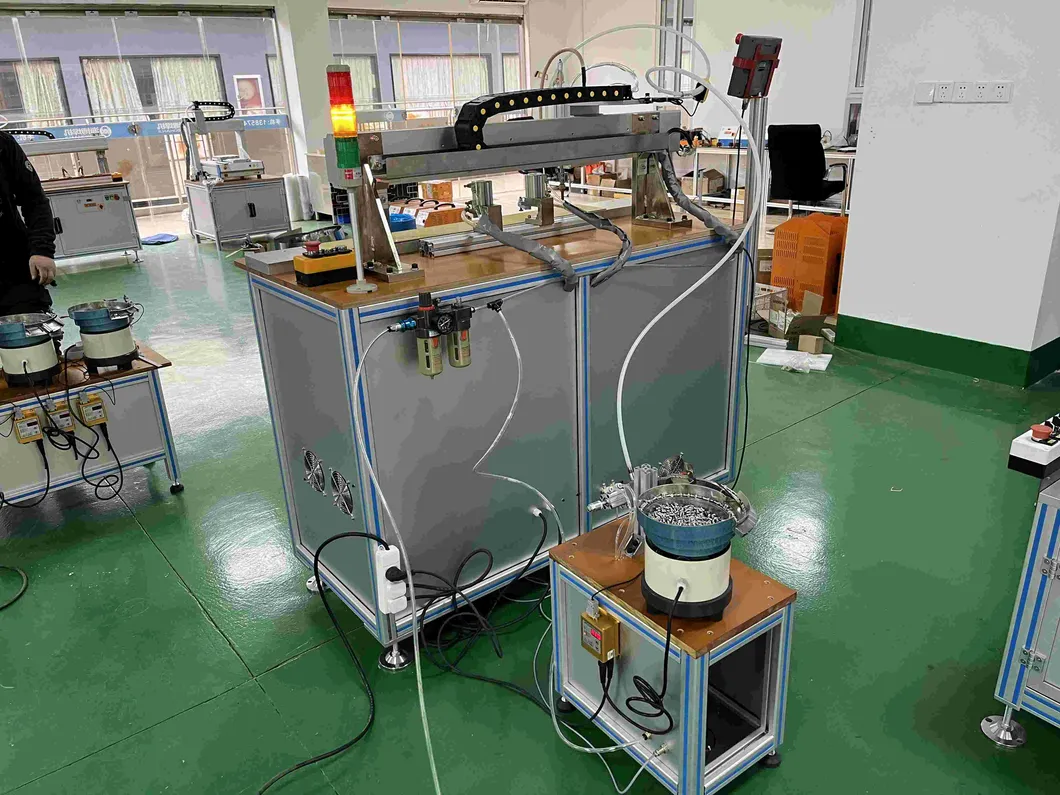

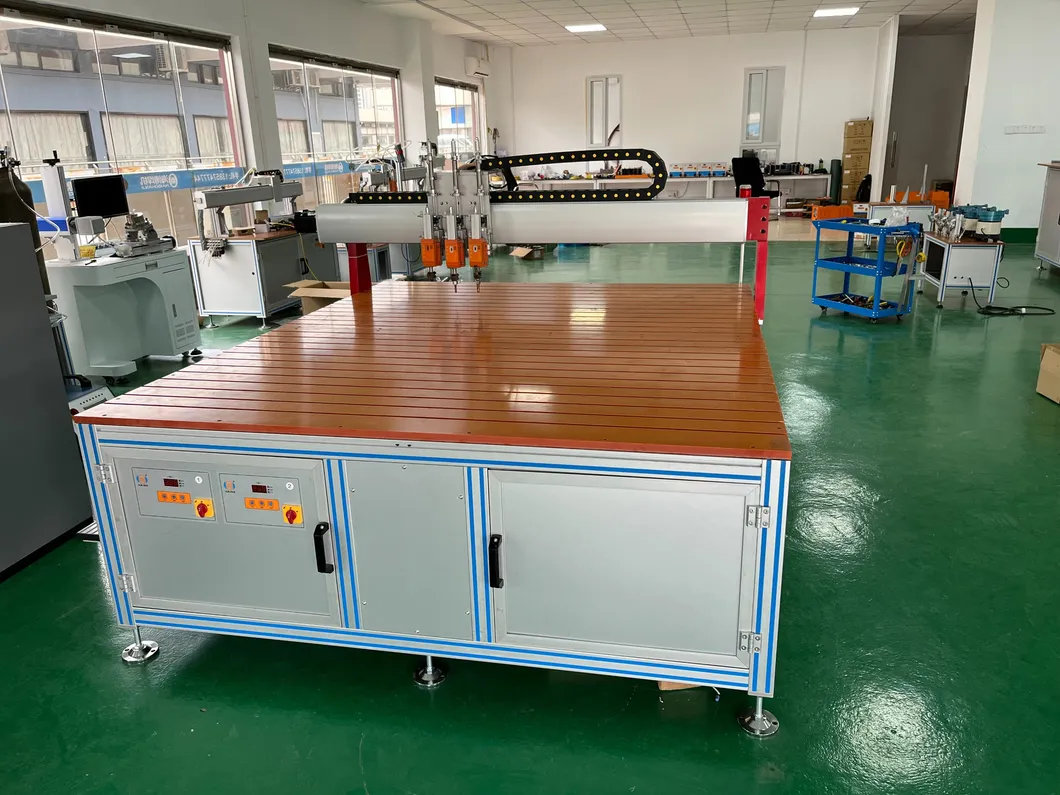

The outline drawing of the machine is as follows
Main composition
The equipment is mainly composed of: 1, frame; 2, welding power source; 3, isolation transformer; 4, X, Z two-axis module; 5, CNC stud welding gun; 6, six-axis motion card, 7, automatic stud(bolt) feeding Mechanism, 8, several main components such as cylinders and sensors.
Key parameters | 1 | Model | HB-1000 |
| 2 | Rated volts | 220V± 15% 50HZ |
| 3 | Rated power | 3KVA |
| 4 | Air pressure(Mpa) | 0.6-0.8 |
| 5 | Insulation grade | F |
| 6 | Welding cylinder stroke(mm) | 50 |
| 7 | Ajustment range of Volts(V) | 40-180 |
Main component list | No. | Name | Model | QTY | Origin |
| 1 | Machine frame | 1425X700X1250 | 1 | Self-made |
| 2 | Motion control device | HT-AA1-1A | 1 | TRIO,UK |
| 3 | Air cylinder of slider | SMC16-50 | 1 | JAPAN |
| 4 | Motion module | 1000 | 1 | HIWIN |
| 5 | Welding gun | HB-002 | 1 | Self-made |
| 7 | Welder | HB-5000 | 1 | |
| 8 | Servo motor | 750W | 1 | Tama Kawa, Japan |

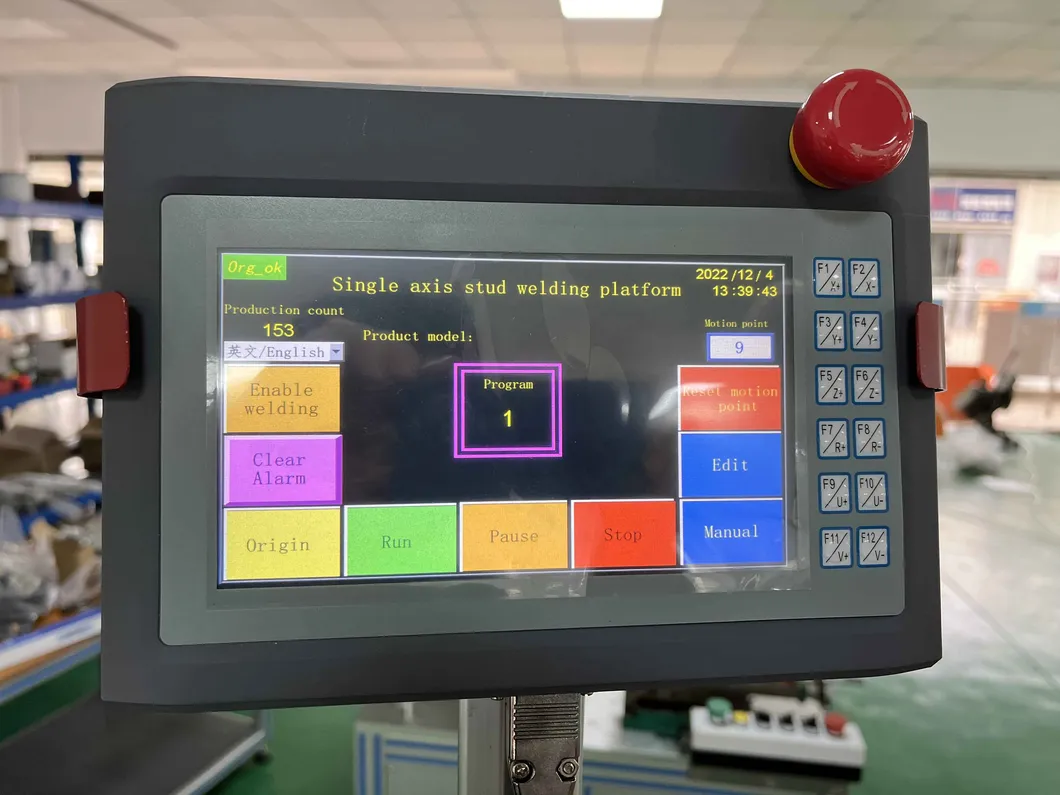

| 9 | HMI | AHT00058 | 1 | WEINVIEW |
| 10 | Driver | 400 | 1 | INVT |
| 11 | Postioning die | | 2 | Self-made |

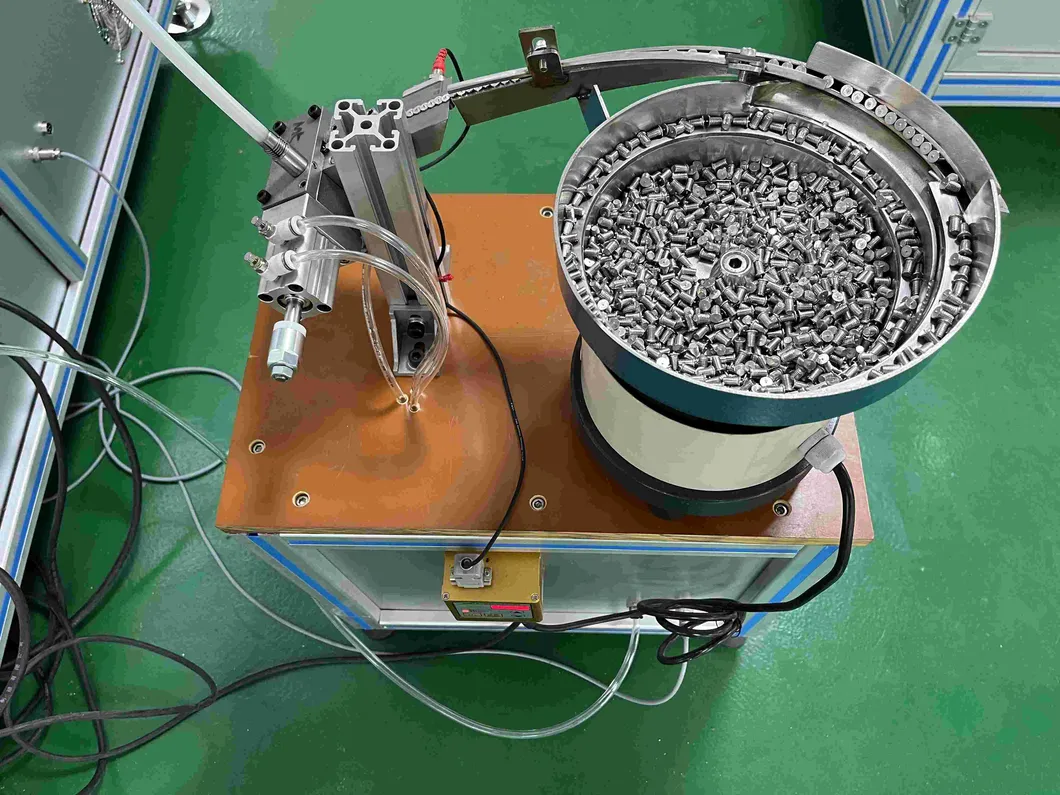

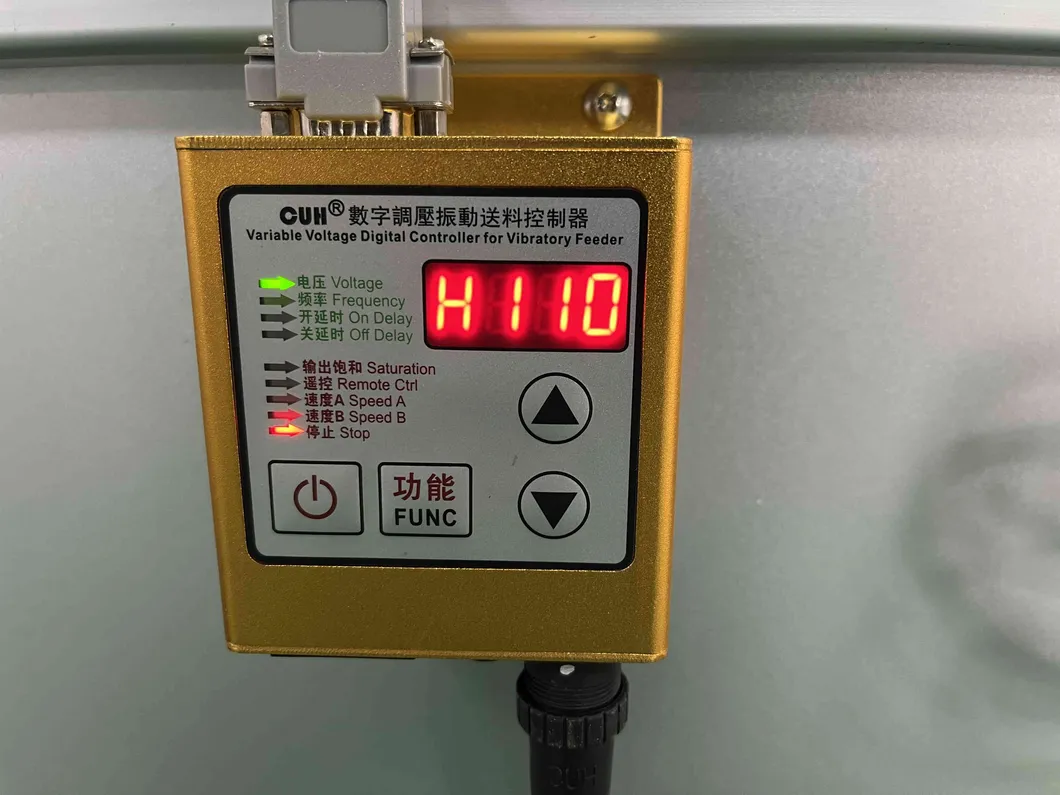

| 12 | Stud feeding device | M4X6 | 1 | Self-made |
| 13 | Frame of stud feeding | 500X300X650 | 1 | Self-made |
