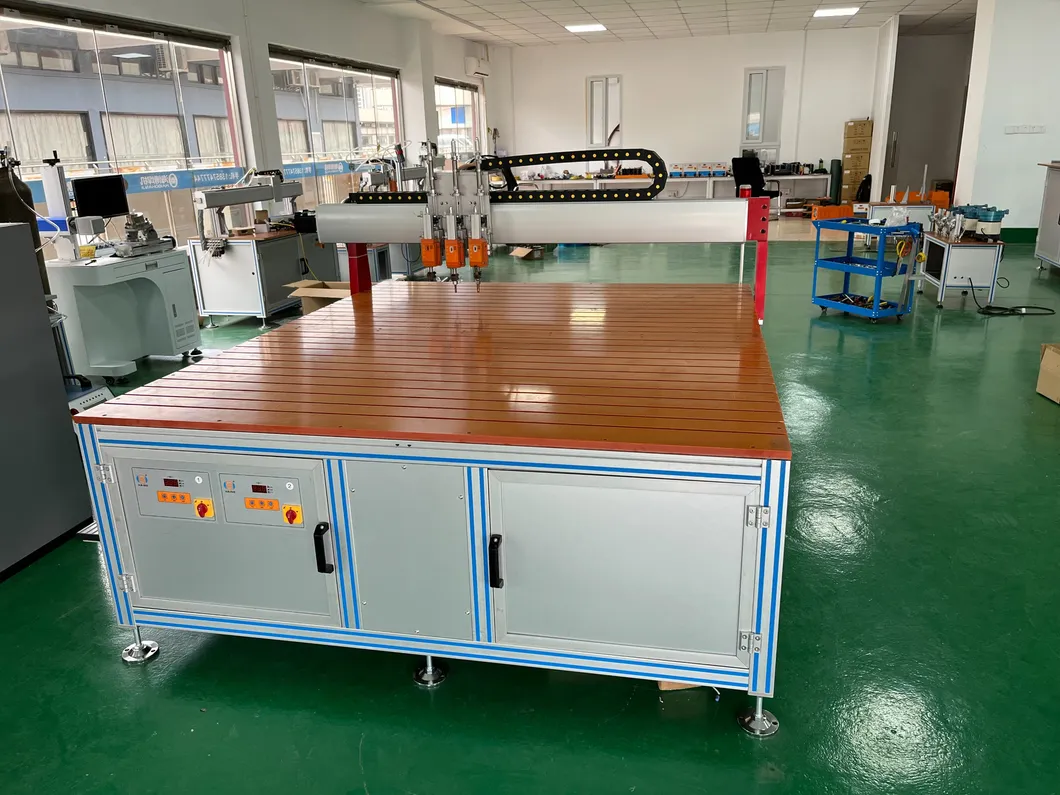

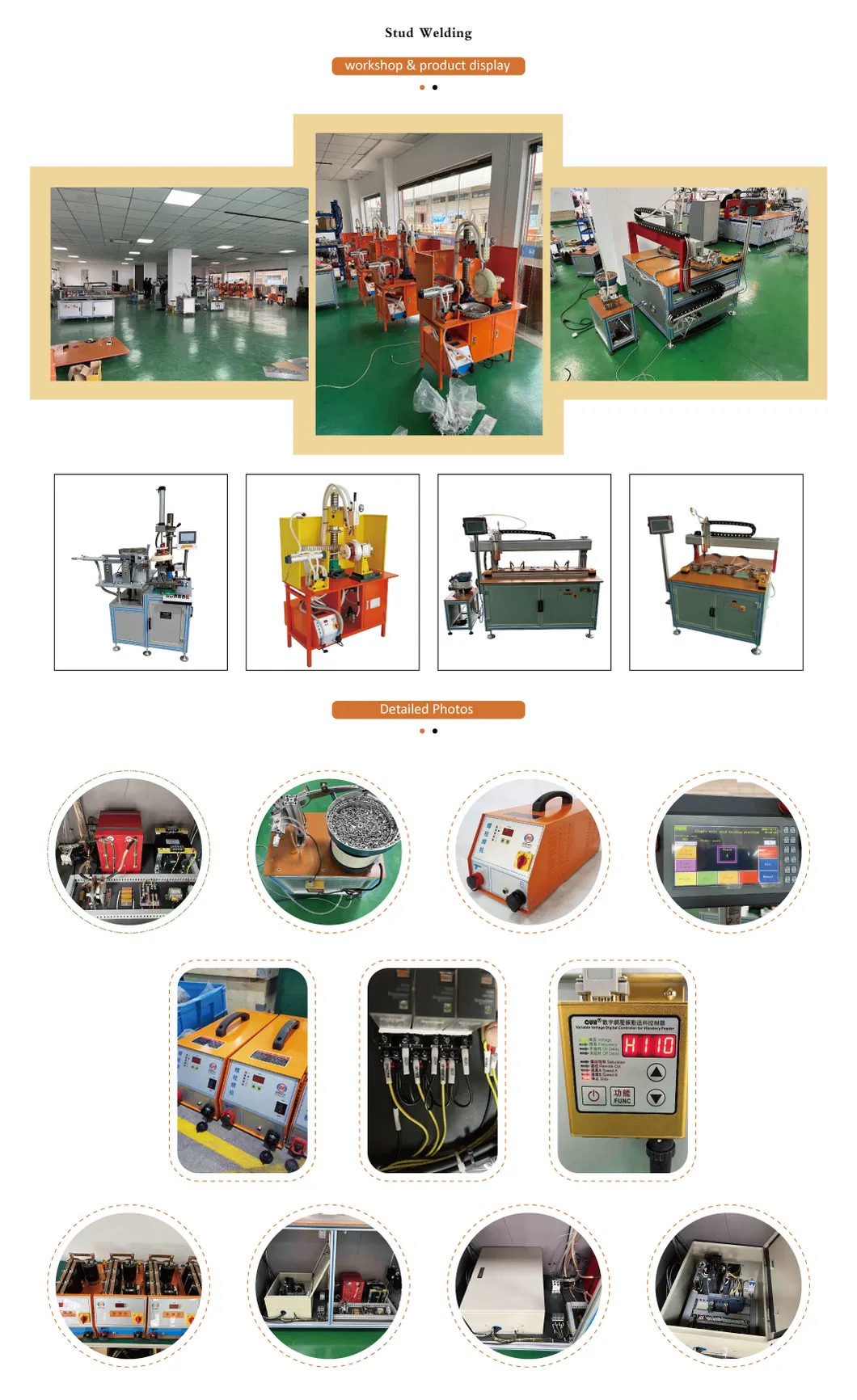

This Trowel Stud Welding Machine is specially designed for welding studs on trowel panels. Its product application scope and features:
Product specifications: X: 1000, Z: 50 mm. This Automatic Stud Welding Machine uses energy-storage capacitors for charging and discharging, with fast welding speed and quick compensation and pressurization at the discharge moment. Equipped with a DC welding power source, the Stud Welding Machine features low spatter, reliable performance and beautiful welding joints.
Fast welding cylinder with maximum stroke 50 mm, delivering high efficiency, stability, reliability, instant compensation and pressure.
To ensure overall equipment performance and welding quality, all key components are branded high-quality reliable parts, exclusively designed for Stud Welding Machines.
The outline drawing of the machine is as follows
Main composition

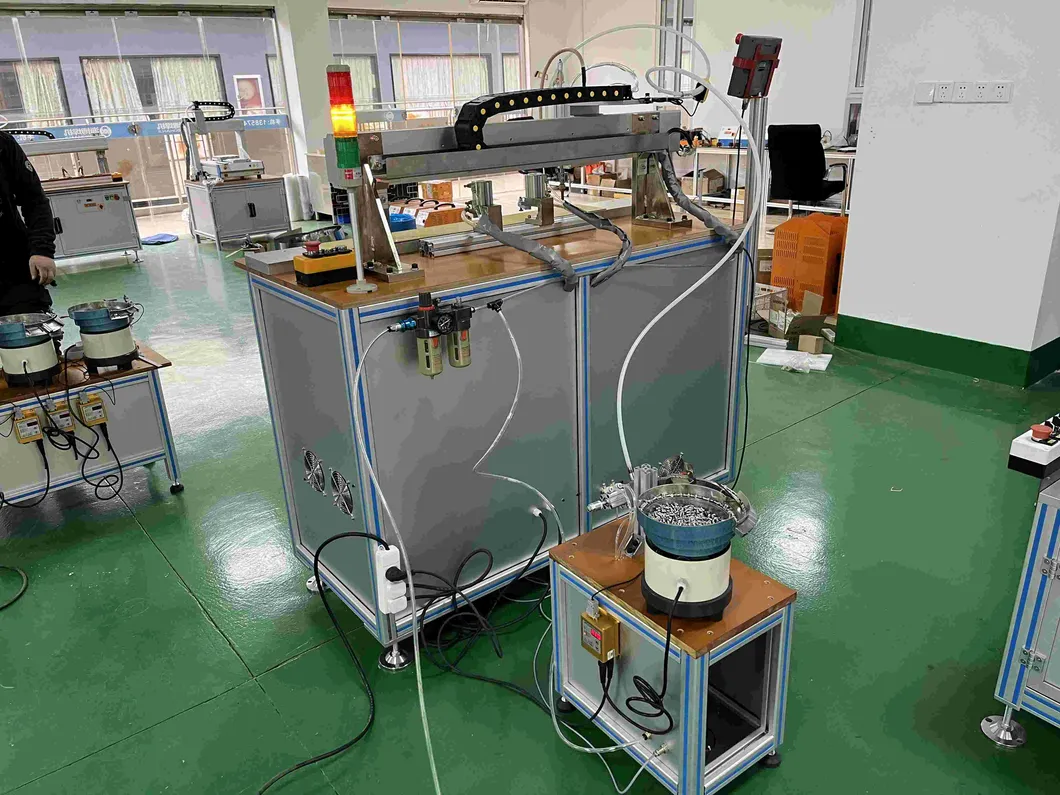

The equipment is mainly composed of: 1, frame; 2, welding power source; 3, isolation transformer; 4, X, Z two-axis module; 5, CNC stud welding gun; 6, six-axis motion card, 7, automatic stud(bolt) feeding Mechanism, 8, several main components such as cylinders and sensors. | 1 | Model | HB-1000 |
| 2 | Rated volts | 220V± 15% 50HZ |
| 3 | Rated power | 3KVA |
| 4 | Air pressure(Mpa) | 0.6-0.8 |
| 5 | Insulation grade | F |
| 6 | Welding cylinder stroke(mm) | 50 |
| 7 | Ajustment range of Volts(V) | 40-180 |
Main component list | No. | Name | Model | QTY | Origin |
| 1 | Machine frame | 1425X700X1250 | 1 | Self-made |
| 2 | Motion control device | HT-AA1-1A | 1 | TRIO,UK |
| 3 | Air cylinder of slider | SMC16-50 | 1 | JAPAN |
| 4 | Motion module | 1000 | 1 | HIWIN |
| 5 | Welding gun | HB-002 | 1 | Self-made |
| 7 | Welder | HB-5000 | 1 | |
| 8 | Servo motor | 750W | 1 | Tama Kawa, Japan |

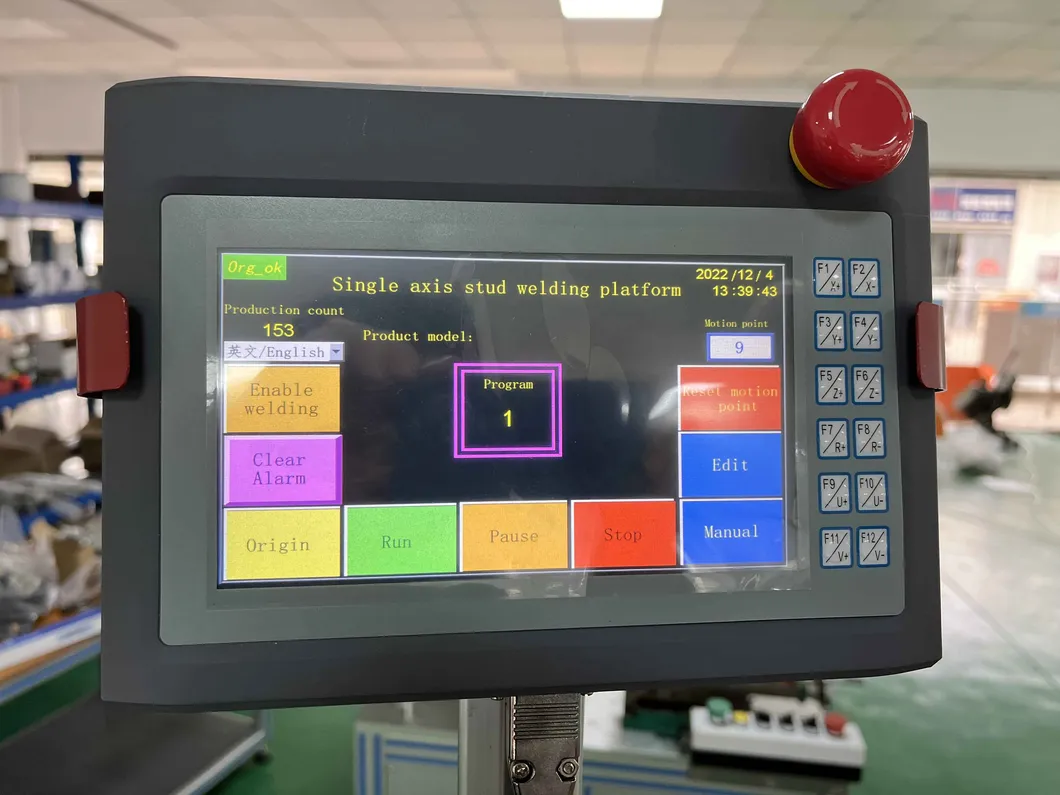

| 9 | HMI | AHT00058 | 1 | WEINVIEW |
| 10 | Driver | 400 | 1 | INVT |
| 11 | Postioning die | | 2 | Self-made |

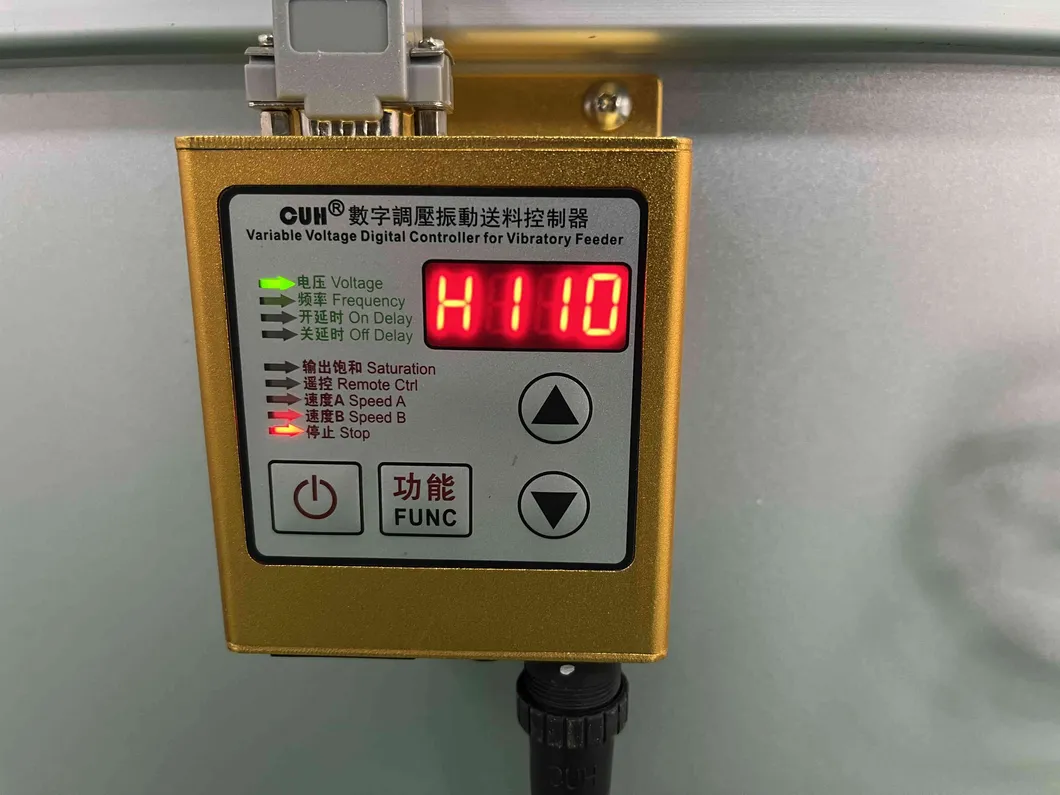

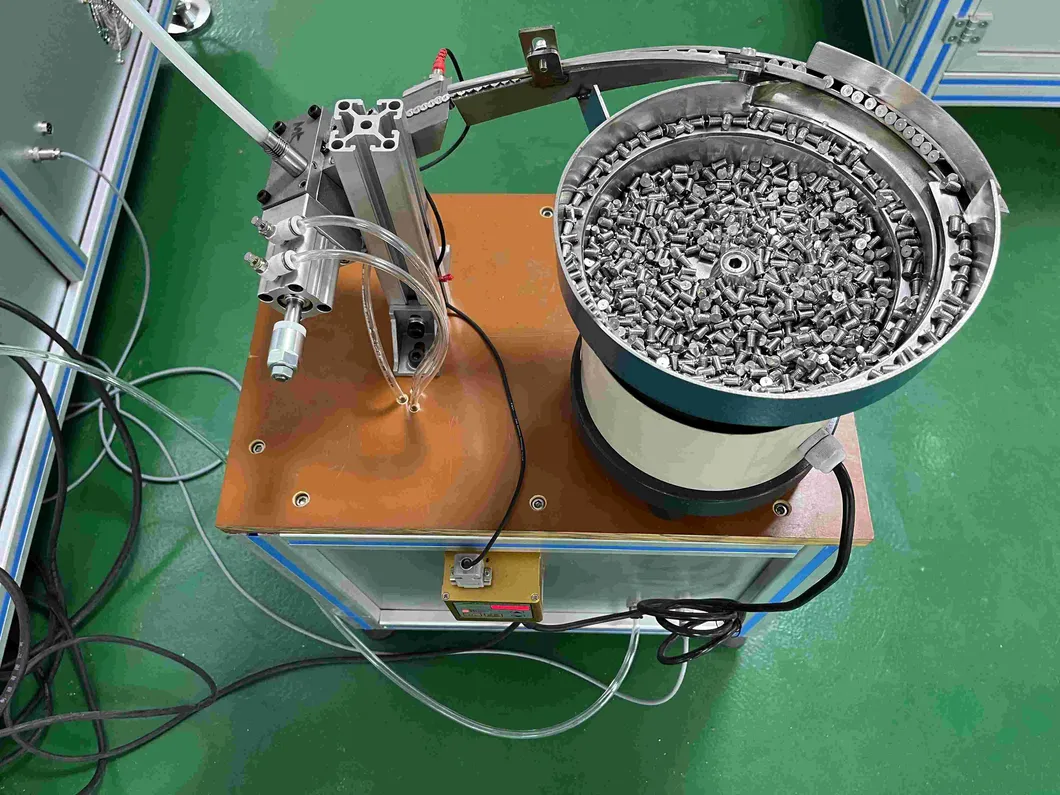

| 12 | Stud feeding device | M4X6 | 1 | Self-made |
| 13 | Frame of stud feeding | 500X300X650 | 1 | Self-made |
