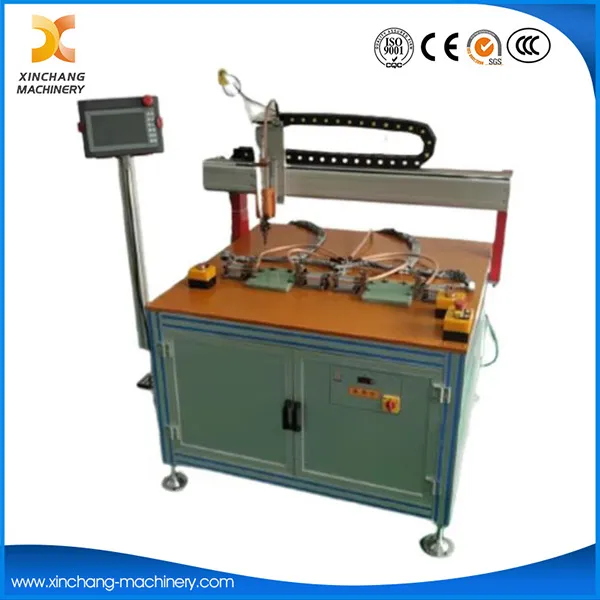

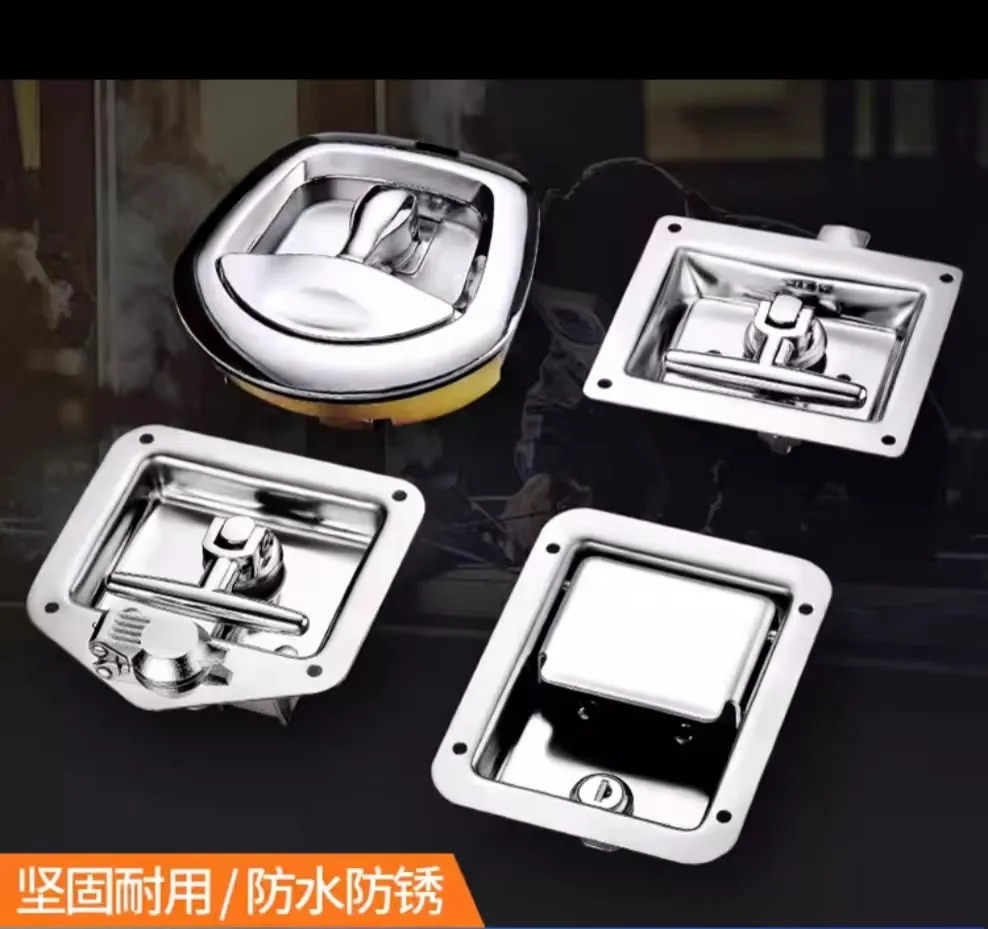

The Two axes Double station Automatic Stud Welding Machine is specially R&D by our company, it's the specially used for all kinds of lock industry, sheet metal cabinets, kitchen utensils, home hardware, construction tools and other metal products. It is mainly composed of four parts: machine body, fixture, pneumatic control and welding power source; it adopts the British TRIO robot control system, Taiwan Hiwin linear slide rail, Taiwan Airtec pneumatic accessories, etc. The equipment is powerful, easy to operate, It has the characteristics of stable and smooth operation and high precision. This equipment adopts a left and right double-station automatic circulation system. The left and right sides of the product are loaded and unloaded, and the work does not affect each other, which greatly improves the production capacity. The device is controlled by hand-held touch screen, button operation, and the operation page can be switched between Chinese, English, Japanese and other languages, and the operation is simple and easy to understand.
Key data
| Stroke | X 800MM, Y 500MM, |
| Max.speed | 900mm/s, accelerated speed 3000mm/s |
| The machine frame | assembled with domestic high-quality industrial aluminum profiles, and the countertop is made of insulating bakelite. |
| Overall size | L1300mmxW1100mmxH1300mm |
| Input volts | 220V/50Hz single phase |
| Power | 2KW |
| Max program storage quantity | 159 nos&500 point coordinate |
| Language of HMI | Chinese, English, Japanese and other languages |
Machine Advantages:

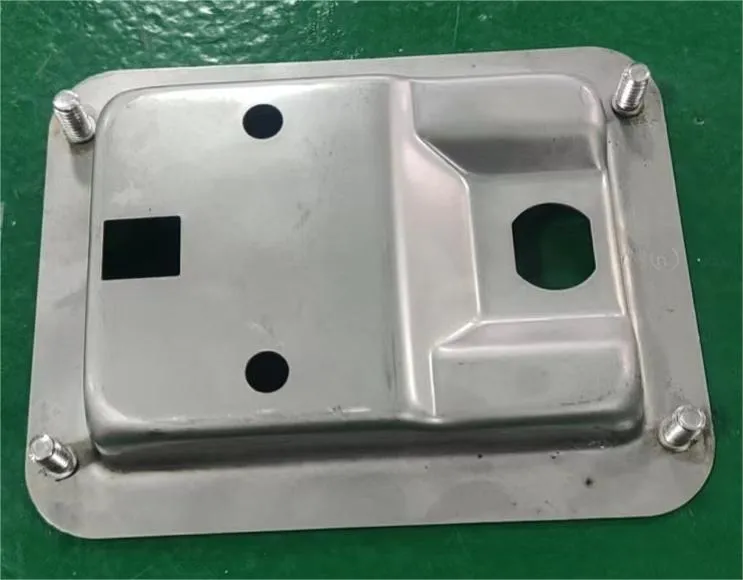

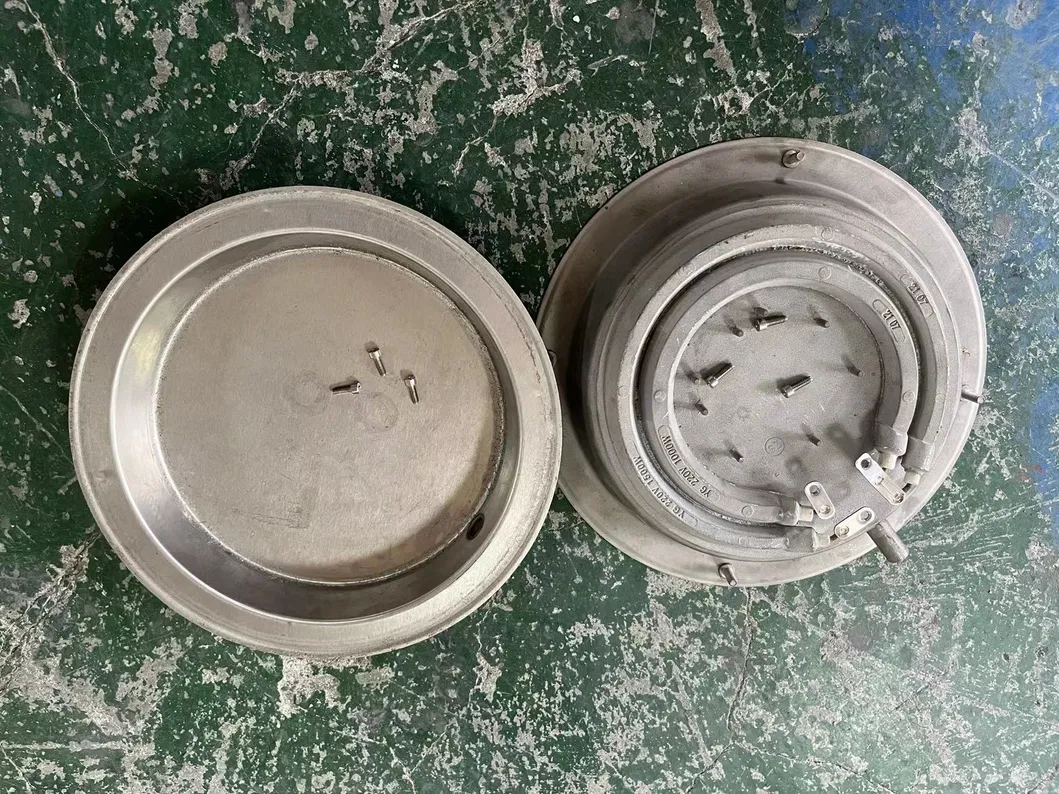

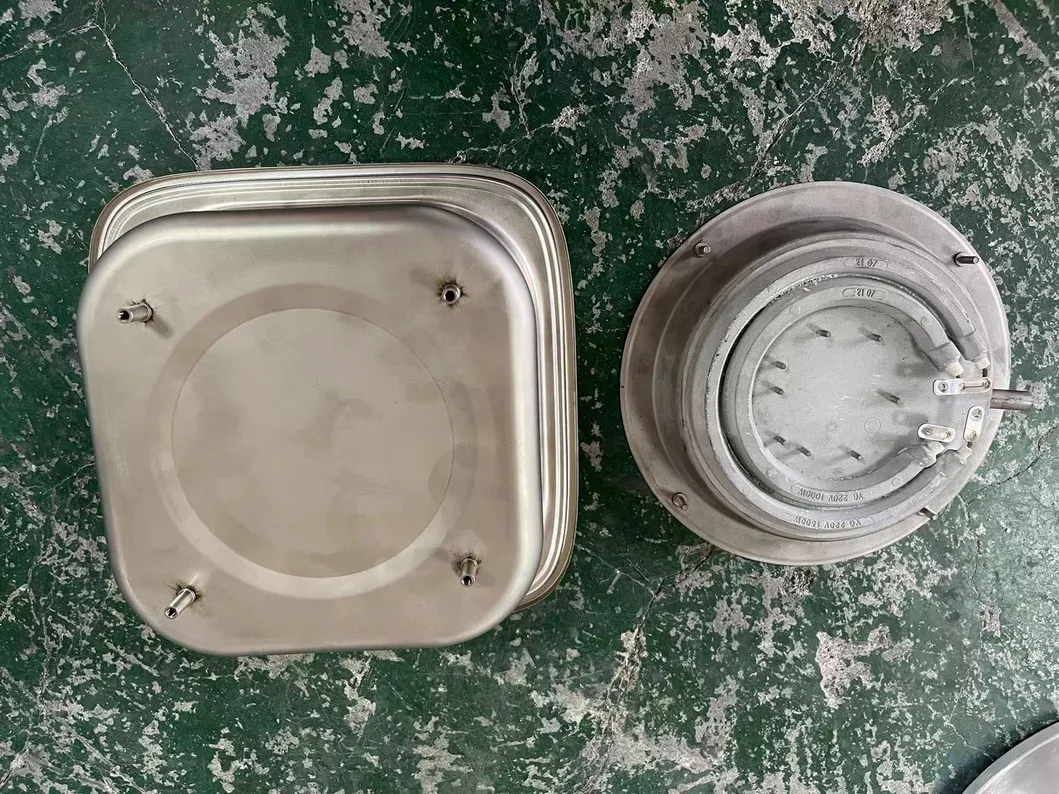

The stud(screws) welded by this equipment are automatically conveyed by pneumatics, using traditional classic structure, multi-sensor detection system, with high scalability, high compatibility, easy maintenance, more favorable guarantee of equipment stability, output accuracy as high as 99% above. The welding slag on the welding surface is full and the welding strength is high, which can deform or even break the product surface. After welding, the back of the product achieves a traceless effect.

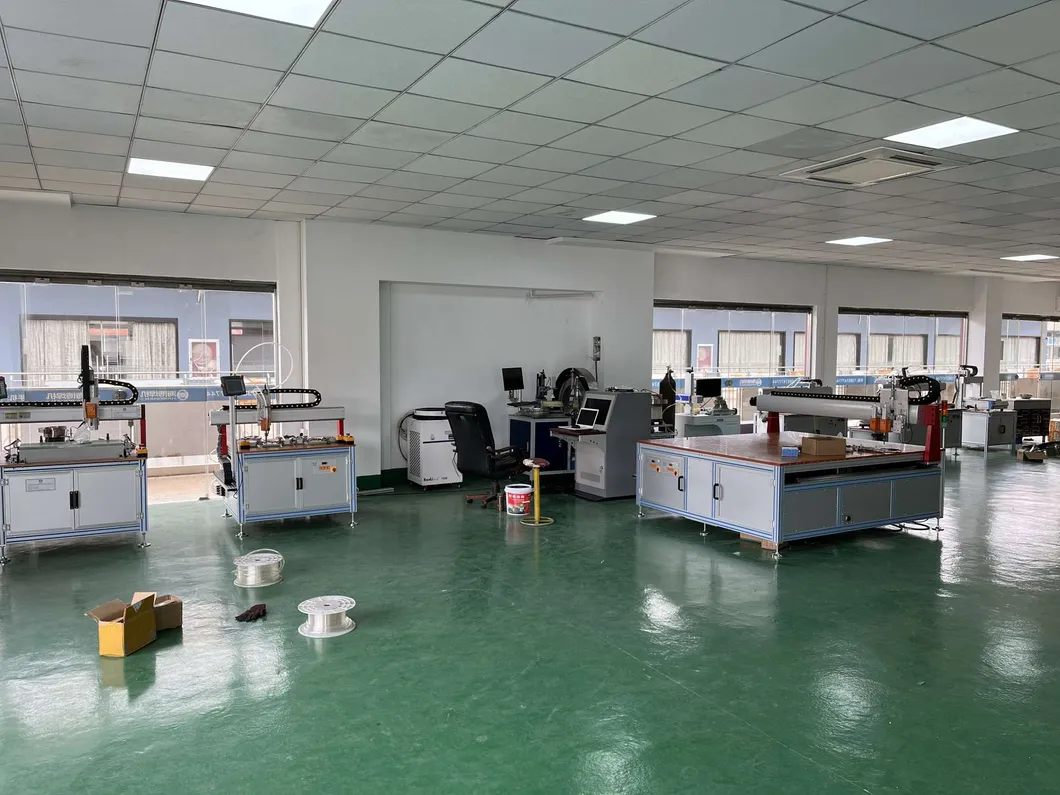

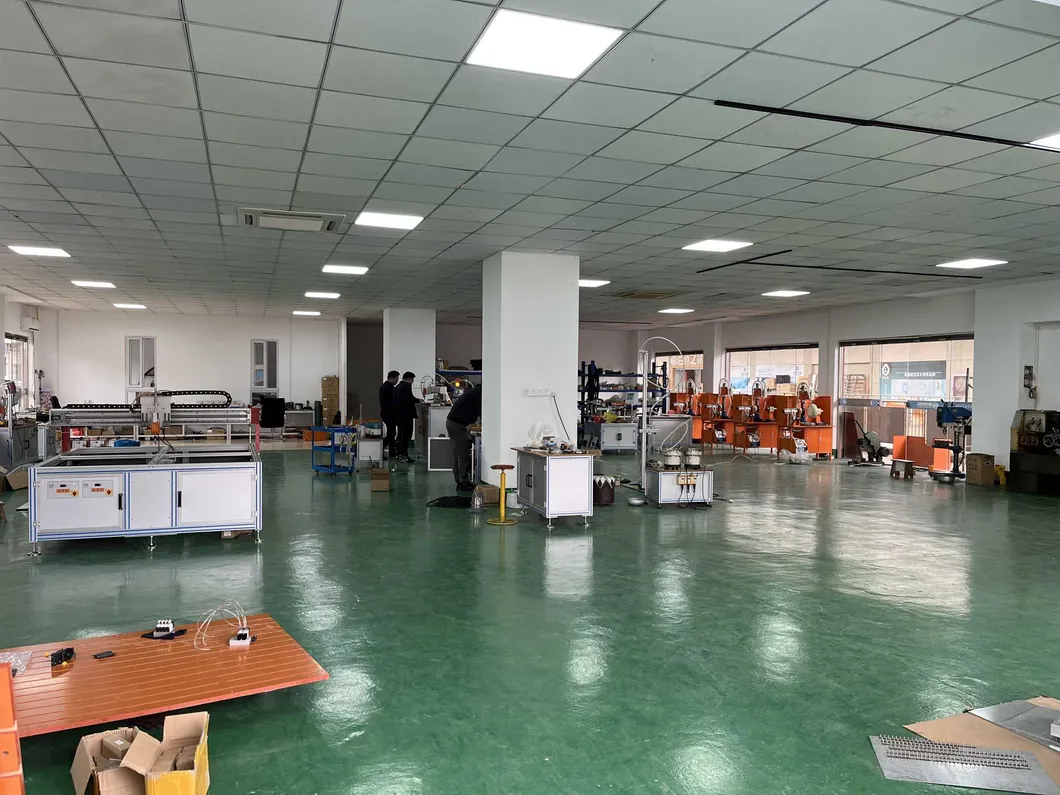

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.
Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.
Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine , Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.
We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
