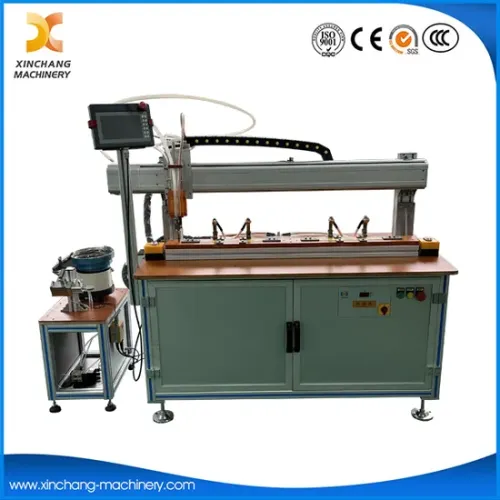

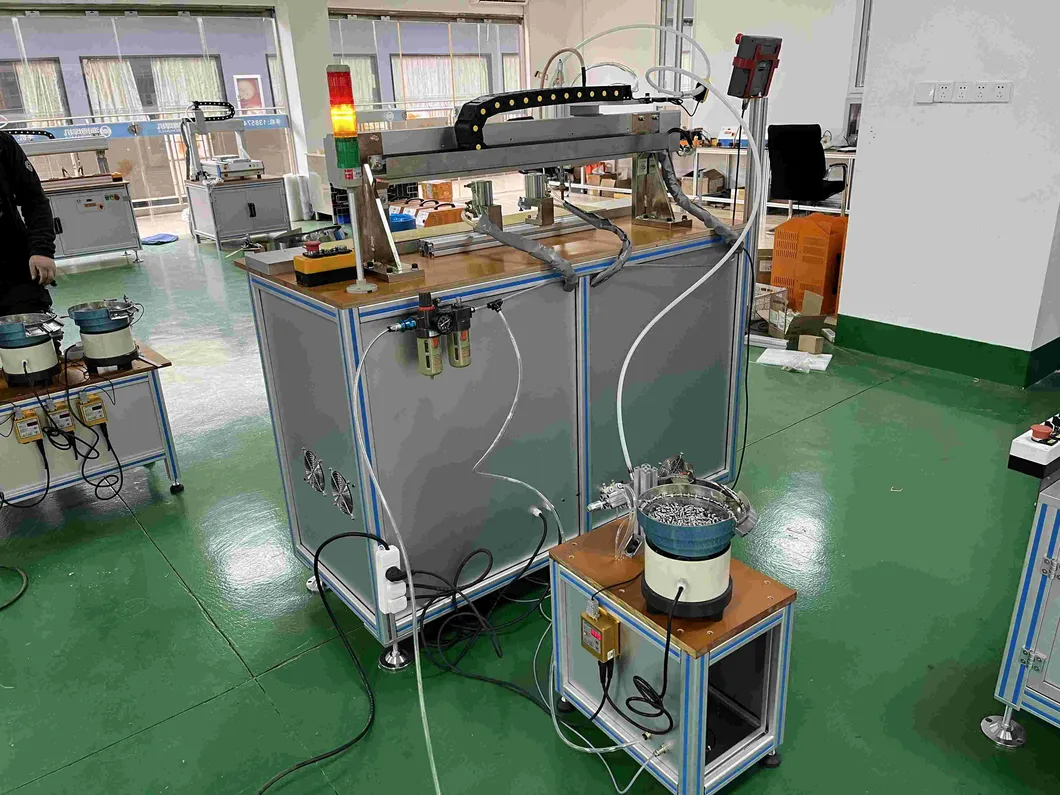

This Automatic Stud Welding Machine is a professional Studs Welding Machine For Trowel, specially designed for welding studs on the trowel panel. As a high-performance Trowel Stud Welding Machine, its product application scope is as follows:
Product specifications: X: 1000, Z: 50 mm. This Stud Welding Machine adopts energy storage capacitors for charging and discharging, featuring fast welding speed, with rapid compensation and pressurization at the discharge moment. Equipped with a DC welding power source, it produces little spatter during welding, ensuring reliable quality and attractive welding joints.
Fast-response welding cylinder with a maximum stroke of 50 mm, delivering high efficiency, stability, reliability, instant compensation and pressurization.
To guarantee the overall equipment performance and welding quality, all key components are from well-known brands, featuring high quality and reliability, and are special accessories dedicated for Stud Welding Machines.
The outline drawing of the machine is as follows.
Main Composition

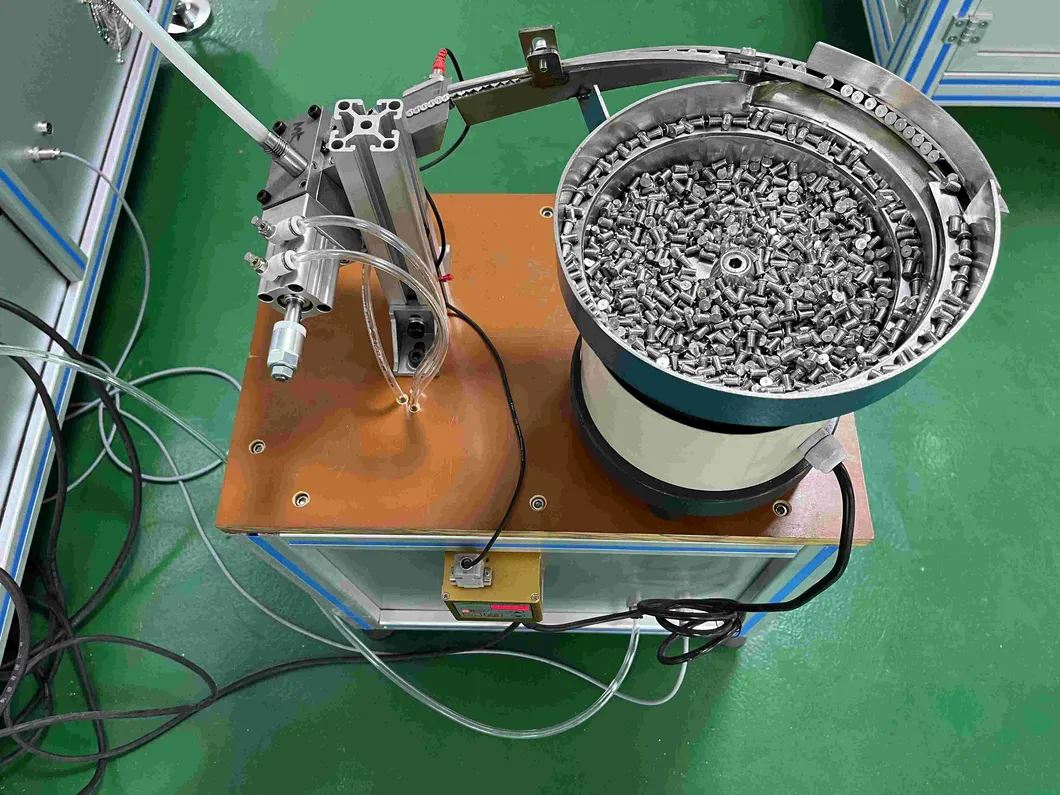

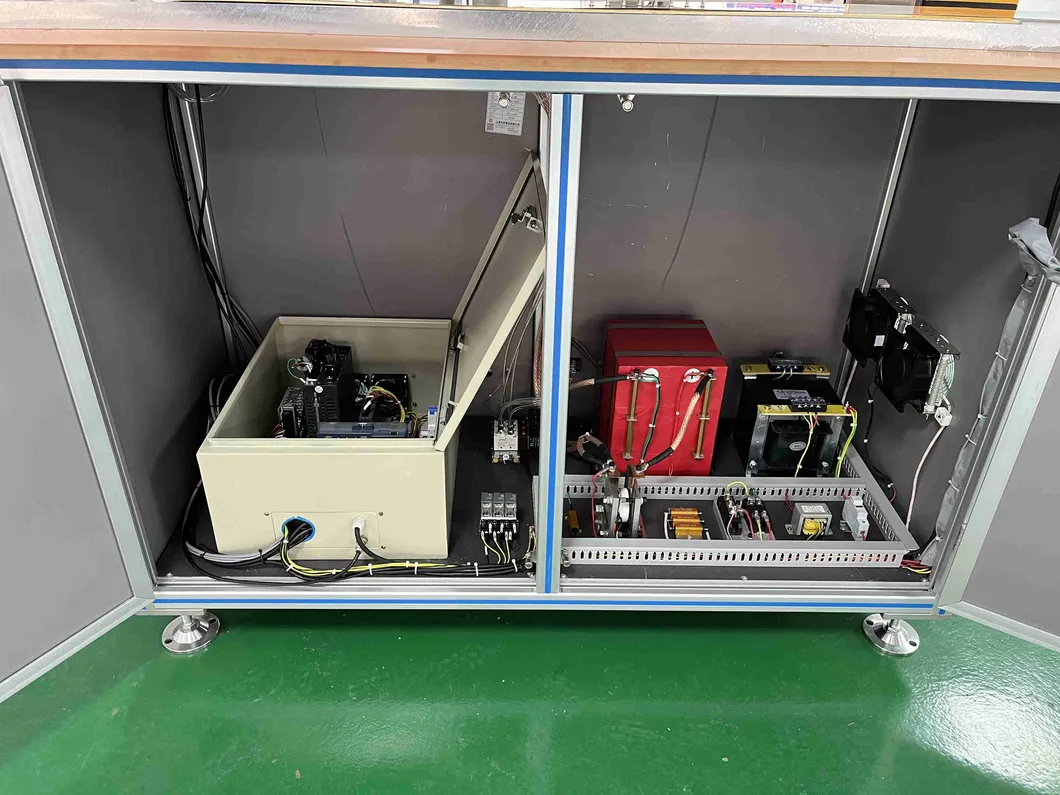

The equipment mainly consists of: 1. Frame; 2. Welding power source; 3. Isolation transformer; 4. X, Z two-axis module; 5. CNC stud welding gun; 6. Six-axis motion card; 7. Automatic stud (bolt) feeding mechanism; 8. Cylinders and sensors, among other key components.
| 1 | Model | HB-1000 |
| 2 | Rated volts | 220V± 15% 50HZ |
| 3 | Rated power | 3KVA |
| 4 | Air pressure(Mpa) | 0.6-0.8 |
| 5 | Insulation grade | F |
| 6 | Welding cylinder stroke(mm) | 50 |
| 7 | Ajustment range of Volts(V) | 40-180 |
Main component list | No. | Name | Model | QTY | Origin |
| 1 | Machine frame | 1425X700X1250 | 1 | Self-made |
| 2 | Motion control device | HT-AA1-1A | 1 | TRIO,UK |
| 3 | Air cylinder of slider | SMC16-50 | 1 | JAPAN |
| 4 | Motion module | 1000 | 1 | HIWIN |
| 5 | Welding gun | HB-002 | 1 | Self-made |
| 7 | Welder | HB-5000 | 1 | |
| 8 | Servo motor | 750W | 1 | Tama Kawa, Japan |

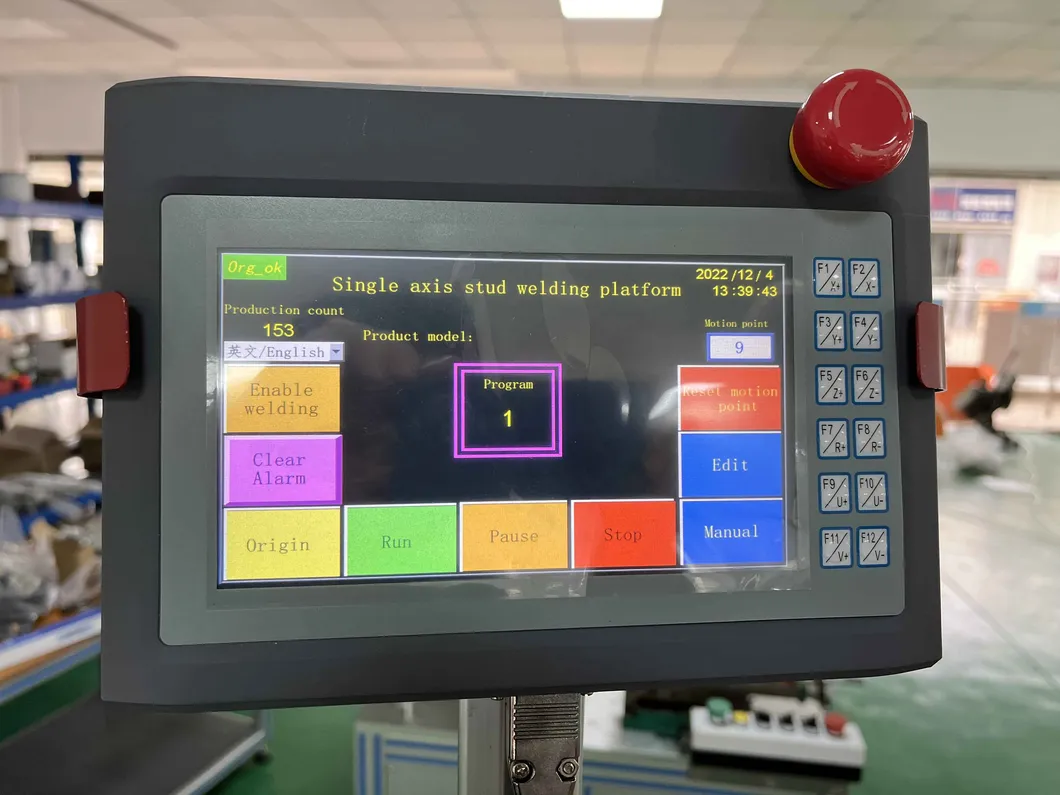

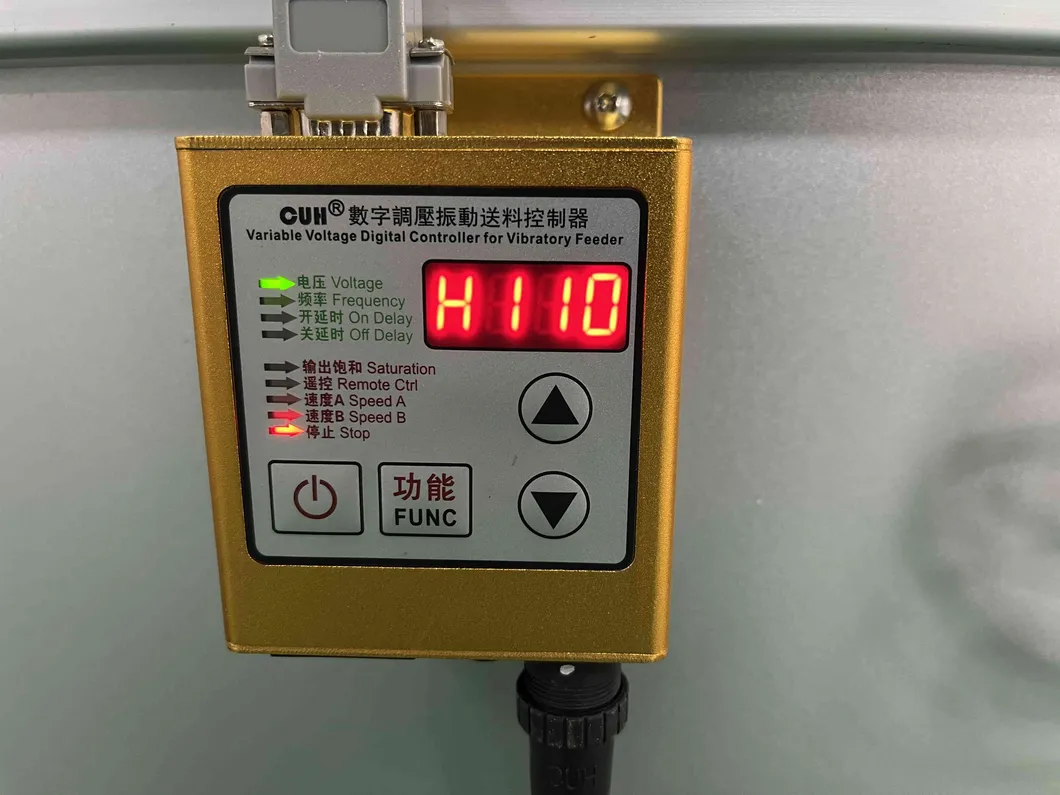

| 9 | HMI | AHT00058 | 1 | WEINVIEW |
| 10 | Driver | 400 | 1 | INVT |
| 11 | Postioning die | | 2 | Self-made |
| 12 | Stud feeding device | M4X6 | 1 | Self-made |
| 13 | Frame of stud feeding | 500X300X650 | 1 | Self-made |
