This Automatic Stud Welding Machine is designed for welding studs on the trowel panel, and as a professional Trowel Stud Welding Machine, its product application scope is as follows:
Product specifications: X: 1000, Z: 50 mm. This Stud Welding Machine adopts energy storage capacitor charging and discharging, featuring fast welding speed, with quick compensation and pressurization at the moment of discharge. Equipped with a DC welding power source, it produces small spatter during welding, ensuring reliable quality and aesthetically pleasing weld joints.
Fast welding cylinder with a maximum stroke of 50 mm, delivering high efficiency, stability, reliability, instant compensation and pressure.
To guarantee the overall equipment performance and welding quality, all key original components are from well‑known brands, featuring high quality and reliability, and are special accessories dedicated for Studs Welding Machine For Trowel.

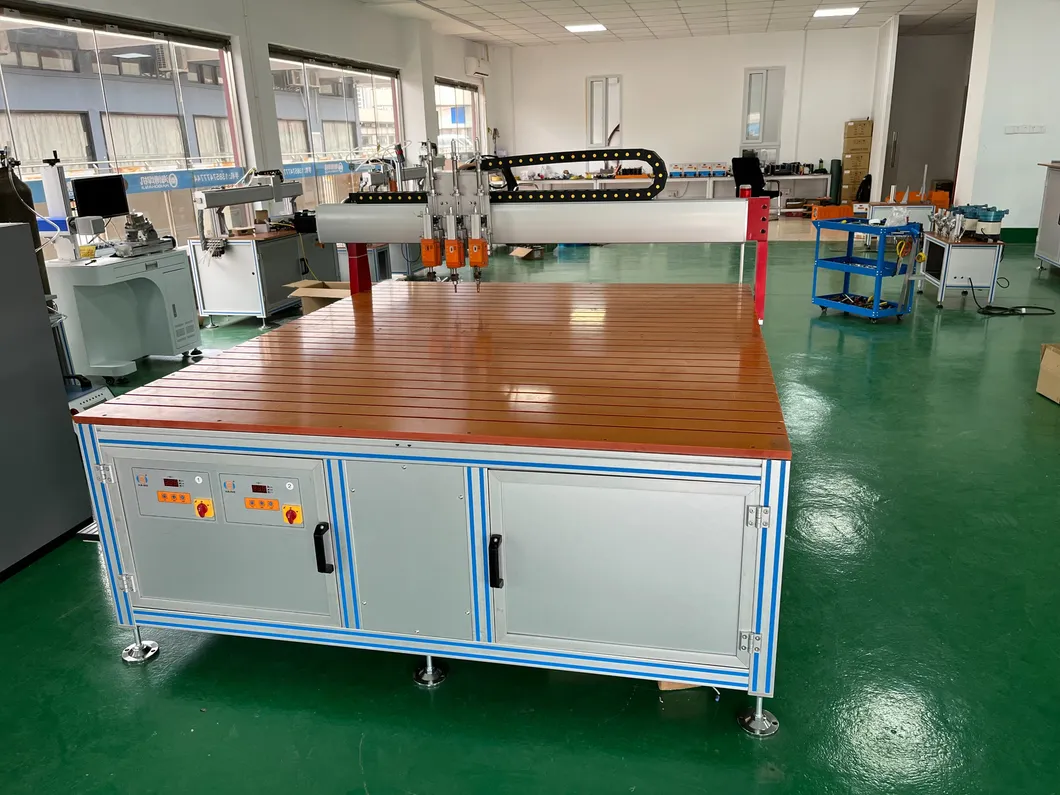

The outline drawing of the machine is as follows.

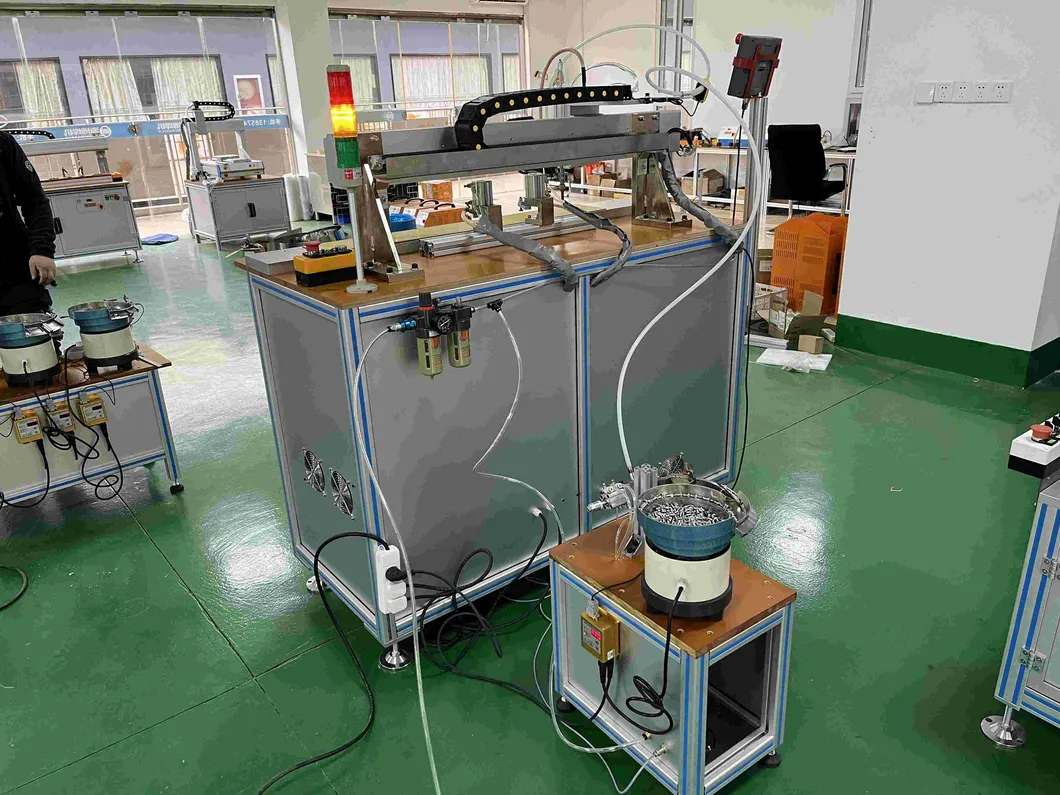

Main composition

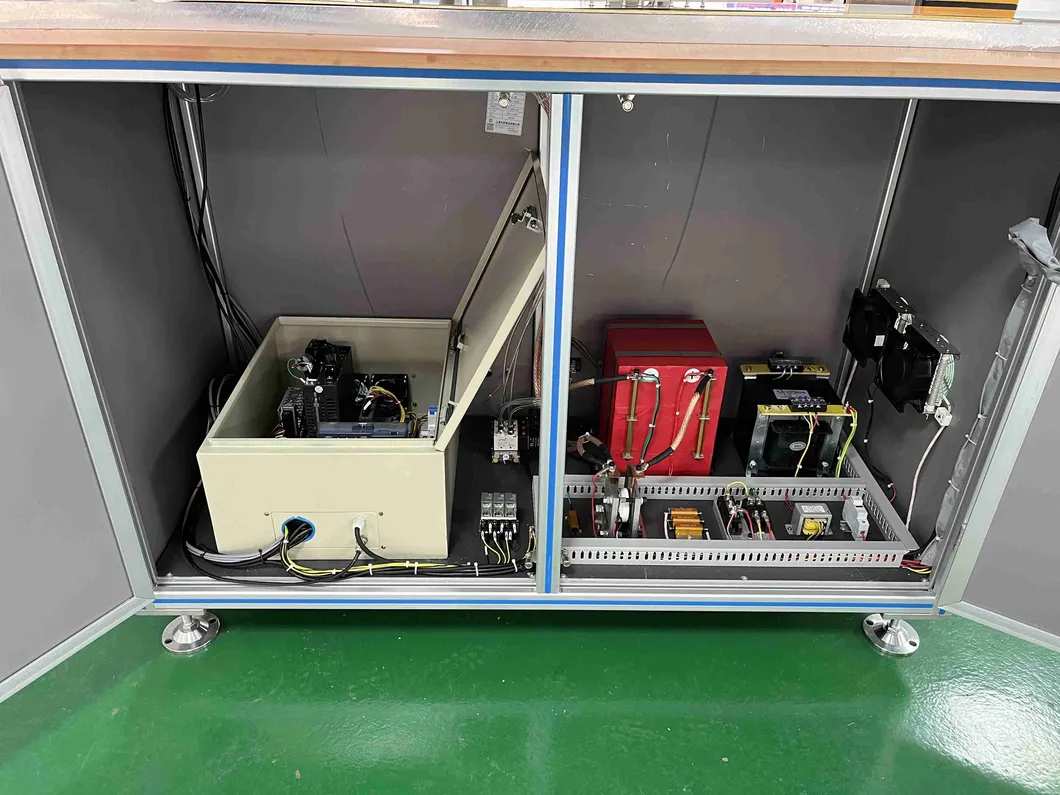

The equipment is mainly composed of: 1, frame; 2, welding power source; 3, isolation transformer; 4, X, Z two-axis module; 5, CNC stud welding gun; 6, six-axis motion card, 7, automatic stud(bolt) feeding Mechanism, 8, several main components such as cylinders and sensors. | 1 | Model | HB-1000 |
| 2 | Rated volts | 220V± 15% 50HZ |
| 3 | Rated power | 3KVA |
| 4 | Air pressure(Mpa) | 0.6-0.8 |
| 5 | Insulation grade | F |
| 6 | Welding cylinder stroke(mm) | 50 |
| 7 | Ajustment range of Volts(V) | 40-180 |
Main component list | No. | Name | Model | QTY | Origin |
| 1 | Machine frame | 1425X700X1250 | 1 | Self-made |
| 2 | Motion control device | HT-AA1-1A | 1 | TRIO,UK |
| 3 | Air cylinder of slider | SMC16-50 | 1 | JAPAN |
| 4 | Motion module | 1000 | 1 | HIWIN |
| 5 | Welding gun | HB-002 | 1 | Self-made |
| 7 | Welder | HB-5000 | 1 | |
| 8 | Servo motor | 750W | 1 | Tama Kawa, Japan |

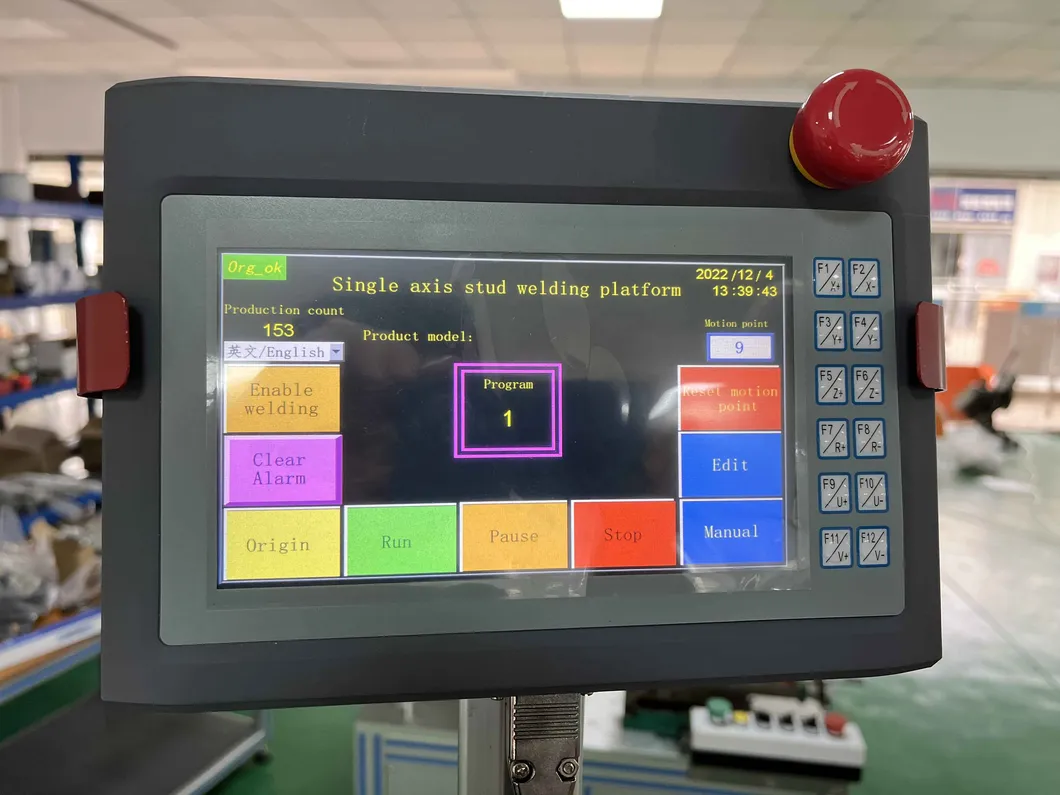

| 9 | HMI | AHT00058 | 1 | WEINVIEW |
| 10 | Driver | 400 | 1 | INVT |
| 11 | Postioning die | | 2 | Self-made |

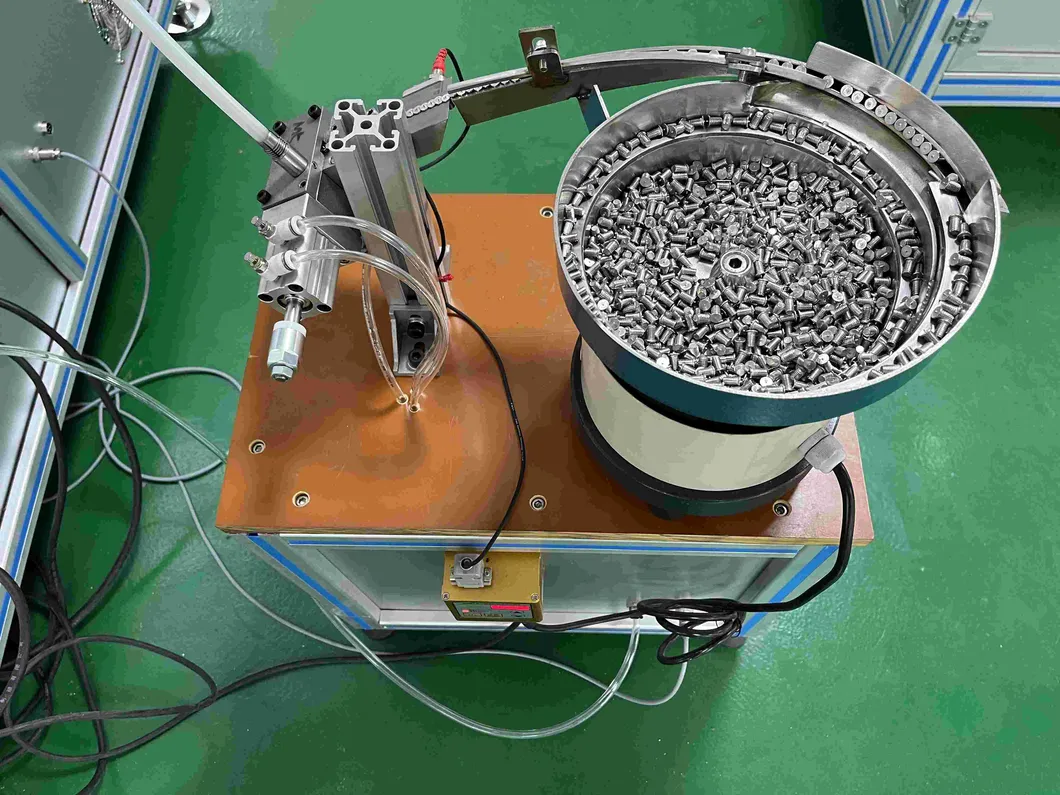

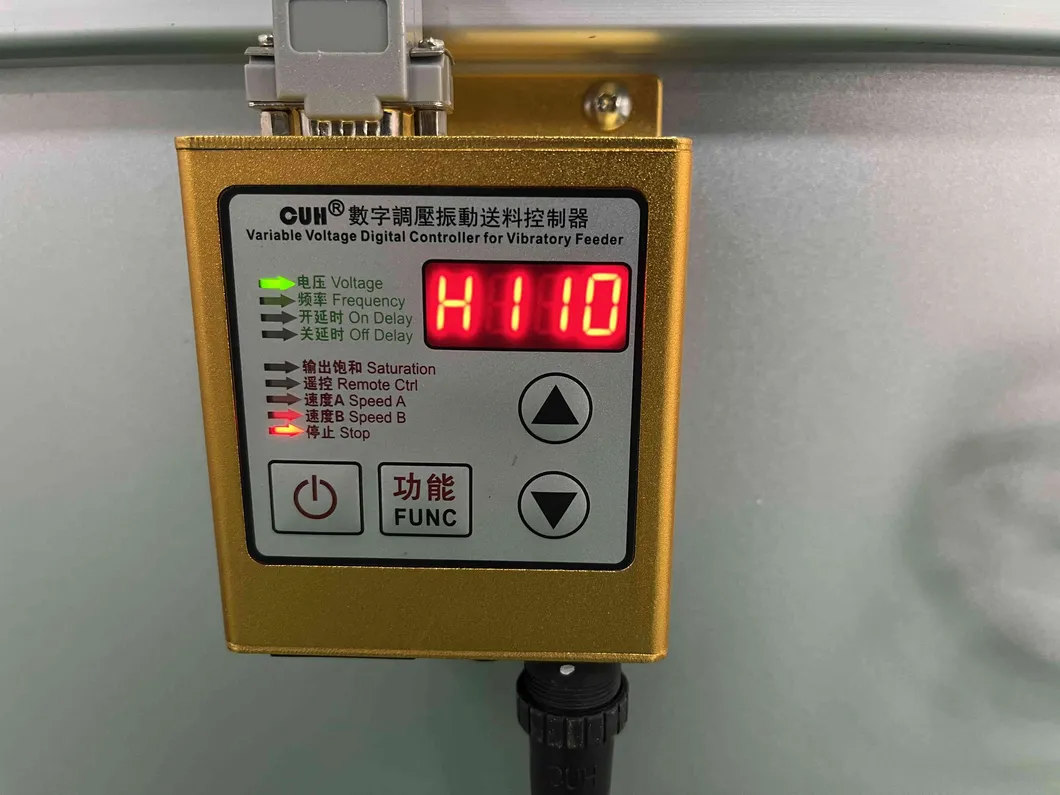

| 12 | Stud feeding device | M4X6 | 1 | Self-made |
| 13 | Frame of stud feeding | 500X300X650 | 1 | Self-made |
