Name: High Speed Non-Stick Frying Pan Handle Welding Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.9 (3 reviews)

High Speed Non-Stick Frying Pan Handle Welding Machine

Min. Order:1 Piece/Pieces

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Product Parameters
Detailed Photos
Finished product display
Company Profile
FAQ

Basic Info.

Work Form

One-Body

Type

Stud Welding Machine

Certificate

Welder Brand

Soyer (Made in Germany)

Max. Pan Diameter

500mm

Rated Frequency

50/60Hz

Insulation Grade

IP21

Transport Package

Wooden Case

Specification

110*98*150cm

Trademark

Xin chang

Origin

Ningbo China

HS Code

8515319900

Product Description

Description

It's used for 100-500mm Aluminum pan

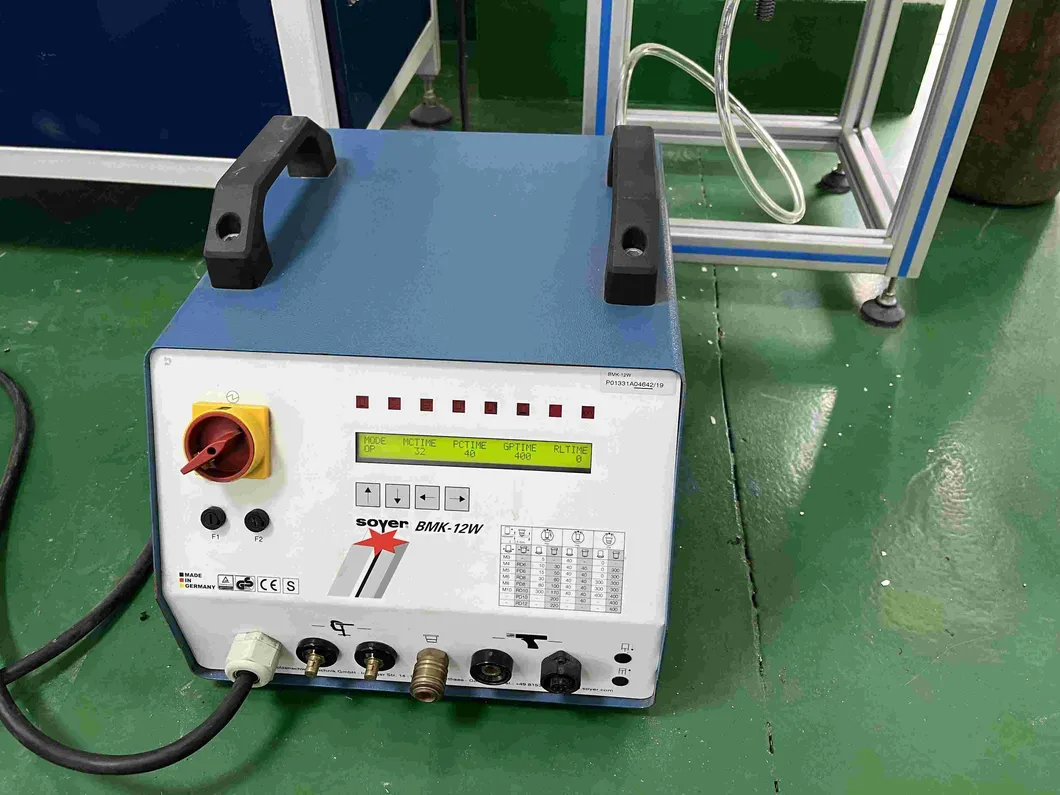

use Soyer brand model BMK-12W arc stud welding machine imported from Germany
it's suitable for single ear and double ears welding, easy to change it and also can change the manual welding and automatic welding.
work process: loading by manual, cross positioning LOGO by laser, Can be used with laser to clean paint or stains, vibrating disk loading, automatic arc welding, Manual torque test, manual unloading
should use special slotted arc welding studs and use 99.999% pure argon during welding

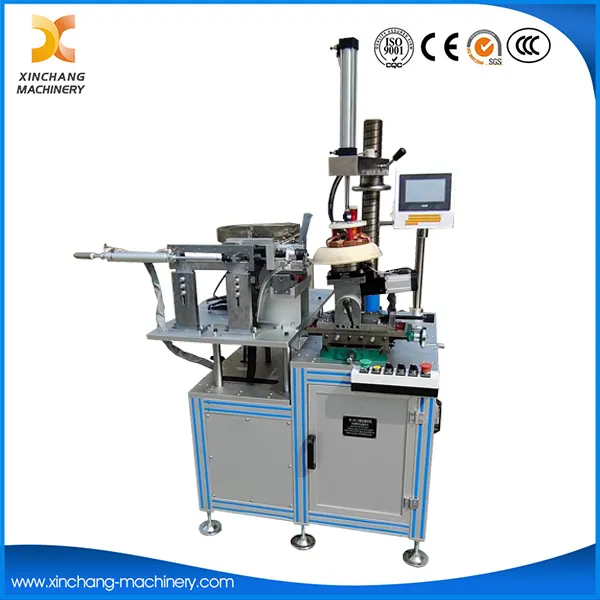

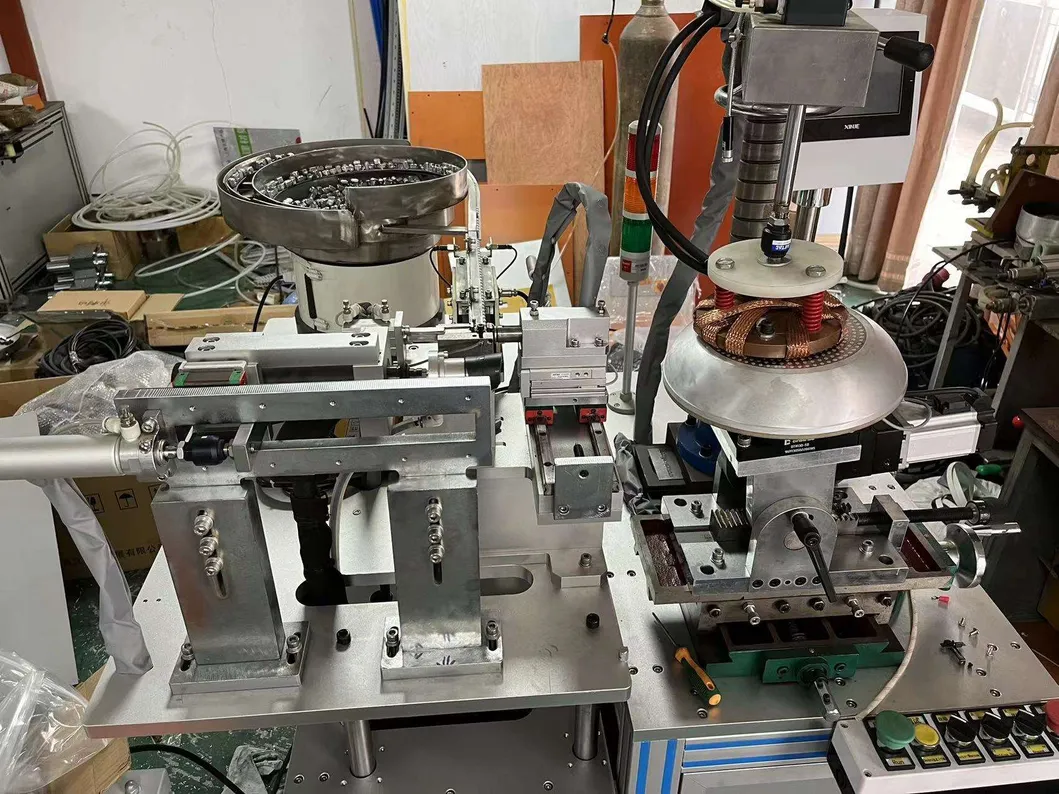

The structure of the equipment is mainly divided into two parts, the left is the vibration disk that automatically feeds the material to the torch head (it can be lifted up and down according to the welding height of the pan), and the right is the fixture and control part which can swung left and right to adjust the welding angle, so that make up the angle insufficient

Welding process

Welding pattern: (Both the ear buckle and the pan body are made of aluminum alloy. The pan body contains a variety of specifications from 100-500mm.)
Welding requirement: torsion after welding≥15N/M

Power supply parameters

Input Voltage and Phase Number	Three phase, 380V ± 10%, 3 phase
Rated frequency	50/60HZ
Input Power	200VA
Input Current	0.3 A / phase
Instantaneous current	3 × 400V AC 60A / phase
Rated power	8kVA
Open circuit voltage	76V
Insulation grade	IP21
Protect air flow	4-5 L/min
size	360mm×325mm×500mm ( W×H×D )
weight	48KG
colour	RAL 5009 Sky Blue
Cable length	High flexible cable(standard) of 5 M each for welding gun, ground line and control line

Welding torch parameter

Item	parameter
welding torch	PH-3N
Welding current	800A
Welding time	1-1000 milliseconds
Arc initiation time	0.2-2 seconds
Protection time	0.2-2 seconds
Short period arc initiation time	1-200 milliseconds
Welding speed	15-30 studs/min

Workbench

material	Industrial aluminium profiles 60x60
size	800x800x680mm
worktable	aluminium sheet

High Speed Non-Stick Frying Pan Stud Welding Machine for Cookware Handles
