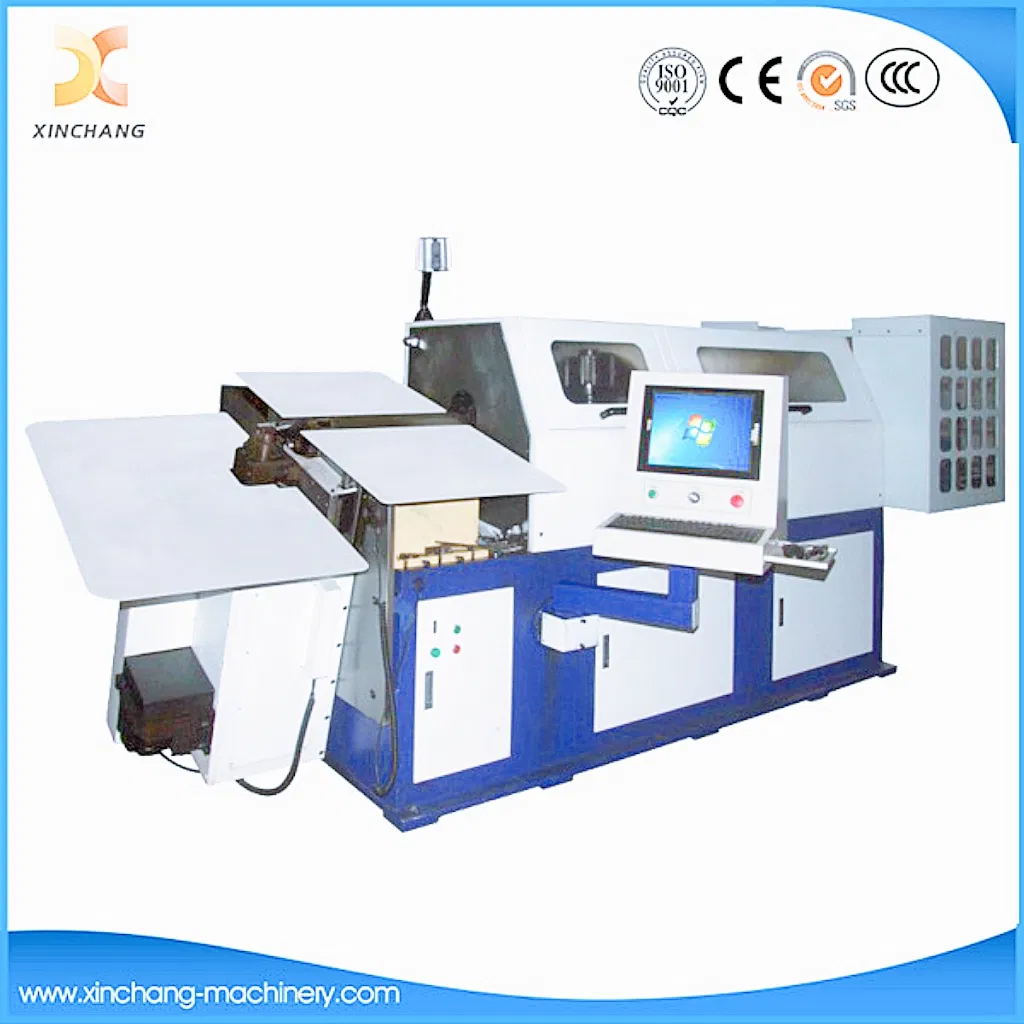

7 Axis 2D and 3D CNC Wire Rod Forming Bending Machine
1. Application

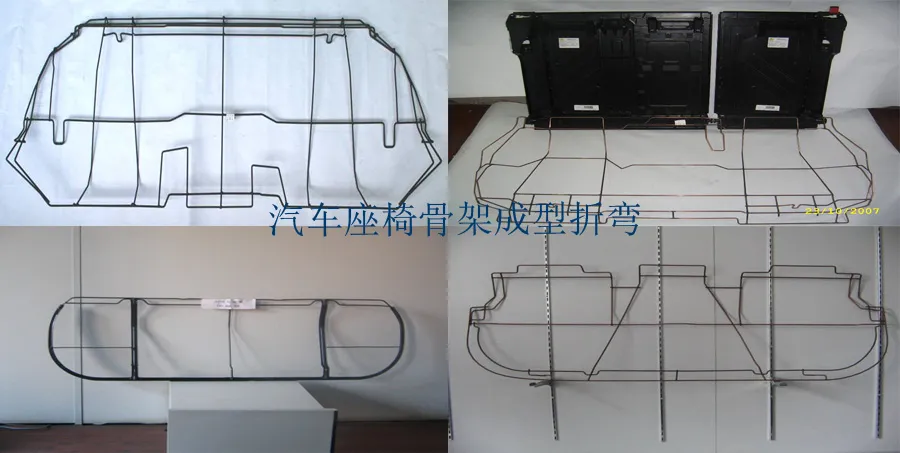

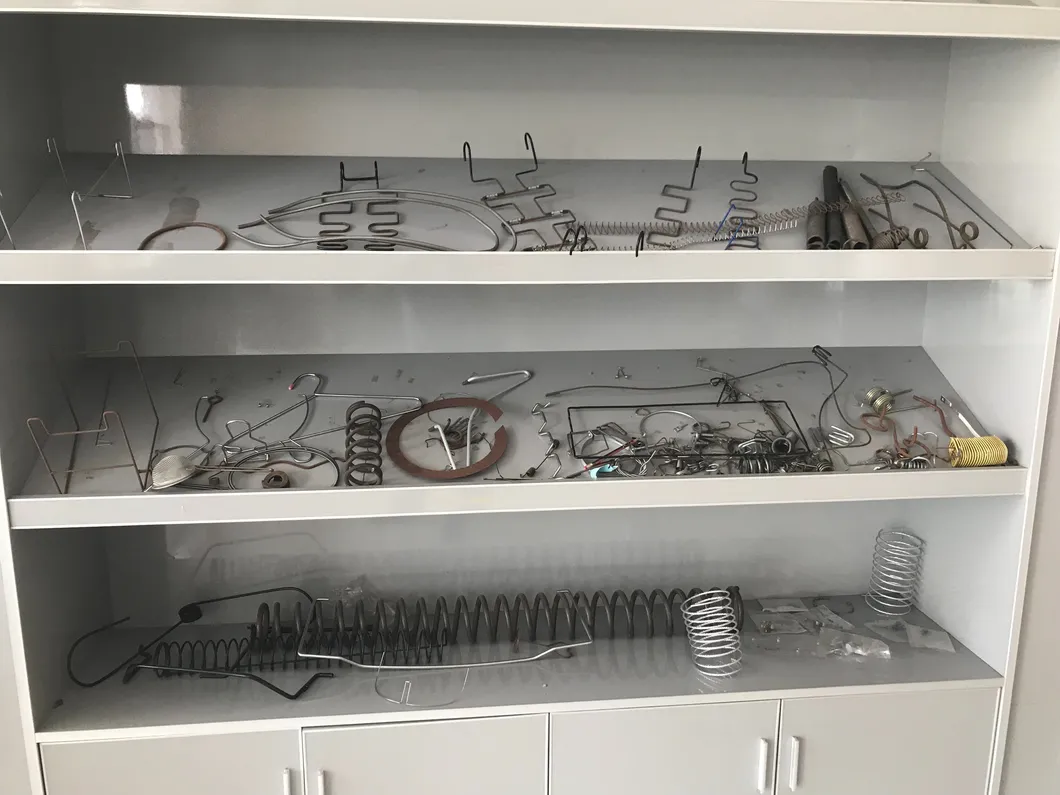

With a processing range of 2.0–12.0mm wire rods, this machine adopts a dedicated computer control system and imported servo motors for high precision. Its bilingual interface is user-friendly, and stored programs greatly improve production efficiency. Real-time parameter adjustment and automatic protection functions ensure stable running. As a flexible CNC 2D/3D Wire Bending Machine, it achieves accurate spatial bending, fully demonstrating the performance of a Precision 3D Profile Bending Machine. This versatile 2D And 3D Wire Bending Machine is widely applied in automotive parts, craft wires, sanitary ware brackets, storage cages, shopping carts and other wire forming applications.
2. Features
Equipped with 7 sets of vertical & horizontal straightening wheels to ensure wire feeding straightness.
3 sets of wire feeding wheels with accuracy of 280mm±0.1mm.
Lifting worktable ideal for bending long wires.
Built-in wire arranging mechanism prevents wire tangling.
3. Advantages
Fast computer startup/shutdown, simple operation, multi-language support; program and speed adjustable during production.
Adopts fully imported high-precision high-speed servo motors and reducers, stable and durable, with production speed over 30% higher than similar domestic models.
Program ensures consistent bending angle at different speeds for better production stability.
Key parts (bearings, gears) use imported components for high durability and reliability.
High precision: processes 2.0–14mm diameter wires with error down to 0.1mm.
Complete after-sales service: free technical training and lifetime equipment maintenance.
| Model | CNC-7-60 | CNC-7-80 | CNC-7-120 | CNC-7-140 |
| Wire diameter | 2-6mm | 3-8mm | 4-12mm | 5-14mm |
| Axis numbers | 7 | 7 | 7 | 7 |
| Wire feeding precision | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 |
| Cam precision | ±0.01°-±359.° | ±0.01°-±359.° | ±0.01°-±359.° | ±0.01°-±359.° |
| Feeding length | limitless | limitless | limitless | limitless |
| Speed of feeding | 100m/min | 100m/min | 100m/min | 100m/min |
| Feeding axis servo motor | 2.7kw | 2.7kw | 4.5kw | 11kw |
| wire turning axis servo motor | 1.2kw | 1.2kw | 2.7kw | 4.5kw |
| Bending axis servo motor | 0.75kw | 1.2kw | 2.7kw | 5.5kw |
| Lifting servo motor | 0.75kw | 0.75kw | 2.7kw | 2.7kw |
| Twisting & Lifting servo motor | 0.75kw | 0.75kw | 2.7kw | 2.7kw |
| Turning center axis servo motor | 1.2kw | 1.2kw | 2.7kw | 5.5kw |
| Cutting axis servo motor | 0.75kw | 0.75kw | 2.7kw | 4.5kw |
| overall size | 290x190x170cm | 410x200x190cm | 425x200x190cm | 445x200x190 |
| Machine weight | 2000kg | 2800kg | 3800kw | 4000kg |
