7 Axis 2D 3D Professional Wire Rod Bender

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Supply Ability & Additional Information

Supply Ability: 100 Sets/Month

Packaging & Delivery

Selling Units:

Piece/Pieces



7-Axis Wire Bending Machine



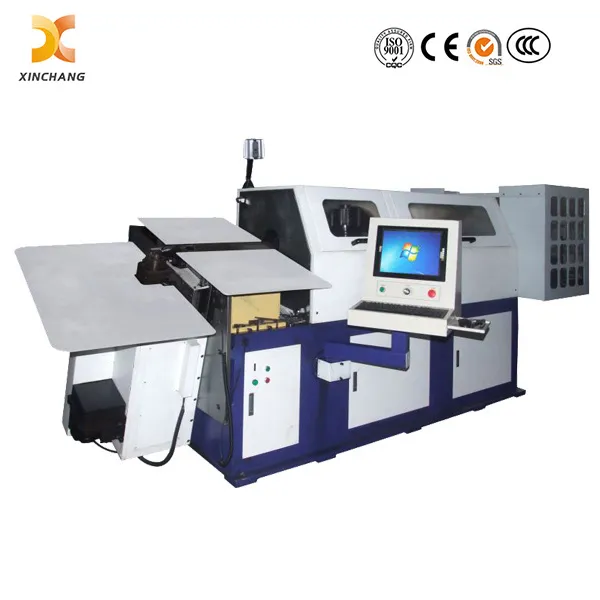

7 Axis 2D 3D CNC Professional Wire Rod Process Forming Machine

1. Application

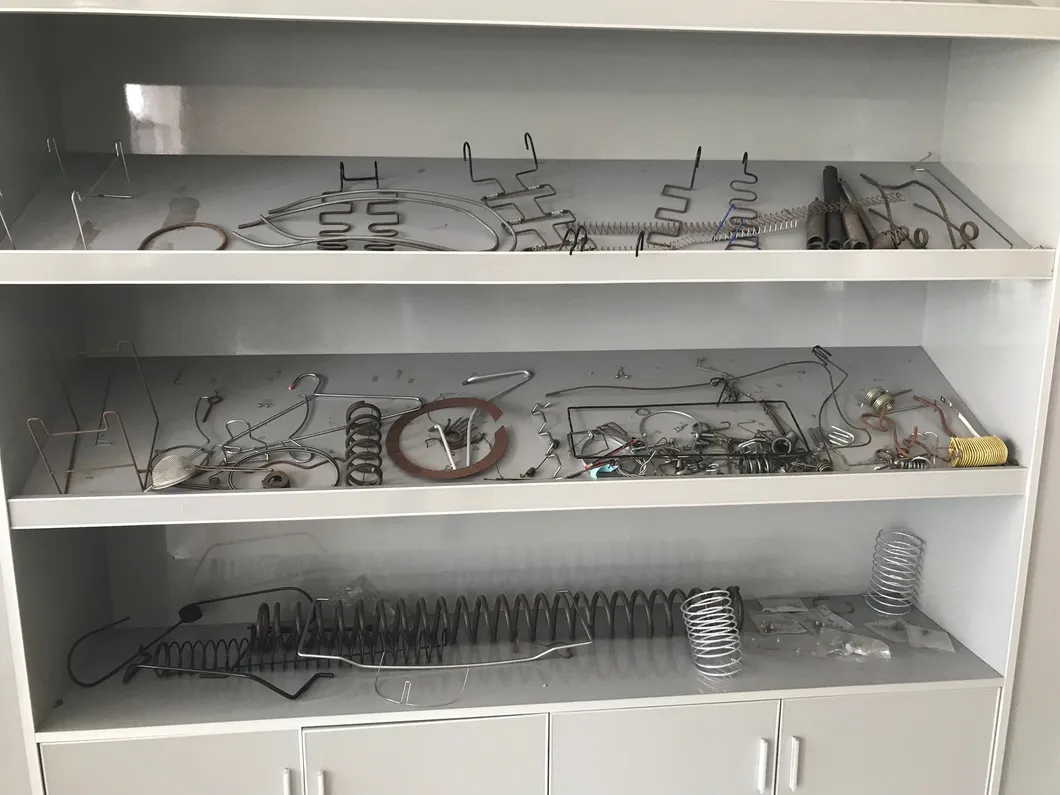

Suitable for 2.0–12.0mm diameter wire rods, this forming machine features a dedicated control system and imported high-precision servo motors for reliable operation. The Chinese-English interface supports easy operation, program storage and real-time parameter correction. Automatic stop and acceleration functions effectively prevent wire issues during production. As a powerful CNC 2D/3D Wire Bending Machine, it delivers excellent performance as a Precision 3D Profile Bending Machine for complex workpieces. This multi-purpose 2D And 3D Wire Bending Machine is widely used in automotive seat springs, sun visor frames, metal crafts, hardware brackets, storage cages and shopping cart parts.

2. Features

Equipped with 7 sets of vertical & horizontal straightening wheels to ensure wire feeding straightness.

3 sets of wire feeding wheels with accuracy of 280mm±0.1mm.

Lifting worktable ideal for bending long wires.

Built-in wire arranging mechanism prevents wire tangling.

3. Advantages

Fast computer startup/shutdown, simple operation, multi-language support; program and speed adjustable during production.

Adopts fully imported high-precision high-speed servo motors and reducers, stable and durable, with production speed over 30% higher than similar domestic models.

Program ensures consistent bending angle at different speeds for better production stability.

Key parts (bearings, gears) use imported components for high durability and reliability.

High precision: processes 2.0–14mm diameter wires with error down to 0.1mm.

Complete after-sales service: free technical training and lifetime equipment maintenance.

Model	CNC-7-60	CNC-7-80	CNC-7-120	CNC-7-140
Wire diameter	2-6mm	3-8mm	4-12mm	5-14mm
Axis numbers	7	7	7	7
Wire feeding precision	±0.01-±9999.99	±0.01-±9999.99	±0.01-±9999.99	±0.01-±9999.99
Cam precision	±0.01°-±359.°	±0.01°-±359.°	±0.01°-±359.°	±0.01°-±359.°
Feeding length	limitless	limitless	limitless	limitless
Speed of feeding	100m/min	100m/min	100m/min	100m/min
Feeding axis servo motor	2.7kw	2.7kw	4.5kw	11kw
wire turning axis servo motor	1.2kw	1.2kw	2.7kw	4.5kw
Bending axis servo motor	0.75kw	1.2kw	2.7kw	5.5kw
Lifting servo motor	0.75kw	0.75kw	2.7kw	2.7kw
Twisting & Lifting servo motor	0.75kw	0.75kw	2.7kw	2.7kw
Turning center axis servo motor	1.2kw	1.2kw	2.7kw	5.5kw
Cutting axis servo motor	0.75kw	0.75kw	2.7kw	4.5kw
overall size	290x190x170cm	410x200x190cm	425x200x190cm	445x200x190
Machine weight	2000kg	2800kg	3800kw	4000kg

7 Axis 2D and 3D High Precision Automatic Wire Strip Bending Forming Equipment
