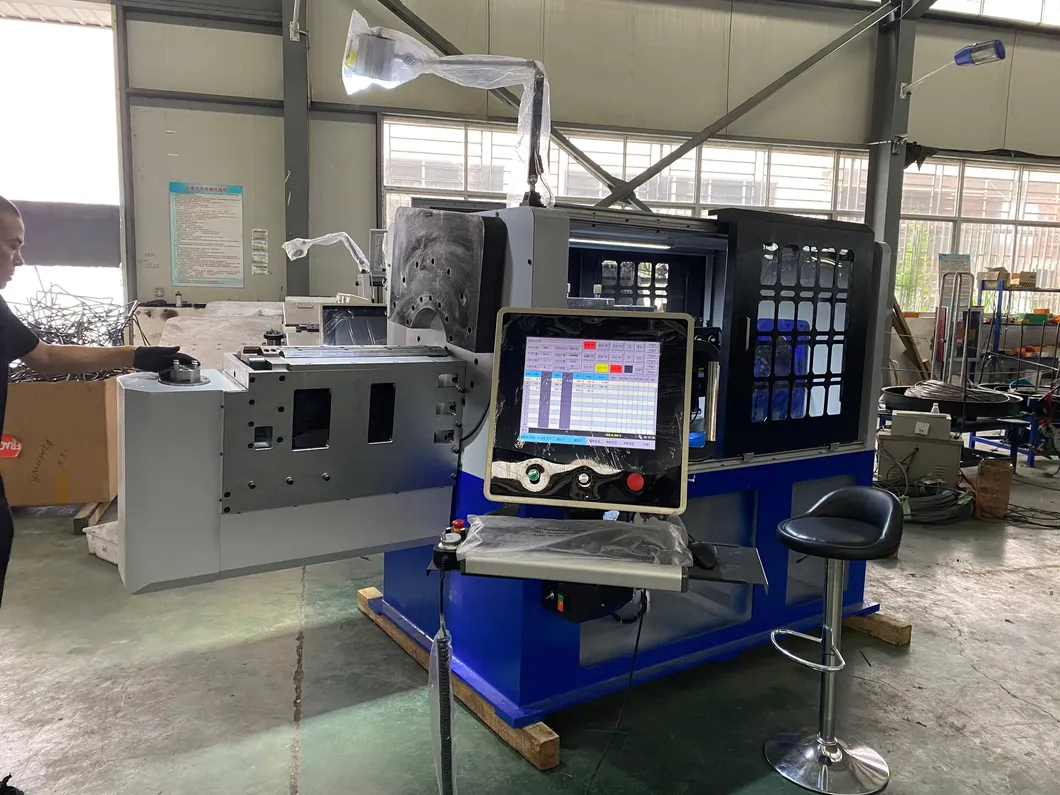

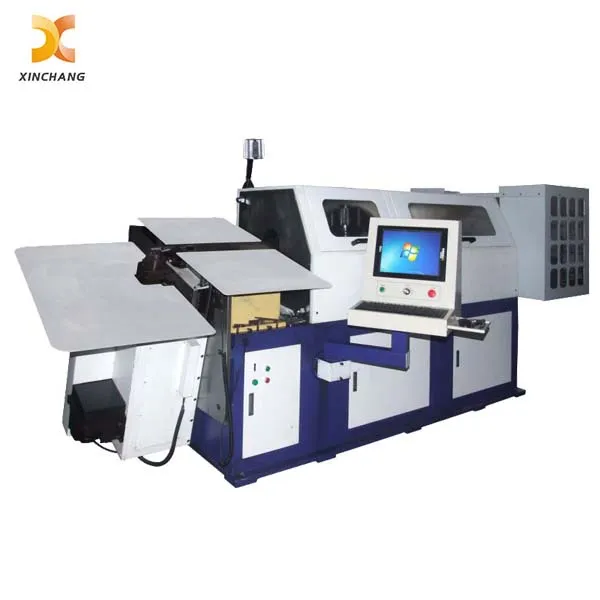

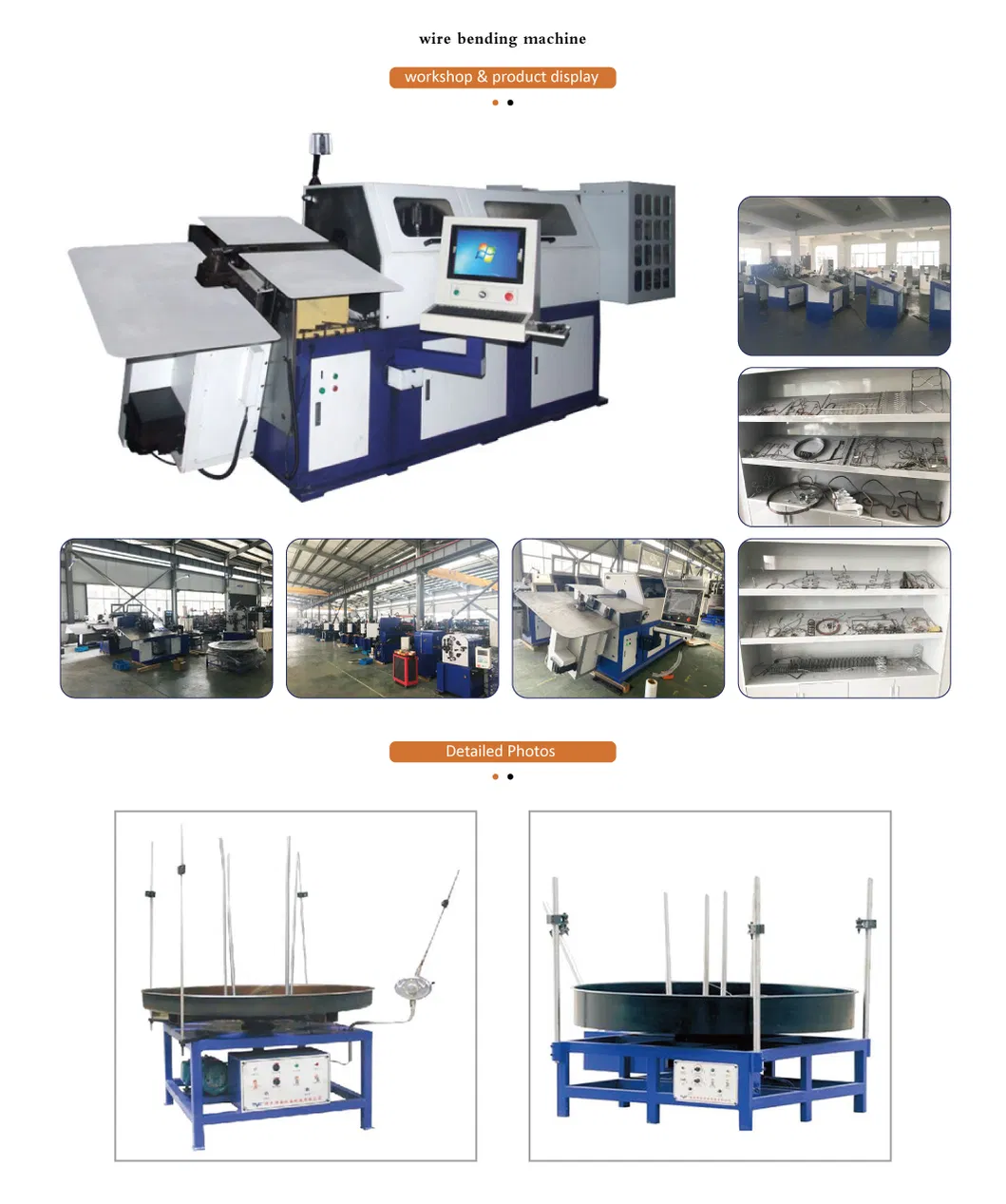

High Precision 7Axis CNC Wire Forming Bending Machine
1. Application

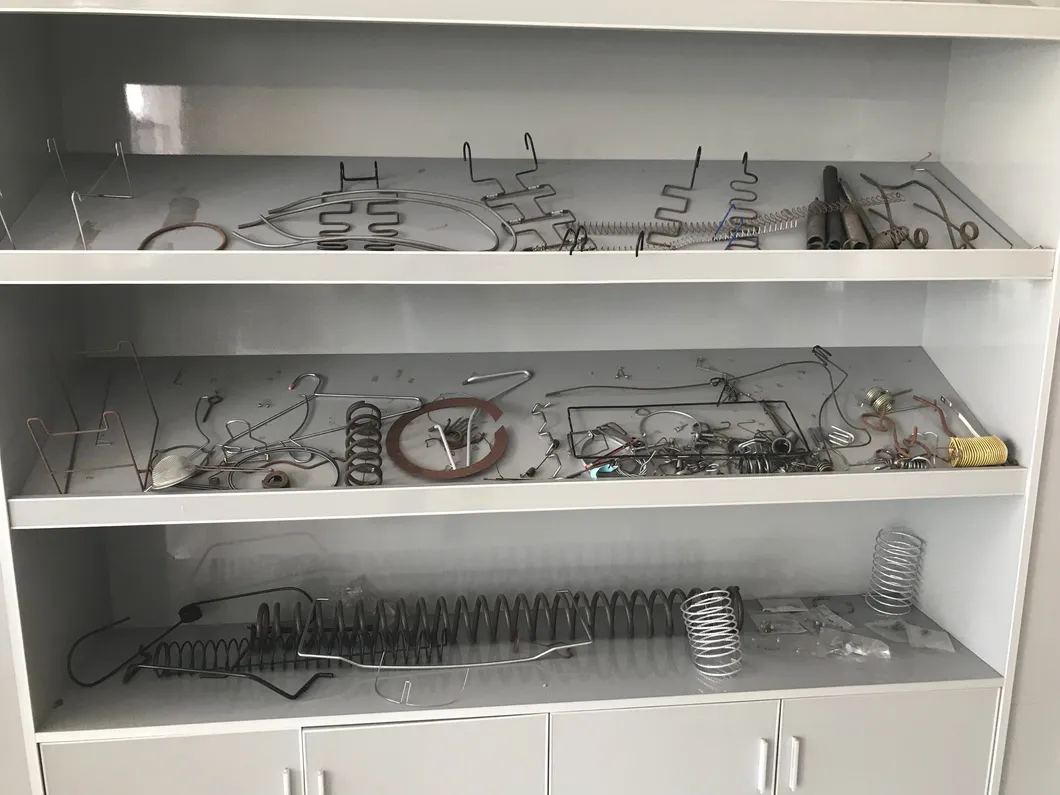

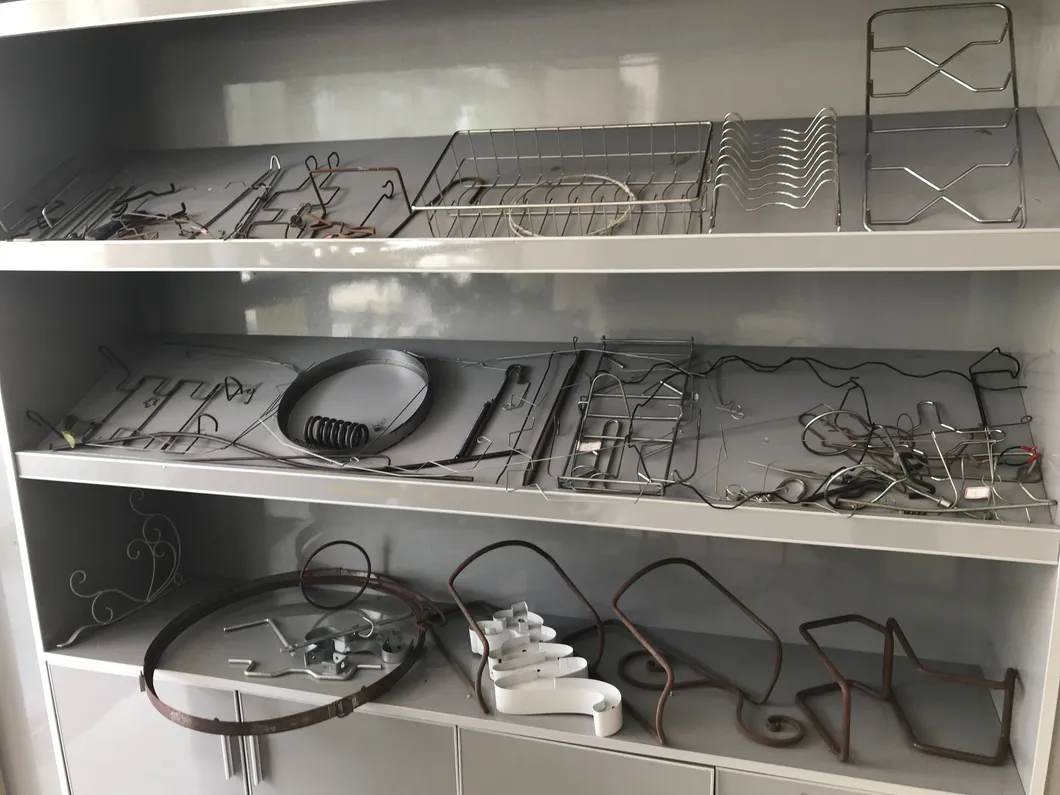

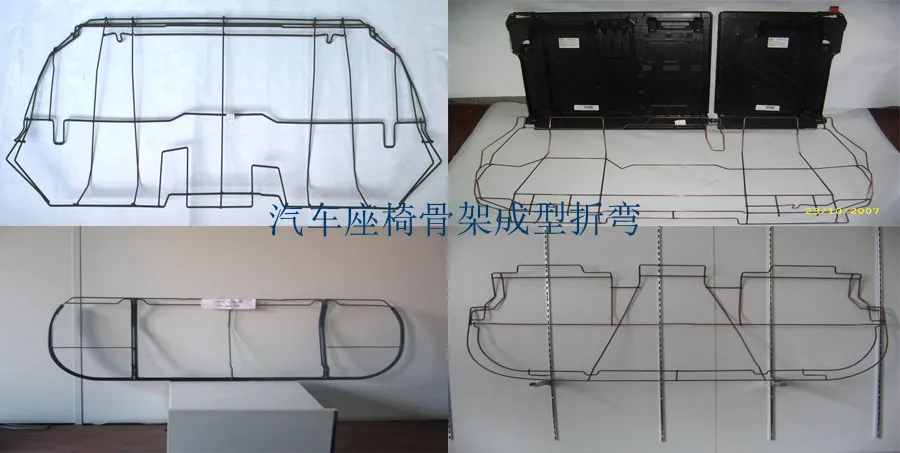

This wire rod forming machine is capable of producing 2.0–12.0mm diameter wire products. It is equipped with a dedicated control system and imported high-precision servo motors, providing a user-friendly Chinese-English interface for easy operation and precise positioning. It can store hundreds of programs to reduce debugging time and supports real-time correction of outer diameter and angle. With automatic stop and acceleration functions for wire breakage and tangling, this CNC 2D/3D Wire Bending Machine ensures stable and efficient production. As a high-performance Precision 3D Profile Bending Machine, this flexible 2D And 3D Wire Bending Machine is widely used in automotive parts, metal crafts, brackets, storage cages and shopping carts.
2. Features
Equipped with 7 sets of vertical & horizontal straightening wheels to ensure wire feeding straightness.
3 sets of wire feeding wheels with accuracy of 280mm±0.1mm.
Lifting worktable ideal for bending long wires.
Built-in wire arranging mechanism prevents wire tangling.
3. Advantages
Fast computer startup/shutdown, simple operation, multi-language support; program and speed adjustable during production.
Adopts fully imported high-precision high-speed servo motors and reducers, stable and durable, with production speed over 30% higher than similar domestic models.
Program ensures consistent bending angle at different speeds for better production stability.
Key parts (bearings, gears) use imported components for high durability and reliability.
High precision: processes 2.0–14mm diameter wires with error down to 0.1mm.
Complete after-sales service: free technical training and lifetime equipment maintenance.
| Model | CNC-7-60 | CNC-7-80 | CNC-7-120 | CNC-7-140 |
| Wire diameter | 2-6mm | 3-8mm | 4-12mm | 5-14mm |
| Axis numbers | 7 | 7 | 7 | 7 |
| Wire feeding precision | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 |
| Cam precision | ±0.01°-±359.° | ±0.01°-±359.° | ±0.01°-±359.° | ±0.01°-±359.° |
| Feeding length | limitless | limitless | limitless | limitless |
| Speed of feeding | 100m/min | 100m/min | 100m/min | 100m/min |
| Feeding axis servo motor | 2.7kw | 2.7kw | 4.5kw | 11kw |
| wire turning axis servo motor | 1.2kw | 1.2kw | 2.7kw | 4.5kw |
| Bending axis servo motor | 0.75kw | 1.2kw | 2.7kw | 5.5kw |
| Lifting servo motor | 0.75kw | 0.75kw | 2.7kw | 2.7kw |
| Twisting & Lifting servo motor | 0.75kw | 0.75kw | 2.7kw | 2.7kw |
| Turning center axis servo motor | 1.2kw | 1.2kw | 2.7kw | 5.5kw |
| Cutting axis servo motor | 0.75kw | 0.75kw | 2.7kw | 4.5kw |
| overall size | 290x190x170cm | 410x200x190cm | 425x200x190cm | 445x200x190 |
| Machine weight | 2000kg | 2800kg | 3800kw | 4000kg |
