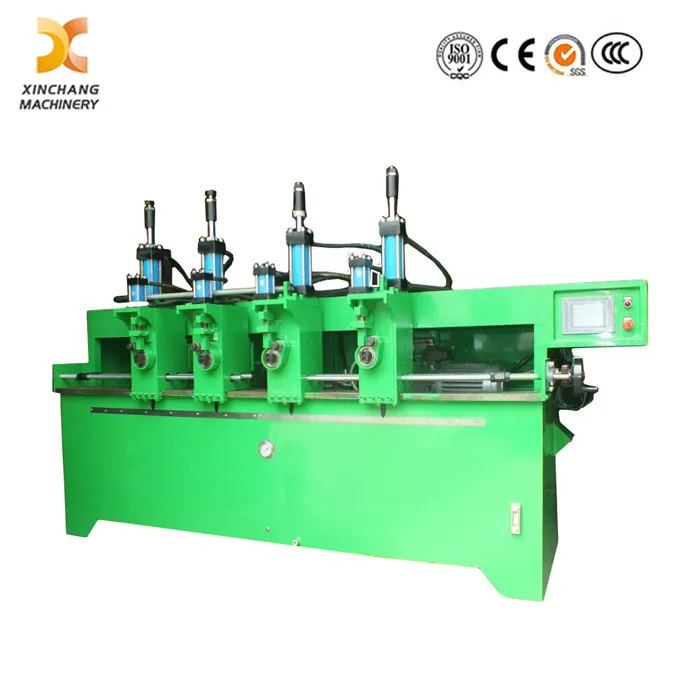

Durable Mesh Wire Bending Equipment Rectangle Wire Rod Processing and Forming Machine
1.Scope of application:
Parts specification
This Machine is suitable for a variety of rectangular wires products and Others Wire diameter: 2-6mm
Breaking point is in the long edges middle around.
2.Machine usage voltage and Hz
220V&50HZ (can be customized as per needs)
3.Machine tolerance: ±0.5mm
4.Machine description:
It is with Touch screen, PLC controlled, with straightening &cutting device,
From coil, straightening, to bend one wire by one wire, to pre-cutt one by one.
High quality and accuracy, easy to operation. This Industry Special Machine adopts hydraulic cylinders to drive overall moving.
5.Working flow:
Put coil wires on coil loader, uncoiling, straightening, bending, pre-cut and finish one products with full Automatic Type processing logic.
6.Main parmeters
Motor of hydraulic: 5.5HP-4KW
Servo motor: 3HP-2kw
Oil pump : PV2R1-25-210
Machine structure: Vertical type
| Item NO. | Part name | Brand | Origin | Qty | Model |
| 1 | Hydraulic cylinder | Yifang | China | 2pcs | |
| 2 | Servo motor | Dongyuan | Taiwan | 1 | JSMA-MB20ABK01 |
| 3 | Transformer | Tianzheng | China | 1 | 2kw |
| 2 | Oil pump | Kaisi | China | 1pcs | PV2R1-25-210 |
| 3 | Hydraulic motor | Sanye | China | 1pcs | 4kw |
| 4 | Solinoid valves | Shentian | China | 2pcs | DG03-3C6(3C2)
AC 220V |
| 5 | Relay | IDEC | Japan | 8pcs | AC-24V |
| 6 | Spill valves | Daqing | Taiwan of China | 1pcs | RV-04 |
| 7 | Touch screen | Xiankong | China | 1 | 7inchs |
| 8 | PLC | Dongyuan | Taiwan of China | 1 | TP03-30MR |
