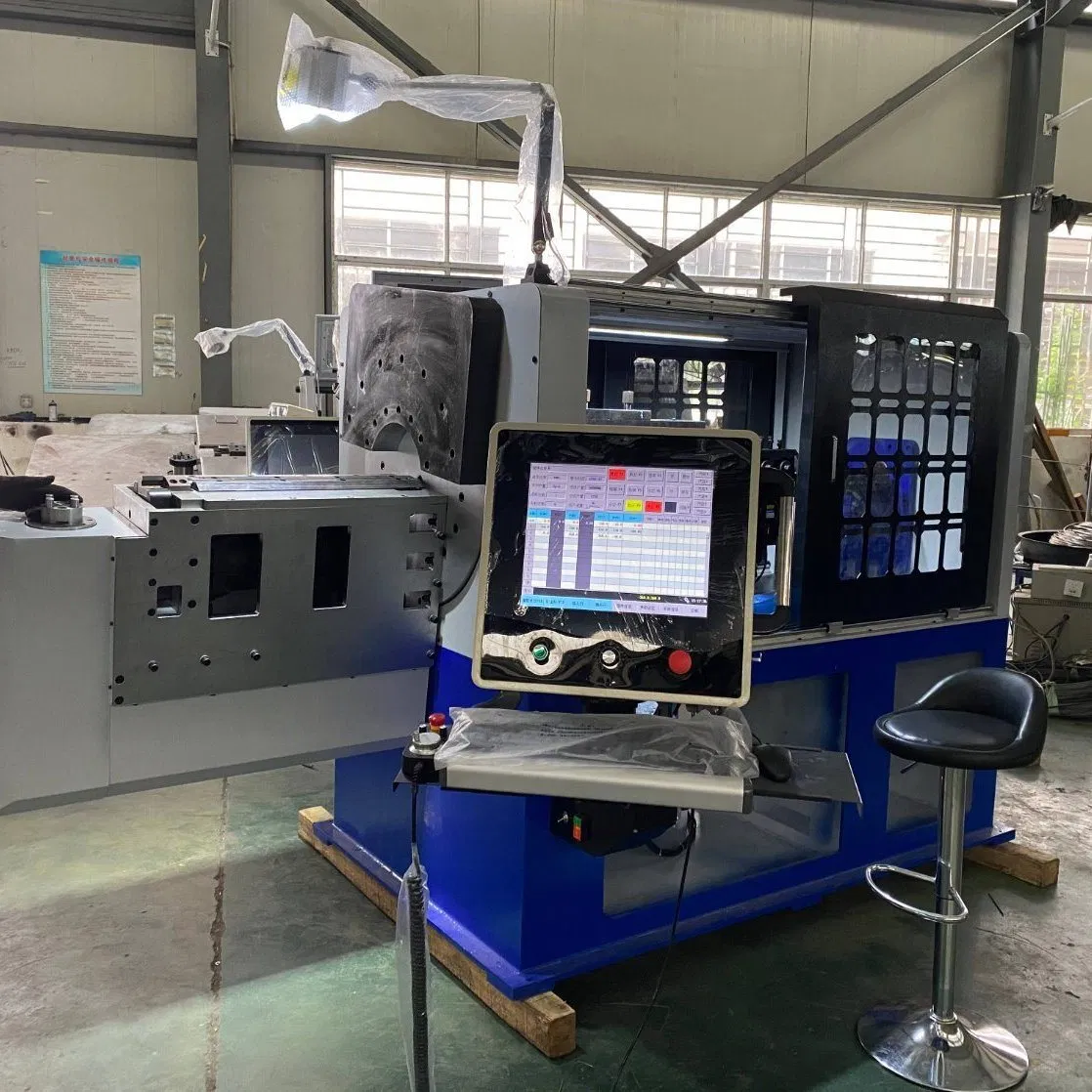

This wire rod forming machine excels as a versatile CNC 2D/3D Wire Bending Machine, handling wire diameters from 2.0mm to 12.0mm with exceptional stability. Equipped with a dedicated computer control system and imported high-precision servo motors, it features a user-friendly Chinese-English interface for precise positioning and real-time adjustment of product outer diameter and angle. Capable of storing hundreds of programs to reduce setup time, it also includes automatic stop and acceleration functions for wire breakage and tangling. As a reliable Precision 3D Profile Bending Machine and efficient 2D And 3D Wire Bending Machine, it is widely used in automotive seat springs, sun visor frames, door lock levers, metal crafts, bathroom brackets, storage cages and shopping cart parts. 2. Features
Equipped with 7 sets of vertical & horizontal straightening wheels to ensure wire feeding straightness.
3 sets of wire feeding wheels with accuracy of 280mm±0.1mm.
Lifting worktable ideal for bending long wires.

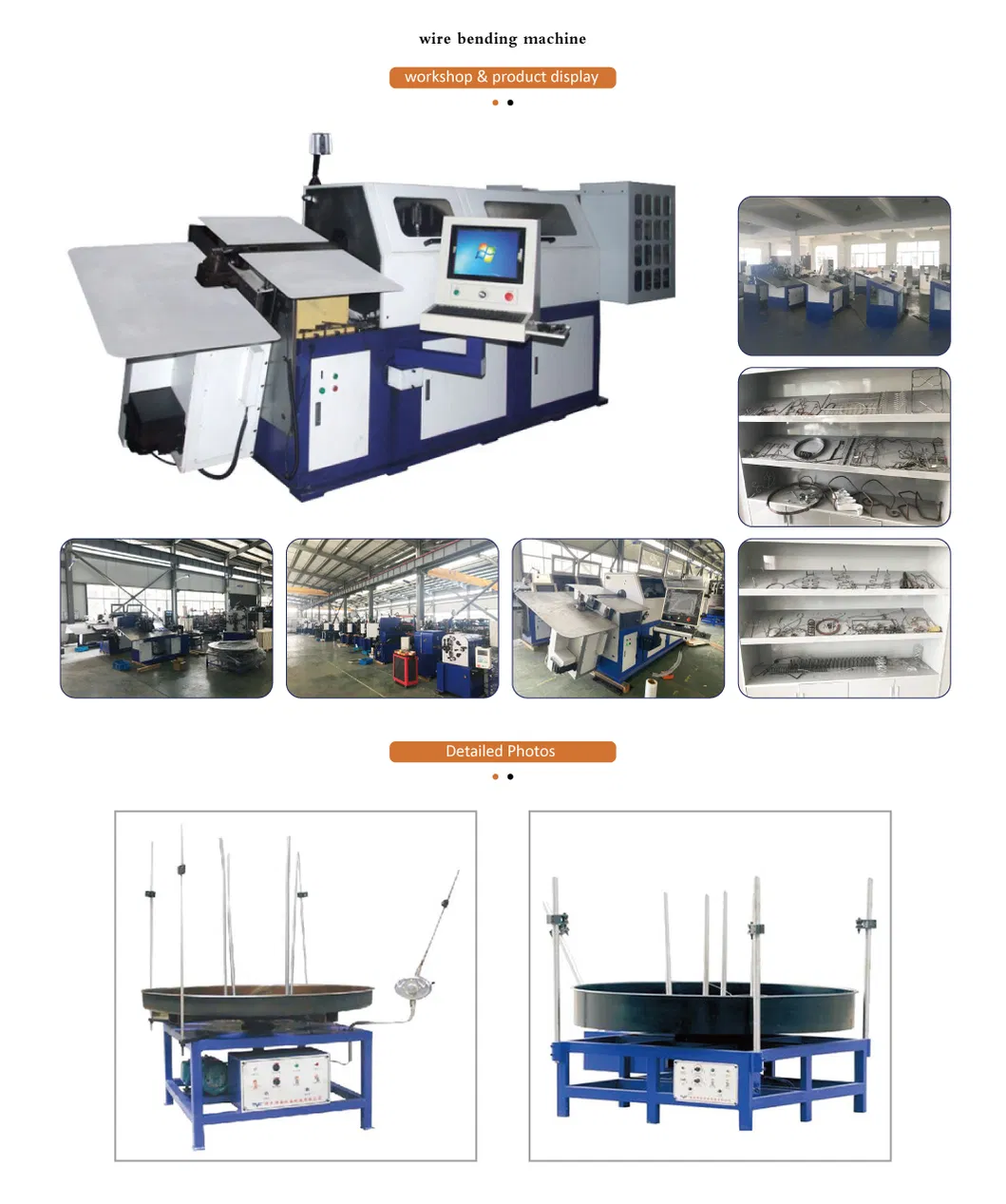

Built-in wire arranging mechanism prevents wire tangling.
3. Advantages
Fast computer startup/shutdown, simple operation, multi-language support; program and speed adjustable during production.
Adopts fully imported high-precision high-speed servo motors and reducers, stable and durable, with production speed over 30% higher than similar domestic models.
Program ensures consistent bending angle at different speeds for better production stability.
Key parts (bearings, gears) use imported components for high durability and reliability.
High precision: processes 2.0–14mm diameter wires with error down to 0.1mm.
Complete after-sales service: free technical training and lifetime equipment maintenance.
| Model | CNC-7-60 | CNC-7-80 | CNC-7-120 | CNC-7-140 |
| Wire diameter | 2-6mm | 3-8mm | 4-12mm | 5-14mm |
| Axis numbers | 7 | 7 | 7 | 7 |
| Wire feeding precision | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 |
| Cam precision | ±0.01°-±359.° | ±0.01°-±359.° | ±0.01°-±359.° | ±0.01°-±359.° |
| Feeding length | limitless | limitless | limitless | limitless |
| Speed of feeding | 100m/min | 100m/min | 100m/min | 100m/min |
| Feeding axis servo motor | 2.7kw | 2.7kw | 4.5kw | 11kw |
| wire turning axis servo motor | 1.2kw | 1.2kw | 2.7kw | 4.5kw |
| Bending axis servo motor | 0.75kw | 1.2kw | 2.7kw | 5.5kw |
| Lifting servo motor | 0.75kw | 0.75kw | 2.7kw | 2.7kw |
| Twisting & Lifting servo motor | 0.75kw | 0.75kw | 2.7kw | 2.7kw |
| Turning center axis servo motor | 1.2kw | 1.2kw | 2.7kw | 5.5kw |
| Cutting axis servo motor | 0.75kw | 0.75kw | 2.7kw | 4.5kw |
| overall size | 290x190x170cm | 410x200x190cm | 425x200x190cm | 445x200x190 |
| Machine weight | 2000kg | 2800kg | 3800kw | 4000kg |
