Name: High-Precision 7-Axis Wire Bending Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.6 (47 reviews)

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Warranty: 1-Year

Condition: New

Certification: RoHS, ISO 9001:2008, CE

Automation: Automatic

Suitable For: Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Type: Cnc Bending Machine

Name: Wire Rod Bending Machine

Axis Numbers: 7

Feeding Length: Limitless

Speed Of Feeding: 100m/Min

Transport Package: Seaworthy Package

Specification: export standard

Trademark: Xin chang

Origin: Ningbo China

HS Code: 84633000

Production Capacity: 100 Sets/Month

Customization: Available

After-sales Service: Life Long

Waterproof Rating: Ipx-8

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Supply Ability & Additional Information

Supply Ability: 100 Sets/Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Warranty

1-year

Condition

New

Certification

RoHS, ISO 9001:2008, CE

Automation

Automatic

Suitable for

Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Type

Cnc Bending Machine

Name

Wire Rod Bending Machine

Axis Numbers

Feeding Length

Limitless

Speed of Feeding

100m/Min

Transport Package

Seaworthy Package

Specification

export standard

Trademark

Xin chang

Origin

Ningbo China

HS Code

84633000

Production Capacity

100 Sets/Month

Packaging & Delivery

Package Size

200.00cm * 160.00cm * 200.00cm

Package Gross Weight

1000.000kg

Product Description

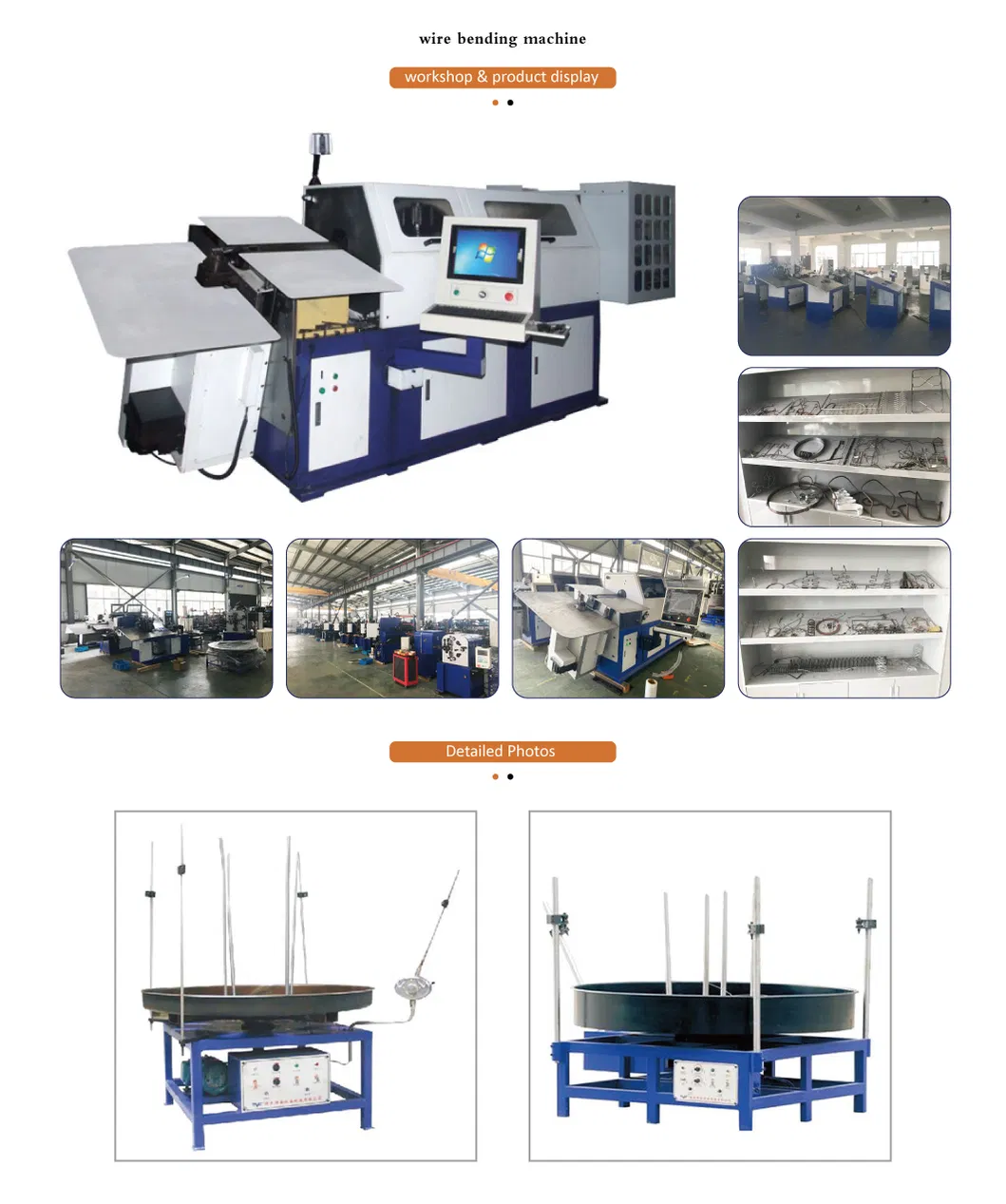

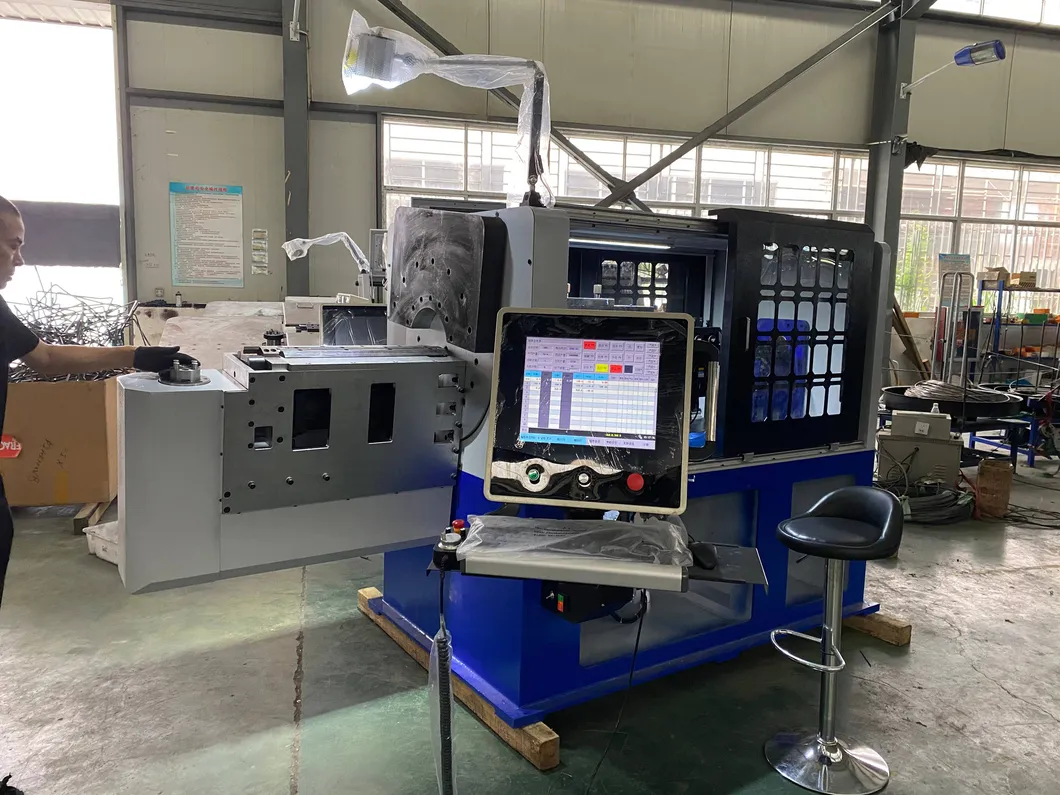

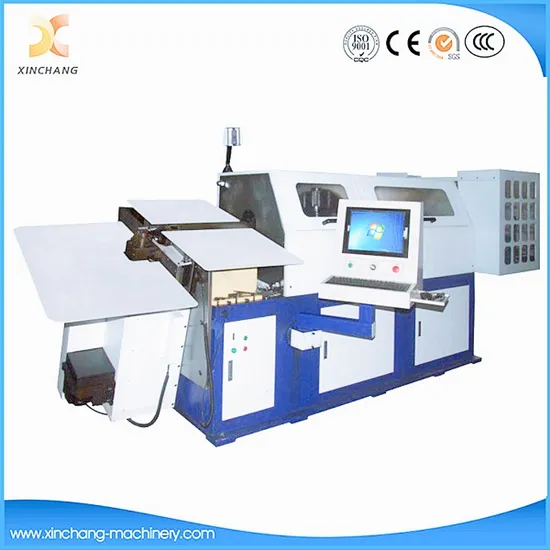

7 Axis 2D and 3D High Precision Automatic Wire Strip Bending Forming Equipment

1. Application

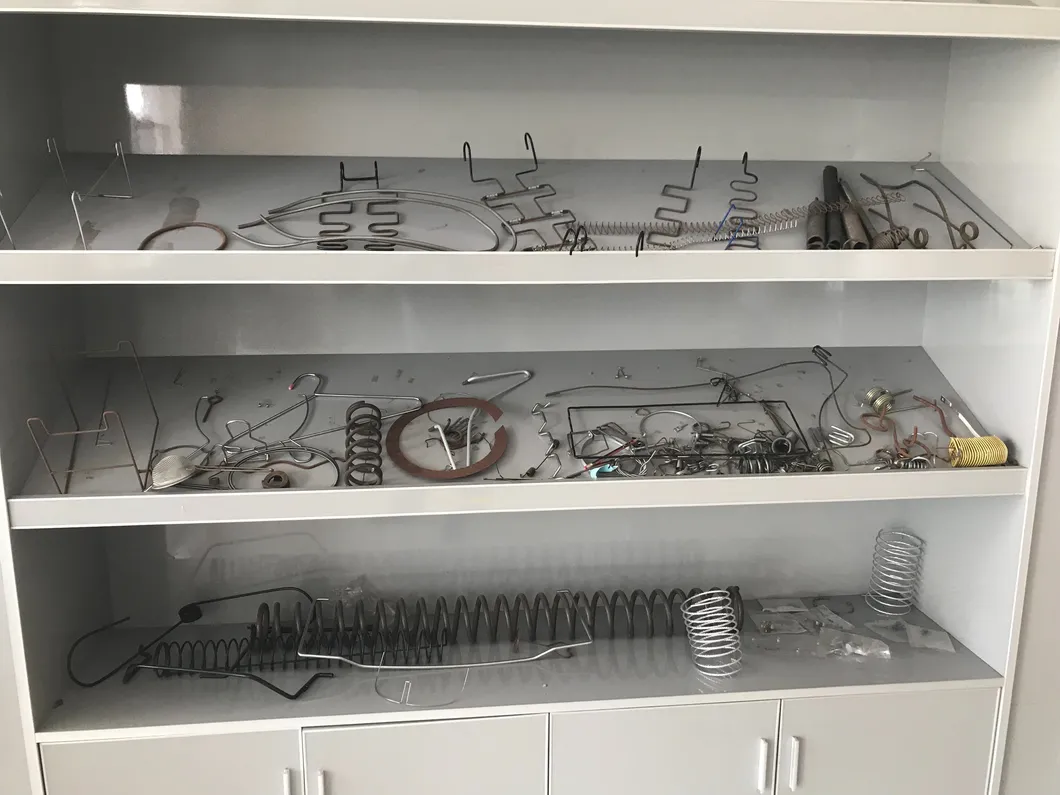

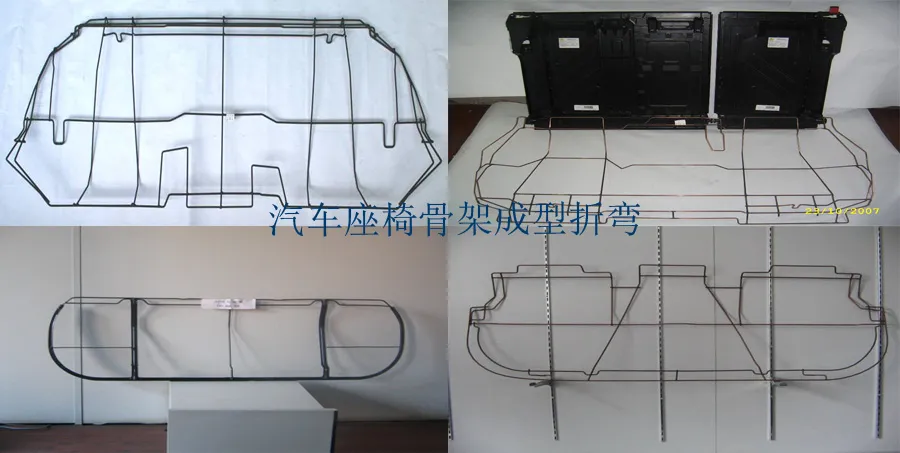

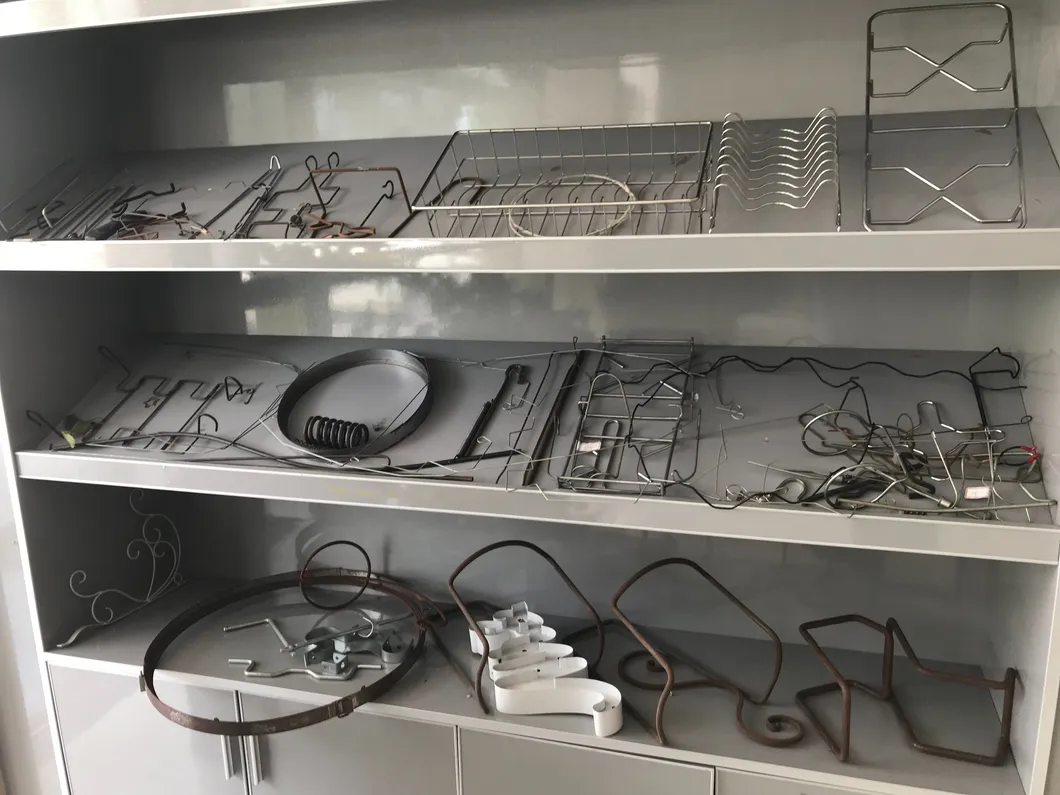

The wire rod forming machine can produce wire rods with a diameter of 2.0-12.0mm. The machine adopts a special computer control system for wire rod forming machines and imported high-precision servo motors. The computer has Chinese and English interfaces, easy to operate and accurate positioning. It can store hundreds of processing programs with different specifications, which can shorten the time for the next debugging. According to the working conditions of the screen, the outer diameter and angle of the product can be corrected at any time. The automatic stop design and automatic acceleration function of the bobbin when the wire is disconnected, broken or tangled makes the production easier and more effective. Applicable to production: car seat suspension spring, sun visor frame, car door lock lever, handicraft metal wire, sanitary ware tableware bracket, storage cage, shopping cart and other wire forming equipment.

2. Features

1. There are 7 sets of straightening wheels in the vertical and horizontal directions to ensure the straightness of the wire feeding.
2. There are 3 sets of wire feeding wheels, the accuracy is 280mm±0.1mm
3. Elevating working table is suitable for bending long wires
4. Equipped with a wire tidying mechanism, the wire will not be tangled

3. Advantages

1. The computer can be turned on and off quickly, the operation is simple and convenient, and it supports multi-language operation. The computer interface can change the program while producing and adjusting the speed.
2. The configuration adopts all imported high-precision high-speed servo motors and all imported reducers, and the stable and durable production speed is more than 30% higher than that of similar products in domestic counterparts.
3. The program can realize that there is no change in the angle when the angle is bent at different speeds, and the production stability is better.
4. Imported accessories are used for important parts such as bearings and gears, and the equipment is durable and reliable.
5. High precision, can make wire forming products within the range of 2.0-14 mm wire diameter, and the error is reduced to 0.1 mm

6.Perfect after-sales service system, free technical training support! Equipment maintenance for life!

Model	CNC-7-60	CNC-7-80	CNC-7-120	CNC-7-140
Wire diameter	2-6mm	3-8mm	4-12mm	5-14mm
Axis numbers	7	7	7	7
Wire feeding precision	±0.01-±9999.99	±0.01-±9999.99	±0.01-±9999.99	±0.01-±9999.99
Cam precision	±0.01°-±359.°	±0.01°-±359.°	±0.01°-±359.°	±0.01°-±359.°
Feeding length	limitless	limitless	limitless	limitless
Speed of feeding	100m/min	100m/min	100m/min	100m/min
Feeding axis servo motor	2.7kw	2.7kw	4.5kw	11kw
wire turning axis servo motor	1.2kw	1.2kw	2.7kw	4.5kw
Bending axis servo motor	0.75kw	1.2kw	2.7kw	5.5kw
Lifting servo motor	0.75kw	0.75kw	2.7kw	2.7kw
Twisting & Lifting servo motor	0.75kw	0.75kw	2.7kw	2.7kw
Turning center axis servo motor	1.2kw	1.2kw	2.7kw	5.5kw
Cutting axis servo motor	0.75kw	0.75kw	2.7kw	4.5kw
overall size	290x190x170cm	410x200x190cm	425x200x190cm	445x200x190
Machine weight	2000kg	2800kg	3800kw	4000kg

Main configuration

Parts name	Brands
Servo motor & encoder	Sanyo
Guide rails & ball screw	Hiwin
Switching power supply	Meanwell
Touch screen	AUO Taiwan
Frequency converter	Delta
CNC system	Topcon Japan
Bearings	NSK
Reduction gears	Neugart Germany/PHT of Taiwan
Keyboard	Logitech
Computer	Topcon Japan

7 Axis 2D and 3D High Precision Automatic Wire Strip Bending Forming Equipment

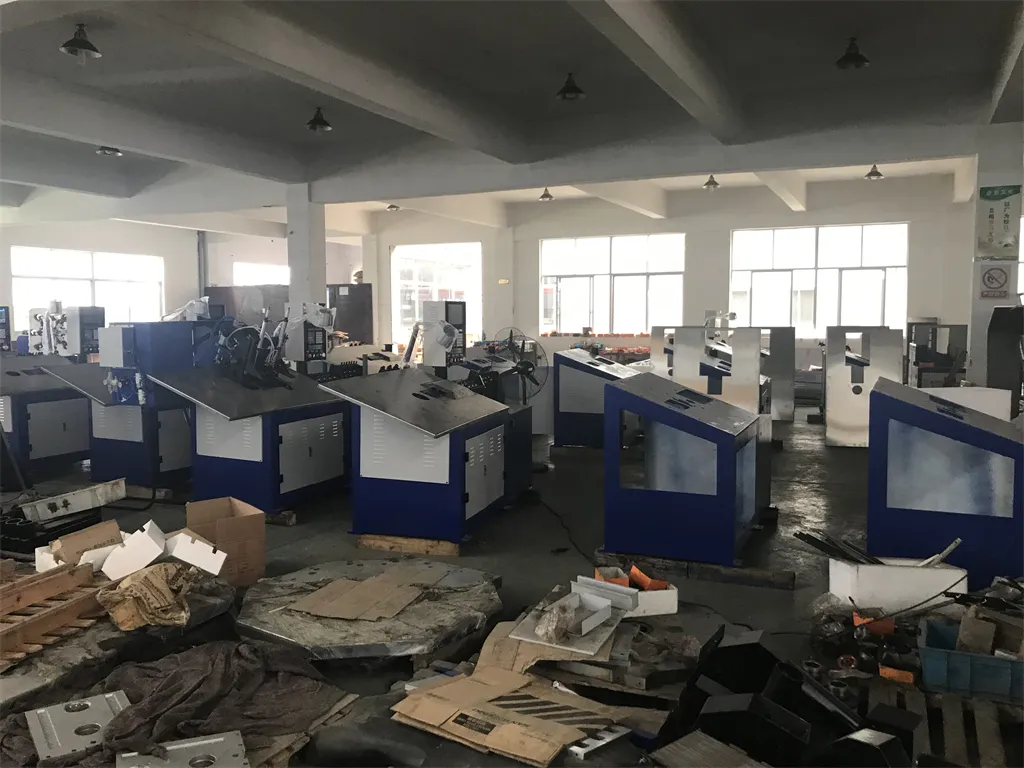

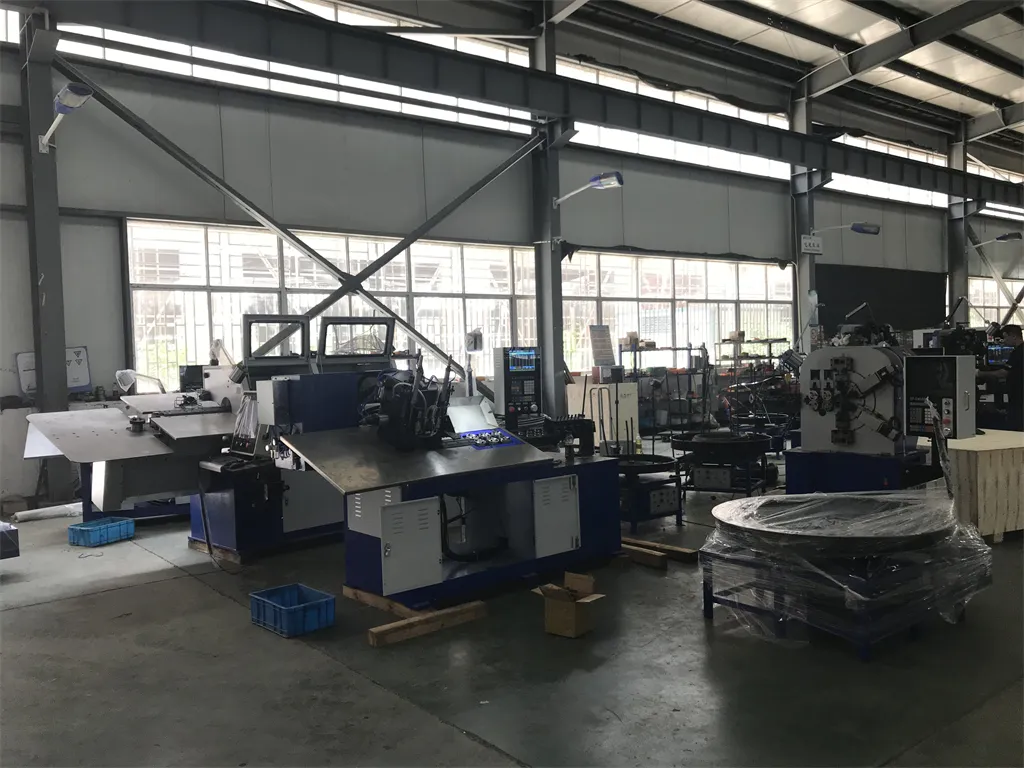

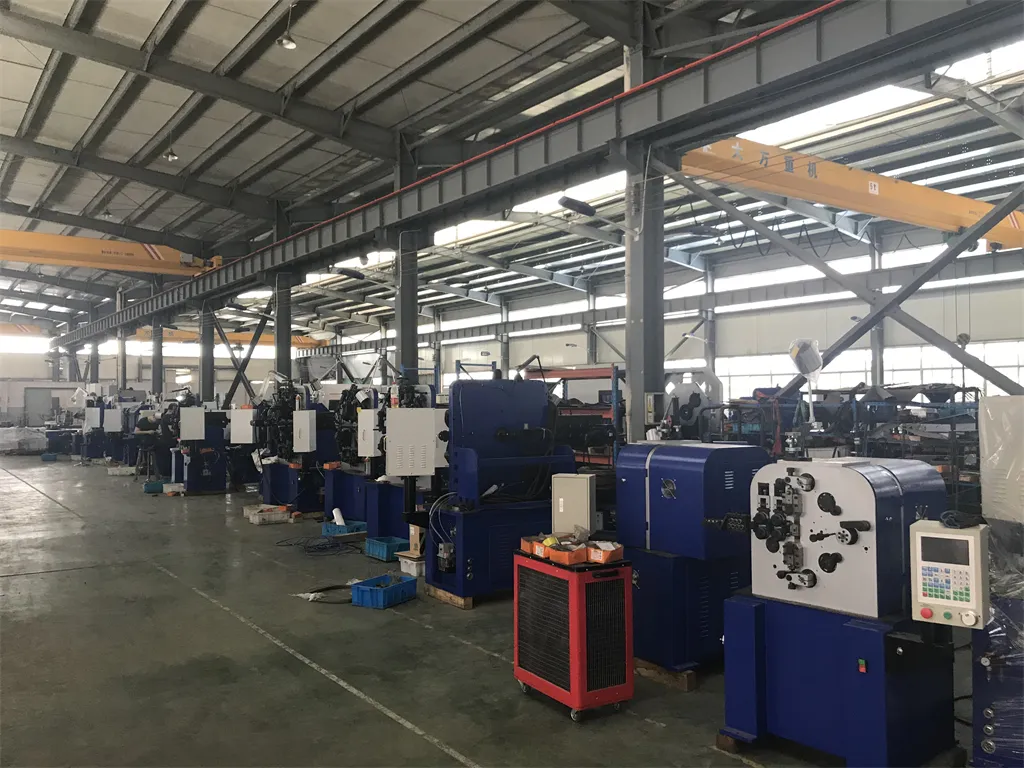

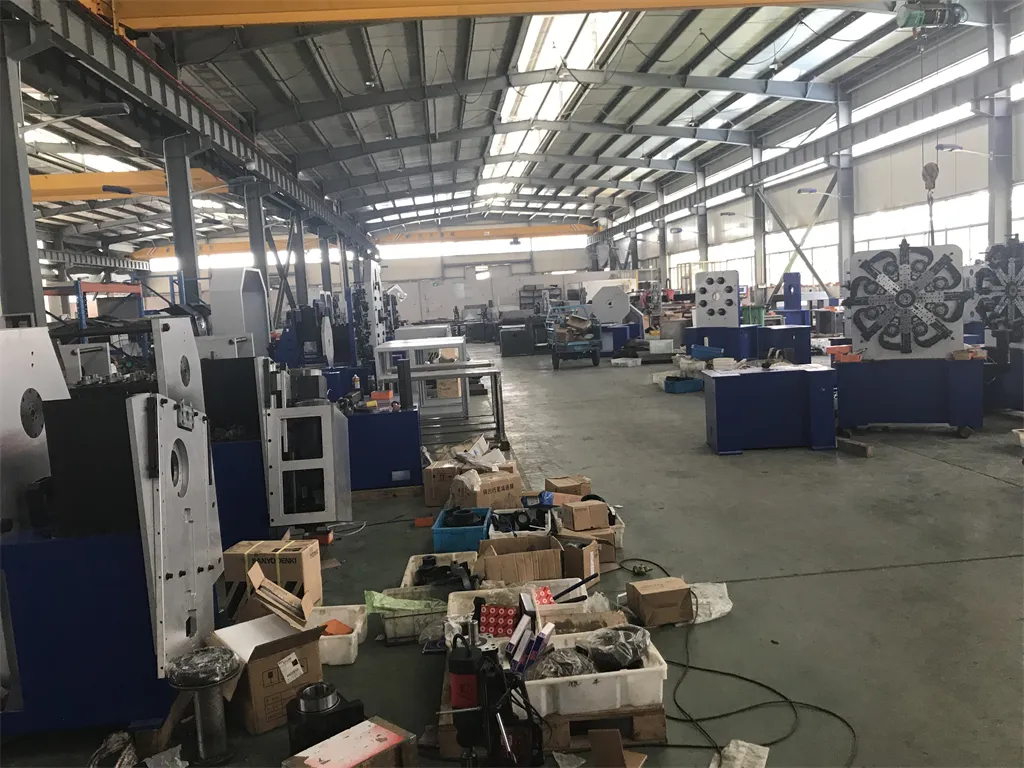

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
