Gantry Type Wire Condenser Spot Welding Machine

Min. Order:1 Piece/Pieces

Supply Ability & Additional Information
Packaging & Delivery
Other information

Supply Ability & Additional Information

Supply Ability: 200 Sets/ Year

Packaging & Delivery

Selling Units:

Piece/Pieces



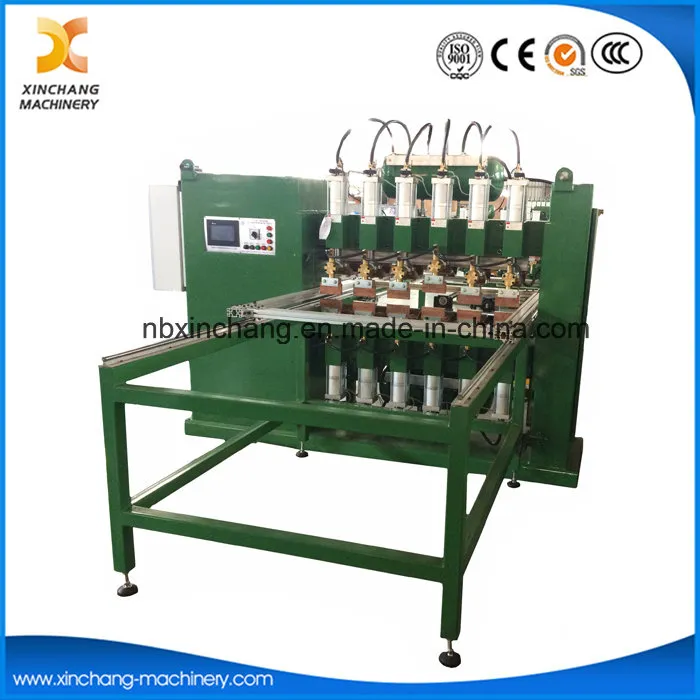

Automatic Gantry Type Condenser Welding Machine1



Gantry Type Wire Condenser Welding Machine

Features:

1, Efficiency high: Can produce 1000 PC/day
2, Rate of loose-weld lower: Only 5 point among 1000 PCS product
3, less deformation and discoloration
4, High energy saving: Energy saving 40% than usual machine
5, Electrode is easy to change after wear, don't need to change the complete electrode and electrode base, only for electrode parts, so decreasing the cost.
6, Three phase power supply input evenly, it doesn't affect power grid.
7, Equipped with PLC touch screen, LED display clearly, easy to adjust and operate
8, Machine body of thick steel sheet, not easy to deformation
9, Microcomputer control, accuracy and steady
10, Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
11, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
12, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
13, Quality is stable, failure rate is low, therefore machine life is longer

Application: Suitable for condenser and evaporator.

	DNW3-250-1200	DNW-150-3	DNW2-150-4
Rated capacity (KVA)	250	150	150
Transformer	1200type 250KVA MF inverter transformer	150KVA AC transformer	150KVA AC transformer
Rated voltage (V)/ Phase	380/3	380/1	380/1
Rated frequency(HZ)	50	50	50
Max. short circuit Current (KA)	42.9	36	36
Duty cycle(%)	50	20	20
Max. pressure(N)	5315	5315	5315
Upper electrode Stroke (mm)	60	60	60
Lower electrode Stroke (mm)	40	40	40
Cooling water flow (L/min)	24	6	6
Max. welding width each electrode (mm)	155mm	100	100
Welding speed (pcs/ 8h)	1000	800	800
Overall dimension (mm) LWH	26006701685	46011001900	12506801840
Air pressure	≥0.6mpa	≥0.6mpa	≥0.6mpa
Insulation class	F	F	F

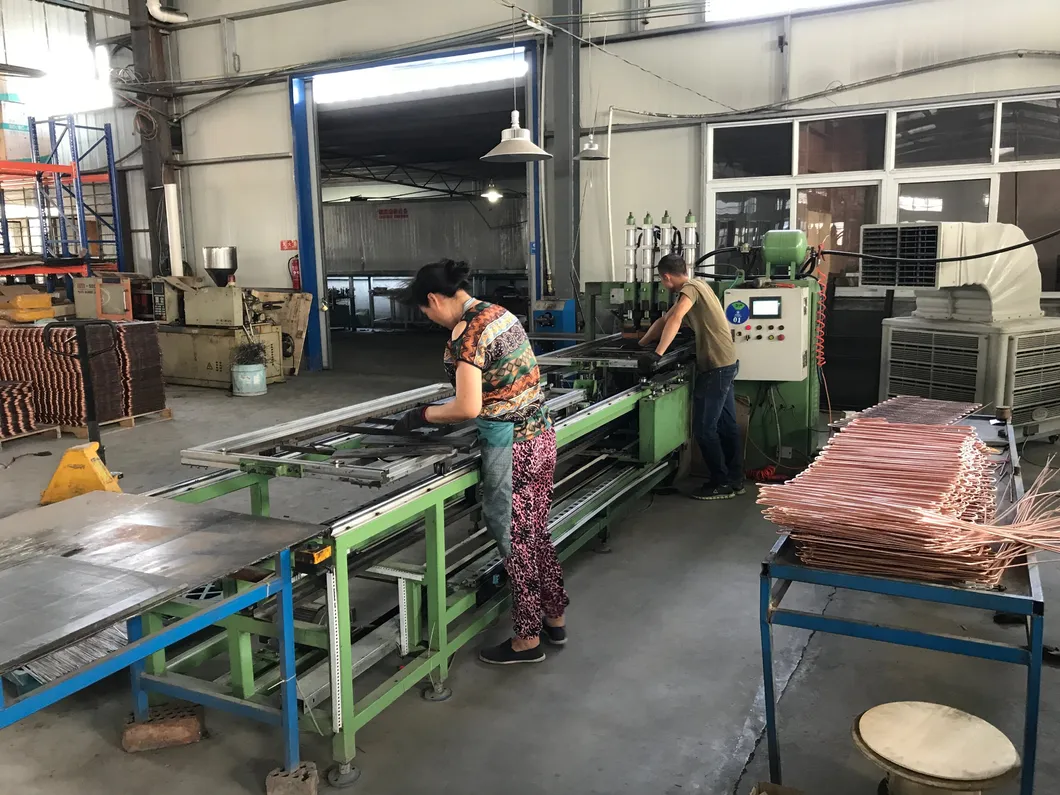

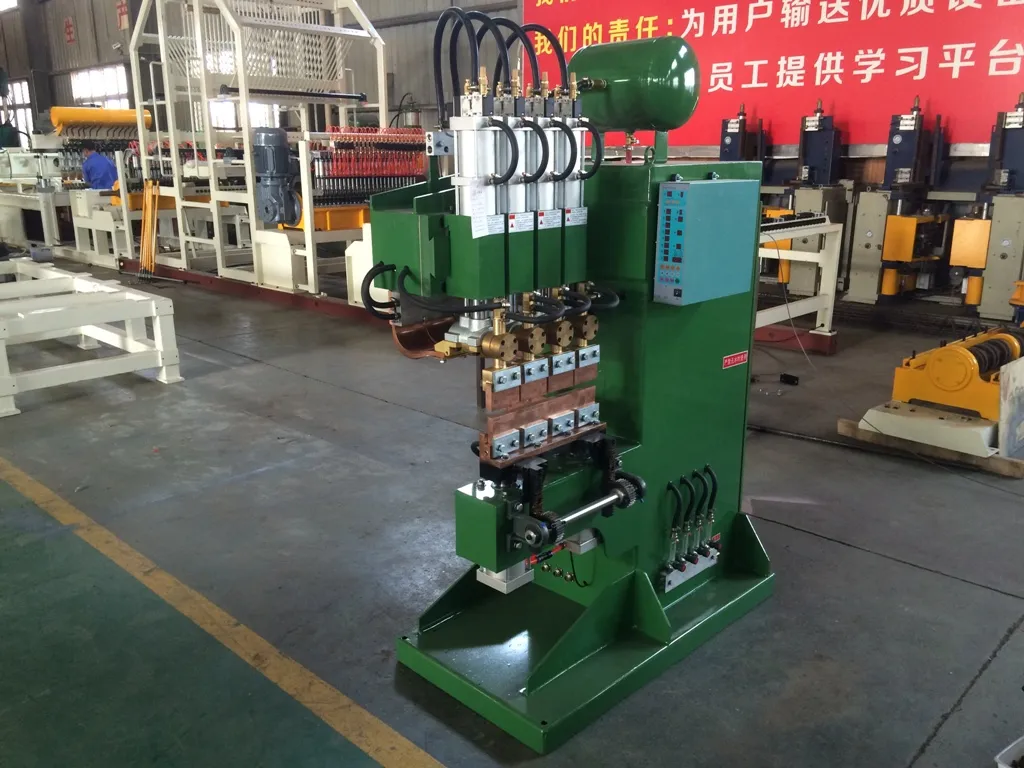

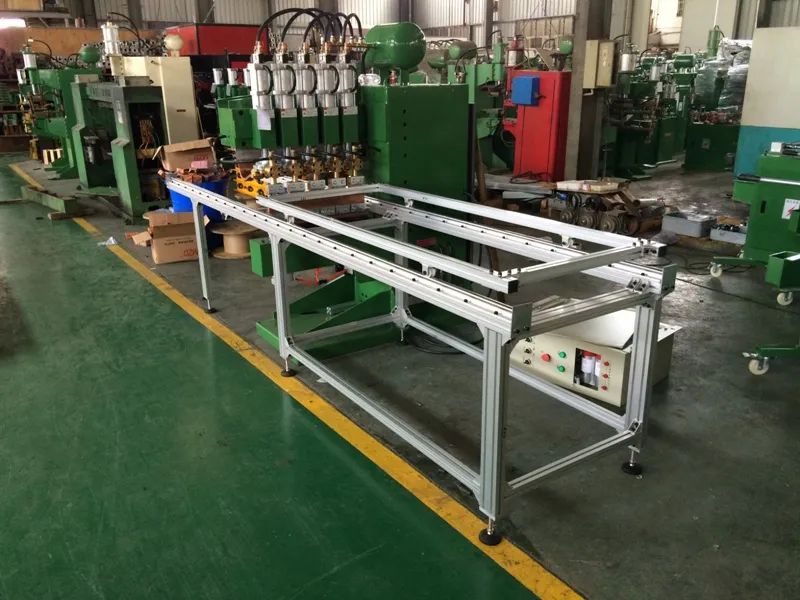

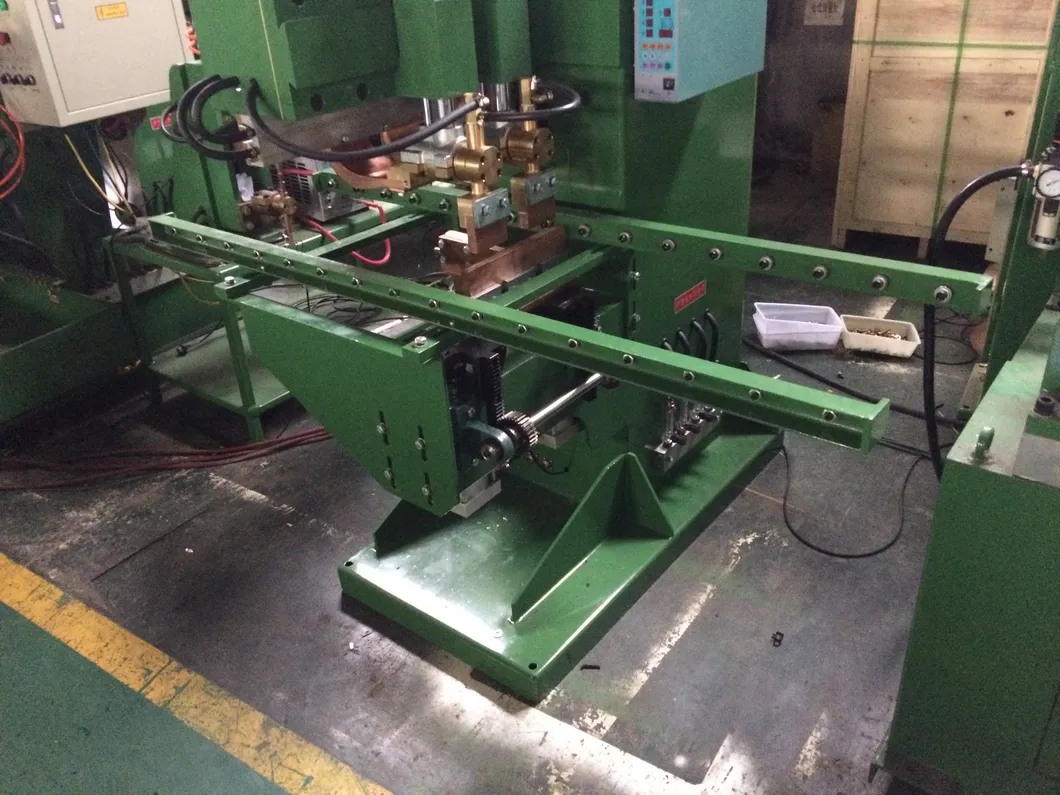

Gantry Type Wire Condenser Welding Machine
