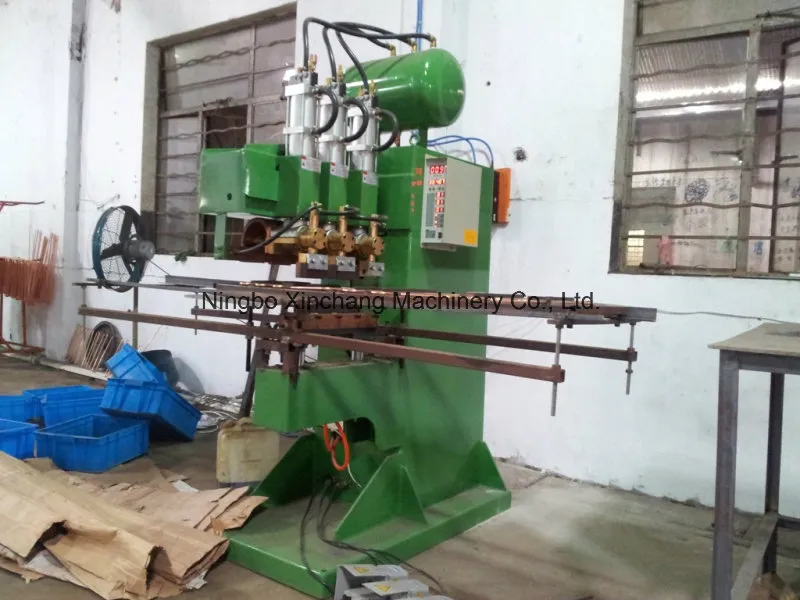

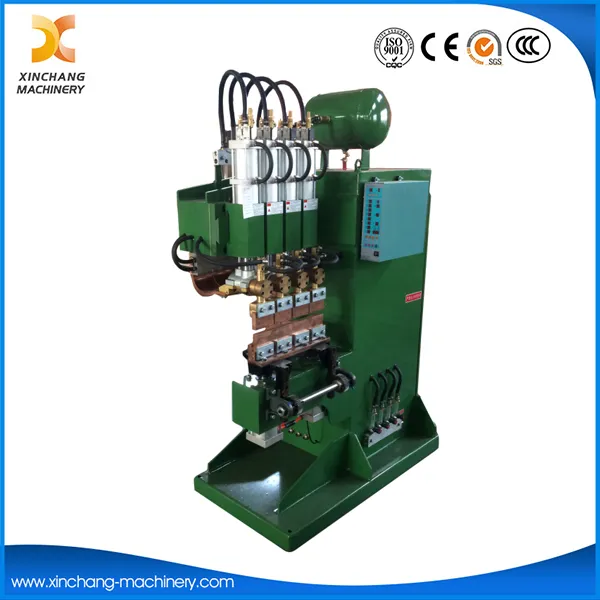

High Performance Wires Type Condenser Weld Equipment Spot Welding Machine
Features
1.Electrode is easy to change after wear, don't need to change the complete electrode and electrode base, only for electrode parts, so decreasing the cost. Designed with detachable electrode structure, this Resistance Spot Welding Machine simplifies parts replacement and effectively cuts operational costs. 2.Machine body of thick steel sheet, not easy to deformation.
3.Microcomputer control, accuracy and steady. Adopting microcomputer precision control system, the equipment runs stable with high precision as a professional Automatic Welding Machine. 4.Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
5.Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost. Equipped with high-speed solenoid valve, the Spot Welding Machine realizes faster welding rhythm and higher production efficiency to save manufacturing cost.
6.Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
7.Quality is stable, failure rate is low, therefore machine life is longer.
Application: Suitable for condenser and evaporator.
| DNW3-250-1200 | DNW-150-3 | DNW2-150-4 |
| Rated capacity (KVA) | 250 | 150 | 150 |
| Transformer | 1200type 250KVA
MF inverter transformer | 150KVA AC
transformer | 150KVA AC
transformer |
| Rated voltage (V)/ Phase | 380/3 | 380/1 | 380/1 |
| Rated frequency(HZ) | 50 | 50 | 50 |
Max. short circuit
Current (KA) | 42.9 | 36 | 36 |
| Duty cycle(%) | 50 | 20 | 20 |
| Max. pressure(N) | 5315 | 5315 | 5315 |
Upper electrode
Stroke (mm) | 60 | 60 | 60 |
Lower electrode
Stroke (mm) | 40 | 40 | 40 |

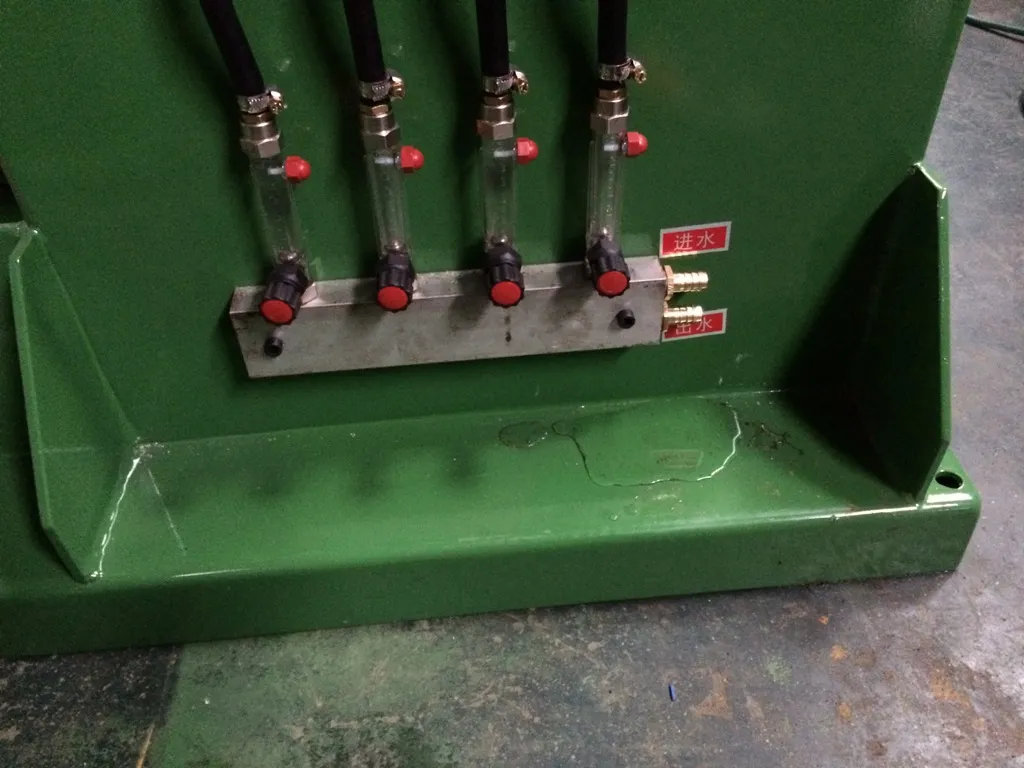

Cooling water flow
(L/min) | 24 | 6 | 6 |
Max. welding width
each electrode
(mm) | 155mm | 100 | 100 |
Welding speed
(pcs/ 8h) | 1000 | 800 | 800 |
Overall dimension
(mm) L*W*H | 2600*670*1685 | 460*1100*1900 | 1250*680*1840 |
| Air pressure | ≥0.6mpa | ≥0.6mpa | ≥0.6mpa |
| Insulation class | F | F | F |
