Diagonal Making Equipment Twisted Pipe Machine for Fins Evaporator Coils

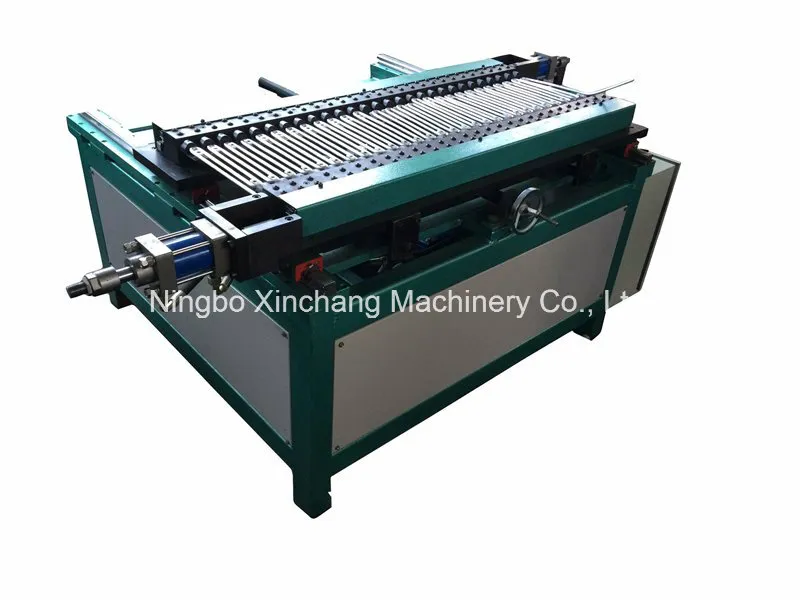

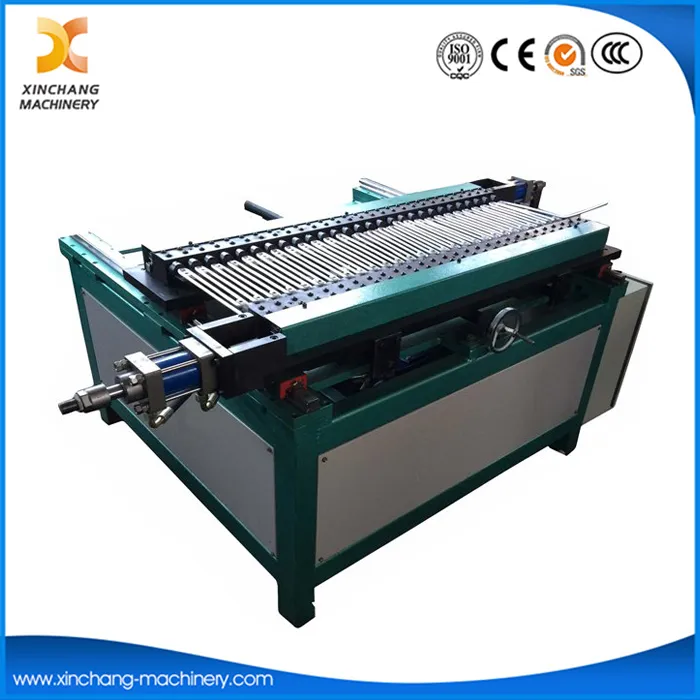

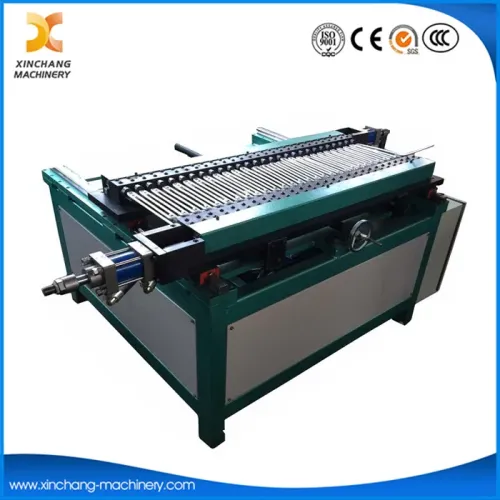

The equipment is composed of workstation, flattening die, positive pressure cylinder, lateral pressure cylinder, hydraulic station and electric control device. Built to support staggered fin evaporator manufacturing, it integrates smoothly with supporting production systems. The whole set of action is driven by oil cylinder, while the electric appliance is controlled by relay.
I. Workstation
The workstation is the square tube and welded-steel plate construction, and equipped with hydraulic station. It provides steady support for the Precision Fin Forming Press System during coordinated operation.
II. Flattening Die
The flattening die is divided into 3 parts through wire-electrode cutting, and guide pillars are installed at two sides. The external part is fixed with the countertop, and the rest two are movable parts, with spring between them. The poling guide plate made by Bakelite plate is installed on the flattening module, aligning with the feeding accuracy of the Staggered Fin Evaporator Assembly Machine.
III. Electric Control Device
The low-voltage apparatus of electric control gear adopts the famous imported brand, ensuring reliable linkage with the CNC Staggered Tube-Fin Welding System across the production line.
Equipment Operating Instructions

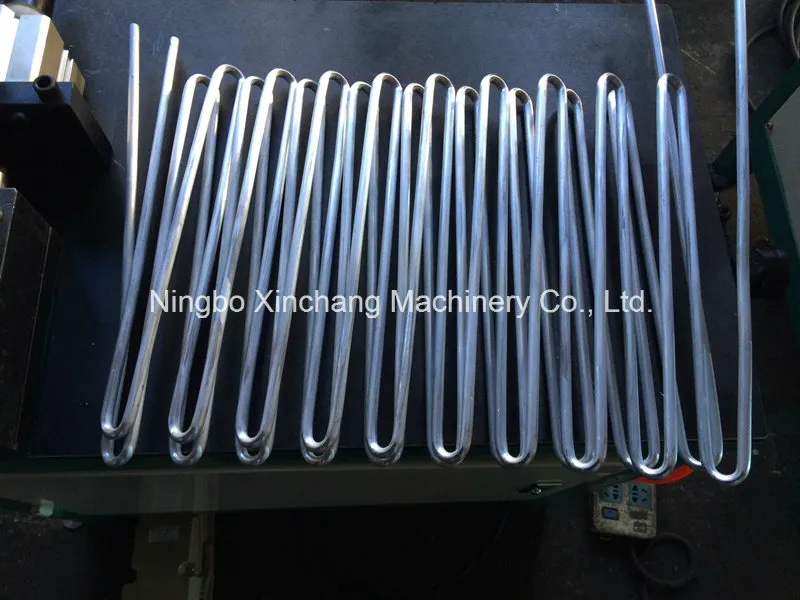

Plug the folding pipes into the flattening module through pipes, tread the foot pedal, make the positive pressure cylinder and lateral pressure cylinder move together, and they will return automatically after they are pressed in place. At last, take the pipes out.
Equipment Maintenance
Operators can only operate the equipment after they get familiar with the equipment structure, performance and its essential points of operation.
| Feature | The working pressure of hydraulic pump is generally adjusted to be 3-6Mpa. |
| It needs to add the lubricating oil once per shift between the friction surfaces of guide pillar and movable blocks. |
