Evaporator Fin Bending Machine



Asian Type No Frost Evaporator Fin Bending Machine

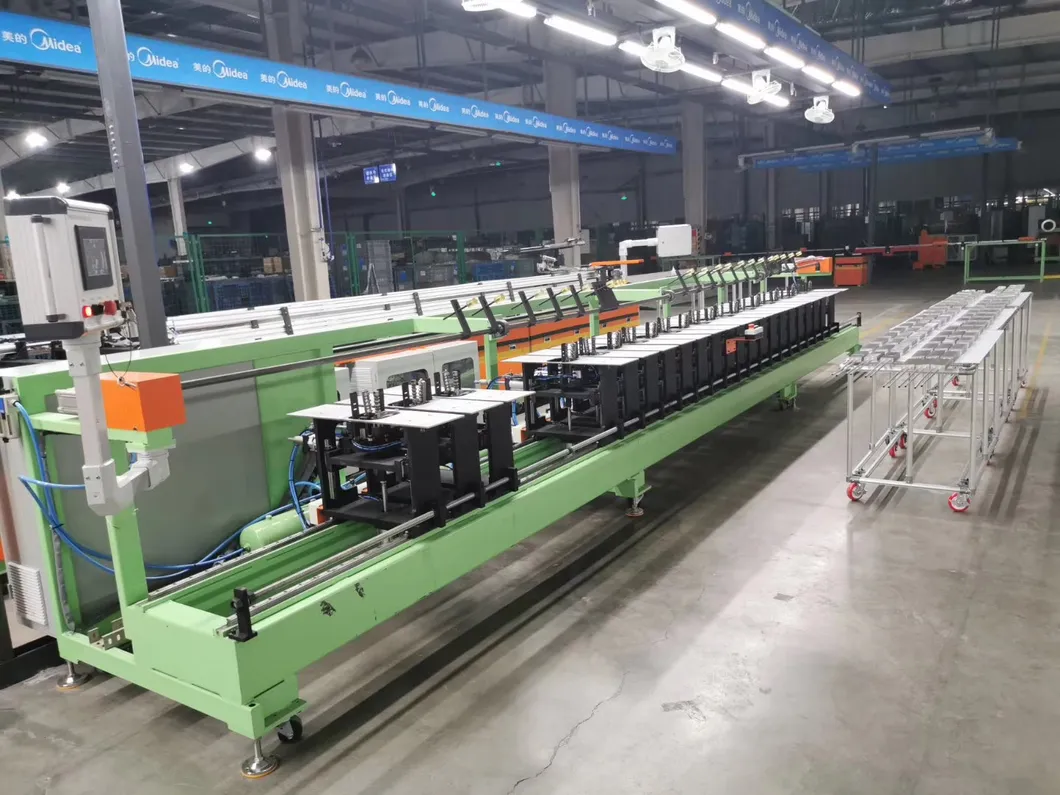

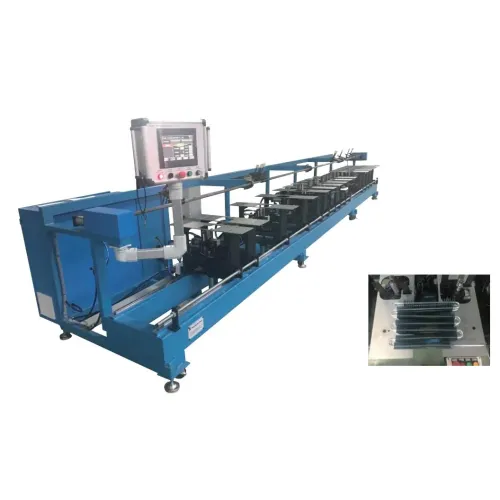

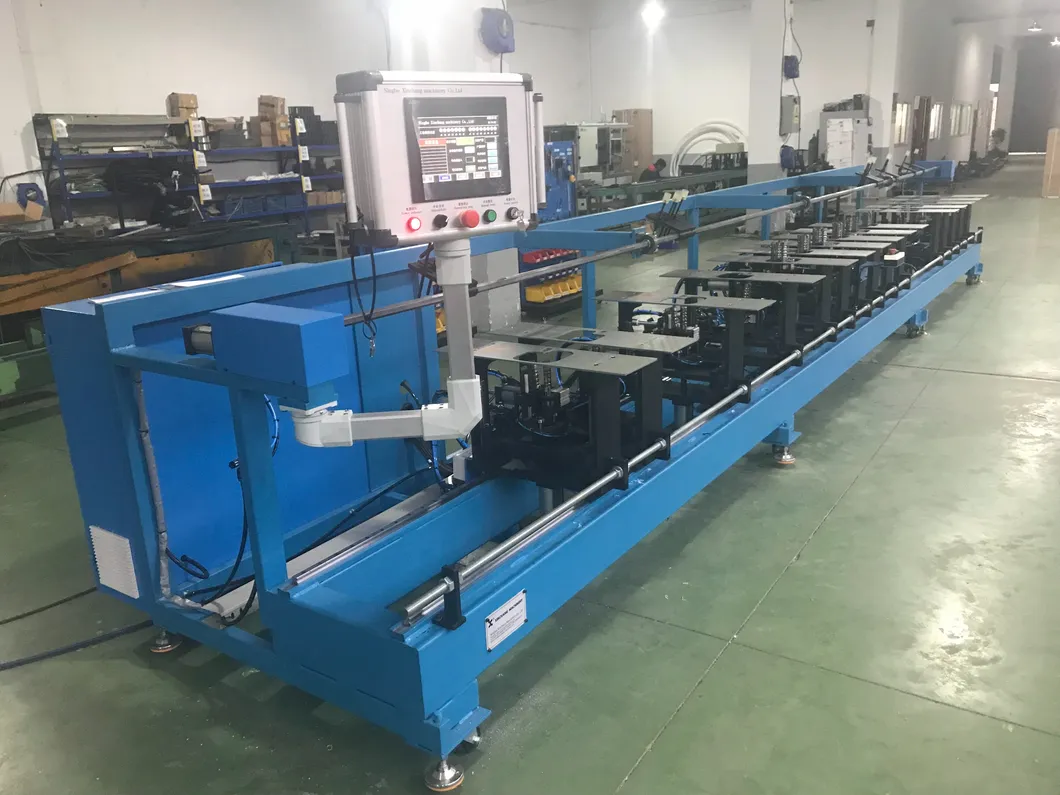

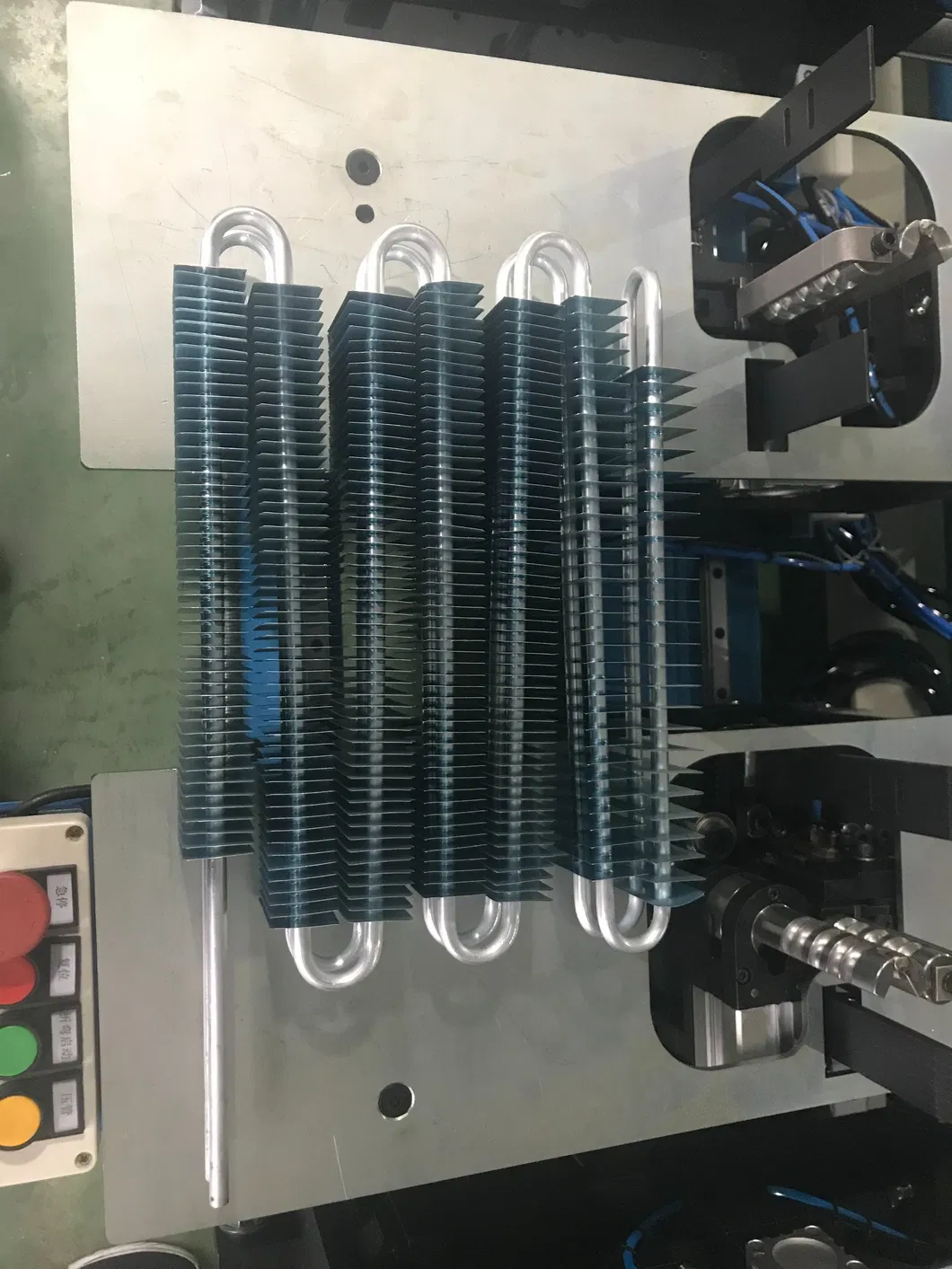

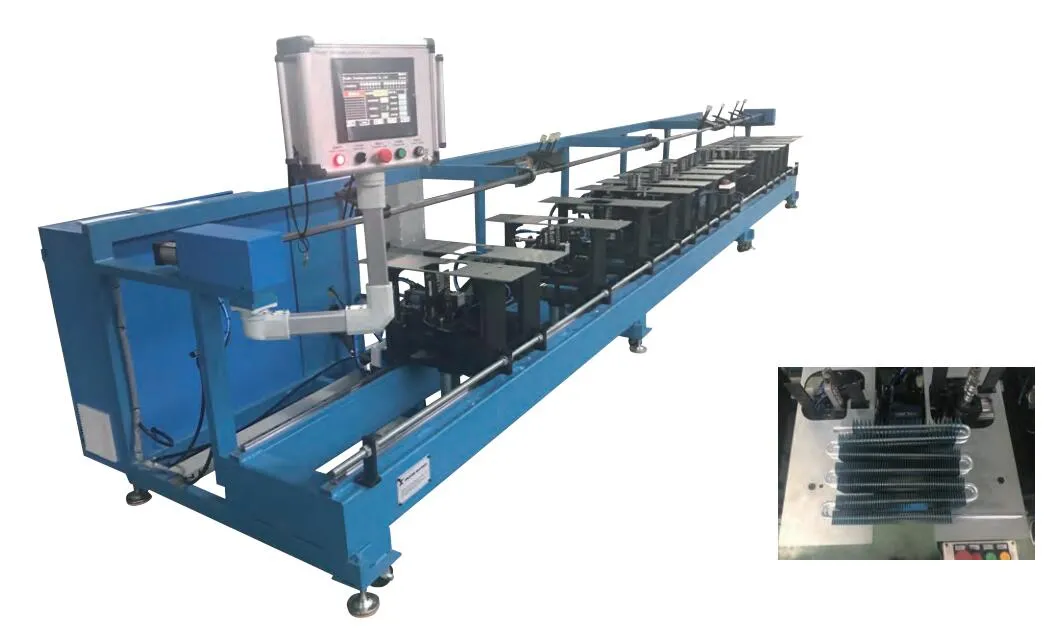

The Coil Pipe Bending Machine is used for processing Asian type nofrost evaporator aluminum coils.

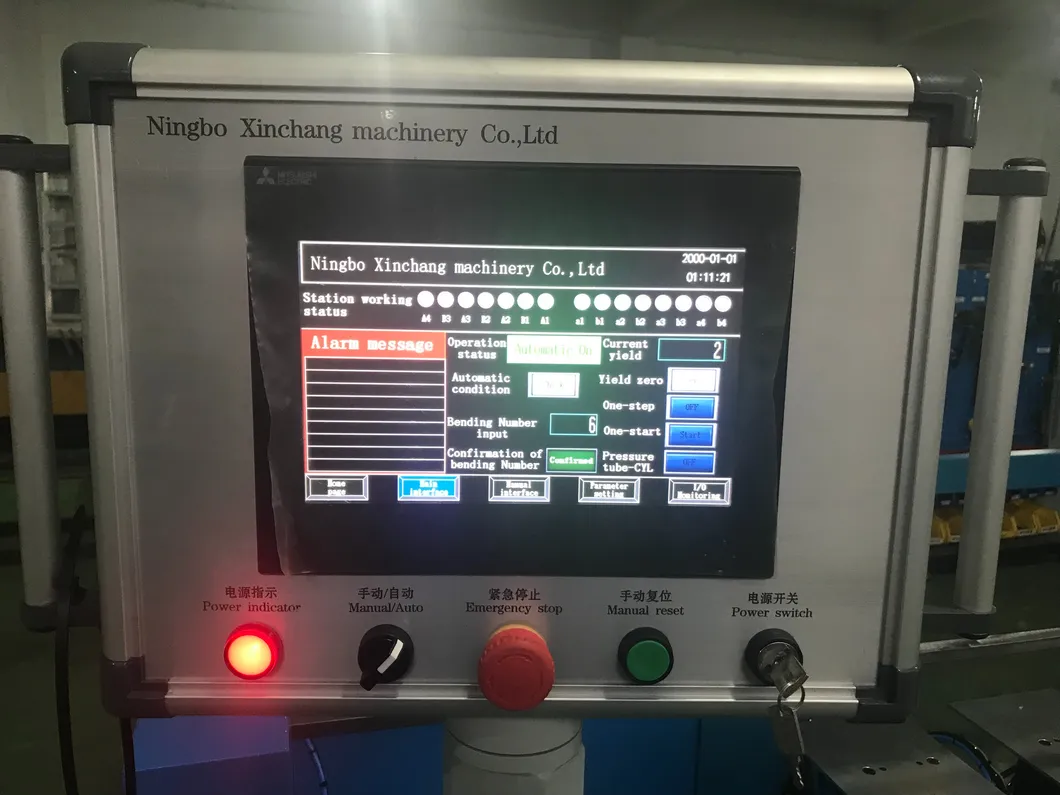

This Condenser Coil Bending Machine adopts a touch screen as the operation interface and is centrally controlled by XC3 series PLC. The cylinder movement is regulated by electromagnetic valves to realize continuous cyclic operation for long pipes. As a professional Multi-Station Staggered Fin Evaporator Bending Machine, this equipment can perform continuous long bending on 2 to 3 layers of finned aluminum diffusion tubes with a diameter of approximately Φ8.5, and the number of working heads is adjustable from 3 to 9. It overcomes the shortcomings of traditional pipe bending equipment, featuring stable and reliable performance, simple and intuitive operation as well as excellent cost performance.

Main technical performance parameters

Applicable material	aluminum tube
Suitable for pipe	pipe diameter 8.5mm, wall thickness 0.75mm
Elbow radius	R15mm
The length of the workpiece size	less than or equal to 6M
Production cycle	10~30S
Power	AC 220V, 200W

Component part

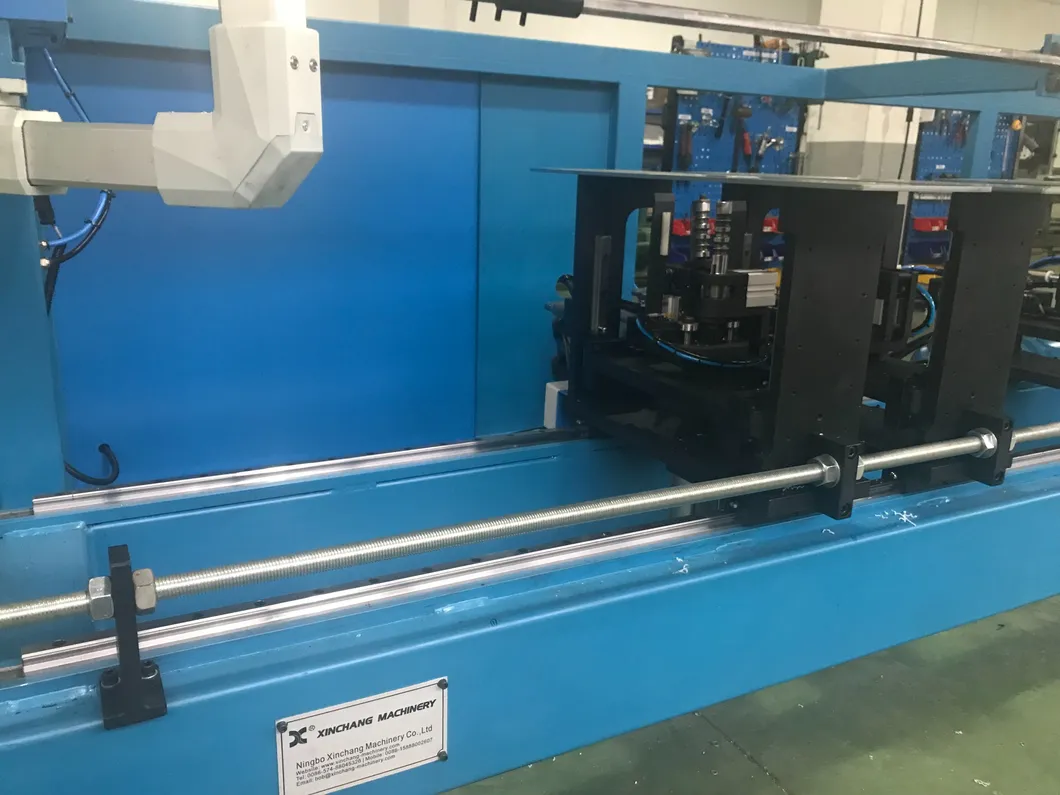

The equipment is composed of a frame, a rail, a gas bag, a bending die, a pressing device, an electric control box.

Operational principle
Flick bending pipe bending to determine the number of elbow can guide the device in the preloaded with eight bending head, each bent head on the guide rail and move around. In ready to produce a specification of the products, according to the product and product size with the number of head and the head between the distance adjustment after the nose on the side of the positioning and fastening screw. Production, will expand at a predetermined position into the die, and by pressing device will be suppressed, each head according to the first order bending, mold release, all after the completion of the clamping device head reset. From the production start by automatic equipment.

Asian Type Nofrost Evaporator Bending Machine
