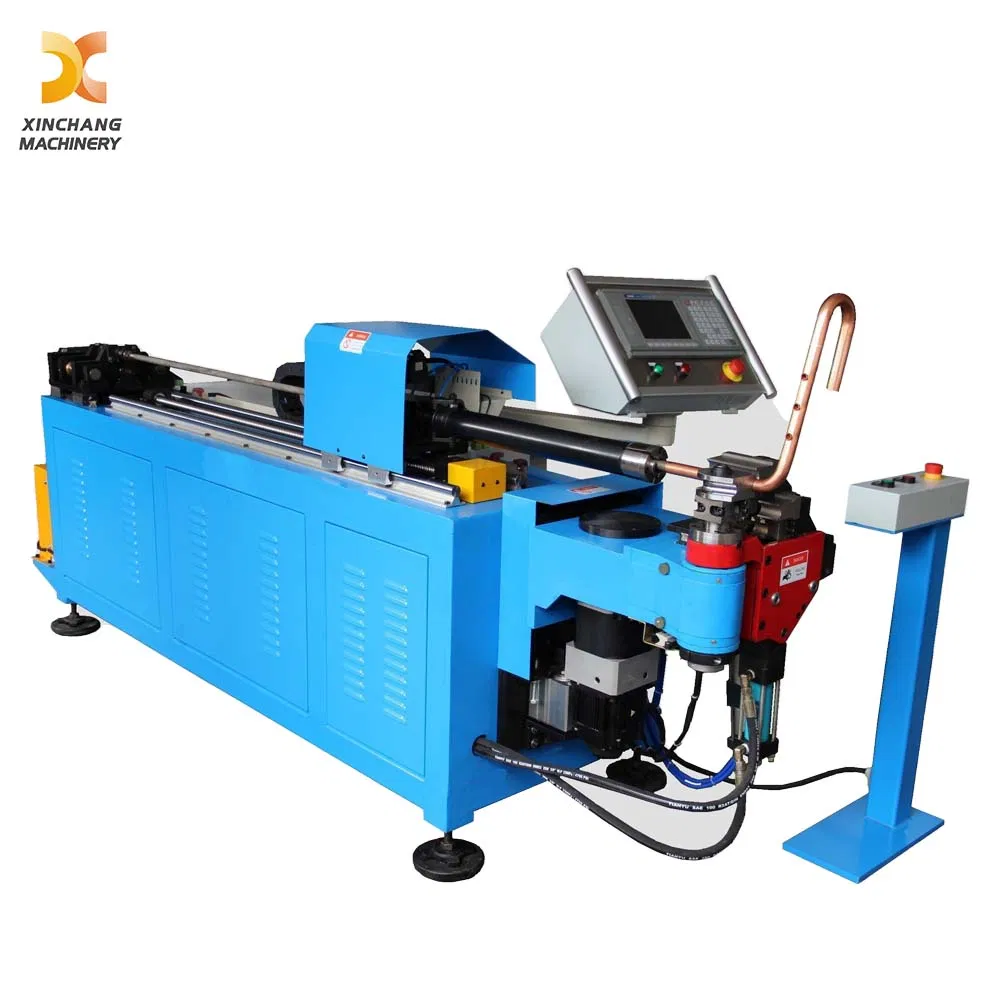

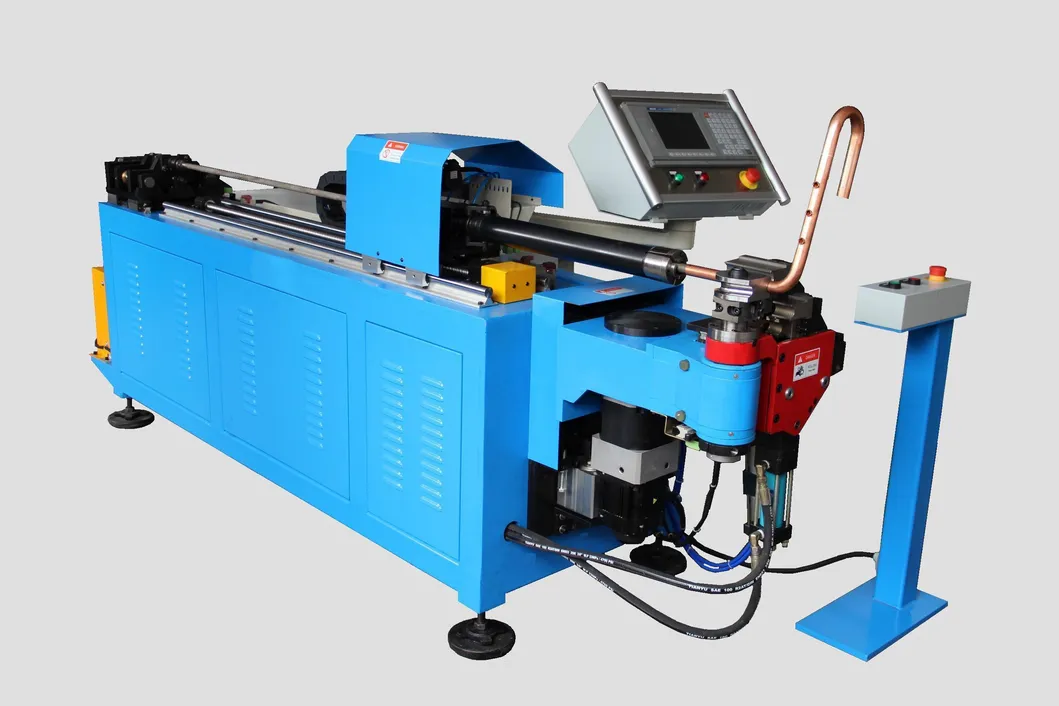

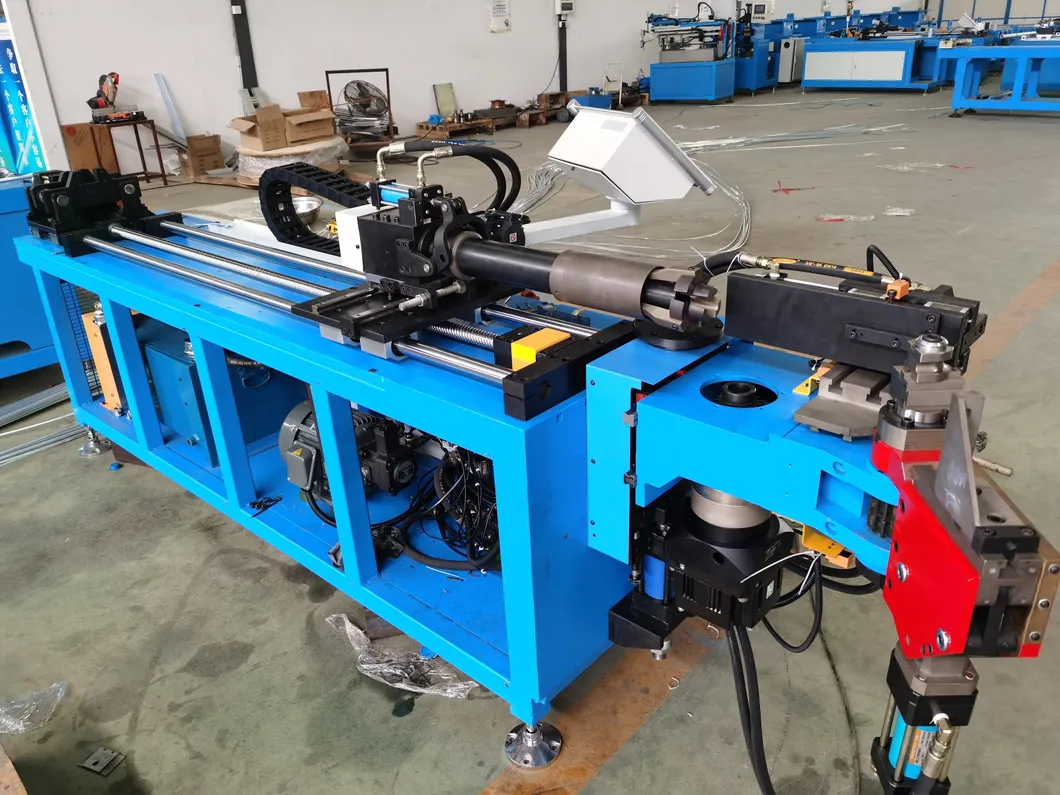

Application:
The equipment is used for bending spatial pipes. It mainly applies to bending of pipelines of central air conditioning, airplanes and automobiles as well as tubular products of furniture tubing.
Main features:

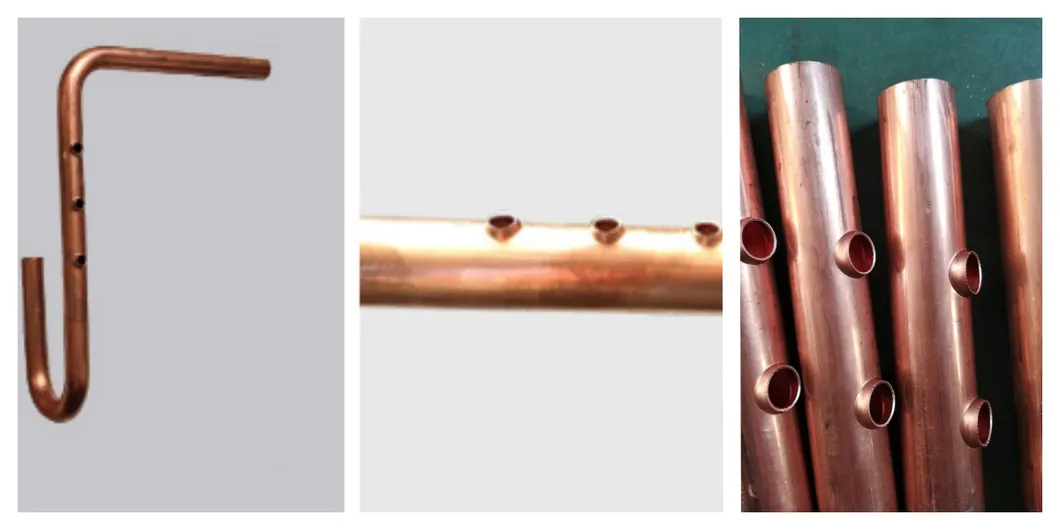

Bending and punching may be automatically finished in one time, or punching may be made separately; feeding can be made by a servo, which has small errors and high efficiency; 360°spatial rotation; punching is free from burrs or copper scales; it has automation functions such as CNC programming, HMI operation, fault display and so on.
Main parameters
| Model | SKCKW40-R1 |
| Bending range (diameter × wall thickness mm) | Φ12-φ40×1.5 (copper pipe) |
| Mould direction | Right bending |
| Bending radius | R 20-100mm (at center line) |
| Workpiece length | Active type: 100-1,200mm, through type: 100-1,800mm; |
| Straight feeding stroke (Axis X) | 0--1200mm
Speed:0--500mm/sec,
Precision: ±0.05mm |
| Spatial rotation angle (Axis Y) | 0--±360°
Speed:0--300°/sec
Precision: ±0.05° |
| Bending angle (Axis Z) | 0--200°
Speed:0--180°/sec
Precision: ±0.05° |
| Minimum processed pipe diameter for punching | Φ12mm*0.7 (copper) |
| Maximum processed pipe diameter for punching | Φ40mm*1.5mm (copper) |
| Maximum machining wall thickness for punching | 1.50mm |
| Minimum spacing between two holes | 19 mm |
| Maximum machining length of workpieces | 2000mm |
| Processing efficiency (punching) | 4 sec /each hole |
| Processing efficiency (bending) | 3-4 sec /each bending |
| Processing and punching error | ≤0.2mm |
| Processable materials | Copper, iron, stainless steel, aluminum |
| Electronic control | Numerical control system |
| Punching method | Internal pressing |
| Operating method | Manual, automatic |
| Power supply | Three-phase 380V |
| Total power | 10KW |
| Hydraulic motor power | 3.7KW |
| Hydraulic system pressure | 3-7MPA |
| Machine dimension | 3400*1000*1300 |
Main parts brand list: | CNC control system | Shenzhen |
| Hydraulic solenoid valve | Taiwan |
| Oil pump | Taiwan |
| Sensor | Autonics Korea |
| Air switch and low-volt apparatus | Siemens\ IDEC |
| Servo motor and driver | Mitsubishi Japan |
| Lead screw | TBI |
| Speed reducer | Taiwan |
