A.Scope of application
1, Diameter of tube, if the dia is φ4-φ8mm, the thickness is 0.5-1mm, if dia is more than φ8-12mm, the thickness is 0.71-1mm (other size can be achieved by change the different rollers.)
2, material: Aluminum, copper, bundy tube (the wheels and rollers for copper, aluminum tubes is nylon material, they are steel for bundy tubes). Tailored as professional Equipment For Heat Exchanger, it fully adapts to common heat exchange pipeline processing materials in the industry.
B.Functions

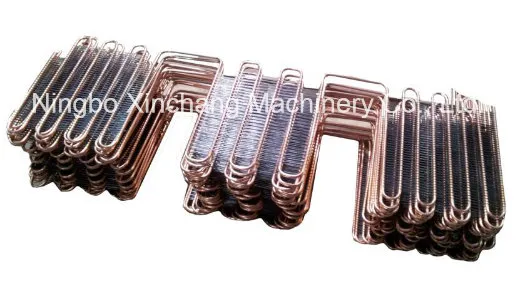

1, Bending and feeding tube all are used the servo controlling system, all the parameters are clear and adjustable, can do the various kind tubes bending for condenser and evaporator. As a high-efficiency Coil Bending Machine, it stably completes diversified coil forming demands for heat exchange components.
2, it is with manual, automatic, pause, automatic stop functions. Very easy to adjust, the data can be saved. This practical Automatic Type design simplifies daily operation and improves production flexibility.
3, feeding is used servo motor to drive, ball-screw stepping, high precision, speed and durability.

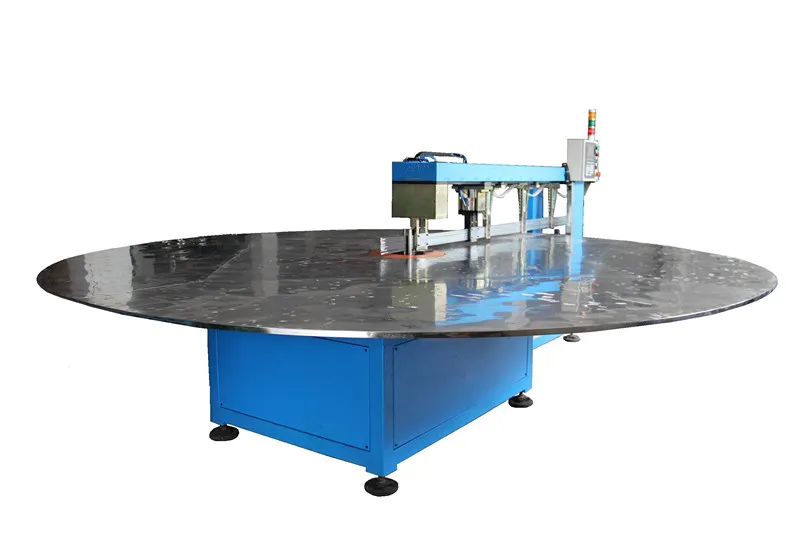

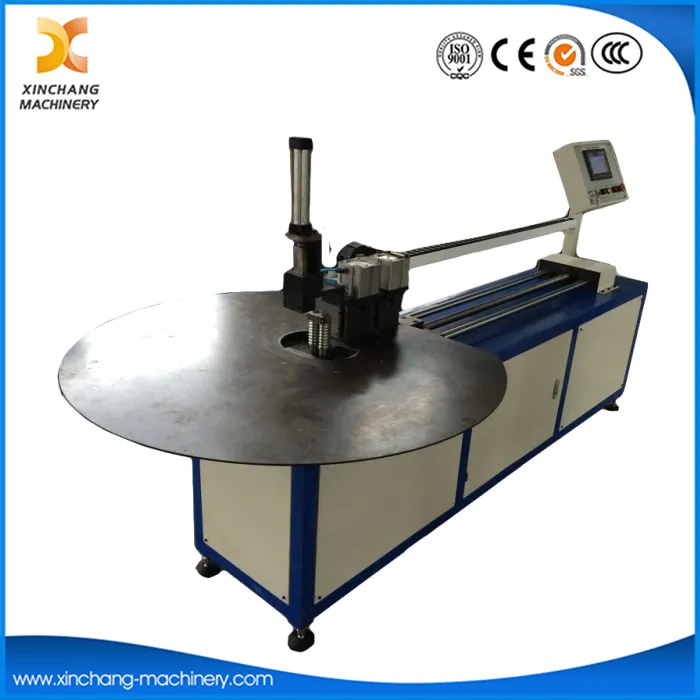

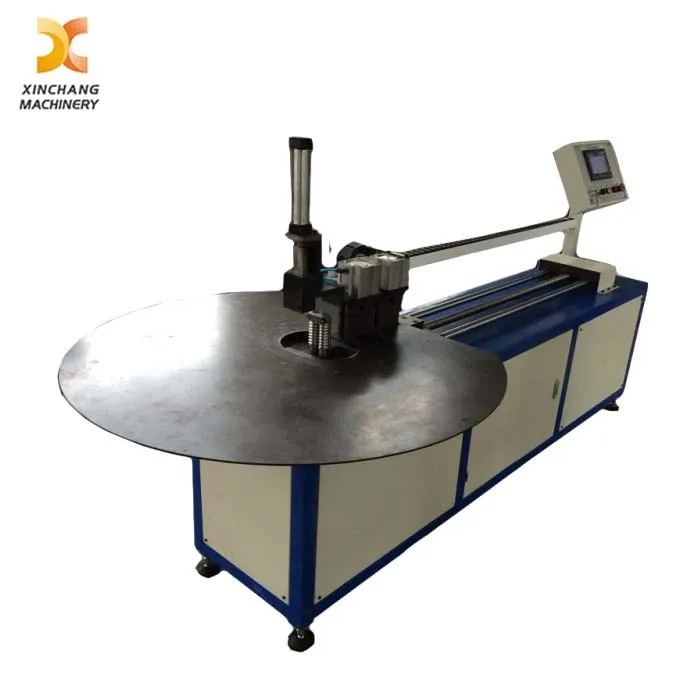

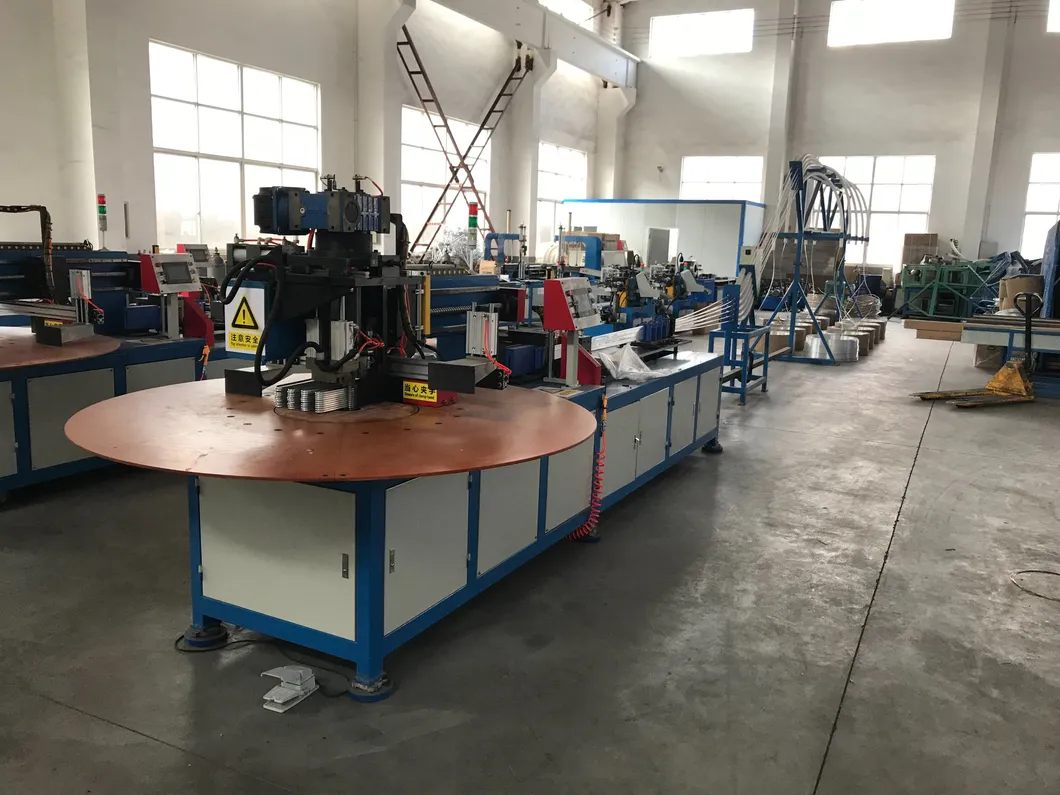

4, worktable is the rotation worktable, one worker in enough.
C.Main parameters
1, to bend φ4-10, 15mm≤R≤40mm, 8 pcs at one stroke
2, working beat: feeding speed 0-25m/min;
feeding length 0-1000mm each time, If it is not enough, machine can feed by twice, and we can customize as per the needs;
rotation speed 30 degree /second.
Design requirement
1, HMI is touch screen, can program and store (most 100 U, 128pcs programs)
2, Simens PLC and servo motors, SMC cylinders.
3, Color of machine is bule.
