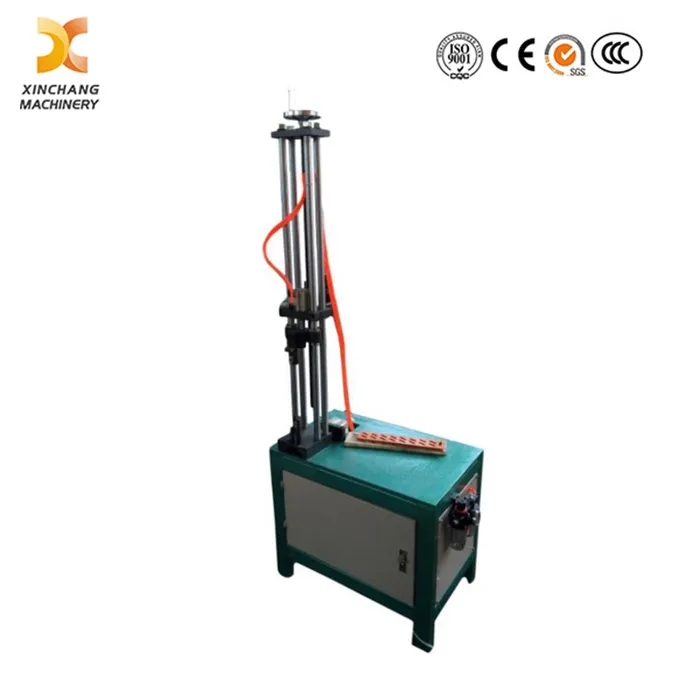

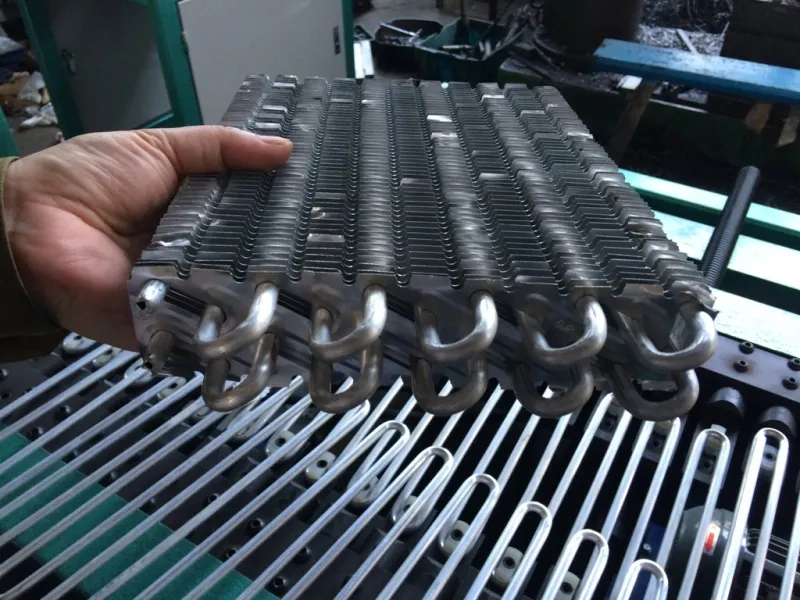

Product Composition and Structure The Staggered Fin Evaporator Assembly Machine is composed of workbench, tension device, folding device, length adjustment device and electric control device. The whole set of action is driven by oil cylinder, while the electric appliance is controlled by relay, supporting linkage with CNC Staggered Tube-Fin Welding System and Precision Fin Forming Press System.
The workbench is the square tube and welded-steel plate construction, and equipped with two pneumatic jointers and the air valve group for the Staggered Fin Evaporator Assembly Machine.
Tension device is composed of tension cylinder and dead plate, guide components and tension dropheads, matching the Precision Fin Forming Press System clamping demands.
The folding device is composed of folding cylinder and mounting plate, two racks for reverse heads and diagonal making head components. The diagonal making cylinder drives the diagonal making axles in diagonal making head components to rotate through gear rack, and the pipes in the axles can be made diagonal when the diagonal making axles in the two sliding plates rotate towards reverse directions.
The size adjustment device is composed of lead screw, feeding box/ sliding box and their base, bearing pedestal, locknut and hand wheel. The bearing pedestal is integrated with the roof of guide component, tension cylinder is installed in feeding box/ sliding box base, and shake the hand wheel and rotate the lead screw to adjust the distance between tension dropheads and folding diagonal making heads, adapting to CNC Staggered Tube-Fin Welding System specs.
The low-voltage apparatus of electric control gear adopts the Schneider brand for stable running of the Staggered Fin Evaporator Assembly Machine.
Equipment Operating Instructions

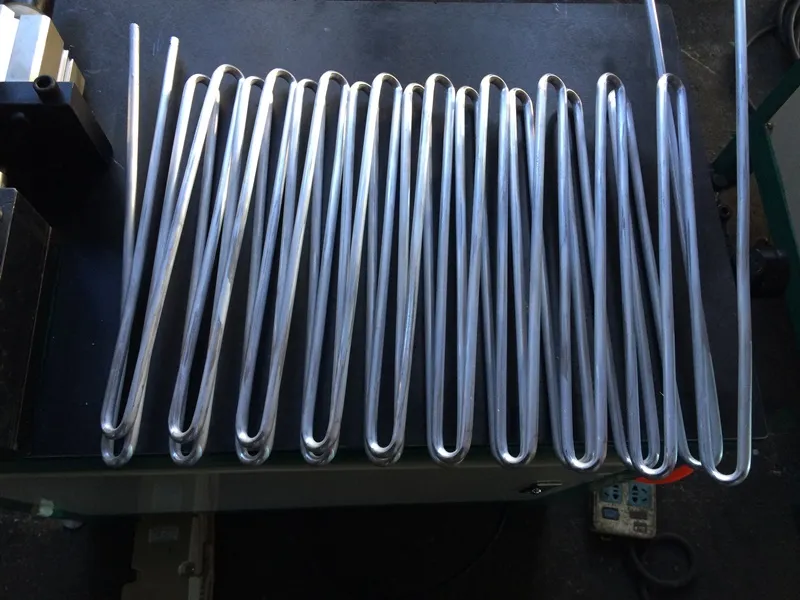

Firstly, adjust the distance between tension dropheads and folding diagonal making heads through lead screw according to the product length, to make it conform to the size requirements of product. Put the single chips after diagonal making into 3 R module, tread the foot pedal, tension cylinder to drive the tension dropheads move a certain distance upward, and make the pipes tension; next, the folding cylinder promotes the folding diagonal making axles to rotate through gear rack, and rotate the two round heads at the end of single chips by 60° and 120° in the multiple of 1:2 in reverse directions; after the reverse is in place, the tension cylinder is restored to loosen the pipes; then the folding cylinder is restored. At this time, take out the workpieces by hand.
Equipment Maintenance
Operators can only operate the Staggered Fin Evaporator Assembly Machine, CNC Staggered Tube-Fin Welding System and Precision Fin Forming Press System after they get familiar with the equipment structure, performance and its essential points of operation.
| Feature | The compressed air is generally adjusted to be 0.5-0.8Mpa. |
| It needs to add the lubricating oil once per shift between the friction surfaces of rack and guide box; it also needs to add the lubricating oil once per shift between the friction surfaces of linear bearing and guide rod of tension dropheads. |
