Automatic Gantry Wire On Tube Condenser Spot Welder

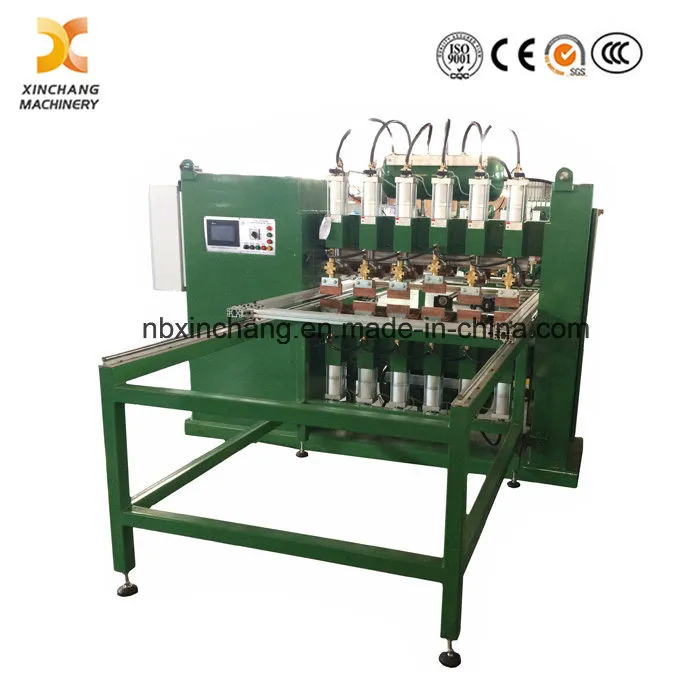

This high-efficiency customized gantry wire mesh welding machine is specially developed for condenser applications. It features automatic feeding, welding and forming, ensuring stable running and low failure rate. The machine integrates multi-head welding technology, giving it the advantages of an advanced Multi-Head Wire Mesh Welder. Its accurate spot welding performance is comparable to a precision Mesh Spot Welding Machine, and the whole system acts as reliable Multi-Spot Welding Equipment, significantly enhancing welding efficiency and mesh quality.
Features:
1, Efficiency high: Can produce 1000 PC/day
2, Rate of loose-weld lower: Only 5 point among 1000 PCS product
3, less deformation and discoloration
4, High energy saving: Energy saving 40% than usual machine
5, Electrode is easy to change after wear, don't need to change the complete electrode and electrode base, only for electrode parts, so decreasing the cost.
6, Three phase power supply input evenly, it doesn't affect power grid.
7, Equipped with PLC touch screen, LED display clearly, easy to adjust and operate
8, Machine body of thick steel sheet, not easy to deformation
9, Microcomputer control, accuracy and steady
10, Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
11, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
12, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
13, Quality is stable, failure rate is low, therefore machine life is longer
Application: Suitable for condenser and evaporator.
| DNW3-250-1200 | DNW-150-3 | DNW2-150-4 |
| Rated capacity (KVA) | 250 | 150 | 150 |
| Transformer | 1200type 250KVA
MF inverter transformer | 150KVA AC
transformer | 150KVA AC
transformer |
| Rated voltage (V)/ Phase | 380/3 | 380/1 | 380/1 |
| Rated frequency(HZ) | 50 | 50 | 50 |
Max. short circuit
Current (KA) | 42.9 | 36 | 36 |
| Duty cycle(%) | 50 | 20 | 20 |
| Max. pressure(N) | 5315 | 5315 | 5315 |
Upper electrode
Stroke (mm) | 60 | 60 | 60 |
Lower electrode
Stroke (mm) | 40 | 40 | 40 |
Cooling water flow
(L/min) | 24 | 6 | 6 |
Max. welding width
each electrode
(mm) | 155mm | 100 | 100 |
Welding speed
(pcs/ 8h) | 1000 | 800 | 800 |
Overall dimension
(mm) L*W*H | 2600*670*1685 | 460*1100*1900 | 1250*680*1840 |
| Air pressure | ≥0.6mpa | ≥0.6mpa | ≥0.6mpa |
| Insulation class | F | F | F |
