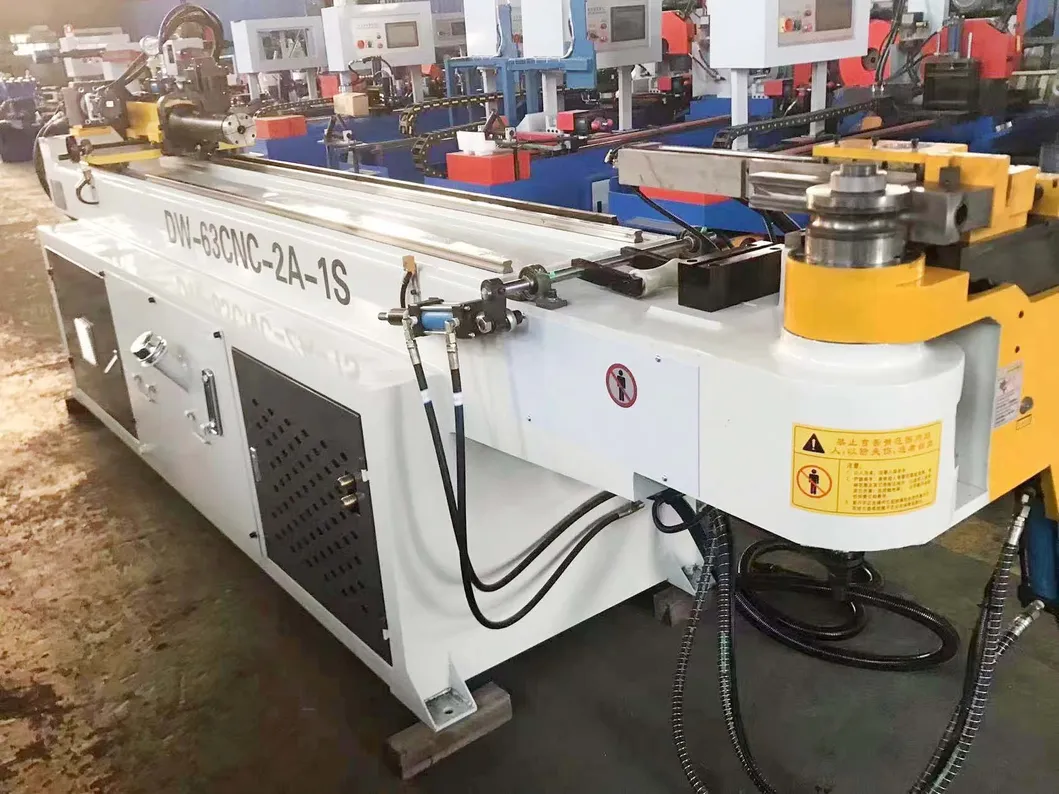

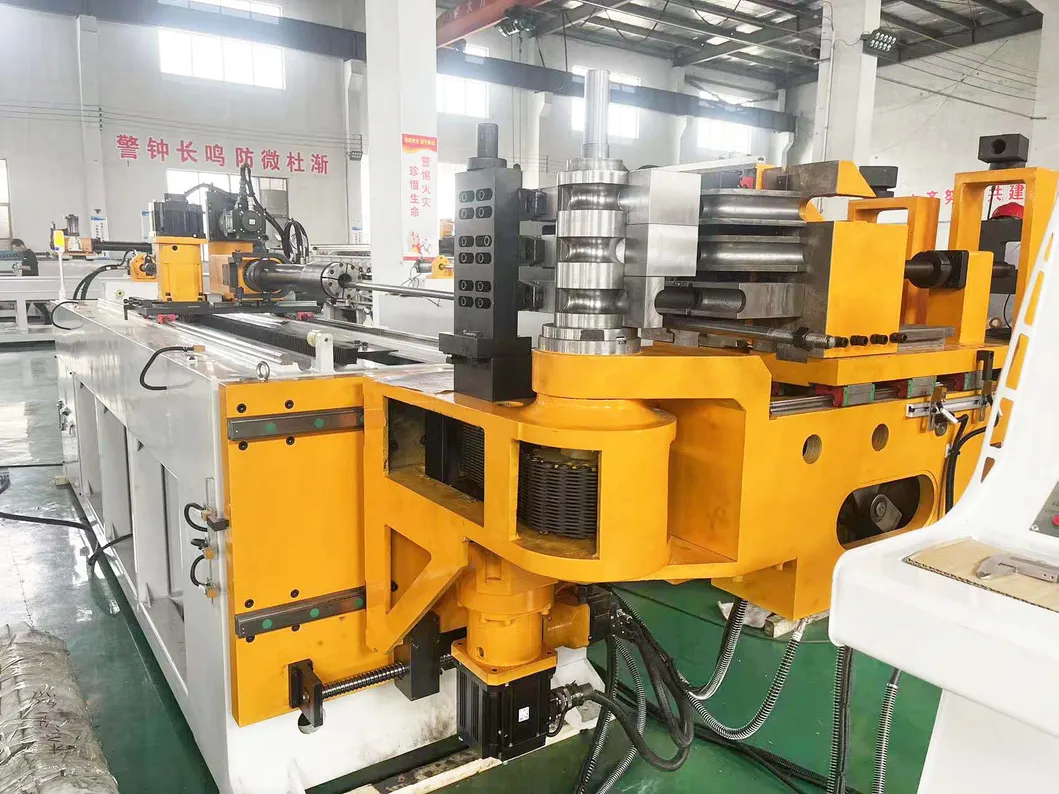

CNC 3D bending tube machine for copper tube aluminum tube steel tubes
Officially named CNC

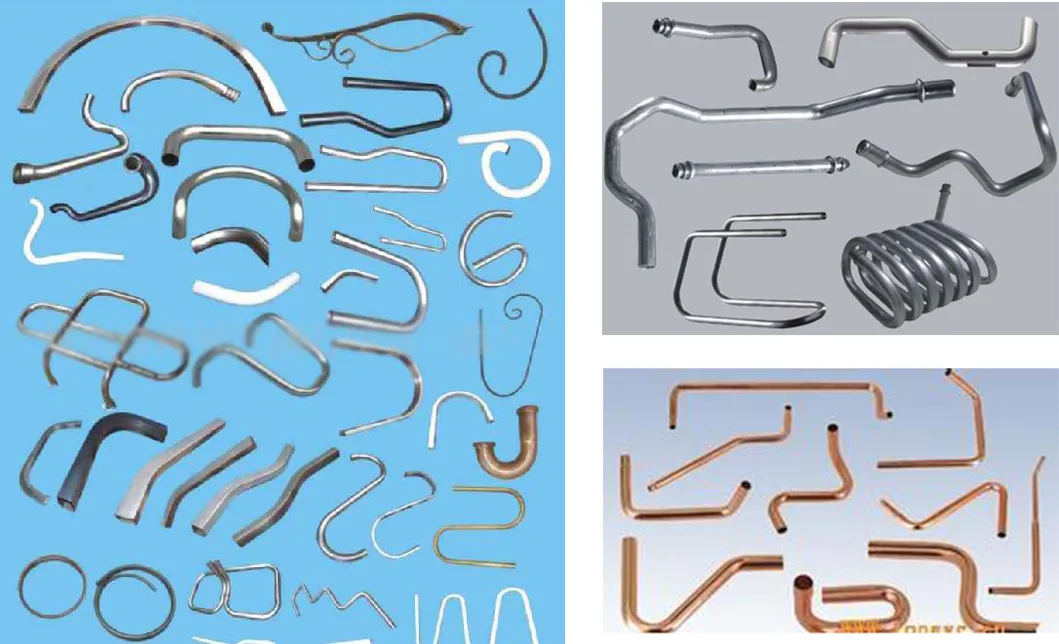

3D Pipe Bending Machine, this professional pipe processing device is perfectly compatible with copper tubes, aluminum tubes, steel tubes and various metal tubular materials.
Equipped with mature CNC intelligent control system, the equipment supports pre-set program parameter editing, enabling automatic feeding, positioning, clamping and integrated bending operation. As practical 3D Pipe Bending Machine, it stably finishes multi-angle and multi-plane spatial bending without pipe deformation, wrinkling or cracking, greatly optimizing finished product yield.
Adopting optimized servo driving structure, this
CNC Multi-Axis Tube Bending Equipment delivers stable operating performance and fast response speed, effectively shortening processing cycle and boosting overall production efficiency. Whether for mass standardized production or customized complex pipe forming, it shows outstanding adaptability.
With rigorous mechanical structure design and fine assembly technology, it acts as reliable
Precision 3D Profile Bending Machine to maintain consistent bending dimension accuracy for long-term continuous operation. Simple operation and easy maintenance further cut down labor and later use costs, being an ideal core processing equipment for modern pipe processing workshops.
Machine data: | | Item | Index |
| 1 | Machine type | DW38CNC |
| 2 | Min bending R for carbon pipe is:1.5D | Ø50X 2.5t |
| 3 | Min bending R for s.s pipe is 1.5D | Ø44X 2.1t |
| 4 | Availability Length of bending pipe | 2500mm |
| 5 | Bending R | 5-115mm |
| 6 | Max angle for bending | 190° |
| 7 | Bending process for every pipe | 32 |
| 8 | Working rate | Bend rate | Ma×45°/sec |
| 9 | Rotary rate | Ma×280°/sec |
| 10 | Feeding rate | Ma×900mm/sec |
| 11 | Working accuracy | Bend angle | ±1° |
| 12 | Rotary angle | ±0.1° |
| 13 | Feeding length | ±0.1mm |
| 14 | Watt of oil press electrical machine | 14mpa |
| 15 | Information inputting method | Axis (Y,B,C) |
| 16 | Bending method | 1.Servo 2.Hydraulic |
| 17 | Max bending group | 2000 |
| 18 | Power of rotary Servo motor | 750W |
| 19 | Power of feeding Servo motor | 1000 W |
| 20 | Electrical motor power | 5.5kw |
| 21 | Weight | 1800kg |
| 22 | Size L W H(MM) 2A1S | 4200X900X1200 |
| Remark:The Max length of mandrel of pipe bending machine can according to customers requirement. |
| Project Name | Model | Brand |
| Air switch | NSD-100,EA9N3D32 | Schneider |
| Ac contactor | D3510 | Schneider |
| Thermal relay | D0910 | Schneider |
| Transformer | SG-5000VA | JiuChuan |
| Switch power | S-200-24 | Meanwell |
| Servo electric system | SGDM -750W | Mitsubishi |
| SGDM-1000W |
| PLC (CPU) | CP/H-Y20DT-D | Mitsubishi |
| Touch screen | MT510T | Weinview |
| Approach switch | E2A-TL5 | Schneider |
| Relay | MY2NJ | Schneider |
