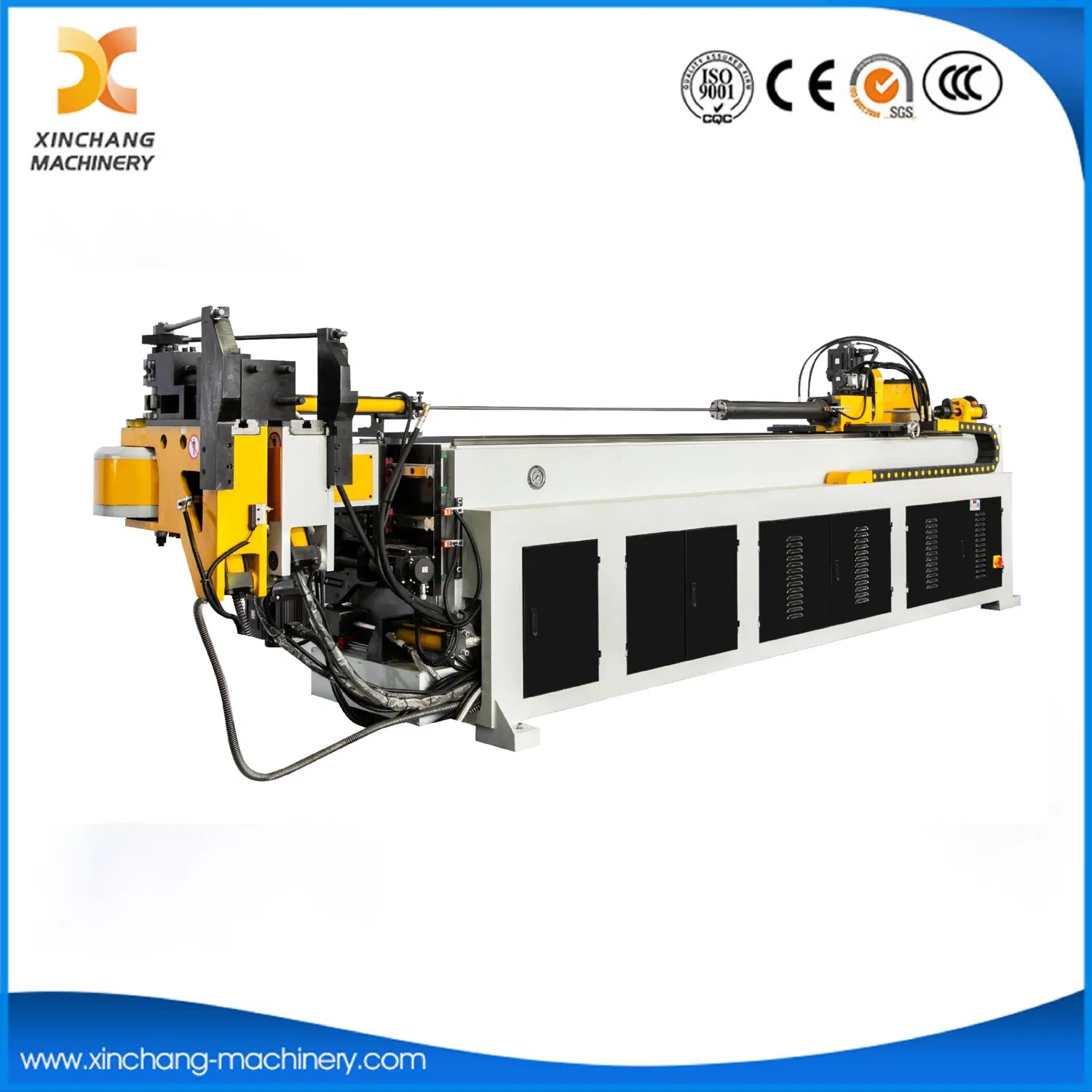

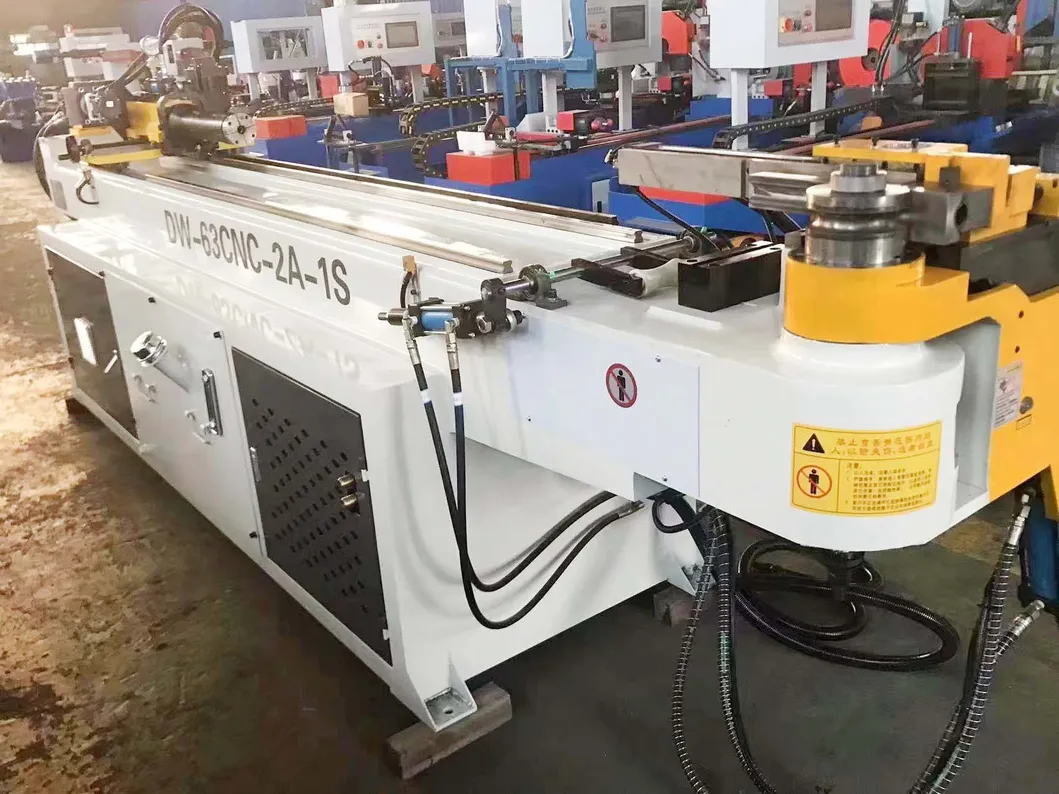

CNC 3D bending tube machine for copper tube aluminum tube steel tubes
Machine Name: CNC 3D Pipe Bending Machine
Function:Mainly fit for furniture,plumbing and bathing equipment,refrigerator copper tube,motorbike,automobie fitting,ship...etc.
Machine data: | | Item | Index |
| 1 | Machine type | DW38CNC |
| 2 | Min bending R for carbon pipe is:1.5D | Ø50X 2.5t |
| 3 | Min bending R for s.s pipe is 1.5D | Ø44X 2.1t |
| 4 | Availability Length of bending pipe | 2500mm |
| 5 | Bending R | 5-115mm |
| 6 | Max angle for bending | 190° |
| 7 | Bending process for every pipe | 32 |
| 8 | Working rate | Bend rate | Ma×45°/sec |
| 9 | Rotary rate | Ma×280°/sec |
| 10 | Feeding rate | Ma×900mm/sec |
| 11 | Working accuracy | Bend angle | ±1° |
| 12 | Rotary angle | ±0.1° |
| 13 | Feeding length | ±0.1mm |
| 14 | Watt of oil press electrical machine | 14mpa |
| 15 | Information inputting method | Axis (Y,B,C) |
| 16 | Bending method | 1.Servo 2.Hydraulic |
| 17 | Max bending group | 2000 |
| 18 | Power of rotary Servo motor | 750W |
| 19 | Power of feeding Servo motor | 1000 W |
| 20 | Electrical motor power | 5.5kw |
| 21 | Weight | 1800kg |
| 22 | Size L W H(MM) 2A1S | 4200X900X1200 |
| Remark:The Max length of mandrel of pipe bending machine can according to customers requirement. |
| Project Name | Model | Brand |
| Air switch | NSD-100,EA9N3D32 | Schneider |
| Ac contactor | D3510 | Schneider |
| Thermal relay | D0910 | Schneider |
| Transformer | SG-5000VA | JiuChuan |
| Switch power | S-200-24 | Meanwell |
| Servo electric system | SGDM -750W | Mitsubishi |
| SGDM-1000W |
| PLC (CPU) | CP/H-Y20DT-D | Mitsubishi |
| Touch screen | MT510T | Weinview |
| Approach switch | E2A-TL5 | Schneider |
| Relay | MY2NJ | Schneider |
