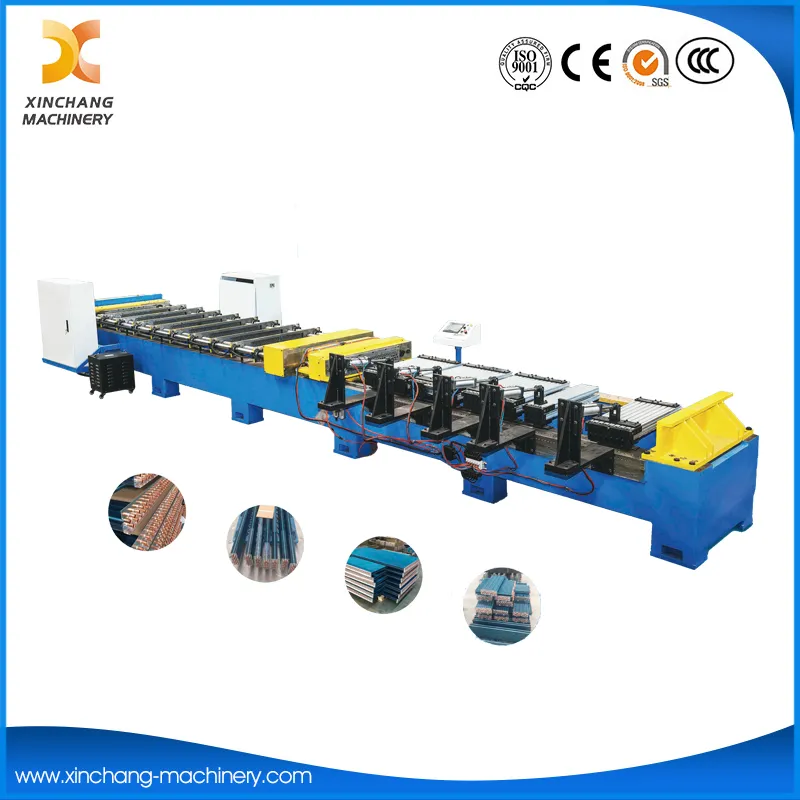

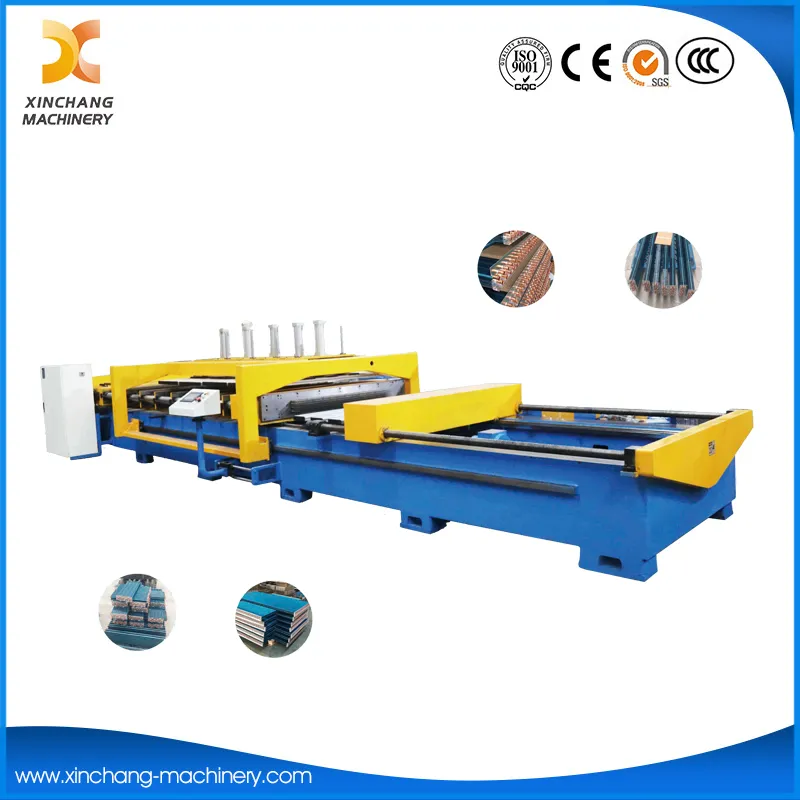

Horizontal Air Conditioner Heat Exchanger Pipe Expander

The Automatic Heat Exchanger Horizontal Hairpin Expander is a high-precision, fully automated special equipment tailored for the heat exchanger manufacturing industry, also widely known as theHorizontal Tube Expander Machine, Horizontal Expander and Heat Exchanger Tube Sheet Expander Machine. Engineered with industrial-grade design and intelligent control logic, this machine delivers stable, efficient and high-quality tube expansion processing, solving the core assembly challenges of heat exchanger copper tubes and fins, and becoming an indispensable core equipment in refrigeration, HVAC, heat exchange equipment and related manufacturing production lines.

---

Core Usage

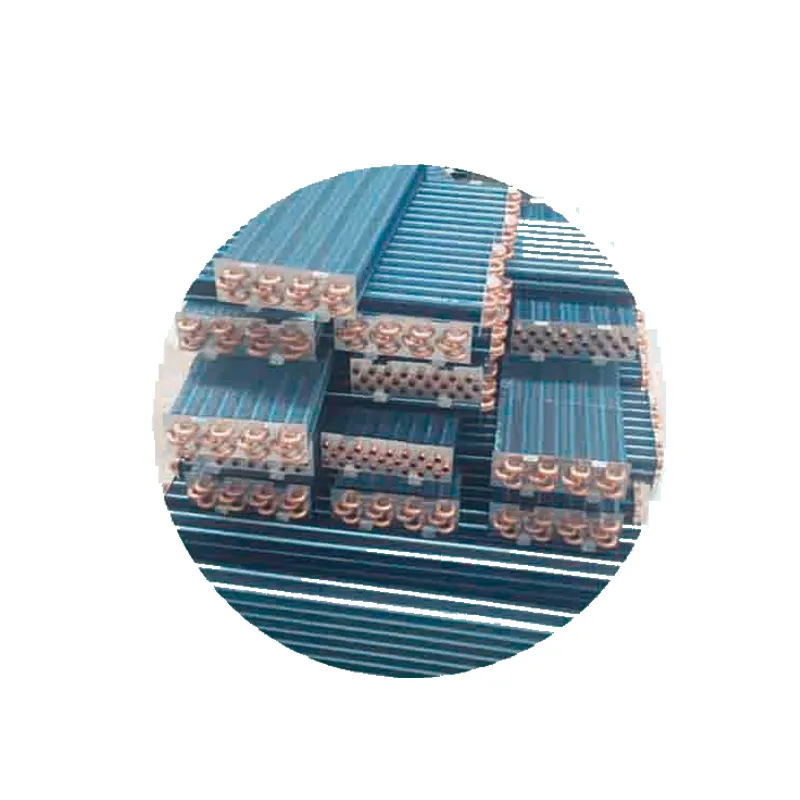

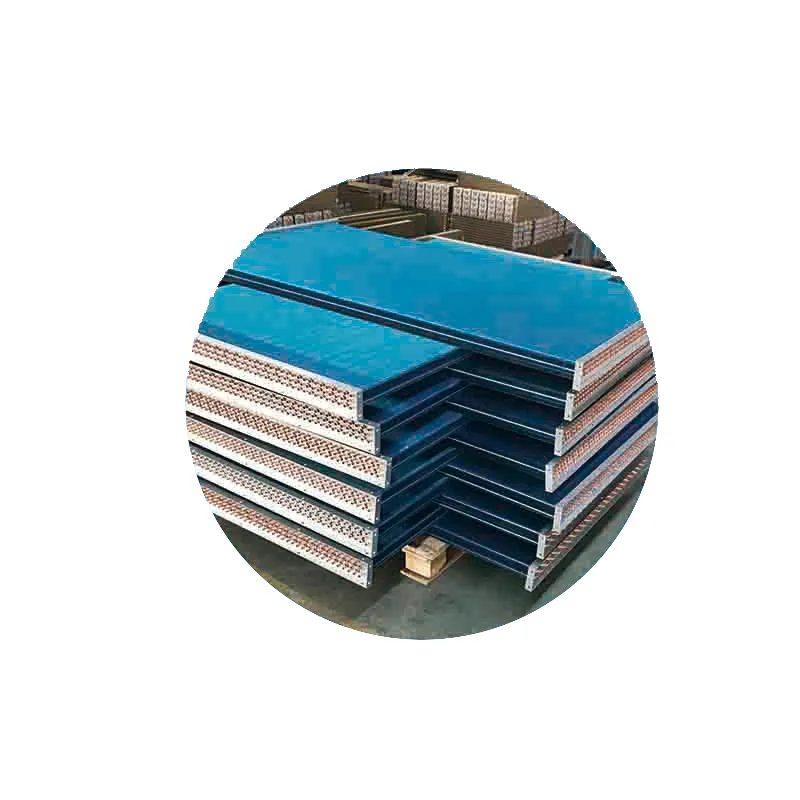

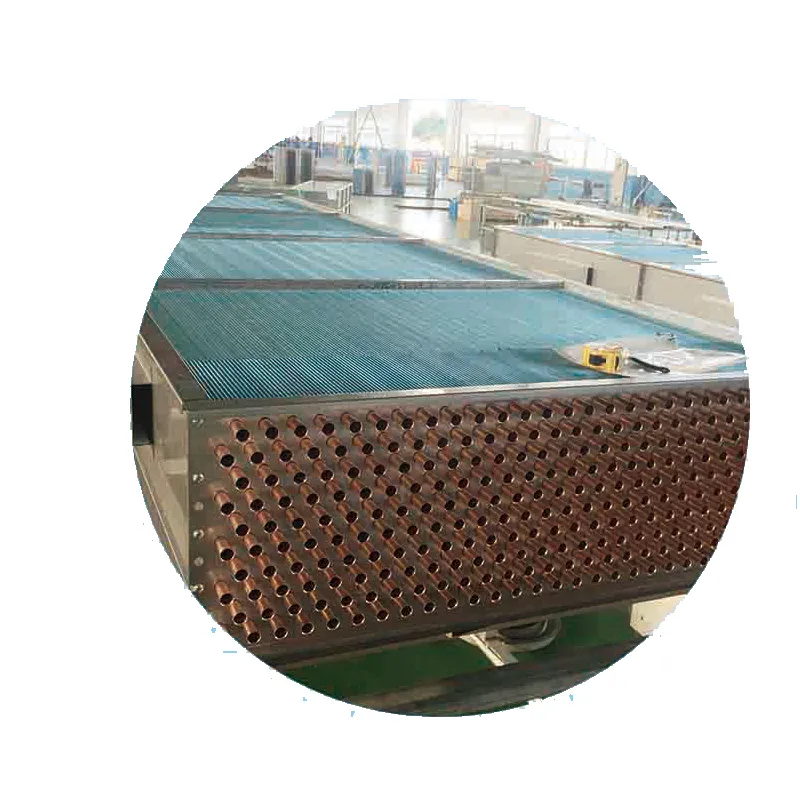

This specialized Horizontal Expander is primarily designed for the precision expansion processing of copper tubes embedded inside various horizontal heat exchangers, serving as a key piece of Heat Exchanger Tube Sheet Expander Machine for heat exchanger assembly. It operates by driving high-precision expanding rods to exert uniform, controllable pressure on the inner wall of the copper tube, gradually and accurately expanding the tube diameter to a preset standard. Through this professional expansion process, the outer wall of the copper tube can form a seamless, tight fit with the heat exchanger fins, eliminating gaps between the tube and fin assembly that would compromise performance.

This secure, gap-free bonding is the cornerstone of high-efficiency heat exchange: it drastically boosts the overall heat transfer efficiency of the heat exchanger, minimizes unnecessary heat loss during operation, blocks energy waste caused by poor contact, and lays a solid foundation for the stable, reliable and long-term operation of the entire heat exchange system. Whether for civilian HVAC heat exchangers, industrial refrigeration condensers, or commercial heat exchange components, this Horizontal Tube Expander Machine delivers consistent, high-standard expansion results to meet stringent manufacturing requirements.

Unique Technical Advantages

What sets this automatic horizontal hairpin expander apart from conventional tube expansion equipment is its adoption of advanced double-ended clamping and fixing technology, a proprietary design that elevates processing precision and cost-effectiveness. Throughout the entire copper tube expansion cycle, both ends of the copper tube are synchronously clamped and firmly positioned by the equipment’s dedicated fixture, eliminating slippage or displacement during the expansion action.

This targeted design effectively prevents the copper tube from experiencing axial shrinkage, radial deformation or dimensional deviation that commonly plagues traditional single-end clamping models. By locking the tube length and shape in advance, the machine not only guarantees the strict dimensional accuracy of processed copper tubes, ensuring consistency across every batch of products, but also completely eradicates material waste caused by tube shrinkage. Additionally, the stable dual-end clamping maintains the perfect straightness of the copper tube, avoiding bending, twisting or warping defects that would hinder subsequent heat exchanger assembly, reduce assembly efficiency, or impair the overall performance and service life of the finished heat exchange equipment.
