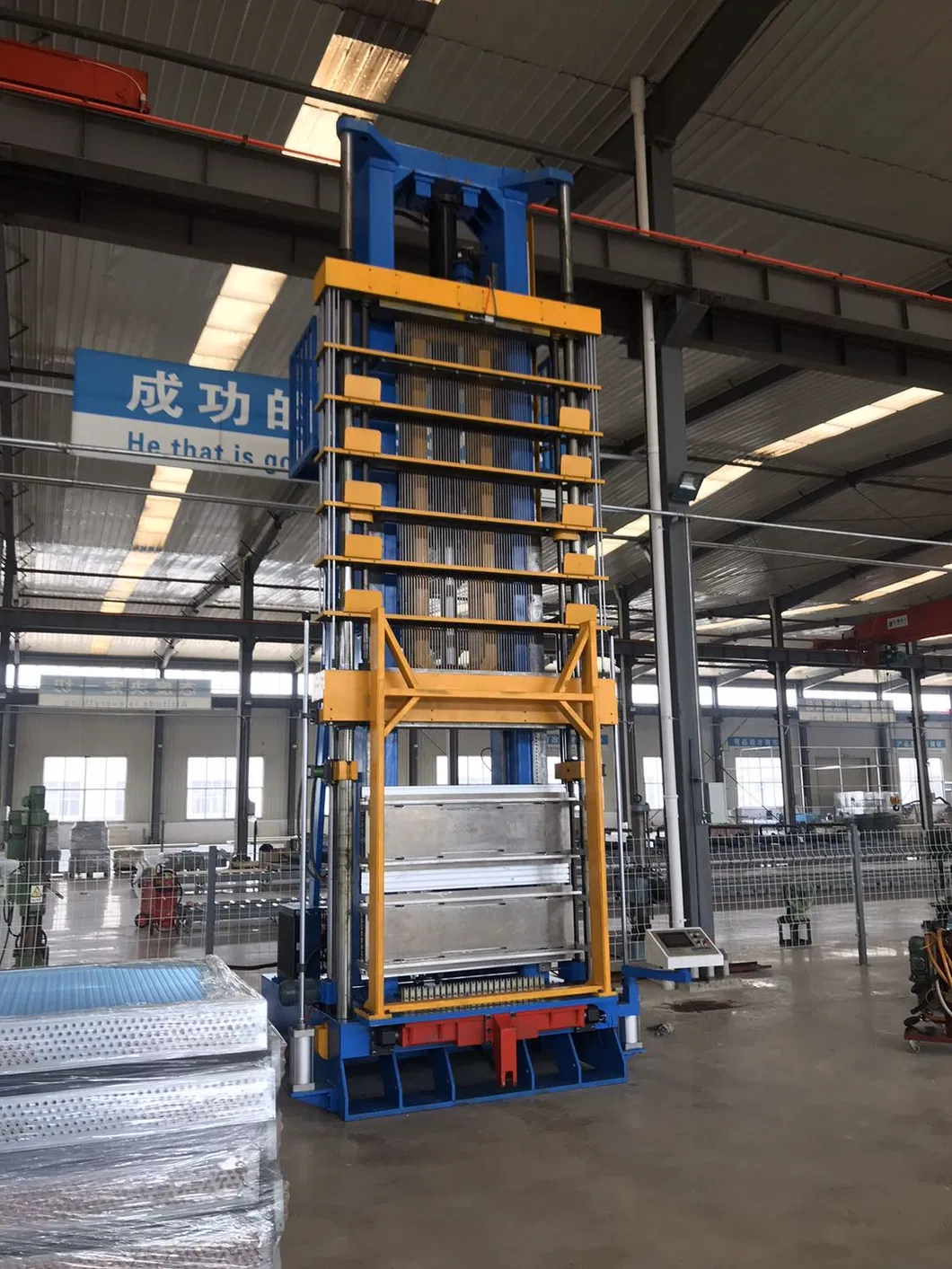

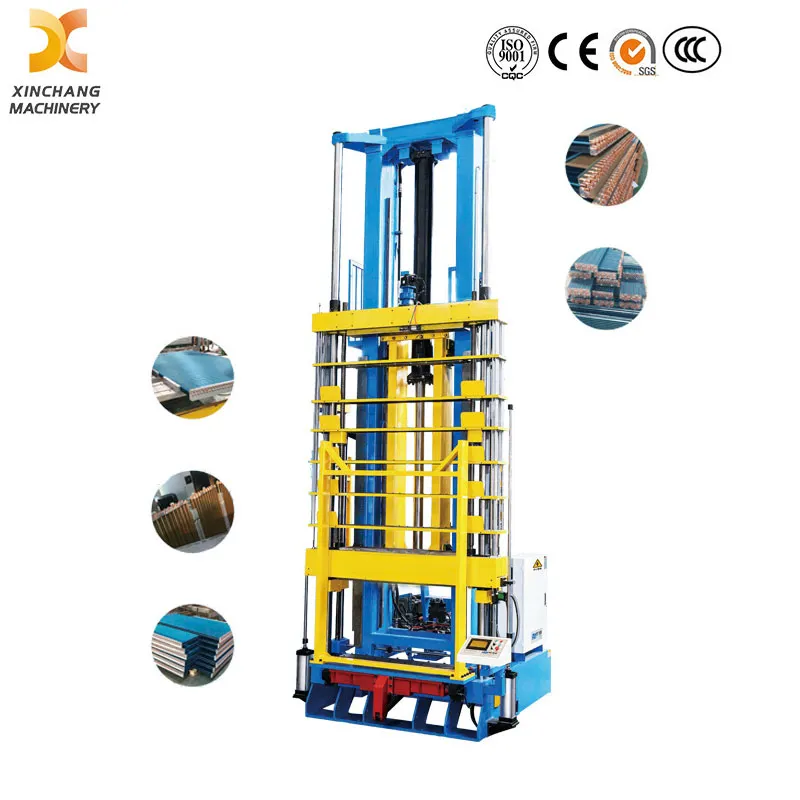

Turnover Door Vertical Tube Expander for Heat Exchanger

The Turnover Door Vertical Tube Expander for Heat Exchanger Machine is a high-performance, operator-friendly processing unit built exclusively for heat exchanger fabrication, and is widely recognized across the industry as a Heat Exchanger Tube Sheet Expander Machine, Vertical Tube Expander Machine and compact Vertical Expander. Engineered with a dedicated turnover door structure, this equipment combines ergonomic operation with precision hydraulic control, making it the go-to solution for efficient fin heat exchanger assembly in HVAC, refrigeration, automotive heat exchange and industrial thermal equipment sectors.

Core Usage & Key Functions

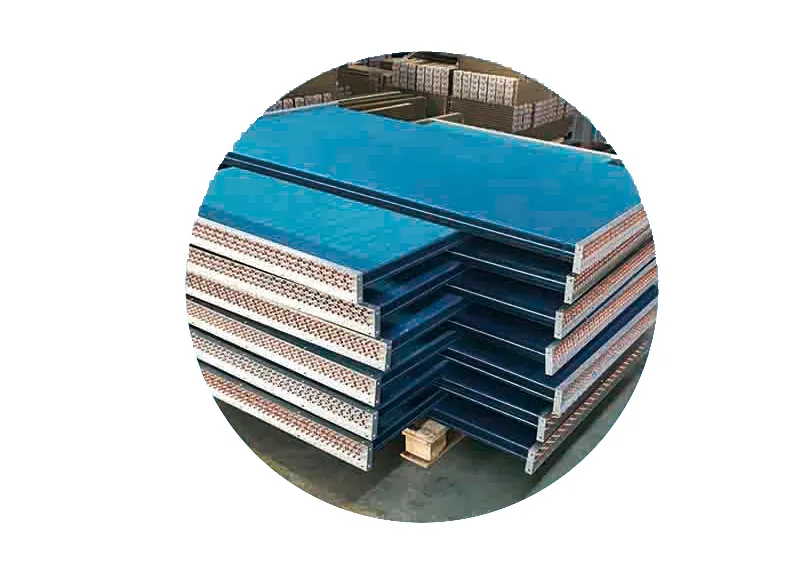

This specialized expander is purpose-designed to perform pipe expansion on fin heat exchangers, streamlining critical assembly procedures into a seamless workflow. Unlike conventional expansion equipment, this Vertical Tube Expander Machine delivers a fully integrated processing experience:pipe expanding, flaring and flanging are all completed consecutively in a single working cycle, eliminating the need for manual workpiece transfer, repeated clamping or secondary positioning.

As a robust Heat Exchanger Tube Sheet Expander Machine, it ensures tight, gap-free bonding between heat exchange tubes and tube sheets/fins, boosting thermal conductivity, structural stability and pressure resistance of the finished heat exchanger. The unique turnover door design simplifies workpiece loading and unloading, speeds up production turnover, and enhances operational safety — a standout advantage of this premium Vertical Expander.

Whether handling small-batch custom orders or large-scale mass production, this turnover door vertical expander maintains consistent processing precision, minimizes dimensional errors, and elevates the overall quality and service life of fin heat exchangers, making it an indispensable core tool for modern heat exchanger manufacturing lines.

*Workpiece length: 1600mm , 2000mm , 2500mm , 3000mm etc , the length different , the machine specification will be different

*For the length of workpiece less than 1600mm , machine is with manual door or double rotary worktable

*For the length of workpiece more than 1600mm , machine is with turnover door oblique 84° also with the manual door which is for the workpiece length less than 1200mm

*For the length above 1600mm , the machine design is interal oil cylinder type.
