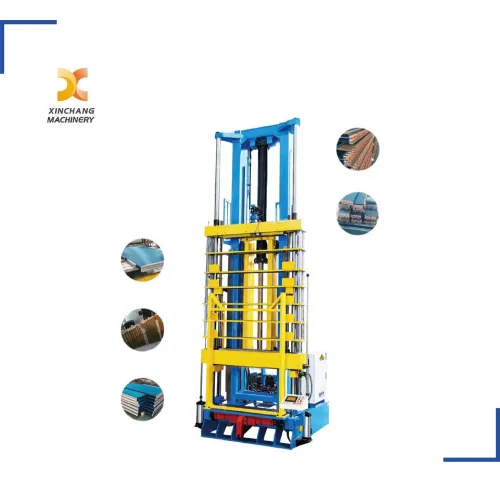

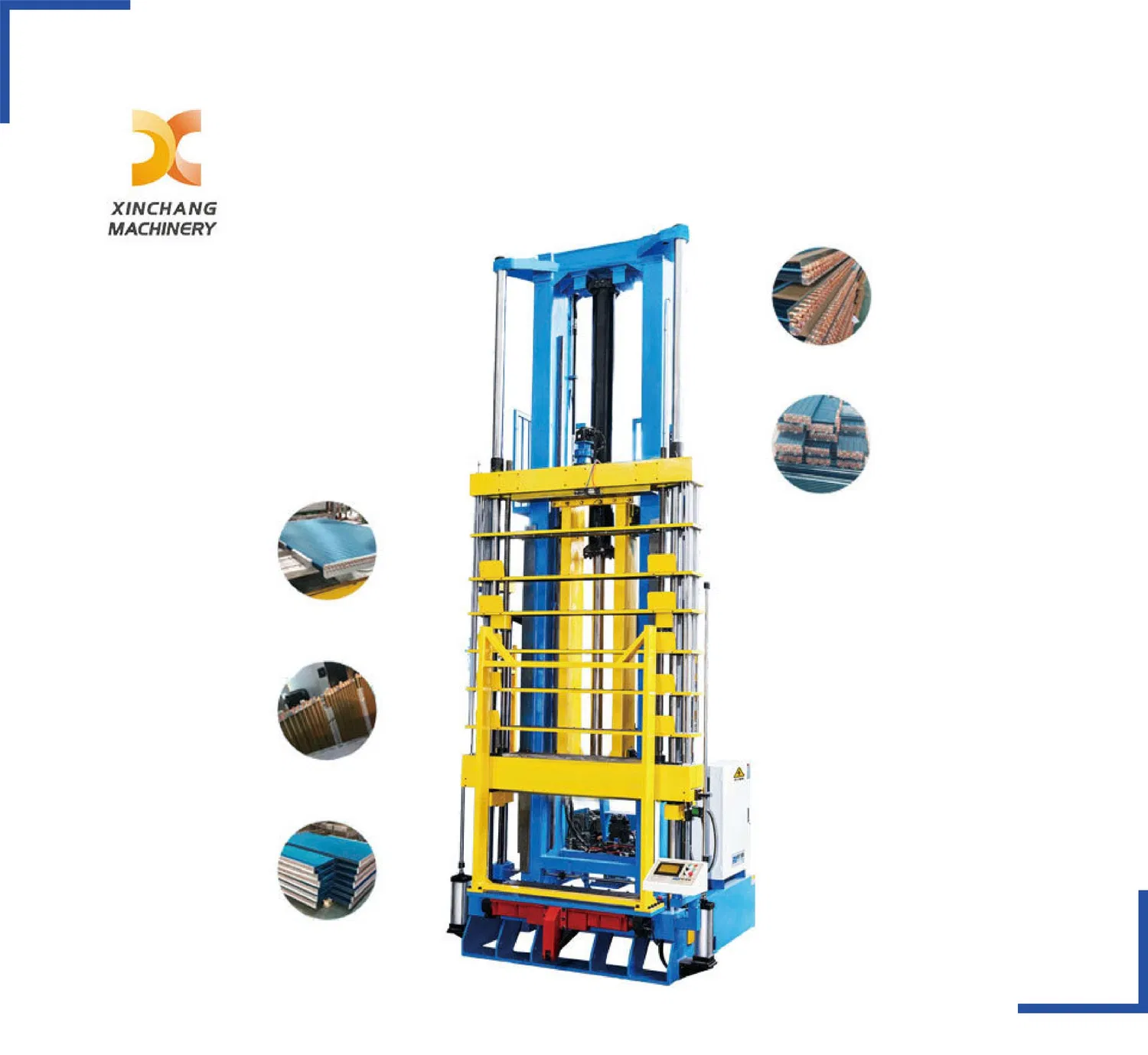

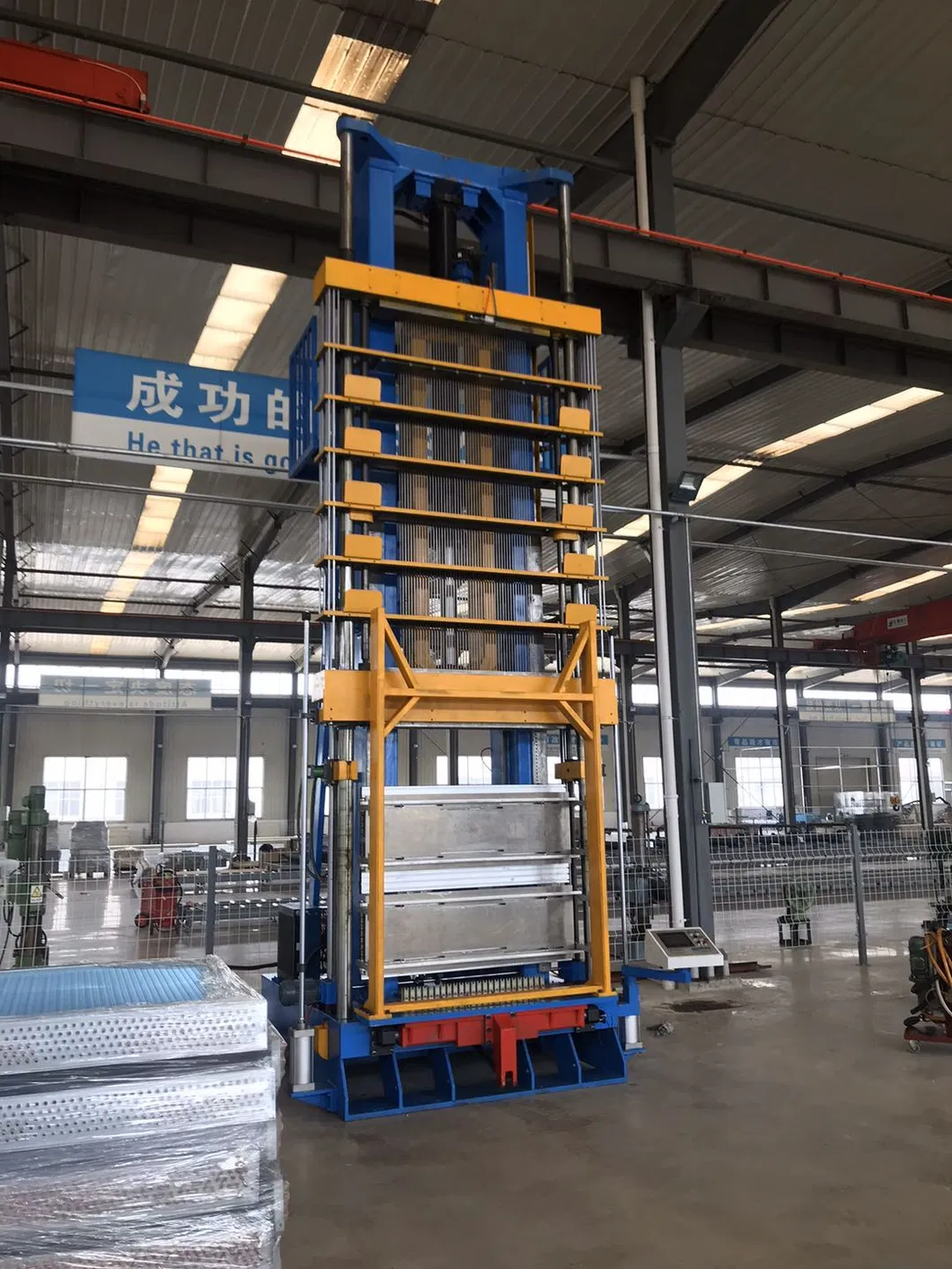

Hydraulic Vertical Tube Expanding Machine for Condenser Coil
Usage:
This expander, also professionally known as the Heat Exchanger Tube Sheet Expander Machine, Vertical Tube Expander Machine and high-efficiency Vertical Expander, is specially used to expand fin heat-exchanger with dedicated precision. Built for the core assembly process of fin heat exchangers, this integrated Vertical Tube Expander Machine streamlines complex manufacturing procedures into a seamless operation. The processes of expanding pipe, flaring and flanging are finished in one working cycle, eliminating manual workpiece transfer, repeated clamping and multi-step debugging.
As a reliable Heat Exchanger Tube Sheet Expander Machine, it delivers uniform expansion force to ensure tight, gap-free bonding between heat exchange tubes and tube sheets, boosting the heat transfer performance and structural stability of finished heat exchangers. This compact Vertical Expander achieves consistent processing accuracy in every cycle, making it ideal for both mass production and small-batch fabrication of fin heat exchangers.
*Workpiece length: 1600mm , 2000mm , 2500mm , 3000mm etc , the length different , the machine specification will be different
*For the length of workpiece less than 1600mm , machine is with manual door or double rotary worktable
*For the length of workpiece more than 1600mm , machine is with turnover door oblique 84° also with the manual door which is for the workpiece length less than 1200mm
*For the length above 1600mm , the machine design is interal oil cylinder type.
We could customize the machine at your needs.
