Purpose

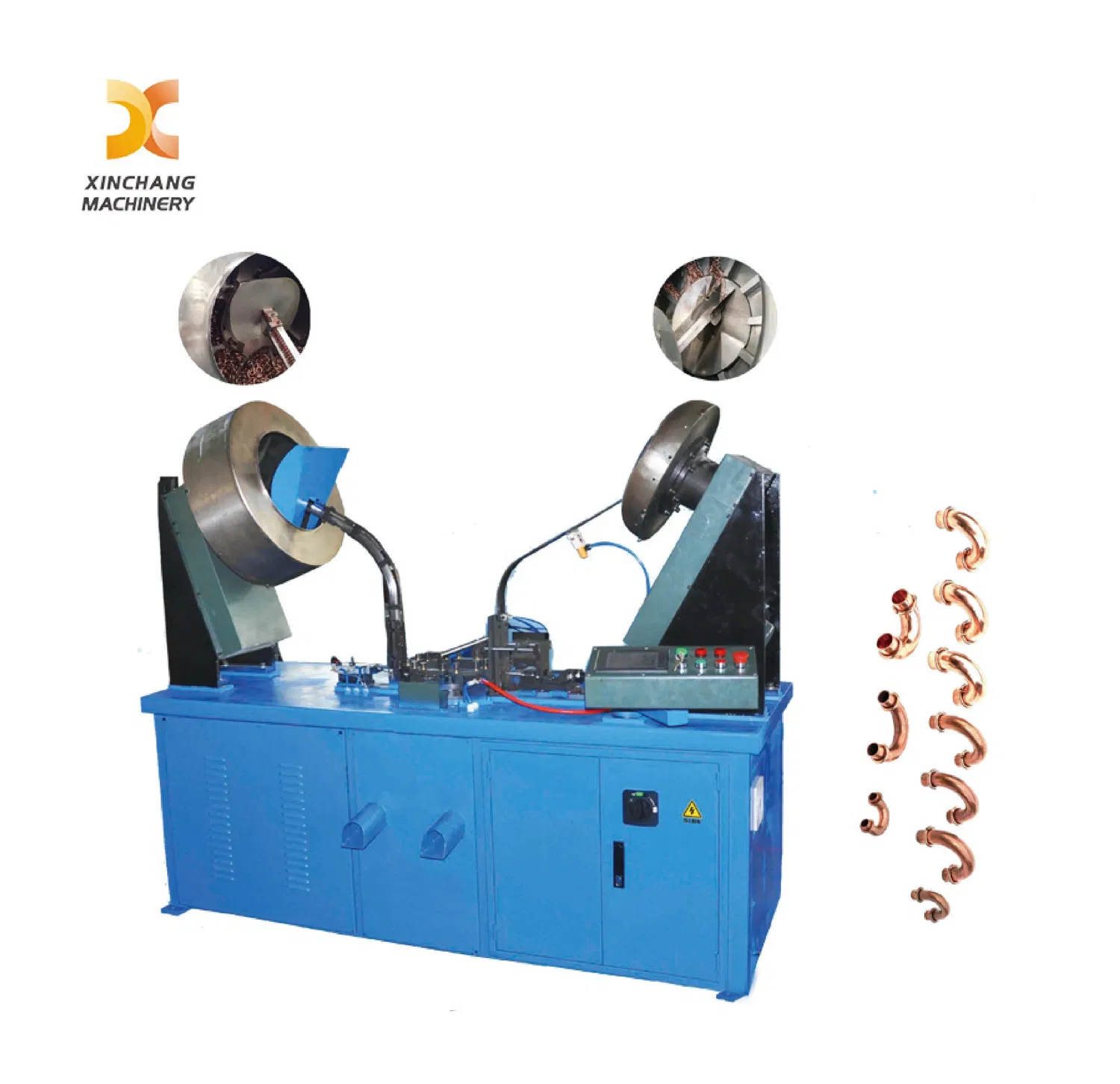

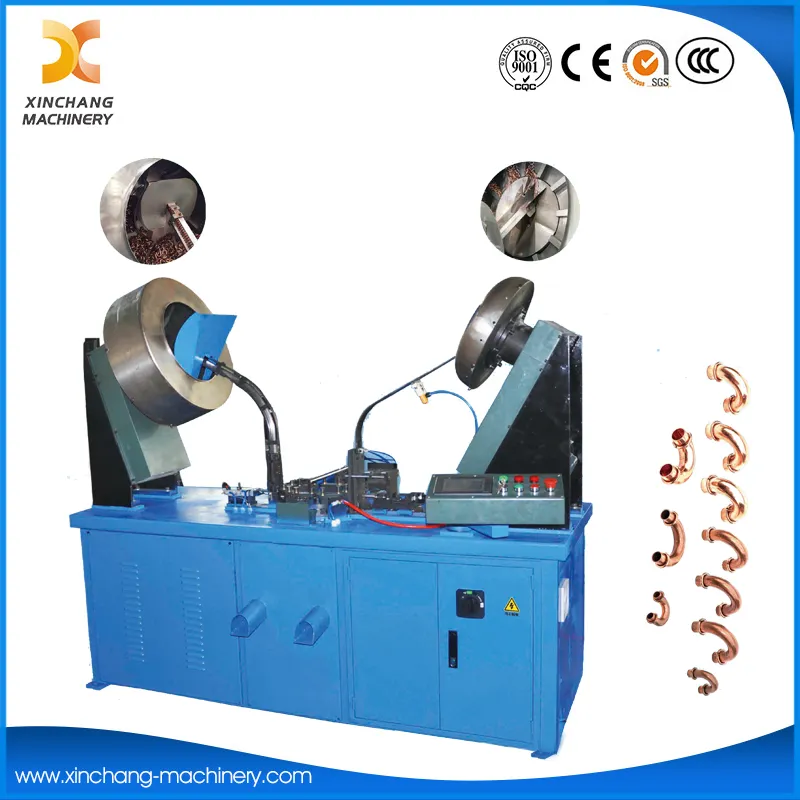

This CNC Ring Mounting Equipment is specially developed to automatically load welding rings onto return bends, thoroughly replacing manual operation to improve production efficiency and guarantee stable assembly quality. As a high-performance Automatic Ring Inserting Machine, it is widely applied to the automated production of return bend welding ring installation, serving the manufacturing of air-condition condensers, evaporators, water heaters and other heat exchange accessories.
Features
1. High degree of automation: With efficient automatic operation logic, it realizes continuous feeding and insertion, matching the efficient working pace of High-Speed Ring Feeding and Insertion Machine with no manual handover needed.
2. User-friendly operation, delicate appearance: The machine boasts a compact structure and sleek exterior, easy to debug and maintain, fitting various industrial workshop environments.
3. Accurate servo positioning: Equipped with a servo motor fitted with a scale board, it achieves precise and stable positioning, ensuring consistent welding ring installation accuracy.
4. Intelligent integrated control: Adopts PLC and touch screen integrated control, supporting quick parameter setting and real-time equipment status monitoring for easy operation.
5. Pipe end smoothing device: Built with a special pipe end trimming mechanism to polish the pipe end, avoiding scratches and ensuring tight fitting of welding rings.
Main Technical Parameters
- Tube diameter: 5-12.7mm
- Center distance of U bend: 15.45-31.75mm
- Working efficiency: 60 times per minute
