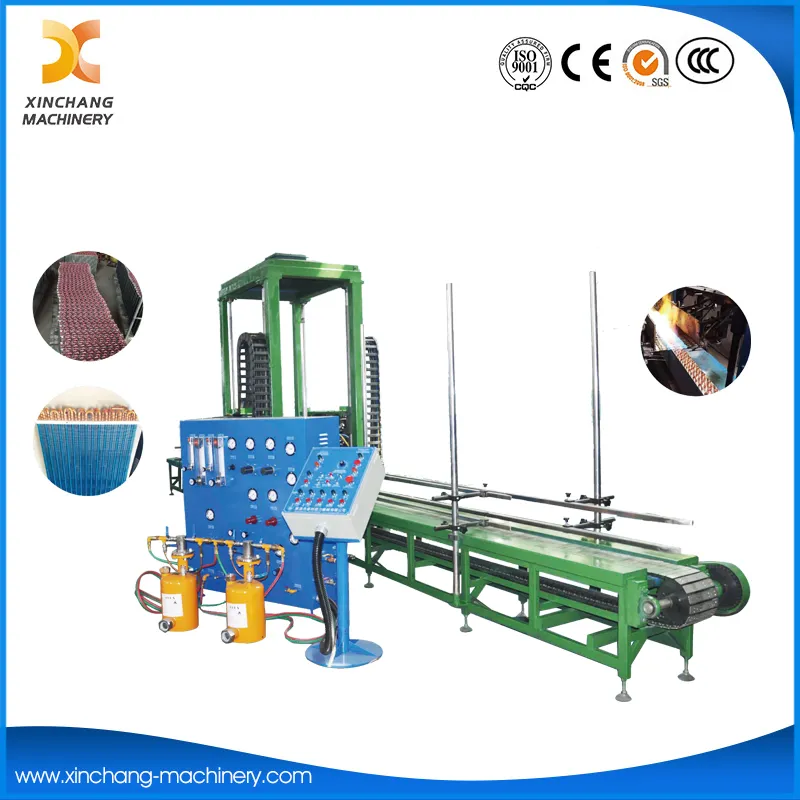

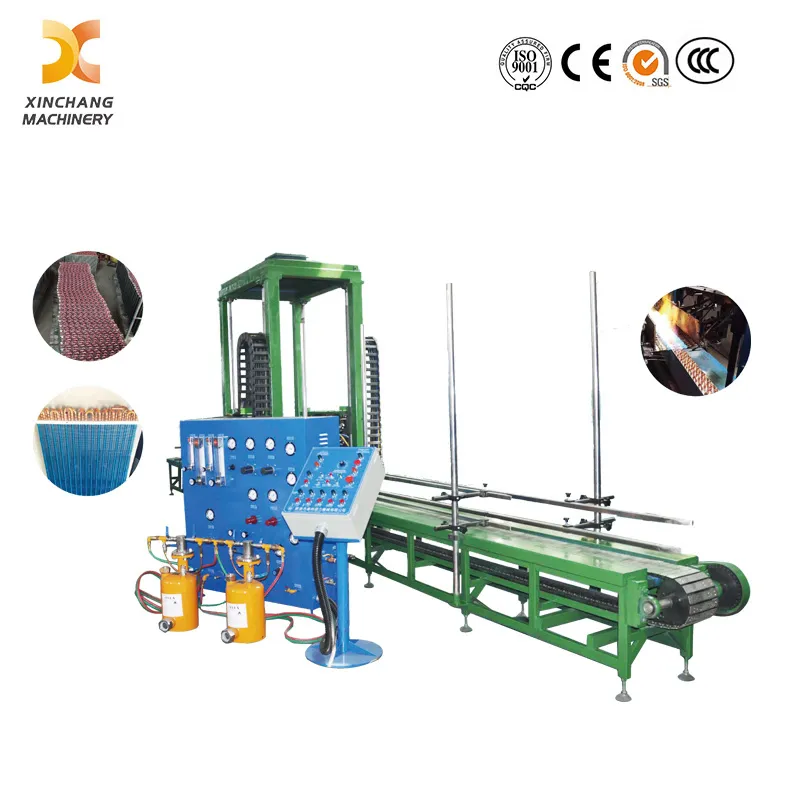

AC Coils Automatic Heat Exchanger Welding Machine for Air Conditioner Condenser
Purpose

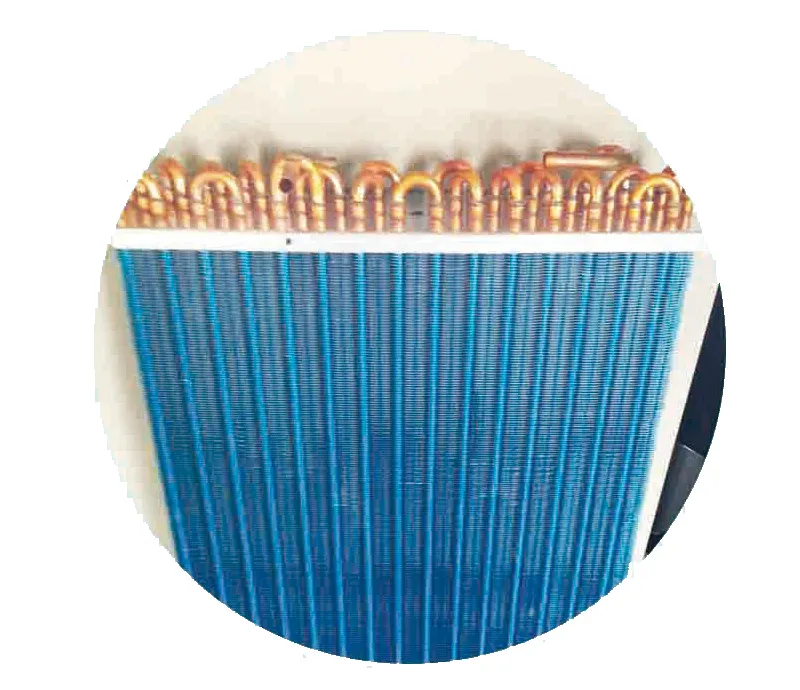

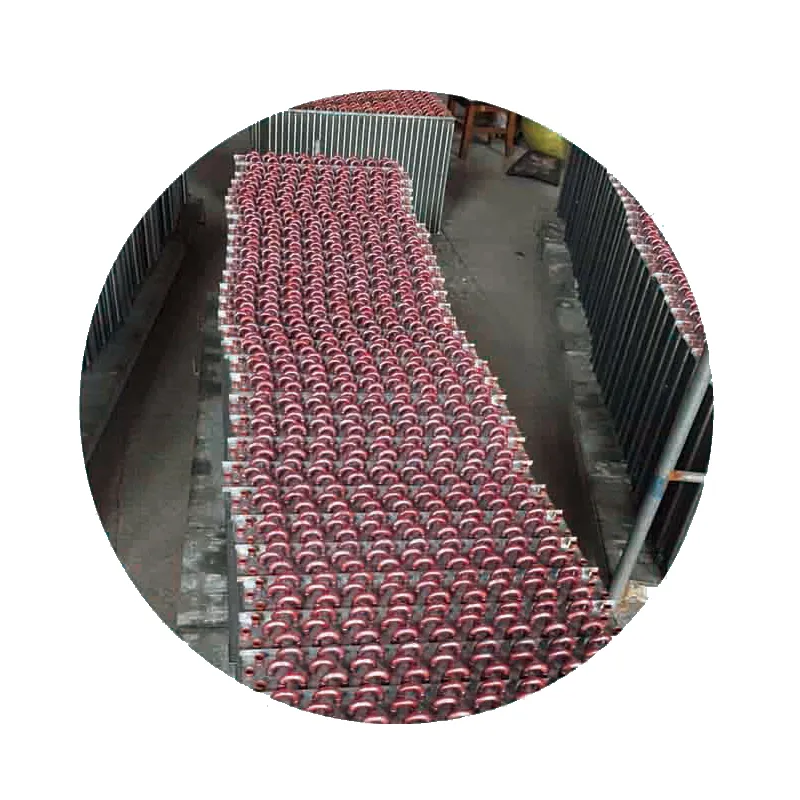

This AC Coils Automatic Heat Exchanger Welding Machine is a professional automatic welding equipment specially developed for the welding process of air conditioner condensers and various heat exchanger coils. It is mainly used for high-precision, high-efficiency welding of coils in air conditioning systems (including household air conditioners, central air conditioners, commercial air conditioners, etc.) and can also be flexibly adapted to the welding needs of coils of other types of heat exchangers in different fields such as refrigeration, HVAC, and industrial cooling. The equipment integrates automation, stability and versatility, which effectively solves the problems of low efficiency, unstable welding quality and high labor intensity of traditional manual or semi-automatic welding, and provides reliable technical support for enterprises to improve production efficiency, reduce costs and ensure product consistency.
Main Technical Parameters
The technical parameters of the equipment are scientifically designed according to the actual welding needs of air conditioner condensers and heat exchanger coils, covering key indicators such as welding height, gas configuration and burner structure, to ensure that the equipment can meet the production needs of different specifications and scenarios, and achieve efficient and stable welding effects.
-
Max. welding height: Multiple specifications of 1250mm, 1500mm, 2000mm and 2500mm are available for your choice. You can flexibly select the corresponding welding height according to the size of the air conditioner condenser and heat exchanger coils (such as different models of air conditioner outdoor units, large-scale industrial heat exchangers). The multi-specification design fully covers the welding needs of small, medium and large-sized coils, avoiding the trouble of customizing special equipment, reducing enterprise investment and improving equipment applicability.
- Combustion gas: It supports a variety of common combustion gases such as liquefied gas and natural gas. The flexible gas selection design is compatible with the gas supply conditions of different enterprises, and there is no need to modify the gas supply system specially. At the same time, the equipment is equipped with a stable gas supply control system, which can accurately adjust the gas flow and pressure, ensuring sufficient combustion, stable welding temperature and avoiding welding defects caused by unstable gas supply.
-
Combustion supporting gas: It uses compress air and other common combustion supporting gases, which is easy to obtain and low in use cost, effectively reducing the daily operation cost of enterprises. The combustion supporting gas system is matched with the combustion gas system, which can fully promote the combustion of the combustion gas, improve the welding temperature and heating efficiency, make the welding joint more firm, and reduce the generation of harmful gases during the welding process, which is more energy-saving and environmentally friendly.
-
Burner: It adopts a high-efficiency burner structure with 4 rows of welding nozzles, and 20 welding nozzles are arranged in each row, with a total of 80 welding nozzles. The dense and reasonable arrangement of the nozzles ensures uniform heating of the coil during the welding process, avoids local overheating or insufficient heating, and ensures the flatness and firmness of the welding joint. The optimized nozzle design also improves the welding speed and efficiency, which can realize continuous and rapid welding of coils, greatly reducing the welding time and improving the overall production efficiency of the production line.
In addition, the equipment adopts an automatic control system, which can realize automatic positioning, automatic welding and automatic blanking, further reducing the participation of manual operation, improving the welding precision and consistency, and is very suitable for large-scale mass production of air conditioner condensers and heat exchanger coils. It is an indispensable key equipment for upgrading the production line of air conditioning and heat exchanger enterprises.
Main technical parameters: | Max. welding height: | 1250, 1500, 2000, 2500mm are available for your choice. |
| Combustion gas: | Liquefied gas, natural gas etc. |
| Combustion supporting gas: | compress air etc. |
| Burner: | 4 rows, 20 welding nozzles each row. |
