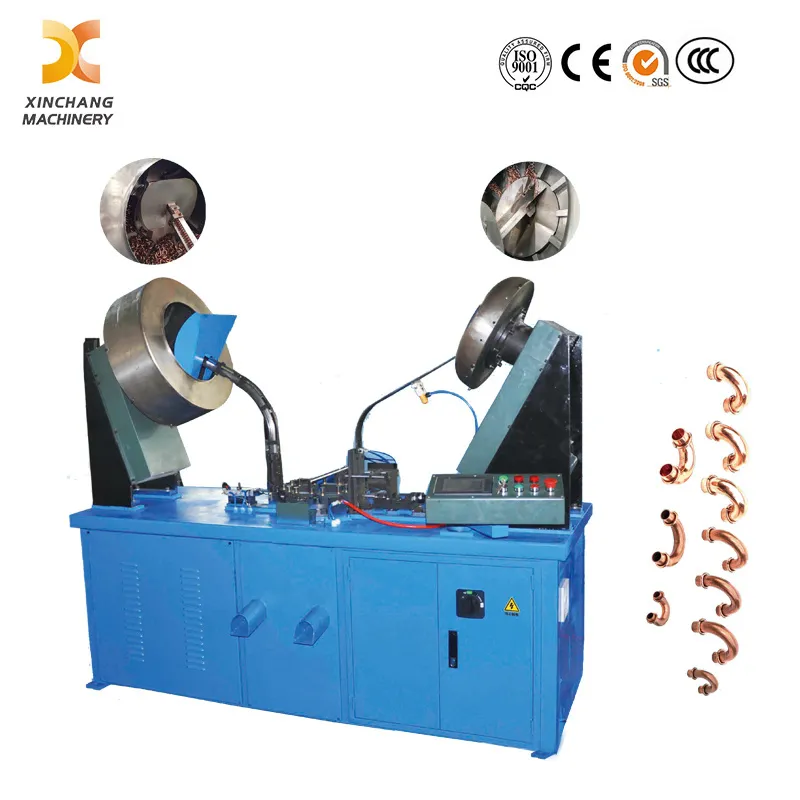

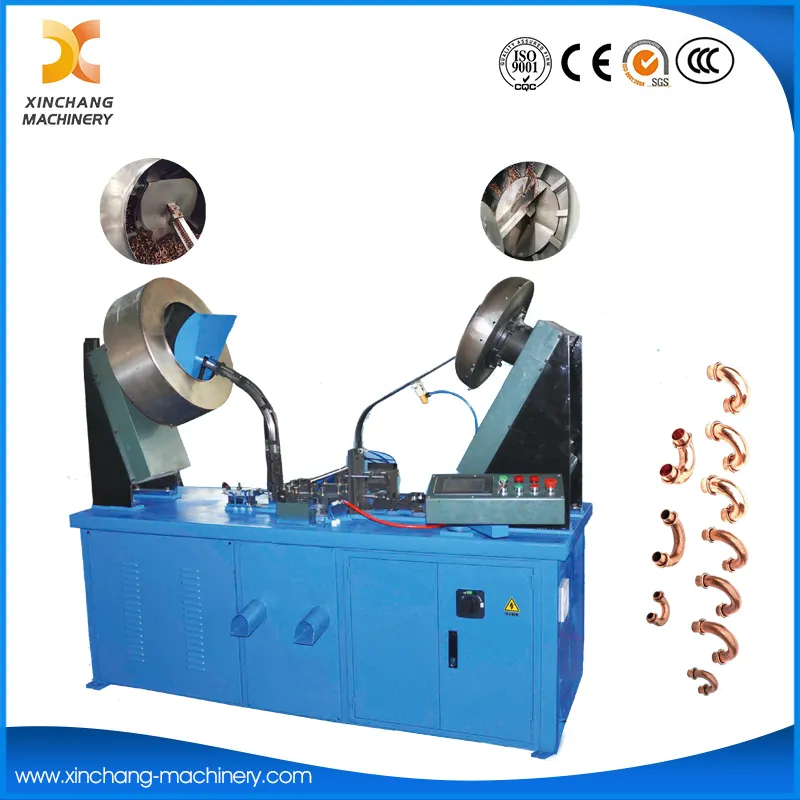

Professional Ring Inserted Loading Machine for Return Bend

Professional Ring Inserted Loading Machine for Return Bend Ring

Purpose

This equipment is designed to automatically load welding rings onto return bends, replacing inefficient manual operation and ensuring stable assembly consistency. As a reliable Automatic Ring Inserting Machine, it is widely used in automated production lines for return bend welding ring installation, catering to the manufacturing of air-condition condensers, evaporators, water heaters and other related heat exchange equipment.

Features

1. High degree of automation: Featuring fully automatic feeding, positioning and loading, it runs continuously and stably, matching the high working efficiency of High-Speed Ring Feeding and Insertion Machine to cut down labor input and improve overall productivity.

2. Convenient operation, exquisite appearance: The machine has a compact, reasonable structure with a sleek and firm exterior. It is easy to debug, operate and maintain, adapting well to various industrial workshop production environments.

3. Accurate positioning: Equipped with a servo motor fitted with a scale board, it achieves precise and stable positioning, keeping the welding ring installation position uniform and meeting strict assembly standards.

4. Intelligent control system: As a piece of dedicated CNC Ring Mounting Equipment, it adopts PLC and touch screen integrated control, supporting fast parameter adjustment and real-time operation status monitoring for user-friendly operation.

5. Pipe end smoothing device: Built with a special pipe end trimming mechanism, it polishes the pipe end smoothly before ring loading, avoiding pipe scratches and ensuring tight, firm fitting of welding rings.
