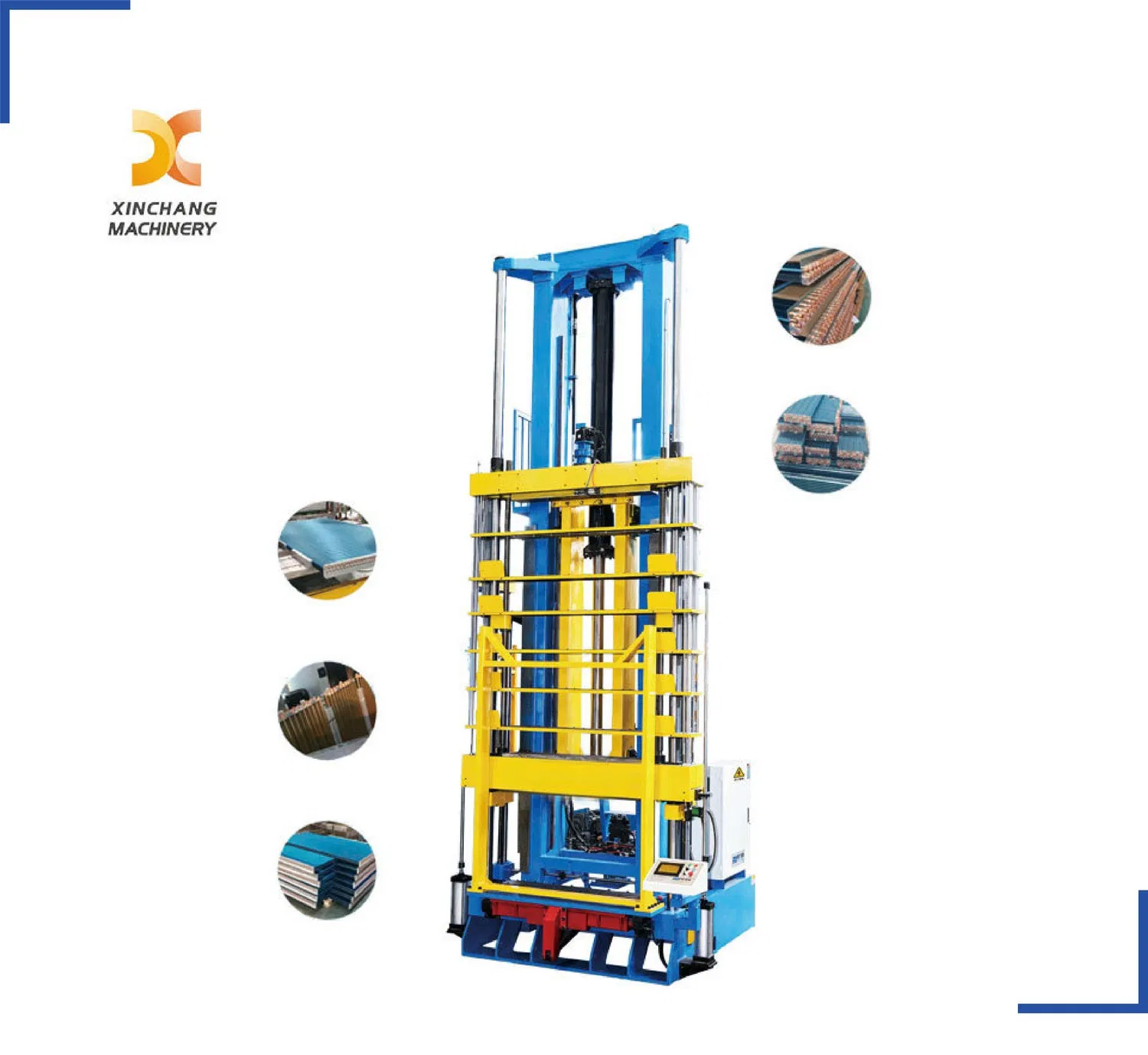

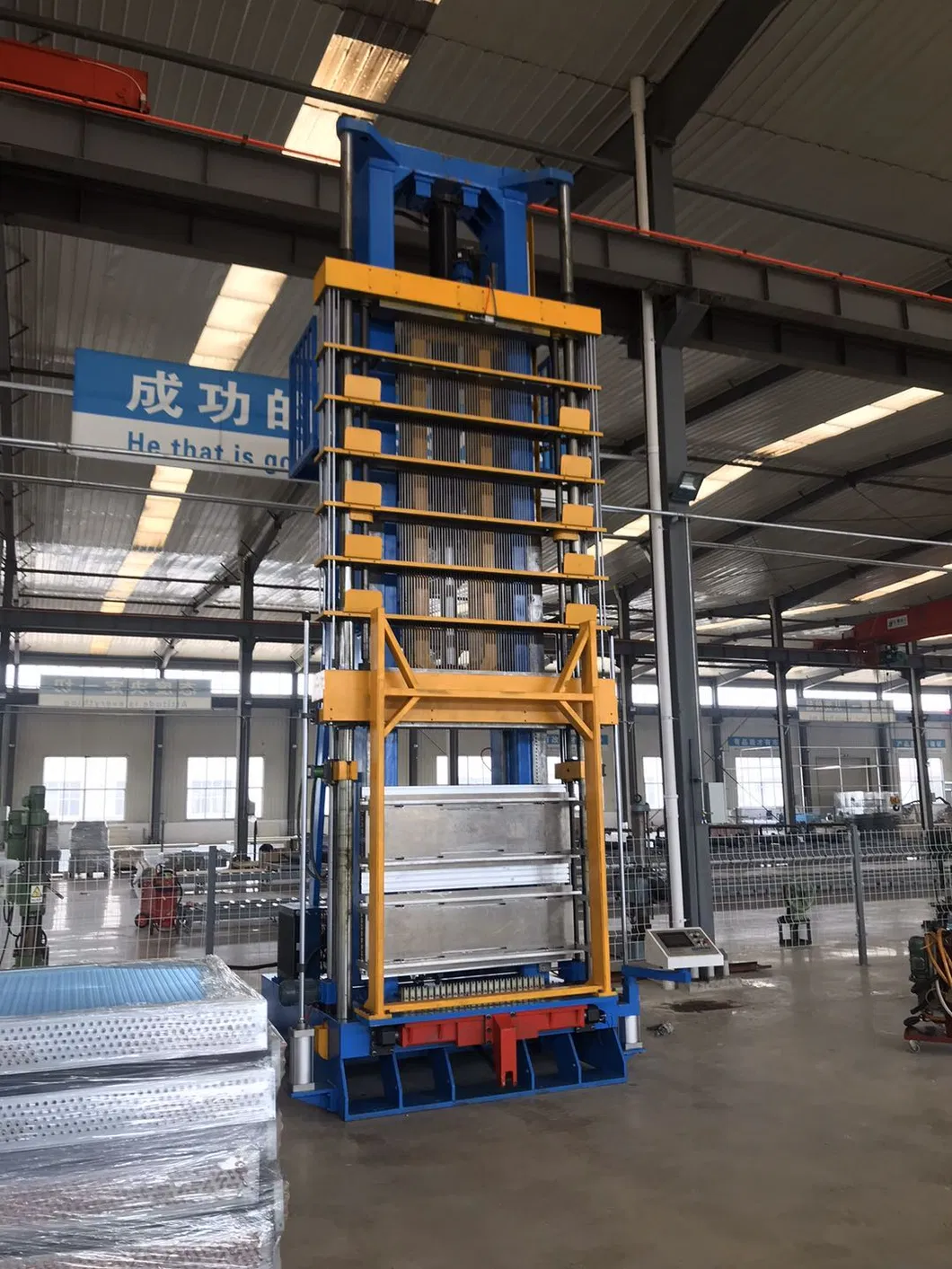

This professional equipment is a high-precision Vertical Tube Expander Machine, also widely known as Heat Exchanger Tube Sheet Expander Machine and Vertical Expander , specially designed and manufactured for the efficient processing of fin heat-exchangers applied in evaporators and condensers. It is a core processing equipment in the heat exchange equipment manufacturing industry, integrating professional mechanical design, stable operation performance and integrated processing technology, aiming to solve the precision processing needs of heat exchanger tube expansion, flaring and flanging, and greatly improve the production efficiency and product quality of fin heat exchangers.

Product Usage & Core Functions

This Vertical Expander is exclusively developed for the expansion processing of various fin heat-exchangers, which are key components of evaporators and condensers in refrigeration, HVAC, industrial cooling and other fields. Unlike traditional scattered processing equipment, this Heat Exchanger Tube Sheet Expander Machine realizes the one-stop integrated processing of three critical processes in a single continuous working cycle, eliminating the need for multiple clamping, secondary positioning and manual transfer of workpieces, effectively reducing processing errors and improving production consistency.

The core working procedures include precise pipe expanding, standardized flaring and neat flanging, all completed efficiently and synchronously within one working cycle of the Vertical Tube Expander Machine. The pipe expanding process ensures tight fitting between the heat exchange tube and the tube sheet, enhancing heat transfer efficiency and structural stability; the flaring process meets the assembly and connection requirements of subsequent pipelines; the flanging process optimizes the end structure of the heat exchange tube, preventing burrs, deformation and damage, and improving the overall sealing performance and service life of the evaporator and condenser.

Application Advantages

- High Adaptability: Specially tailored for fin heat-exchangers of evaporators and condensers, compatible with various specifications of heat exchange tubes and tube sheets, meeting diversified production needs of heat exchange equipment manufacturers.

- Integrated Efficiency: As a versatile Vertical Expander, it combines three processes into one cycle, shortening processing time, reducing labor costs and improving workshop production capacity.

- Precision Processing: The Heat Exchanger Tube Sheet Expander Machine adopts precise mechanical control, ensuring uniform tube expansion, standard flaring and smooth flanging, avoiding tube cracking, loose fitting and other quality defects.

- Stable Vertical Structure: The vertical design of the Vertical Tube Expander Machine ensures stable operation, balanced stress on workpieces, small floor space, and easy operation and maintenance for workers.

In summary, this vertical tube expander is an indispensable professional equipment for the production and processing of heat exchanger evaporators and condensers, providing reliable, efficient and high-precision processing solutions for the manufacturing of high-quality fin heat exchangers.

*Workpiece length: 1600mm , 2000mm , 2500mm , 3000mm etc , the length different , the machine specification will be different

*For the length of workpiece less than 1600mm , machine is with manual door or double rotary worktable

*For the length of workpiece more than 1600mm , machine is with turnover door oblique 84° also with the manual door which is for the workpiece length less than 1200mm

*For the length above 1600mm , the machine design is interal oil cylinder type.
