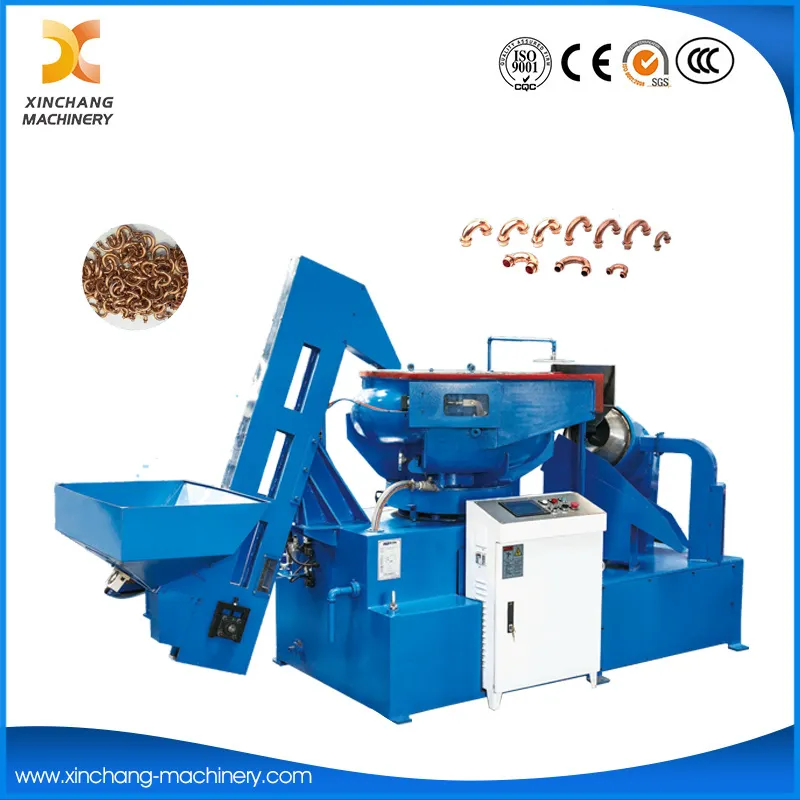

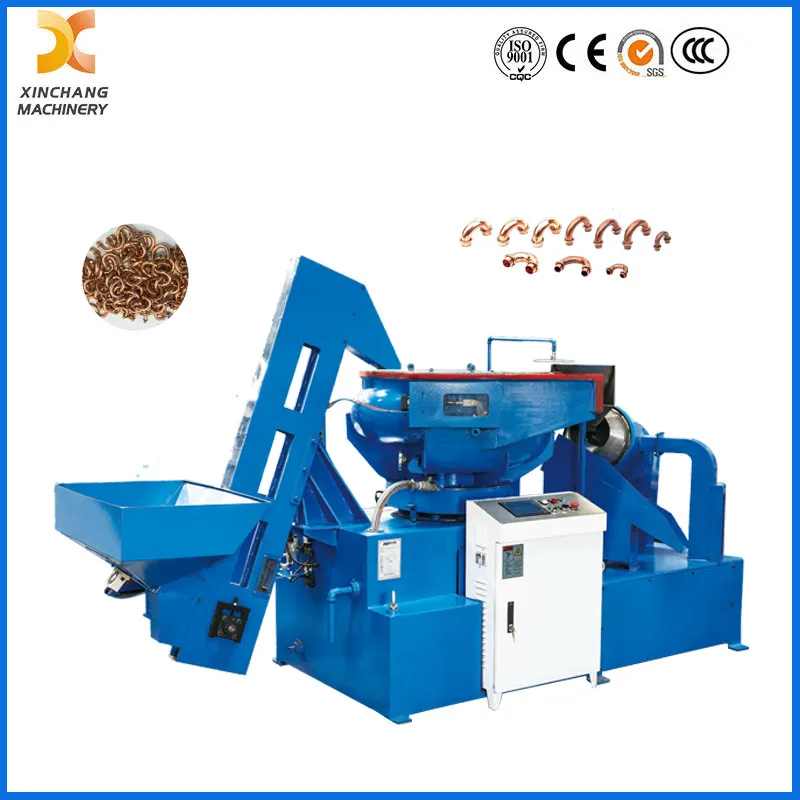

Automatic Small U Return Tube Deburring Cleaning Machine

This machine is a multifunctional integrated processing equipment that integrates spring coiling, roll processing, bending, cutting and punching. It is designed to provide stable and efficient processing support for the production of heat exchanger pipeline components, and can be well connected with the entire production line of return bend forming and post-treatment.

Purpose

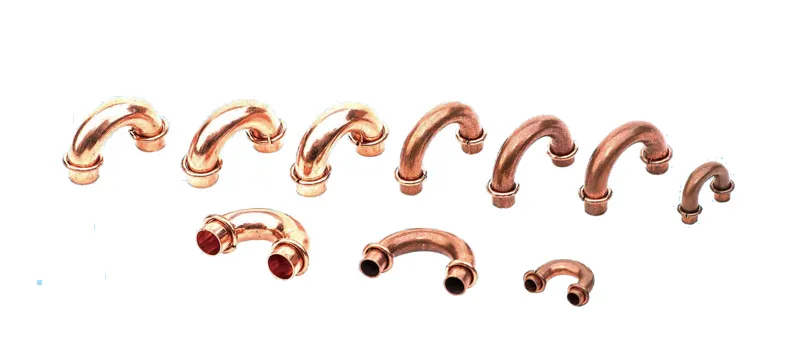

This machine is mainly used for deburring and cleaning small U-shaped pipes for heat exchangers. It can perform refined surface treatment on U pipes and return bends after forming, effectively removing burrs, dirt and residual debris on the pipe surface, so as to ensure the dimensional accuracy and cleanliness of heat exchanger components. In the whole processing flow, it complements the forming function of the Automatic Return Bending Machine and the professional cleaning function of the Return Bend Cleaning Machine, becoming an indispensable part in the production of high-quality return bend parts.

Working Process

The machine adopts fully automatic continuous operation, and the whole process is completed in sequence:Feeding → Deburring and Cleaning → Rinsing → Drying → Discharging

This stable process flow is not only suitable for independent processing of small U pipes, but also can be connected with the Automatic Return Bender to realize the transition from pipe bending to post-treatment. At the same time, its cleaning and drying section can also be used as a supplementary process for the Cleaning Machine For Return Bend, ensuring that each workpiece can achieve ideal surface quality before leaving the line.

Key Advantages

Multifunctional IntegrationCombines spring coiling, bending, cutting, punching and subsequent deburring and cleaning functions, simplifying the production process and reducing workpiece handling between multiple equipment.

Stable Process MatchingCan be seamlessly connected with return bend forming and special cleaning equipment, forming a complete and efficient processing system for heat exchanger pipes.

Fully Automatic OperationThe whole process from feeding to discharging is automatically completed, with stable operation, simple operation and effectively improved production efficiency.

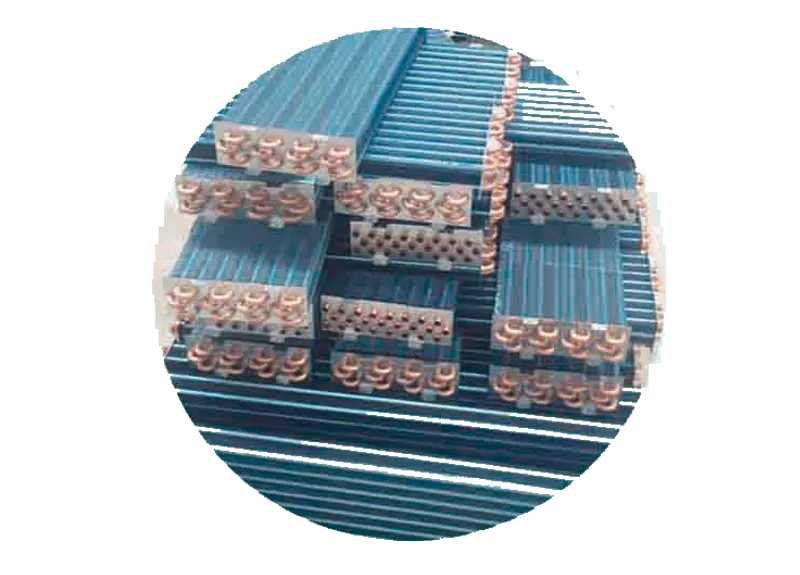

Wide ApplicabilityEspecially suitable for small U pipe processing in heat exchangers, condensers and evaporators, with reliable treatment effect and high product consistency.
