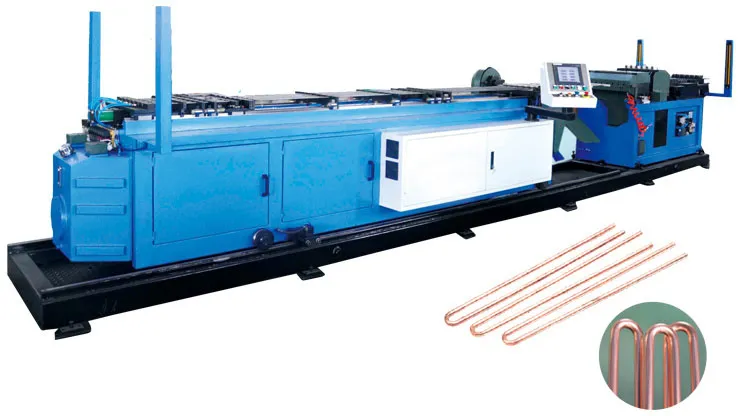

Our Automatic Heat Exchanger Hairpin Tube Bender Machine is a high-efficiency special equipment tailored for the heat exchanger and air conditioning manufacturing industry, integrating multiple processes in one to realize automated U-shaped hairpin tube processing. As a star model of Fully Automatic Hairpin Bending Machine series, it also combines the flexibility of Adjustable Hairpin U-Bend Machine and the stability of Fully Automatic Hairpin Bender, perfectly meeting the batch production needs of copper tube hairpin parts.

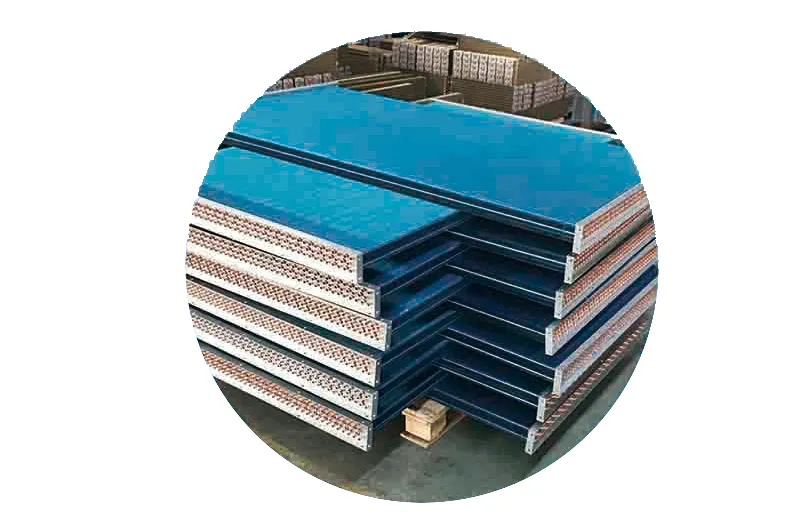

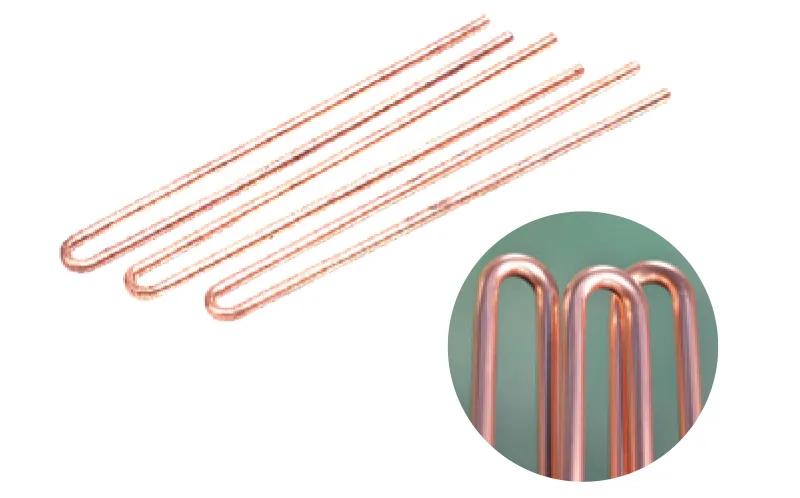

Core Usage & Working Functions This professional Fully Automatic Hairpin Bender is specially designed to handle coiled copper pipes efficiently, realizing fully automated processing of uncoiling, straightening, chipless cutting and precision bending in one go. It can accurately process raw coiled copper pipes into fixed-length U-shaped pipes (commonly known as hairpin pipes), with uniform forming size and smooth pipe surface, no damage to copper tube material, and high molding pass rate. As a versatile Adjustable Hairpin U-Bend Machine, it supports quick adjustment of processing parameters to adapt to different specifications of copper tubes and U-shaped bend sizes, with strong compatibility. This Fully Automatic Hairpin Bending Machine is mainly used for the automated mass production of long U-shaped hairpin tubes, which are core components widely used in air conditioning condensers, evaporators and various heat exchangers, effectively improving the production efficiency and product quality of heat exchanger assemblies.
Application Value Breaking through the inefficiency of traditional manual processing, this equipment realizes full-process automation, reduces labor costs and material loss, and ensures the consistency and stability of hairpin tube products. It is an essential processing equipment for air conditioning manufacturing, heat exchanger production and hardware plumbing processing enterprises, helping enterprises upgrade automated production lines and enhance core competitiveness.
| Pipe No. bending at one time | 1-8 pcs |
| Hairpin pipe length | Min 200-Max 1250 / 1650 / 2150 / 2650 / 3150 / 5000 |
| Bending mode | by servo motors |
| Positioning & unloading mode | by servo motors |
| Stroke setting model | by servo motors |
| Available copper pipe diameter | ∮ 5 - ∮ 16 |
| Bending center | 16-60mm |
| Efficiency (one cycle) | when L≤1,000, t <12sec |
| Length precision | ±0.8mm |
| Flattening rate in thickness of bending part | ≤15% |
