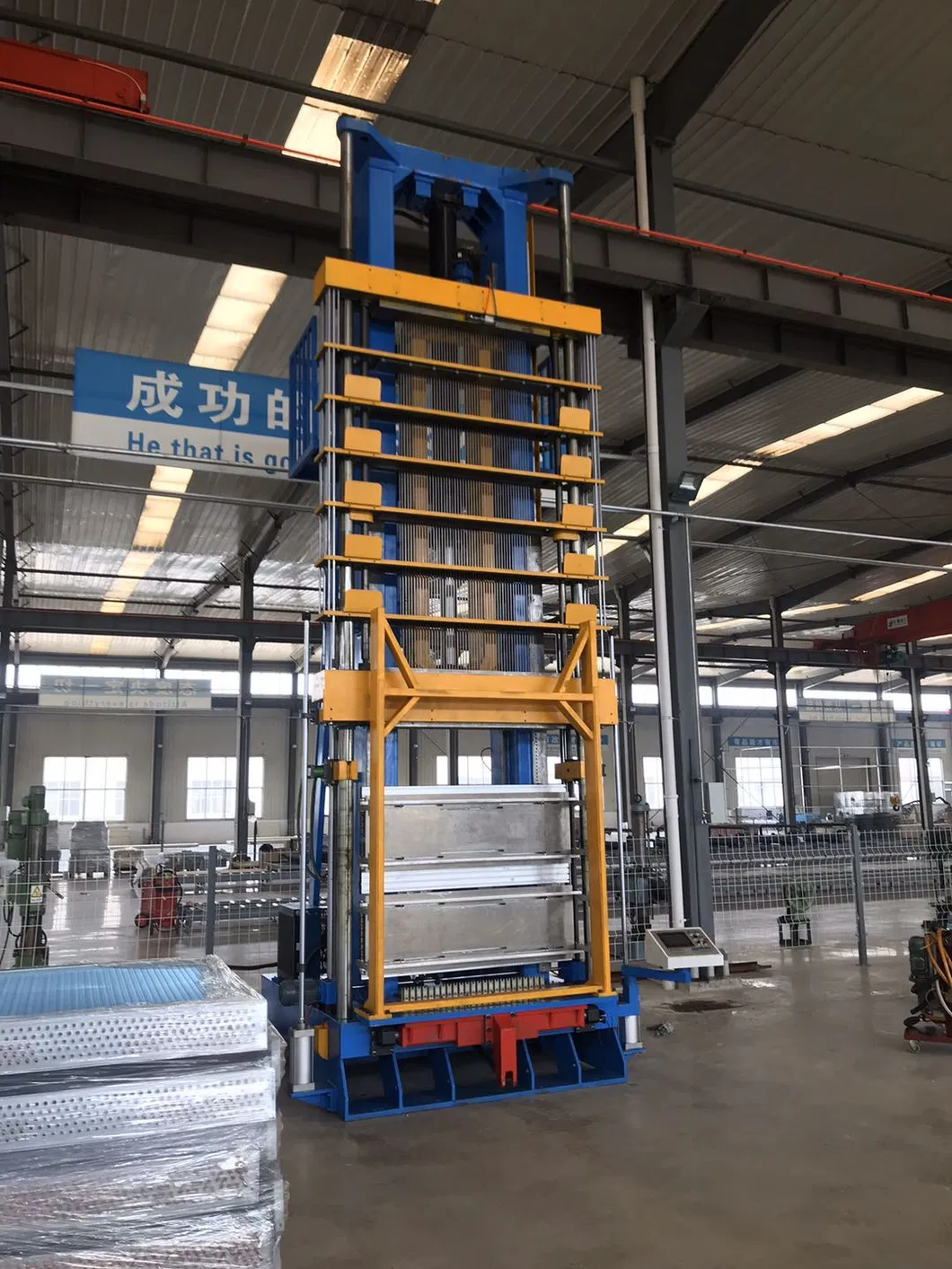

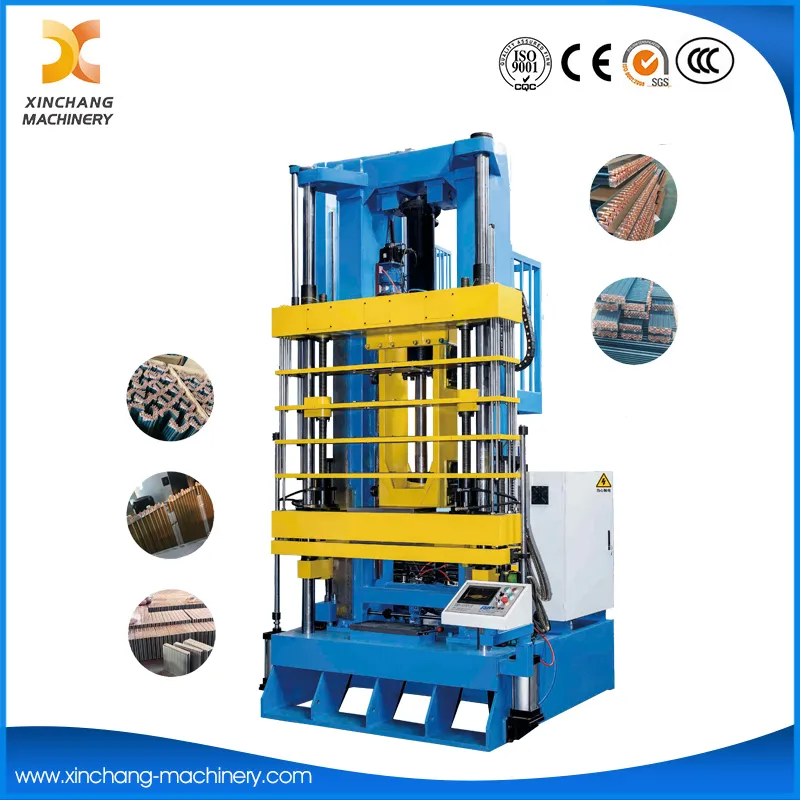

Automatic Hydraulic Heat Exchanger Pipe Tube Expander

This automatic hydraulic vertical heat exchanger pipe tube expander machine is a specialized, high-efficiency processing equipment tailored for the heat exchanger manufacturing industry, also widely referred to as the Heat Exchanger Tube Sheet Expander Machine, Vertical Tube Expander Machine and compact Vertical Expander. Engineered with premium hydraulic components and a rigid vertical frame, it delivers consistent, precision processing for finned heat exchanger assemblies, addressing the core fabrication needs of HVAC, refrigeration, petrochemical, automotive radiator and heat exchange component industries.

Core Usage & Primary Functions

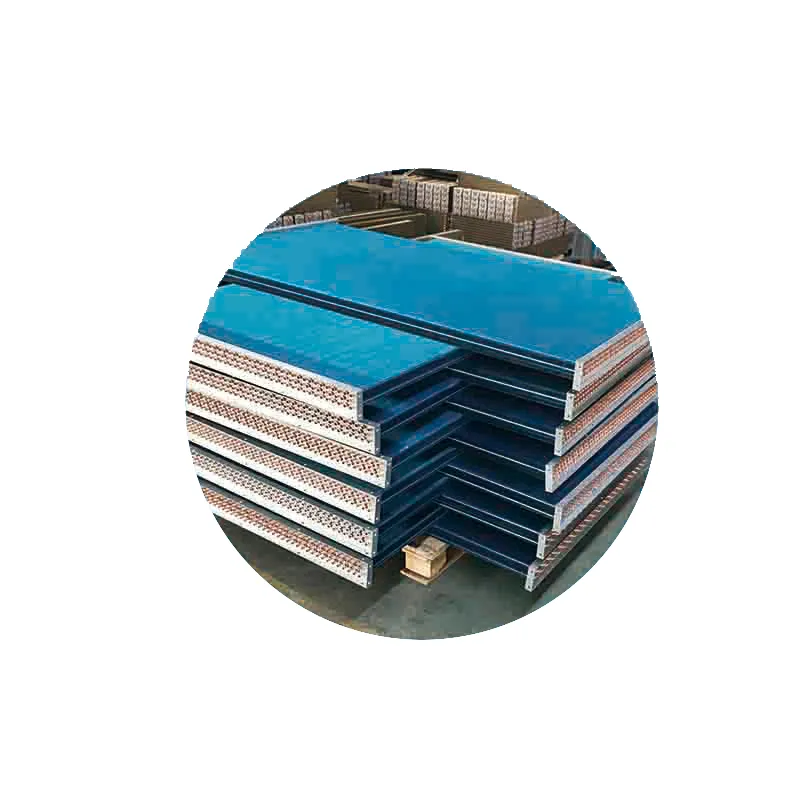

This dedicated expander is exclusively designed for the pipe expansion processing of fin heat exchangers, streamlining critical assembly procedures to boost production efficiency and product quality. Unlike manual or semi-automatic expansion tools, this Vertical Tube Expander Machine integrates multiple sequential processes into a single, uninterrupted working cycle, eliminating repeated clamping, reducing human error and cutting down production lead times.

In one fully automated operation, the machine seamlessly completes three key fabrication steps:

- Pipe Expanding: Precisely expands the heat exchange tube to achieve a tight, gap-free interference fit with the tube sheet and cooling fins, enhancing thermal conductivity, structural stability and pressure resistance of the finished heat exchanger.

- Flaring: Performs standardized tube end flaring to facilitate subsequent welding, pipeline connection and assembly, ensuring firm, leak-proof joints between heat exchange tubes and external circuits.

- Flanging: Executes accurate tube end flanging to shape the tube mouth smoothly, prevent burrs and deformation, and reinforce the tube end structure for prolonged service life.

Key Performance Highlights

As a heavy-duty Heat Exchanger Tube Sheet Expander Machine, this vertical expander leverages hydraulic drive technology to deliver stable, adjustable expansion pressure without impact damage to thin-walled heat exchange tubes. The vertical construction ensures optimal workpiece alignment, uniform stress distribution during expansion, and superior dimensional consistency across every batch of products.

The ergonomic vertical layout of this Vertical Expander saves workshop floor space, simplifies workpiece loading and unloading, and improves operational convenience. With intelligent control settings, operators can preset expansion parameters to match diverse tube materials (copper, aluminum, stainless steel) and specifications, making it a versatile solution for both mass production and customized heat exchanger processing.
