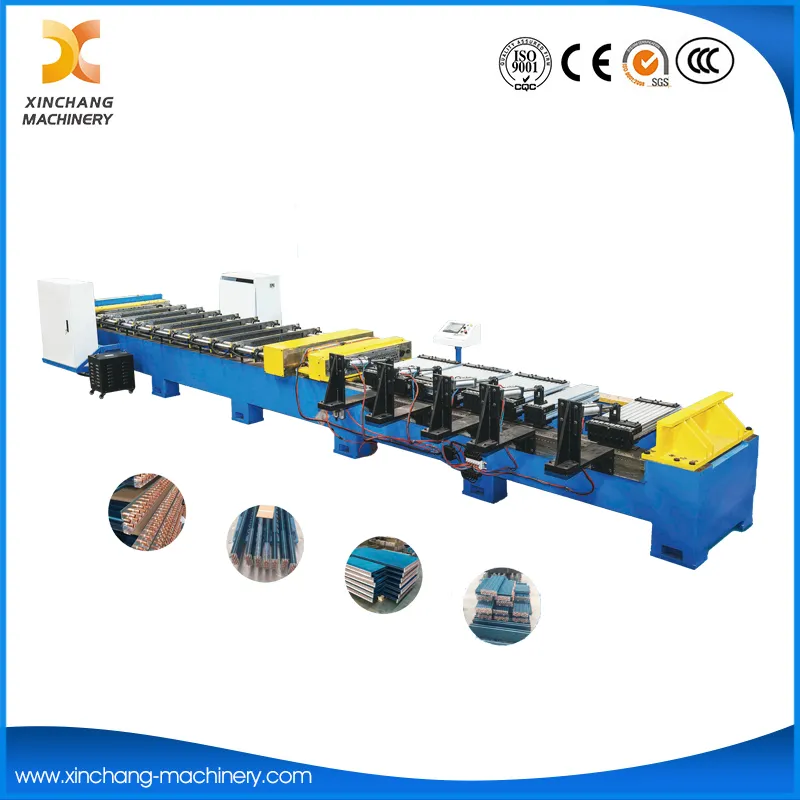

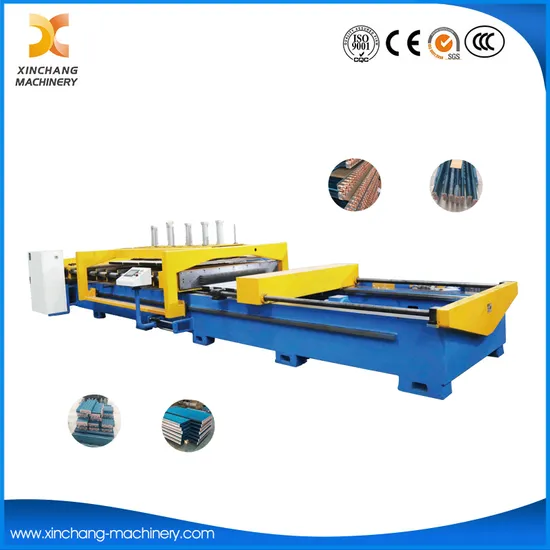

Automatic Heat Exchanger Horizontal Hairpin Expander

The Automatic Heat Exchanger Horizontal Hairpin Expander is a high-precision, fully automated special equipment tailored for the heat exchanger manufacturing industry, also widely known as the Horizontal Tube Expander Machine, Horizontal Expander and Heat Exchanger Tube Sheet Expander Machine. Engineered with industrial-grade design and intelligent control logic, this machine delivers stable, efficient and high-quality tube expansion processing, solving the core assembly challenges of heat exchanger copper tubes and fins, and becoming an indispensable core equipment in refrigeration, HVAC, heat exchange equipment and related manufacturing production lines.

---

Core Usage & Functional Advantages

This professional Horizontal Expander is specially designed to perform precision expansion processing on copper tubes embedded in heat exchangers, relying on high-precision expanding rods to complete the key assembly process. During operation, the expanding rods exert uniform radial pressure on the inner wall of the copper tubes, gradually expanding the tube diameter to achieve a tight, gap-free interference fit between the copper tubes and the heat exchanger fins. This firm bonding structure effectively enhances the heat conduction efficiency of the heat exchanger, reduces thermal resistance, and ensures the long-term stable operation of the entire heat exchange assembly.

Unlike traditional tube expansion equipment, this Heat Exchanger Tube Sheet Expander Machine adopts an innovative dual-end clamping and fixing technology, which is a highlight of the Horizontal Tube Expander Machine. In the entire tube expansion process, both ends of the copper tube are firmly clamped and positioned synchronously, effectively restraining the axial displacement and shrinkage deformation of the copper tube that are prone to occur in conventional expansion operations. This design completely eliminates material waste caused by tube shrinkage, optimizes raw material utilization, reduces production costs for manufacturers, and simultaneously guarantees the dimensional accuracy and consistency of each heat exchanger finished product.

Application Scope

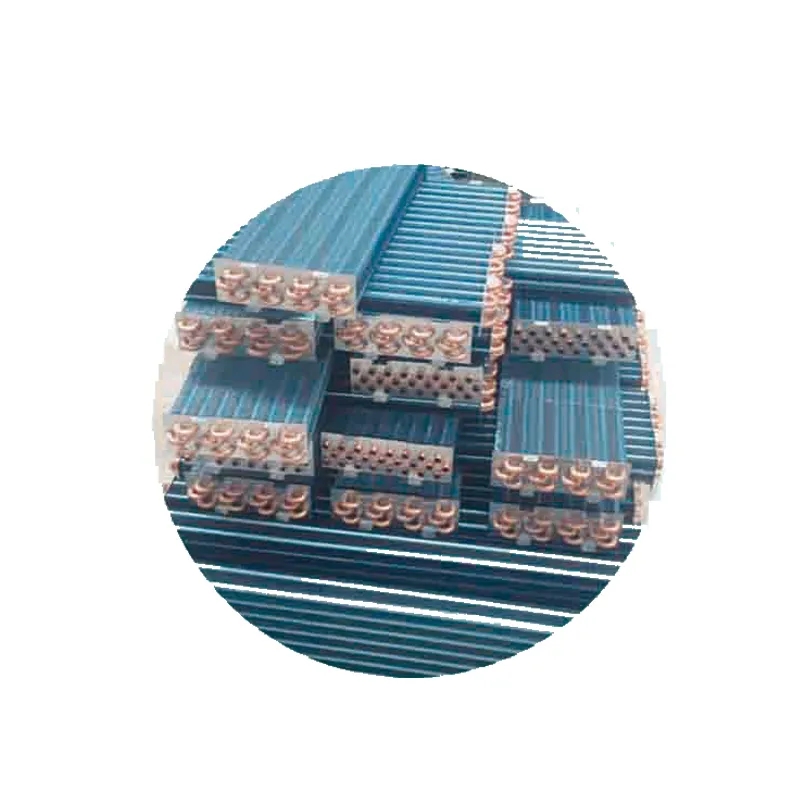

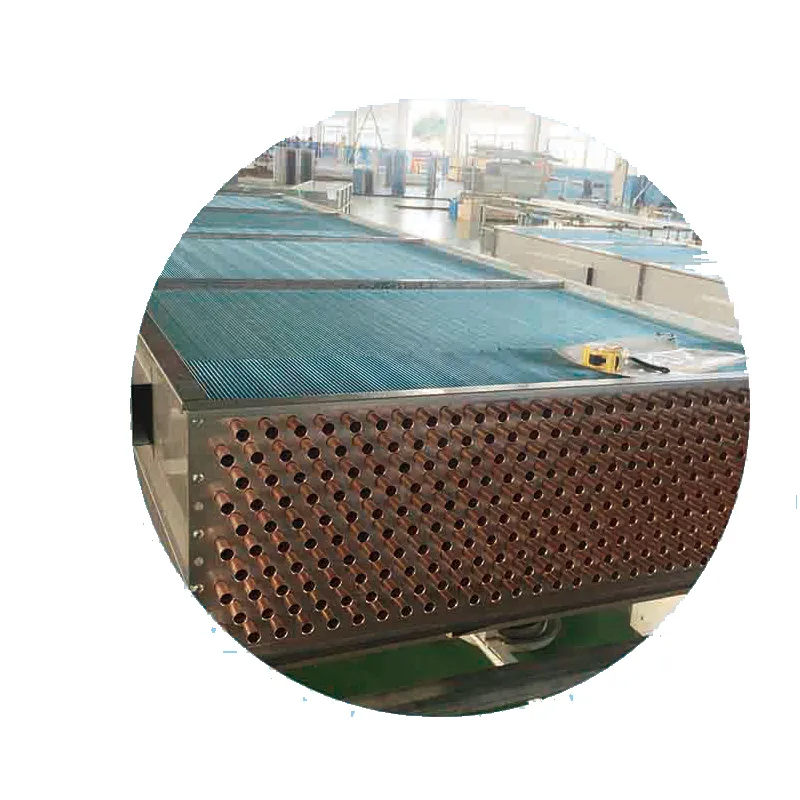

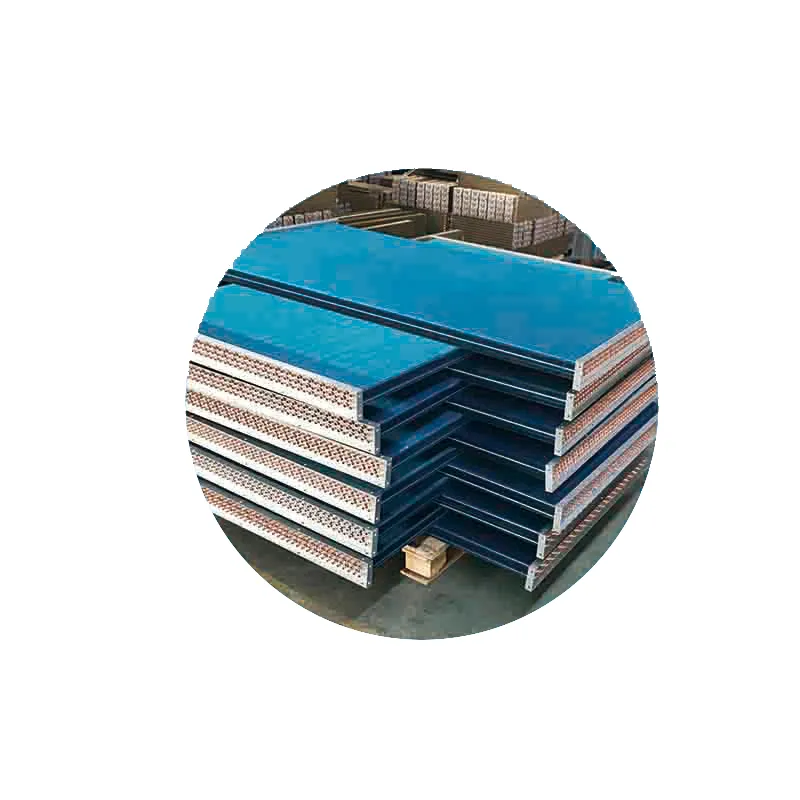

This automatic horizontal hairpin expander is widely applicable to the production and processing of various horizontal heat exchangers, including air conditioning heat exchangers, refrigerator evaporators/condensers, industrial heat exchange equipment, HVAC system heat exchange assemblies and other related products. Whether it is small-scale precision heat exchangers or medium-large industrial heat exchange components, this machine can adapt to different specifications of copper tubes and fin assemblies, meeting diversified production processing needs with stable performance.

Product Highlights

- High Automation: Fully automatic operation mode reduces manual intervention, improves processing efficiency and ensures operational safety.

- Precision Expansion: Uniform expansion force distribution, avoiding tube cracking, deformation or loose fit, improving product qualification rate.

- Material Saving Design: Dual-end fixed clamping technology eliminates copper tube shrinkage, maximizing raw material utilization and cutting production costs.

- Stable & Durable: Heavy-duty frame structure and high-quality components ensure long-term continuous operation, suitable for mass industrial production.

- Versatile Naming Recognition: Integrated with the functional attributes of Horizontal Tube Expander Machine, Horizontal Expander and Heat Exchanger Tube Sheet Expander Machine, it is a multi-purpose professional tube expansion solution.
