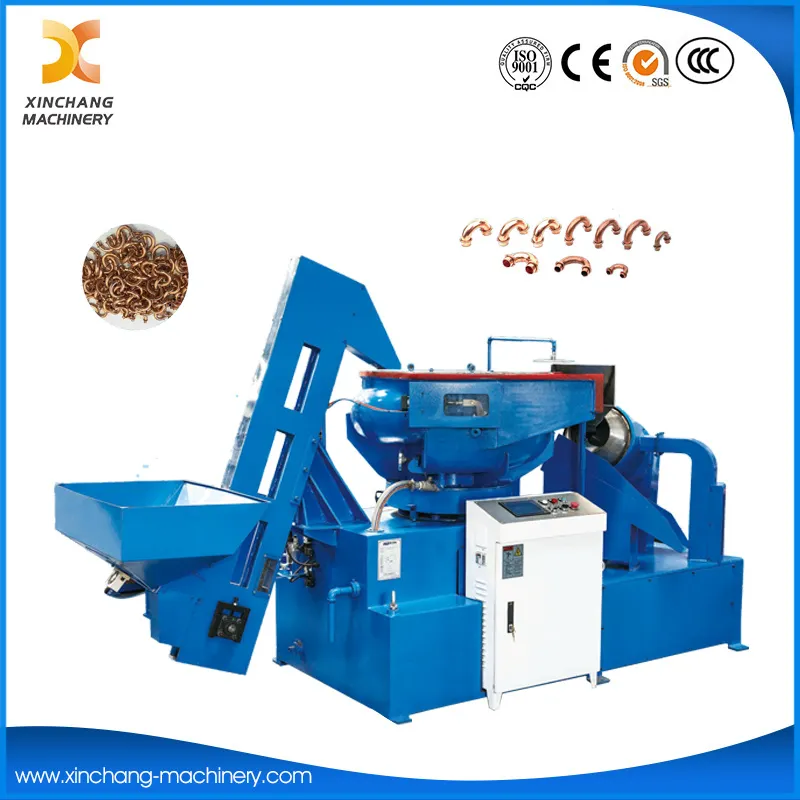

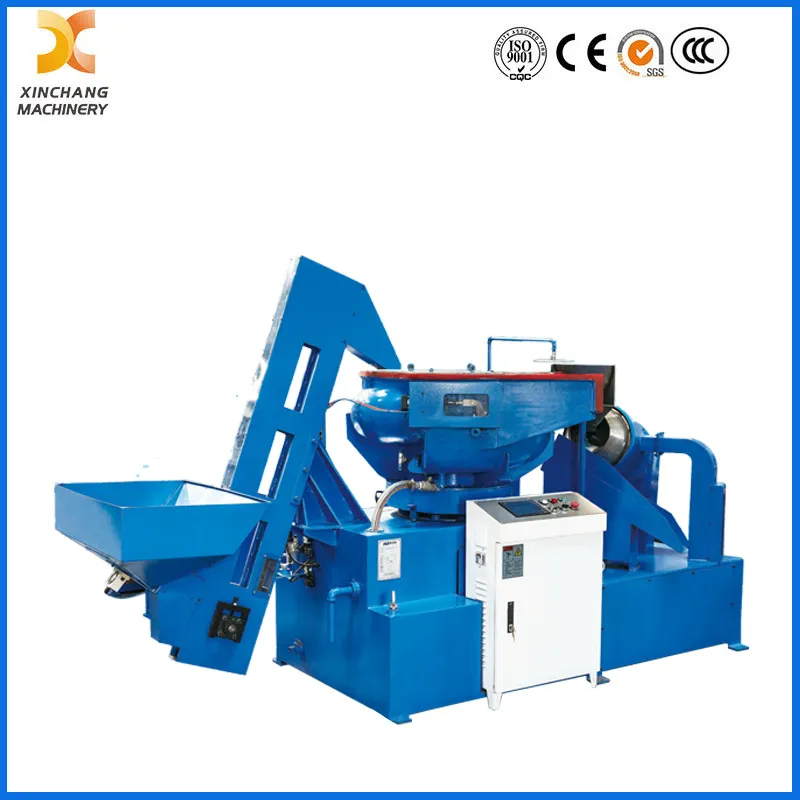

Professional Automatic Tube Return U Bend Cleaning Machine

This machine is a multifunctional integrated processing equipment that integrates spring coiling, roll forming, bending, cutting and punching functions. It is mainly used in the production line of heat exchanger pipeline components, providing stable and efficient processing support for the forming and post-treatment of pipe fittings.

Purpose

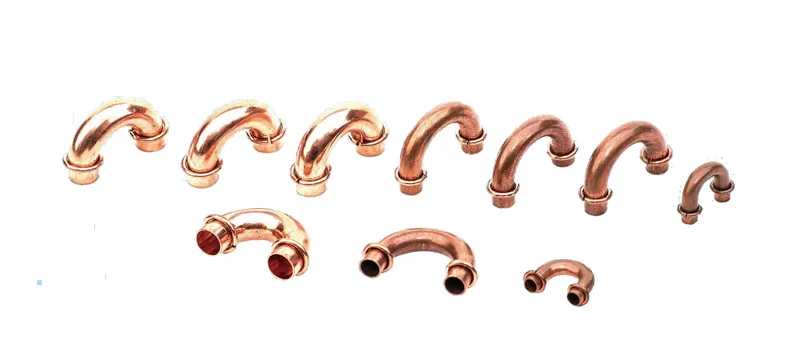

This machine is specially used for deburring and cleaning small U-shaped pipes of heat exchangers. It can effectively remove burrs, oil stains and other impurities on the inner and outer surfaces of pipe fittings, ensuring that U-shaped pipes and return bends meet the assembly and use standards of heat exchangers. In the whole processing flow, it can be used together with the Automatic Return Bending Machine (also known as Automatic Return Bender) to form a coherent production link from pipe bending to surface treatment, and its cleaning effect is equivalent to the professional treatment level of the Return Bend Cleaning Machine and the special Cleaning Machine For Return Bend.

Working Process

The equipment adopts a fully automatic continuous operation mode, and the whole process is completed in sequence:Feeding → Deburring and cleaning → Rinsing → Drying → Discharging

From the input of raw pipes to the output of finished products, the whole process is highly automated. It can be seamlessly connected with the front-end pipe bending process and the rear-end finishing process, which greatly improves the production efficiency of return bend parts and ensures the consistency and stability of product quality.

Advantages

High integration of multiple processes, reducing workpiece handling and improving production efficiency.

Specialized for small U-shaped pipes and return bends, with remarkable deburring and cleaning effects.

Stable operation, simple operation, and can be well matched with automatic return bending and special cleaning equipment.

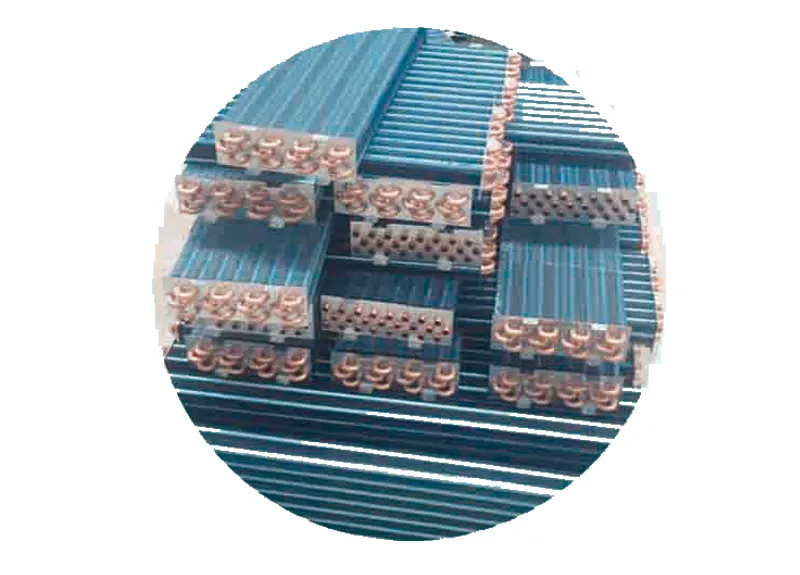

Widely used in heat exchanger manufacturing, suitable for mass and stable production of pipeline components.
