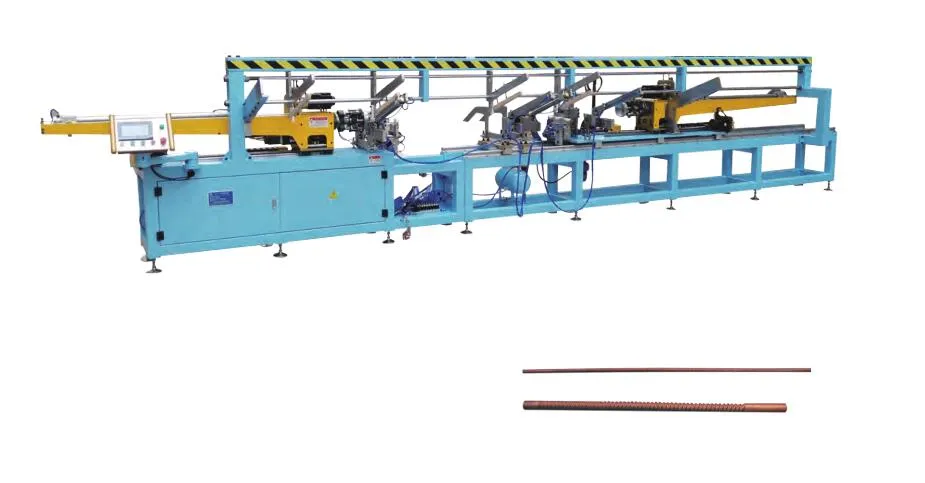

The Industrial Hydraulic Copper Pipe Tube Both End Nut Inserting Flaring Machine is a specialized automated processing equipment, exclusively developed for the precision processing of air conditioning (AC) threaded connecting pipes. As a core device in the AC pipe fitting manufacturing line, it integrates hydraulic transmission, CNC control, and servo drive technology, focusing on solving the pain points of low efficiency, poor consistency, and high labor intensity in traditional manual or semi-automatic pipe processing, providing a reliable, efficient, and high-precision solution for AC component manufacturers.
Designed specifically for AC threaded connecting pipes, the machine is perfectly adapted to the processing requirements of copper pipes used in air conditioning systems—whether it is split AC, central AC, or commercial AC, it can accurately complete the nut inserting and flaring processing of pipe ends, ensuring that the processed pipes meet the strict assembly standards of AC threaded connections. The precision of pipe end processing directly affects the sealing performance and connection stability of AC pipelines, and this specialized machine effectively guarantees the quality of each processed pipe, avoiding refrigerant leakage and improving the overall operational stability of air conditioners.

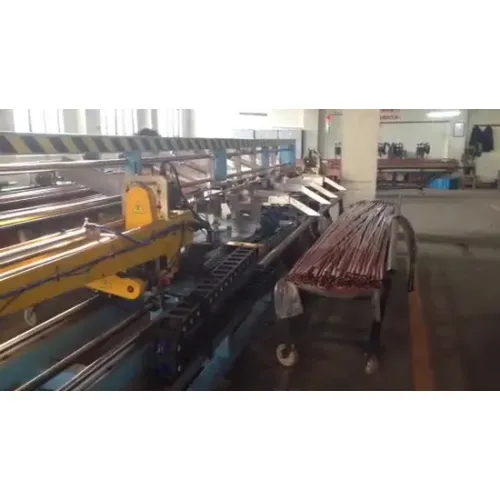

One of the core highlights of the machine is its dual-processing structure: there are two processing units (machine heads) on both sides, which can process both ends of the threaded pipe simultaneously. Compared with traditional single-head machines that process one end at a time, this dual-head synchronous design directly doubles the processing efficiency, greatly shortens the single-piece processing cycle, and is especially suitable for large-batch mass production of AC threaded connecting pipes. The two machine heads work synchronously and uniformly under the control of the system, ensuring that the processing effect of both ends of the pipe is consistent—avoiding the dimensional deviation caused by separate processing of each end, and further improving the product consistency and assembly efficiency of subsequent AC pipeline installation.
Equipped with advanced CNC and Servo control system, the machine realizes full automation of the entire processing process, from automatic feeding to automatic nut inserting, automatic flaring, and automatic blanking. The servo drive system ensures high-precision positioning and smooth operation, with no manual intervention in key processing links, which not only reduces operational errors but also greatly reduces the labor intensity of operators. The high precision of the system enables the processing error of pipe ends to be controlled within a very small range, ensuring that the flaring size, nut inserting position, and thread accuracy meet the design requirements; at the same time, the processed pipe ends have a neat and beautiful appearance, with no burrs, no deformation, and no scratches, reducing the need for subsequent polishing and trimming, and saving processing costs.
The CNC system adopted by the machine is user-friendly, featuring easy programming and simple operation. The intuitive human-machine interface allows operators to easily set processing parameters (such as pipe length, flaring size, nut specification, etc.) and edit processing programs according to different models and specifications of AC threaded connecting pipes. For common pipe specifications, the system can store multiple sets of programs, realizing quick switching between different production tasks, which greatly shortens the production preparation cycle. Even operators with little experience can master the operation skills quickly after simple training, reducing the cost of personnel training and improving the operational efficiency of the production line.
In addition, the machine adopts a high-performance hydraulic transmission system, which provides stable and uniform power for the nut inserting and flaring processes—ensuring that the nut is inserted tightly and firmly, and the flaring is smooth and uniform, avoiding pipe end damage caused by unstable force. The overall structure of the machine is robust and durable, with high-quality core components and a sealed design, which can adapt to the harsh working environment of industrial workshops, ensuring long-term continuous operation, low failure rate, and easy maintenance.
In summary, this Industrial Hydraulic Copper Pipe Tube Both End Nut Inserting Flaring Machine, with its specialized design for AC threaded connecting pipes, dual-head synchronous processing, full CNC servo automation, and easy operation, comprehensively improves the processing efficiency, product quality, and production stability of AC pipe fittings. It helps AC component manufacturers optimize production processes, reduce labor costs, improve product competitiveness, and is an indispensable core equipment in the modern AC threaded connecting pipe manufacturing line.
