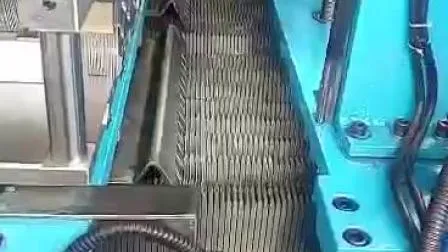

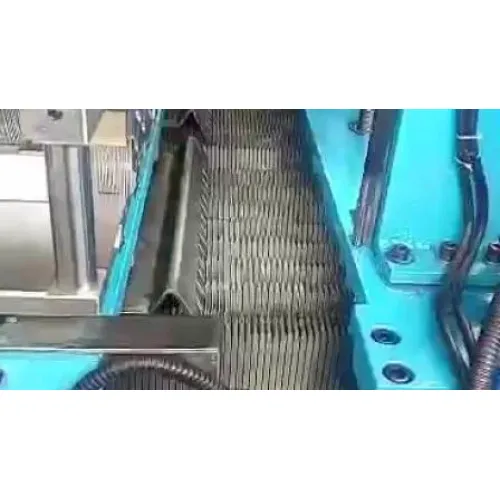

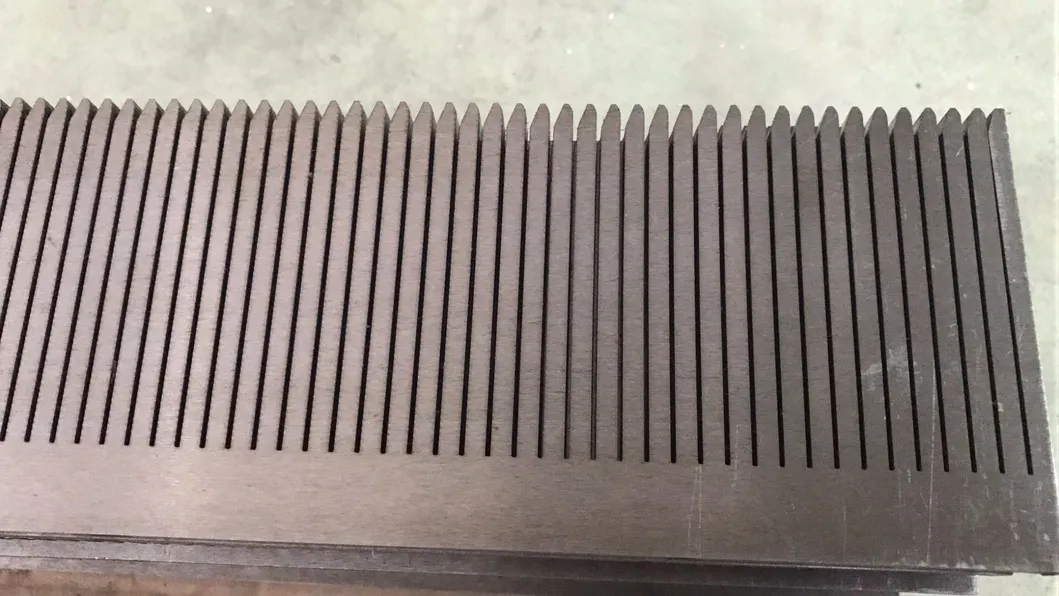

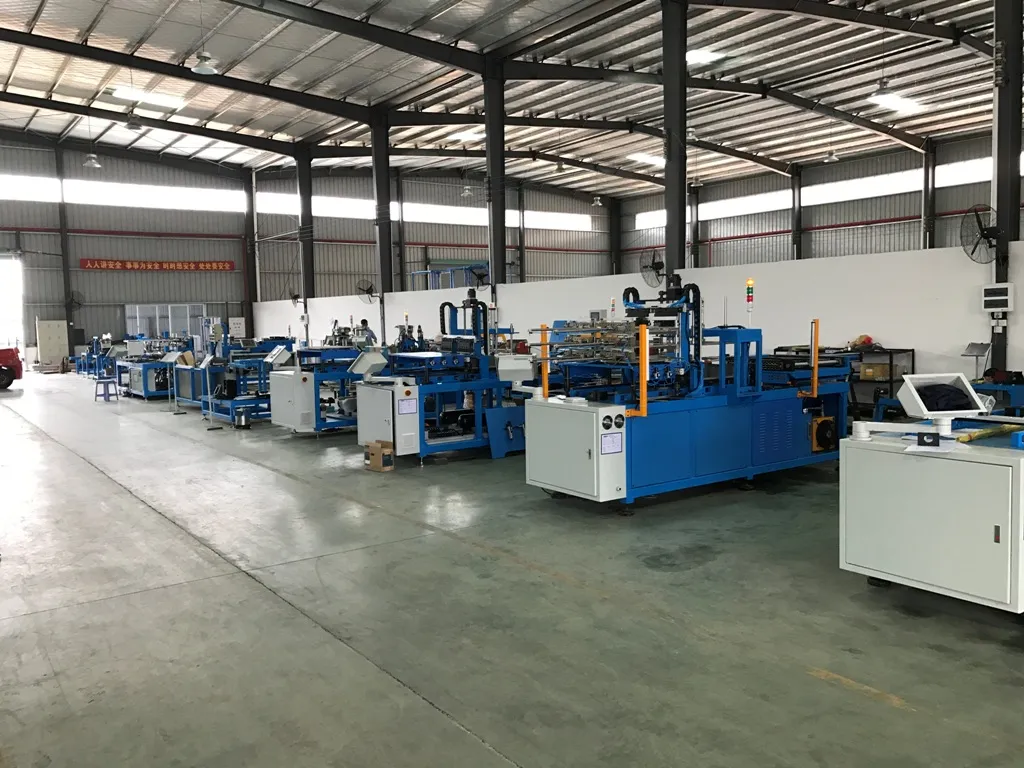

Multiple Size Options Automatic Fins Inserting Exhaust Tube Shrinking Expanding Machine
Application: used for manufacturing exchangers of refrigerators. Operation process: a servo motor and a suction cup select & insert fins automatically; hydraulic punch and make aluminum pipes and the fins fit together closely so as to maximize the efficiency of the exchanger. Main Technical Parameters: | Sheet-punching capacity | 100mm~600 mm |
| Aluminum pipe diameter | Ф8mm |
| Number of exchanger rows | 2 rows (sheet width 50mm, 60mm)/3 rows (sheet width 75mm) |
| Number of holes on each row | 10 |
| Pitch of holes | 38.1 mm |
| Pitch of rows | 22 mm |
| Sheet-punching method | hydraulic sheet-punching |
| Sheet-punching speed | 400MM/S, return stroke 400MM/S |
| Oil pump model | VPVC-F40-A2-02 |
| Oil pump motor | 5HP 4P |
| Control power supply | 24V |
| Hydraulic system pressure | 5~7mpa |
| Air source pressure | 0.5~0.7mpa (in order to ensure steady pressure, the equipment is equipped with independent supercharging system) |
| Operating speed | ≈1-2s/sheet (excluding sheet feeding) |
| Dimensions | 10,000mm(length) ×1,200mm(width) ×1,500mm (height) |
| Total weight | ≈1.5 tons(t) |
| Fins width | 50mm; 60mm; 75mm (can be processed in the same equipment). |
